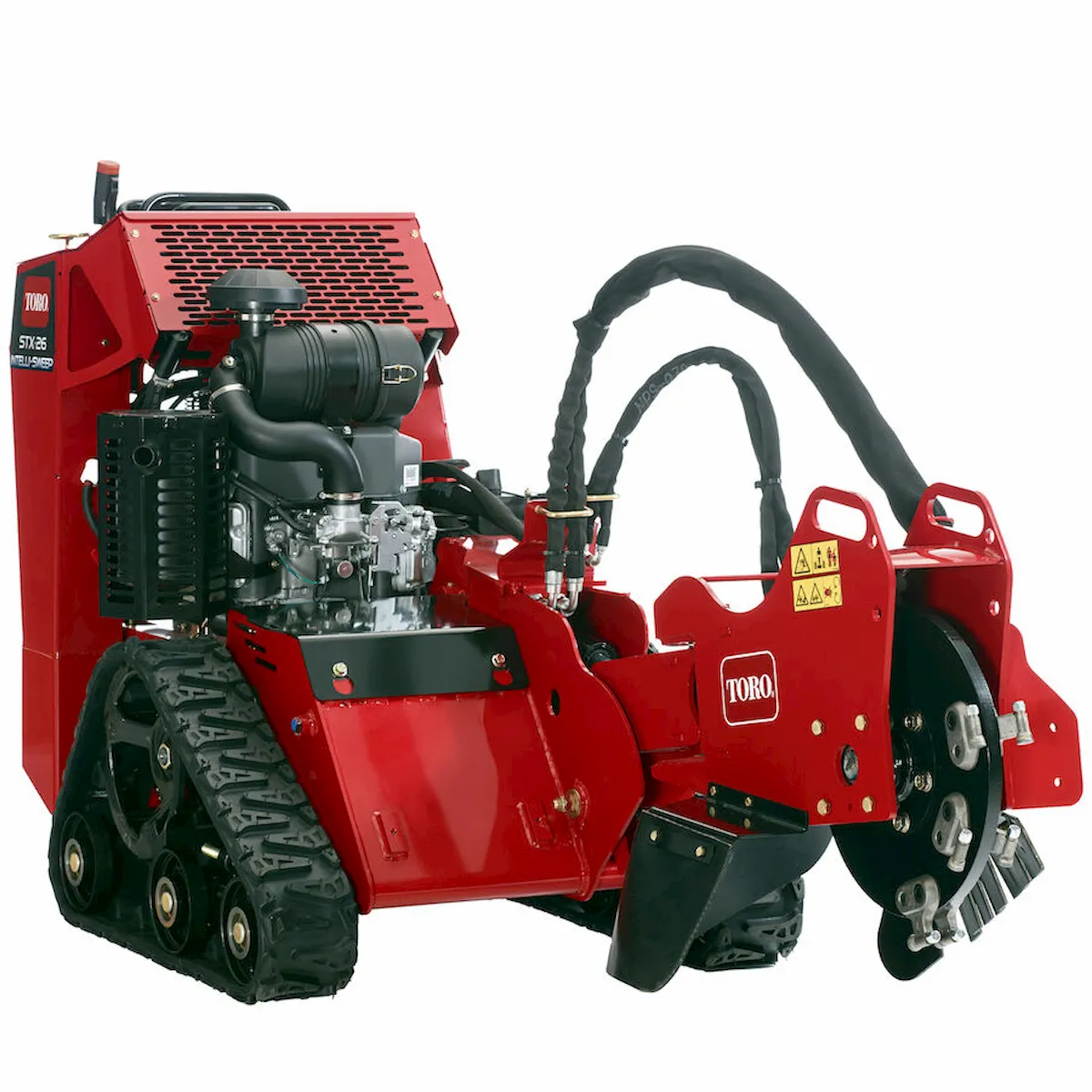

Toro® STX-26 Stump Grinder
Request more information:
The Toro STX-26 Stump Grinder stands out in tree care maintenance, bringing together effortless control and formidable power. Luby Equipment is proud to showcase this exceptional piece of machinery designed to address the most challenging stump removal tasks easily and efficiently.
PDF BROCHURE: Toro STX-26 Stump Grinder
Toro® STX-26 Stump Grinder
The Toro STX-26 Stump Grinder stands out in tree care maintenance, bringing together effortless control and formidable power. Luby Equipment is proud to showcase this exceptional piece of machinery designed to address the most challenging stump removal tasks easily and efficiently.
STX-26 Features
Streamlined Control Meets Serious Power
- The STX-26 features an intuitive, easy-to-operate control system based on Toro’s patented Dingo® TX-style.
- Intelli-Sweep® cutter head control automatically adjusts the sweep speed based on the load, preventing engine bog-down during heavy cutting tasks.
- Powered by a robust Kawasaki® engine and equipped with tracks, the STX-26 boasts transport speeds over 4 mph (6.4 km/h), ensuring quick and agile operation.
Hydraulically Driven Cutter Head
- Delivers 13.5 gpm of hydraulic flow directly to the cutter head, enhancing performance.
- Eliminates the need for adjustments or replacements of poly-chain belts or clutches, reducing maintenance.
- Shields the engine from shock loads, ensuring smoother operation.
Hi-Drive Track System
- Low center of gravity enhances stability on slopes and uneven terrain.
- Durable track design enables zero-turn capability, facilitating access to difficult stumps.
- High forward transport speed and 10 gpm hydraulic flow per track improve traction and performance.
User-Friendly Design
- Patented TX controls offer intuitive operation, minimizing the learning curve.
- The all-hydraulic sweep control valve enables precise side-to-side feathering.
- Offset cutting head provides excellent visibility, improving safety and efficiency.
Kawasaki FX-730V Engine
- Powers through stumps of all sizes with its reliable and potent performance.
- Ensures the STX-26 can easily tackle a wide range of stump grinding tasks.
Innovative Grinder Teeth
- Designed for longevity, teeth can be rotated to extend their life and are easily replaceable.
- Facilitates efficient and effective stump removal, even in harsh conditions.
STX-26 Specs
| Cooling System | Air Cooled |
|---|---|
| Cutter Depth Below Grade (inches) | 12.5 |
| Cutter Height Above Grade (cm) | 83.8 |
| Cutter Height Above Grade (inches) | 33 |
| Engine Make | Kawasaki |
| Engine Model | FX-730V Twin Cylinder |
| Fuel Type | Gasoline |
| Ground Speed Forward (km/h) | 6.7 |
| Ground Speed Forward (mph) | 4.2 |
| Ground Speed Reverse (km/h) | 2.5 |
| Ground Speed Reverse (mph) | 1.6 |
| Head Swing Arc Length (cm) | 119.3 |
| Head Swing Arc Length (inches) | 47 |
| Head Swing Sweep Arc (cm) | 119.3 |
| Head Swing Sweep Arc (inches) | 47 |
| Hydraulic Flow Traction | 13.5 gpm hydraulic flow to cutter head; 10 gpm of hydraulic flow to each track |
| Overall Height (cm) | 116.8 |
| Overall Height (inches) | 46 |
| Overall Length (cm) | 198.1 |
| Overall Length (inches) | 78 |
| Overall Width (cm) | 86.3 |
| Overall Width (inches) | 34 |
| Weight (kg) | 544.3 |
| Weight (lbs) | 1200 |
| Wheelbase (cm) | 48.2 |
| Wheelbase (inches) | 19 |
STX-26 Dimensions
| Feature | Specification |
|---|---|
| Overall Dimensions with 24″ Boom Up & Chain (WxLxH) | 33.8″ x 82.5″ x 46″ (98.5 cm x 209.5 cm x 116.8 cm) |
| Wheelbase | 23″ (58.4 cm) |
| Weight | 1,114 lbs (505.3 kg) |
| Boom Depths | 24″, 36″, and 48″ (60.9 cm, 91.4 cm, and 121.9 cm) |
| Boom Widths | 4″, 6″ (10.1 cm and 15.2 cm) |
