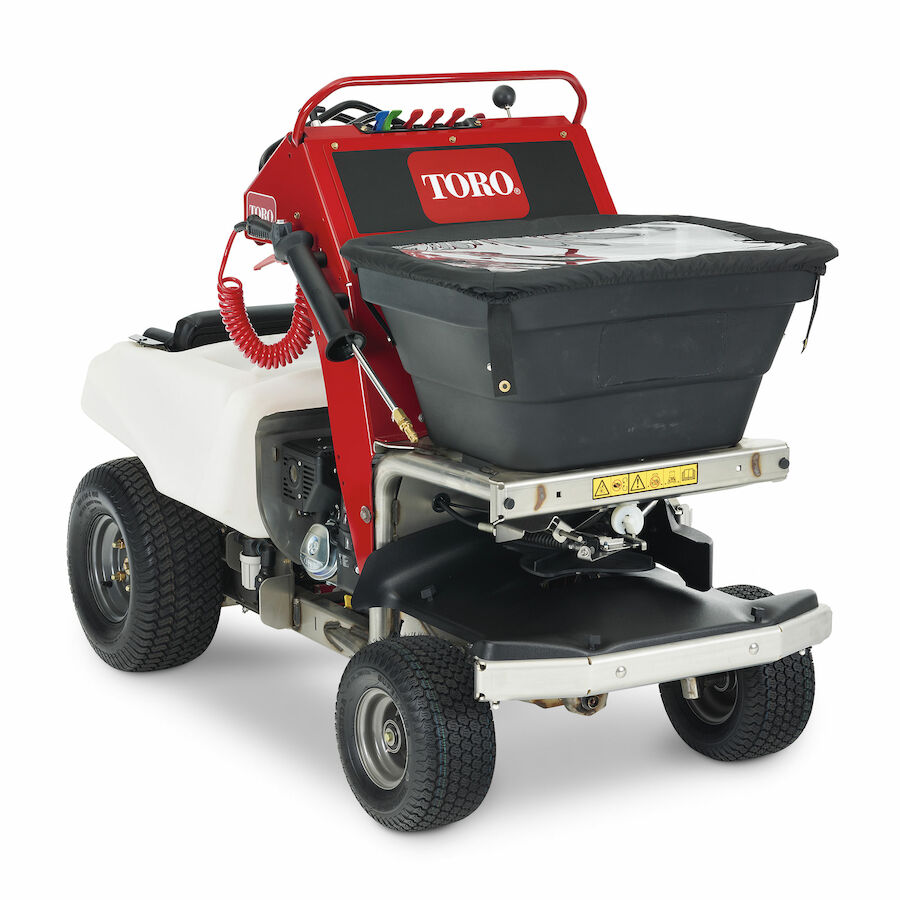

Toro® Stand-On Spray Master Lean-to-Steer
Request more information:
The Toro® Stand-On Spray Master Lean-to-Steer is the ultimate tool for efficient turf treatment. This innovative spreader sprayer is a game-changer in the industry, featuring the groundbreaking Lean To Steer technology. This allows operators to control the machine’s direction and speed with one hand, freeing the other to adjust spreader or sprayer settings on the intuitive control panel.
SELL SHEET: 2021-spraymaster-stand-on-sprayer-sell-sheet-v2
Toro® Stand-On Spray Master Lean-to-Steer
The Toro® Stand-On Spray Master Lean-to-Steer is the ultimate tool for efficient turf treatment. This innovative spreader sprayer is a game-changer in the industry, featuring the groundbreaking Lean To Steer technology. This allows operators to control the machine’s direction and speed with one hand, freeing the other to adjust spreader or sprayer settings on the intuitive control panel.
Stand-On Spray Master Features
Lean to Steer Technology: This advanced feature simplifies navigation, enabling one-handed operation for both forward/reverse and left/right steering, allowing quick adjustments while in motion.
Large Capacity: The machine boasts a substantial 20-gallon spray tank and a 175 lb. hopper capacity, complemented by a 1.85-gallon fuel tank. These features are designed to maximize productivity by reducing the need for frequent refills.
Easy-to-Operate Controls: The control panel is easy to use, and operators can conveniently adjust spread and spray settings. The updated digital controls offer more precise applications, enhancing the effectiveness of every job.
Compact Design: Its compact size ensures exceptional maneuverability in tight spaces, including passing through 36” gates with ease, making it possible to spray and spread in any area, no matter how constrained.
Operator Comfort: The large stainless steel platform, isolation mounts, and ergonomic padded knee bolster focus on operator comfort, contributing to a more comfortable ride and reduced fatigue during long jobs.
Hand-held Spray Wand: A standard hand-held spray wand allows for targeted spot spraying, guaranteeing comprehensive coverage across even the most challenging areas.
Spray Tank Agitation System: Two agitation nozzles, controllable from the operator panel, are included in the spray tank to promote even distribution and minimize clogging by keeping material circulating.
Horizon360® Business Management Software: Simplify business management with Horizon360®, a comprehensive software designed to optimize efficiency and profitability. Its intuitive interface requires basic computer skills to streamline the management of your landscaping business.
With forward speeds of up to 5.5 mph, the Toro® Stand-On Spray Master Lean-to-Steer promises reduced refill times and ensures more ground is covered efficiently, making it an indispensable asset for serious turf management professionals.
Stand-On Spray Master Specs
Specification | Detail |
---|---|
Deflector Shield | Molded Plastic |
Engine | Kohler 9.5 hp CH395 277cc |
Engine Brand | Kohler |
Engine Displacement (cc) | 277 cc |
Engine Horsepower | 9.5 hp |
Engine Orientation | Horizontal |
Fertilizer Capacity | 225 lbs |
Fuel Capacity | 1.85 gal. / 7.0 L / 7.4 Qt. |
Fuel Type | Gasoline |
Ground Speed | Up to 5.5 mph / 8.8 kph |
Hopper Capacity | 175 lbs |
Pump Capacity | 5 GPM |
Spinner Motor | Electric |
Spot Spray Hose | 15 ft Coil Hose |
Spray Capacity (gallons) | 20 |
Spray Wand | Standard, hand-held spray wand for spot spraying |
Start Type | Electric |
Transmission | Hydrostatic |
Stand-On Spray Master Dimensions
Specification | Detail |
---|---|
Spray Width | 4 ft or 10 ft / 1.2 m or 3.0 m |
Spreader Hopper Capacity (lbs) | 175 |
Spreading Width | Adjustable from 4 ft to 22 ft / 1.2 m to 6.7 m |
