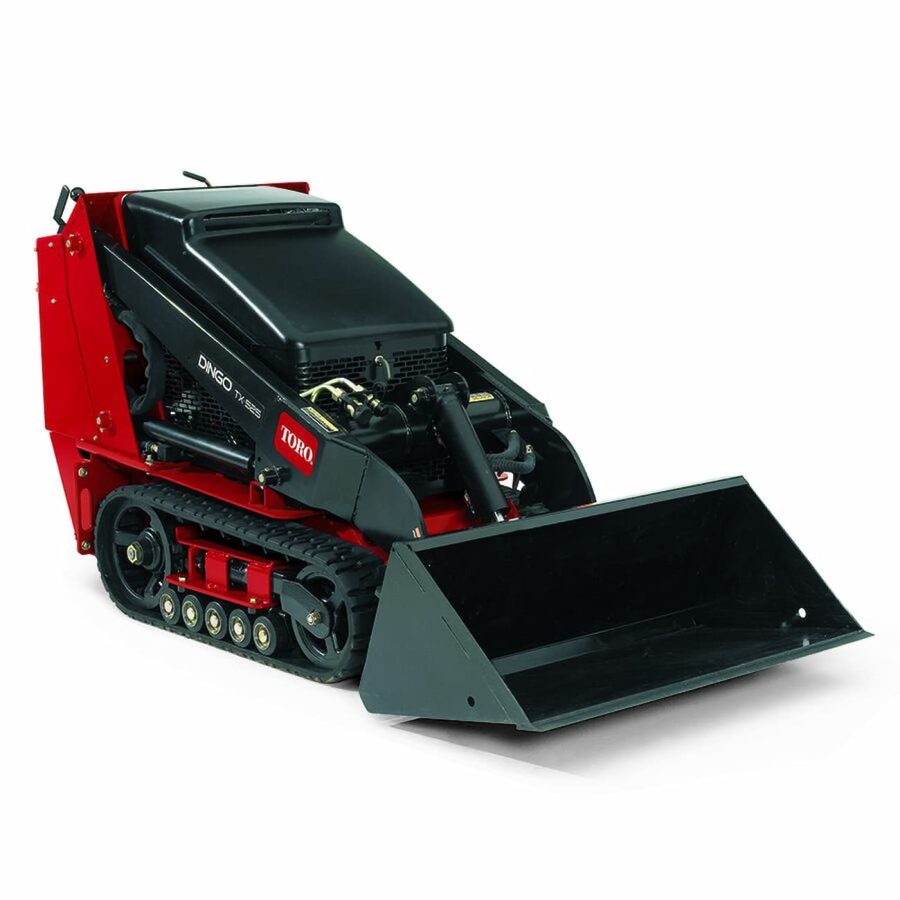

Toro® Dingo® TX 525 Track Loader, Narrow
Request more information:
The Toro® Dingo® TX 525 Narrow Track Loader stands at the pinnacle of compact utility loaders, embodying the perfect blend of durability, reliability, power, and versatility.
PDF BROCHURE: 623_fe6baff2-1222-41e5-ad1d-c1016241f64a
SELL SHEET: 623_c2106769-48d0-417a-8076-3066f0e14b1f
Toro® Dingo® TX 525 Track Loader, Narrow
The Toro Dingo® TX 525 Narrow Track Loader sets the standard for compact utility loaders with its unparalleled blend of durability, reliability, power, and versatility. Trusted by professionals and DIY enthusiasts alike, the TX 525 model excels in providing a solution that can swiftly and efficiently adapt to various tasks. The ability for operators to walk up to the machine and commence operation makes it an invaluable asset for projects requiring frequent task changes or obstacle navigation.
TX 525, Narrow Features
Features That Make the Difference
- Low-Impact Footprint: The TX 525 is designed with long-lasting, Kevlar® reinforced tracks that distribute weight evenly. This ensures a minimal impact on turf and superior traction across various ground conditions, including sandy or wet surfaces.
- High-Performance Hydraulics: A four-pump hydraulic system delivers targeted power to the loader, bucket, traction, and auxiliary drives simultaneously, enhancing operator efficiency and machine responsiveness.
- Exclusive TX Controls: Simplified controls are engineered for easy use and fast operation. Operators can curl, dump, or float the bucket while adjusting the loader arms with a single hand via the joystick. The one-handed traction drive offers effortless control from any angle, and the auxiliary circuit control lever activates attachments instantly, ensuring tasks are completed without delay.
Advantages of Every Project
The Dingo® TX 525’s compact size, combined with its robust capabilities, makes it the perfect choice for various projects, including but not limited to landscaping, construction, and maintenance. Its ability to smoothly navigate over rough terrain without transmitting the impact to the operator dramatically increases productivity and comfort on the job site.
A Commitment to Excellence
At Luby Equipment, we stand behind every piece of equipment we offer, ensuring that our customers receive the highest quality machines and comprehensive support and service. The Dingo® TX 525 Track Loader, Narrow, exemplifies our commitment to delivering solutions that meet the rigorous demands of modern construction and landscaping projects.
TX 525, Narrow Specs
| Air Filter | Two-stage, heavy-duty, remote |
|---|---|
| Cooling System | Liquid Cooled |
| Displacement (cc) | 901 |
| Displacement (cu. in.) | 55 |
| Dump Angle | 38 degrees |
| Dump Height (cm) | 117.1 |
| Dump Height (inches) | 46.1 |
| Engine Make | Kubota |
| Engine Model | D902E3B |
| Fuel Tank (gallons) | 6 |
| Fuel Tank (liters) | 23 |
| Fuel Type | Diesel |
| Ground Clearance (cm) | 11.6 |
| Ground Clearance (inches) | 4.6 |
| Ground Pressure | 5.2 psi |
| Ground Speed Forward (mph) | 4.5 |
| Ground Speed Foward (km/h) | 7.2 |
| Ground Speed Reverse (km/h) | 3.2 |
| Ground Speed Reverse (mph) | 2 |
| Hinge Pin Height (cm) | 167.1 |
| Hinge Pin Height (inches) | 65.8 |
| Hydraulic Flow | 16.9 gpm (each pump) |
| Hydraulic Flow Auxilary | 13.8 gpm |
| Hydraulic Pressure | 3000 PSI |
| Loader Arms | Radial |
| Manufacturer’s Gross HP Rating (HP) | 24.8 |
| Manufacturer’s Gross HP Rating (kW) | 18.5 |
| Max Operating Height (cm) | 228.8 |
| Max Operating Height (inches) | 90.1 |
| Oil Capacity (liters) | 3.63 |
| Oil Capacity (quarts) | 3.84 |
| Overall Height w/bucket (cm) | 117 |
| Overall Height w/bucket (inches) | 46.1 |
| Overall Height w/o bucket (cm) | 117 |
| Overall Height w/o bucket (inches) | 46.1 |
| Overall Length w/bucket (cm) | 233.6 |
| Overall Length w/bucket (inches) | 92 |
| Overall Length w/o bucket (cm) | 179.5 |
| Overall Length w/o bucket (inches) | 70.7 |
| Overall Width w/bucket (cm) | 86.5 |
| Overall Width w/bucket (inches) | 33.7 |
| Overall Width w/o bucket (cm) | 86.5 |
| Overall Width w/o bucket (inches) | 33.7 |
| Rated Operating Capacity* (kg) | 250 |
| Rated Operating Capacity* (lbs) | 553 |
| Reach – Fully Raised (cm) | 55.3 |
| Reach – Fully Raised (inches) | 21.8 |
| Reservoir Capacity (gallons) | 10 |
| Reservoir Capacity (liters) | 37.8 |
| RPM | 3400 |
| Tip Capacity (kg) | 716 |
| Tip Capacity (lbs) | 1580 |
| Track Length (inches) | 96.6 |
| Track Length(cm) | 245.3 |
| Track Width (cm) | 14.9 |
| Track Width (inches) | 5.9 |
| Tracks | Sprocket-drive, 10 road wheels per side |
| Traction | Dual Hydrostatic Pump |
| Weight (kg) | 863 |
| Weight (lbs) | 1904 |
| Wheelbase (inches) | 31.2 |
TX 525, Narrow Dimensions
| Dimensions | Value 1 | Value 2 |
|---|---|---|
| Track Dimensions | 96.6″ x 5.9″ (245.3 cm x 14.9 cm) | 96.6″ x 9.5″ (245.3 cm x 24.1 cm) |
| Wheelbase | 31.2″ (79.2 cm) | |
| Ground Clearance | 4.6″ (11.6 cm) | |
| Overall Dimensions With Bucket (WxLxH) | 33.7″ x 92″ x 46.1″ (86.5 x 233.6 x 117.0 cm) | 41″ x 92″ x 46.1″ (104.1 x 233.6 x 117.0 cm) |
| Overall Dimensions Without Bucket (WxLxH) | 33.7″ x 70.7″ x 46.1″ (86.5 x 179.5 x 117.0 cm) | 41″ x 70.7″ x 46.1″ (104.1 x 179.5 x 117.0 cm) |
| Maximum Operating Height | 90.1″ (228.8 cm) | |
| Hinge Pin Height | 65.8″ (167.1 cm) | |
| Dump Height | 46.1″ (117.0 cm) | |
| Dump Angle | 38 degrees | |
| Reach – Fully Raised | 21.8″ (55.3 cm) | |
| Ground Speed | Fwd: 0–4.5 mph (0–7.2 km/h) | Rev: 0–2.0 mph (0–3.2 km/h) |
| Weight | 1,904 lbs (863.6 kg) | 2,013 lbs (913.0 kg) |
| Tip Capacity | 1,580 lbs (716.6 kg) | 1,530 lbs (693.9 kg) |
| Rated Operating Capacity (35% of Tip Capacity)* | 553 lbs (250.8 kg) | |
| Ground Pressure | 5.2 PSI | 3.4 PSI |
