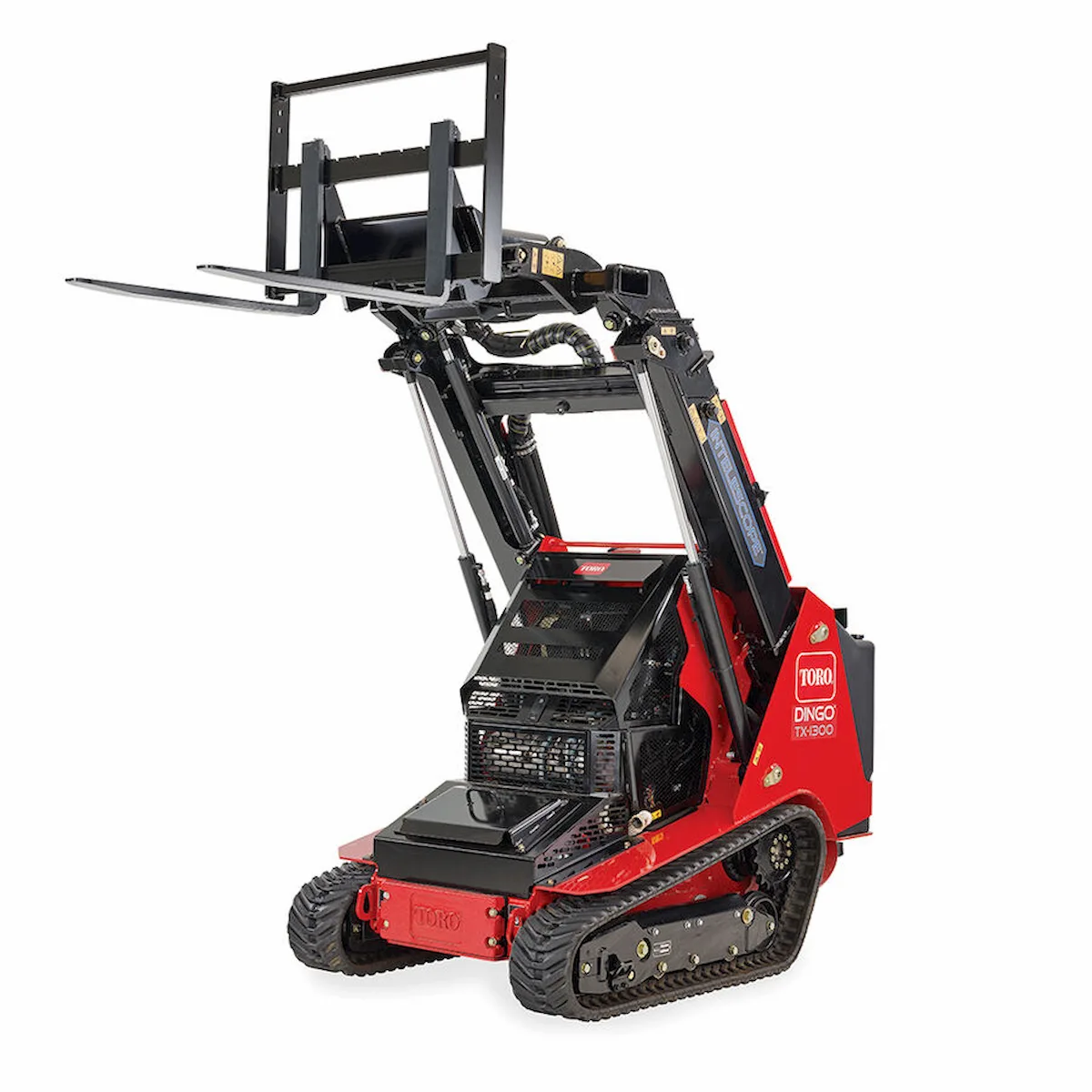

Toro® Dingo® TX 1300 Track Loader
Request more information:
The Toro® Dingo® TX 1300 Track Loader sets a new standard in the compact utility loader market. Its 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs operating capacity are designed for efficiency and power. The innovative INTELESCOPE® loader arm extends reach and lifting capabilities while user-friendly controls and a quick coupler system enhance productivity. The TX 1300 combines robust performance with ease of use, ideal for various job sites.
PDF BROCHURE: Toro® Dingo® TX 1300 Track Loader
Discover the Power and Precision of the Toro® Dingo® TX 1300 Track Loader
The Toro® Dingo® TX 1300 Track Loader sets a new standard in the compact utility loader market. Its 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs operating capacity are designed for efficiency and power. The innovative INTELESCOPE® loader arm extends reach and lifting capabilities while user-friendly controls and a quick coupler system enhance productivity. The TX 1300 combines robust performance with ease of use, ideal for various job sites.
TX 1300 Features
Engine and Performance: Precision Meets Power
- Tier IV Yanmar® Diesel Engine: Ensures compliance with stringent EPA regulations, promising eco-friendly operation without compromising power.
- Advanced Engine Features: Comes with an automatic fuel bleed system and dual element air cleaner optimized for diverse working conditions with multiple modes, including Standard and Eco.
Innovative INTELESCOPE® Loader Arm: Enhanced Reach and Efficiency
- SmartLoad Technology: Provides an additional 26″ of reach, extending the hinge-pin height to 109″ for superior lifting capabilities over obstacles like dumpsters or trucks.
User-Centric Design: Robust Yet Intuitive
- Durable Loader Arm: Incorporates an improved q-tach casting, supporting an impressive 1,300 lbs of operating capacity.
- Toro Patented Traction Control: Integrates seamlessly with hydraulic operation in the loader arm control for simplified material handling.
Maintenance and Ease of Use: Simplifying Operational Efficiency
- Quick Coupler System: Features a pressure-relieving mechanism for easy attachment connections, enhancing versatility and job site productivity.
- Auxiliary Pedal: Located on an enlarged operator platform for improved engagement and control, ensuring ease of use throughout the day.
Maximizing Productivity: Built for High-Demand Tasks
- Outstanding ROC: The TB1300 is engineered to handle up to 1,300 lbs, making it a formidable tool for various job site requirements.
- Ease of Maintenance: Large service hoods and accessible design ensure straightforward maintenance, keeping the machine in optimal condition.
Designed for landscaping, hardscaping, and tree care professionals, the Toro® Dingo® TX 1300 Track Loader is a versatile and powerful ally, ready to tackle various tasks with unmatched efficiency and ease. Explore the possibilities with the TX 1300 at Luby Equipment.
TX 1300 Specs
| Air Filter | Remote dual element |
|---|---|
| Cooling System | Combo Downflow Radiator and Oil Cooler, Independent Fuel |
| Dump Angle | 38 degrees |
| Dump Height (cm) | 230.3 |
| Dump Height (inches) | 90.7 |
| Engine Make | Yanmar |
| Engine Model | 3TNV88C |
| Fuel Tank (gallons) | 11 |
| Fuel Tank (liters) | 42 |
| Fuel Type | Diesel |
| Ground Clearance (cm) | 14.9 |
| Ground Clearance (inches) | 5.9 |
| Ground Pressure | 5.5 psi |
| Ground Speed Forward (mph) | 4.7 |
| Ground Speed Foward (km/h) | 7.6 |
| Ground Speed Reverse (km/h) | 7.6 |
| Ground Speed Reverse (mph) | 4.7 |
| Hinge Pin Height (cm) | 277.3 |
| Hinge Pin Height (inches) | 109.2 |
| Hydraulic Flow | 13.4 gpm (each pump) |
| Hydraulic Flow Auxilary | 14.3 gpm |
| Hydraulic Pressure | 3,200 psi |
| Loader Arms | Radial |
| Manufacturer’s Gross HP Rating (HP) | 37 |
| Manufacturer’s Gross HP Rating (kW) | 27 |
| Max Operating Height (cm) | 337.8 |
| Max Operating Height (inches) | 133 |
| Oil Capacity (liters) | 4.7 |
| Oil Capacity (quarts) | 5 |
| Overall Height w/bucket (cm) | 143.5 |
| Overall Height w/bucket (inches) | 56.5 |
| Overall Height w/o bucket (cm) | 143.5 |
| Overall Height w/o bucket (inches) | 56.5 |
| Overall Length w/bucket (cm) | 261.8 |
| Overall Length w/bucket (inches) | 103.1 |
| Overall Length w/o bucket (cm) | 215.6 |
| Overall Length w/o bucket (inches) | 84.9 |
| Overall Width w/bucket (cm) | 116.8 |
| Overall Width w/bucket (inches) | 46 |
| Overall Width w/o bucket (cm) | 116.8 |
| Overall Width w/o bucket (inches) | 46 |
| Rated Operating Capacity* (kg) | 280 |
| Rated Operating Capacity* (lbs) | 618 |
| Reach – Fully Raised (cm) | 67.8 |
| Reach – Fully Raised (inches) | 26.7 |
| Reservoir Capacity (gallons) | 9.2 |
| Reservoir Capacity (liters) | 34.8 |
| RPM | 3000 |
| Tip Capacity (kg) | 1684 |
| Tip Capacity (lbs) | 3714 |
| Track Length (inches) | 126.6 |
| Track Length(cm) | 321.5 |
| Track Width (cm) | 23.1 |
| Track Width (inches) | 9.1 |
| Tracks | MERT track with “TF” style tread |
| Traction | Dual Hydrostatic Pump |
| Weight (kg) | 1749 |
| Weight (lbs) | 3858 |
| Wheelbase (inches) | 39 |
TX 1300 Dimensions
| Track Dimensions | 126.6″ x 9.1″ (321.5 cm x 23.1 cm) |
| Wheelbase | 39″ (99.0 cm) |
| Ground Clearance | 5.9″ (14.9 cm) |
| Overall Dimensions (WxLxH) With Bucket | 46″ x 103.1″ x 56.5″ (116.8 x 261.8 x 143.5 cm) |
| Overall Dimensions (WxLxH) Without Bucket | 46″ x 84.9″ x 56.5″ (116.8 x 215.6 x143.5 cm) |
| Maximum Operating Height | 133″ (337.8 cm) |
| Hinge Pin Height | 109.2″ (277.3 cm) – extended 89.4″ (227.0 cm) – retracted |
| Dump Height | 90.7″ (230.3 cm) extended, 70.9″ (180.0 cm) retracted |
| Dump Angle | 38-degrees |
| Reach – Fully Raised | 26.7″ (67.8 cm) |
| Ground Speed | 4.7 mph (7.6 km/h) |
| Weight | 3,858 lbs (1,749.9 kg) |
| Tip Capacity | 3,714 lbs (1,684.6 kg) |
| Rated Operating Capacity (35% of Tip Capacity)* | 618 lbs (280.3 kg) – extended 1,300 lbs (589.6 kg) – retracted |
| Ground Pressure | 5.5 PSI |
