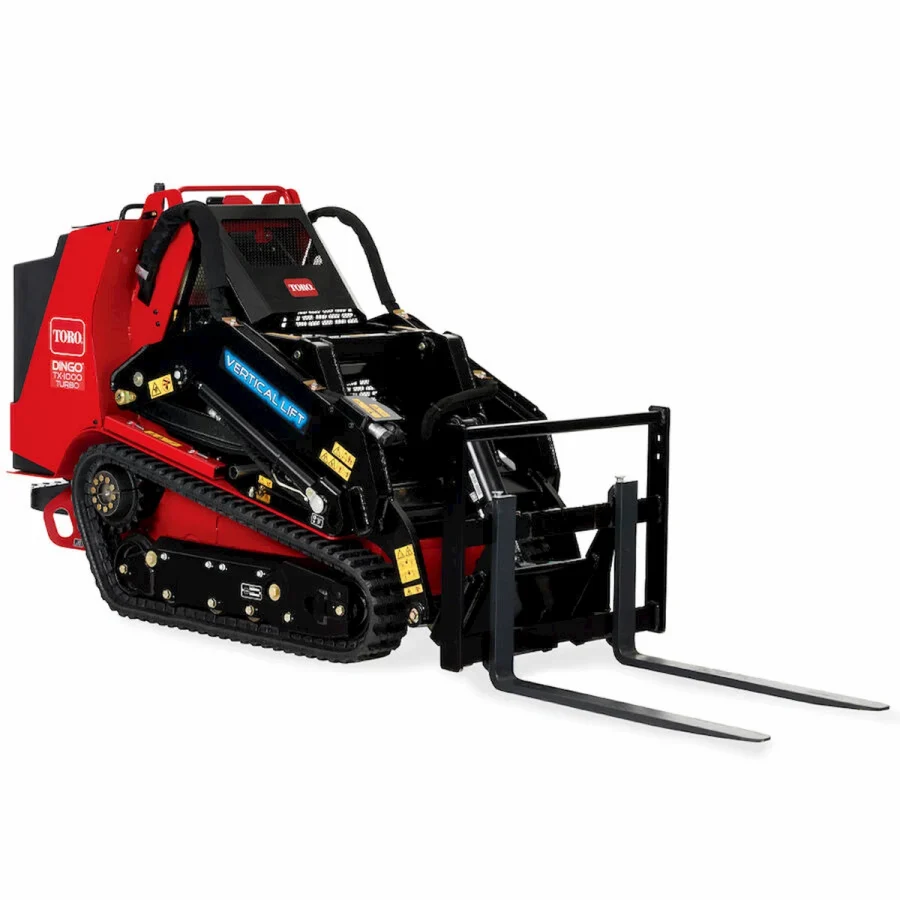

Toro® Dingo® TX 1000 TURBO Track Loader, Narrow
Request more information:
The Dingo® TX 1000 Turbo Track Loader, Narrow, is designed to offer unparalleled efficiency and versatility in compact construction environments. This state-of-the-art equipment is perfect for tasks ranging from construction site preparation to landscaping, ensuring high productivity and ease of use.
PDF BROCHURE: Toro® Dingo® TX 1000 TURBO Track Loader, Narrow
Discover the Power and Precision of the Toro® Dingo® TX 1000 TURBO Track Loader, Narrow
The Dingo® TX 1000 Turbo Track Loader, Narrow, is designed to offer unparalleled efficiency and versatility in compact construction environments. This state-of-the-art equipment is perfect for tasks ranging from construction site preparation to landscaping, ensuring high productivity and ease of use.
TX 1000 Narrow Features
Vertical Lift Design for Enhanced Reach
Equipped with vertical lift loader arms, this machine boasts an impressive 81″ (206 cm) hinge pin height, allowing attachments to quickly clear the sides of 30-yard dumpsters or one-ton trucks. This feature ensures seamless operation in various job site conditions, making loading and material handling tasks more efficient.
Turbocharged Diesel Engine for Reliable Performance
At the heart of the Dingo® TX 1000 Turbo lies a robust 24.7 HP Yanmar turbo diesel engine, known for delivering consistent and reliable performance. This powerful engine ensures smooth operation under demanding conditions, providing the necessary power for various tasks while maintaining excellent fuel efficiency.
Smart Power® for Optimal Efficiency
Incorporating Toro’s Smart Power® technology, the machine intelligently adjusts traction speed based on the workload. This ensures an optimal balance between engine output, auxiliary power, and traction torque, enhancing efficiency and reducing operational costs.
Intuitive Traction Control System
Featuring Toro’s patented traction control system, the Dingo® TX 1000 Turbo offers intuitive operation suitable for operators of all skill levels. This system simplifies maneuverability and control, further enhanced by integrating hydraulic attachment operations into the loader arm controls. The digital display provides easy access to machine information and usage options, making operation straightforward and efficient.
Ease of Operation
The machine includes an auxiliary foot pedal that maintains hydraulic flow to the attachment, allowing operators to concentrate on ground speed and attachment positioning. This feature ensures that the operator’s hands are free to control the machine, enhancing safety and operational efficiency.
The Dingo® TX 1000 Turbo Track Loader, Narrow, reflects Luby Equipment’s dedication to offering top-tier construction equipment that meets the evolving needs of the industry. With its advanced features and ergonomic design, this machine is a valuable asset for any construction project, ensuring high productivity and operational excellence.
TX 1000 Narrow Specs
| Air Filter | Remote: Primary and Safety Elements |
|---|---|
| Cooling System | Combo Crossflow Radiator and Oil Cooler |
| Dump Angle | 40 degrees |
| Dump Height (cm) | 153.2 |
| Dump Height (inches) | 60.3 |
| Engine Make | Yanmar |
| Engine Model | 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant |
| Fuel Tank (gallons) | 10.25 |
| Fuel Tank (liters) | 38.8 |
| Fuel Type | Diesel |
| Ground Clearance (cm) | 15 |
| Ground Clearance (inches) | 5.9 |
| Ground Pressure | 6.1 psi |
| Ground Speed Forward (mph) | 4.1 |
| Ground Speed Foward (km/h) | 6.6 |
| Ground Speed Reverse (km/h) | 6.6 |
| Ground Speed Reverse (mph) | 4.1 |
| Hinge Pin Height (cm) | 205.7 |
| Hinge Pin Height (inches) | 81 |
| Hydraulic Flow | 12.3 gpm (each pump) |
| Hydraulic Flow Auxilary | 13.2 gpm, Low Flow 4.9 gpm |
| Hydraulic Pressure | 3,000 psi |
| Hydraulic Reservoir Capacity (gallons) | 8.6 |
| Hydraulic Reservoir Capacity (liters) | 32.5 |
| Loader Arms | Vertical Lift |
| Manufacturer’s Gross HP Rating (HP) | 24.7 |
| Manufacturer’s Gross HP Rating (kW) | 18.4 |
| Max Operating Height (cm) | 269.7 |
| Max Operating Height (inches) | 106.2 |
| Oil Capacity (liters) | 3.6 |
| Oil Capacity (quarts) | 3.8 |
| Overall Height w/bucket (cm) | 138.7 |
| Overall Height w/bucket (inches) | 54.6 |
| Overall Height w/o bucket (cm) | 138.7 |
| Overall Height w/o bucket (inches) | 54.6 |
| Overall Length w/bucket (cm) | 264.2 |
| Overall Length w/bucket (inches) | 104 |
| Overall Length w/o bucket (cm) | 210.8 |
| Overall Length w/o bucket (inches) | 83 |
| Overall Width w/bucket (cm) | 107.2 |
| Overall Width w/bucket (inches) | 42.2 |
| Overall Width w/o bucket (cm) | 87.9 |
| Overall Width w/o bucket (inches) | 34.6 |
| Rated Operating Capacity* (kg) | 453 |
| Rated Operating Capacity* (lbs) | 1000 |
| Reach – Fully Raised (cm) | 59.2 |
| Reach – Fully Raised (inches) | 23.3 |
| Track Length (inches) | 126.6 |
| Track Length(cm) | 321.6 |
| Track Width (cm) | 15 |
| Track Width (inches) | 5.9 |
| Tracks | MERT track with “B” style tread |
| Traction | Dual Hydrostatic Pump |
| Weight (kg) | 1282 |
| Weight (lbs) | 2826 |
| Wheelbase (inches) | 39 |
TX 1000 Narrow Dimensions
| Feature | Specification (Narrow) | Specification (Wide) |
|---|---|---|
| Track Length & Width | 126.6″ x 5.9″ (321.6 cm x 15.0 cm) | 126.6″ x 9.1″ (321.6 cm x 23.1 cm) |
| Wheelbase | 39″ (99.1 cm) | 39″ (99.1 cm) |
| Ground Clearance | 5.9″ (15.0 cm) | 5.9″ (15.0 cm) |
| Overall Dimensions (WxLxH) With Bucket | 42.2″ x 104.0″ x 54.6″ (107.2 x 264.2 x 138.7 cm) | 42.2″ x 104.0″ x 54.5″ (107.2 x 264.2 x 138.4 cm) |
| Overall Dimensions (WxLxH) Without Bucket | 34.6″ x 83.0″ x 54.6″ (87.9 x 210.8 x 138.7 cm) | 39.9″ x 83.0″ x 54.5″ (101.3 x 210.8 x 138.4 cm) |
| Maximum Operating Height | 106.2″ (269.7 cm) | 106.2″ (269.7 cm) |
| Hinge Pin Height | 81″ (205.7 cm) | 81″ (205.7 cm) |
| Dump Height | 60.3″ (153.2 cm) | 60.3″ (153.2 cm) |
| Dump Angle | 40-degrees | 40-degrees |
| Reach – Fully Raised | 23.3″ (59.2 cm) | 23.3″ (59.2 cm) |
| Ground Speed | 4.1 mph (6.6 km/h) | 4.1 mph (6.6 km/h) |
| Weight | 2,826 lbs (1,282 kg) | 2,911 lbs (1,320 kg) |
| Rated Operating Capacity | 1,000 lbs (453.5 kg) | 1,000 lbs (453.5 kg) |
| Ground Pressure | 6.1 PSI | 4.1 PSI |
