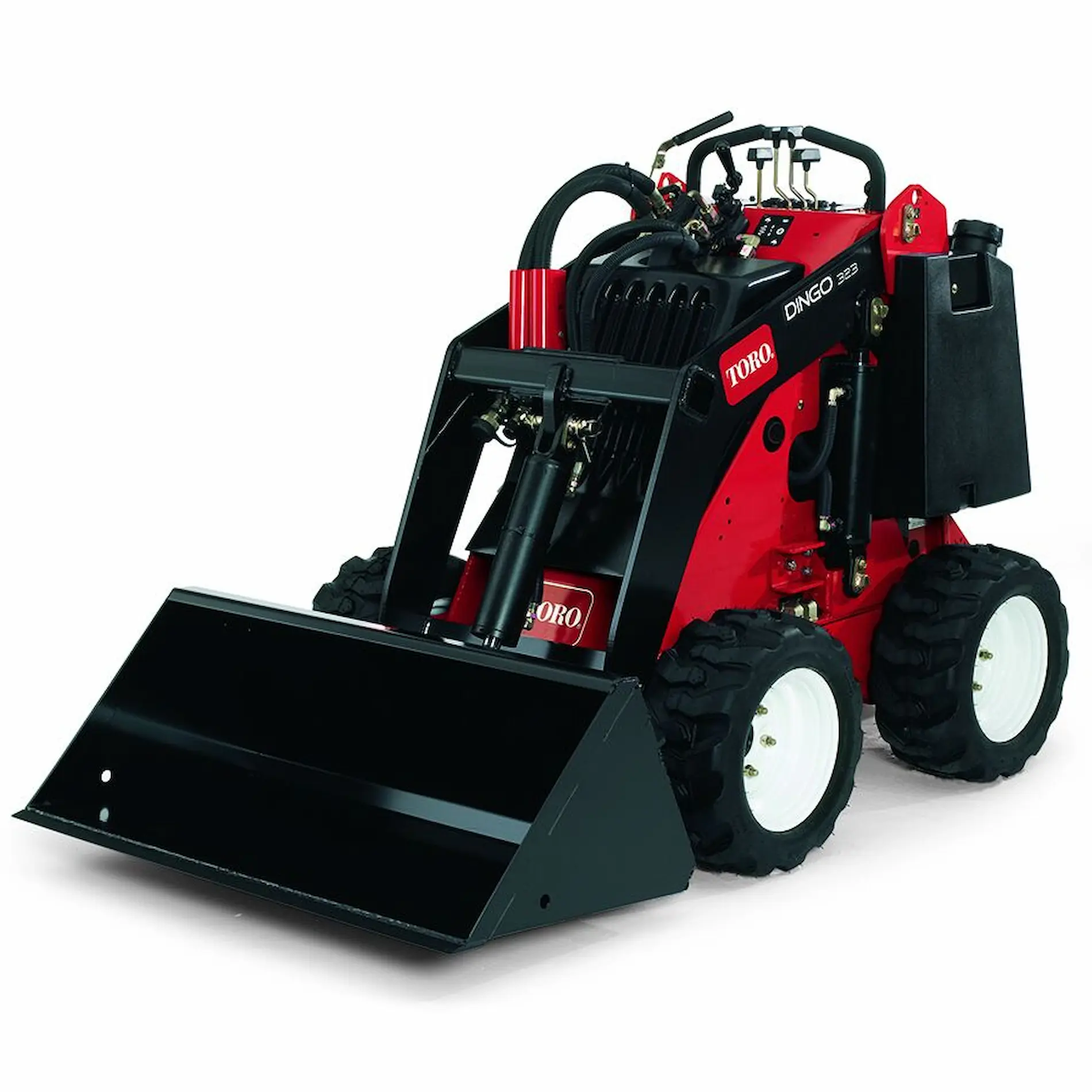

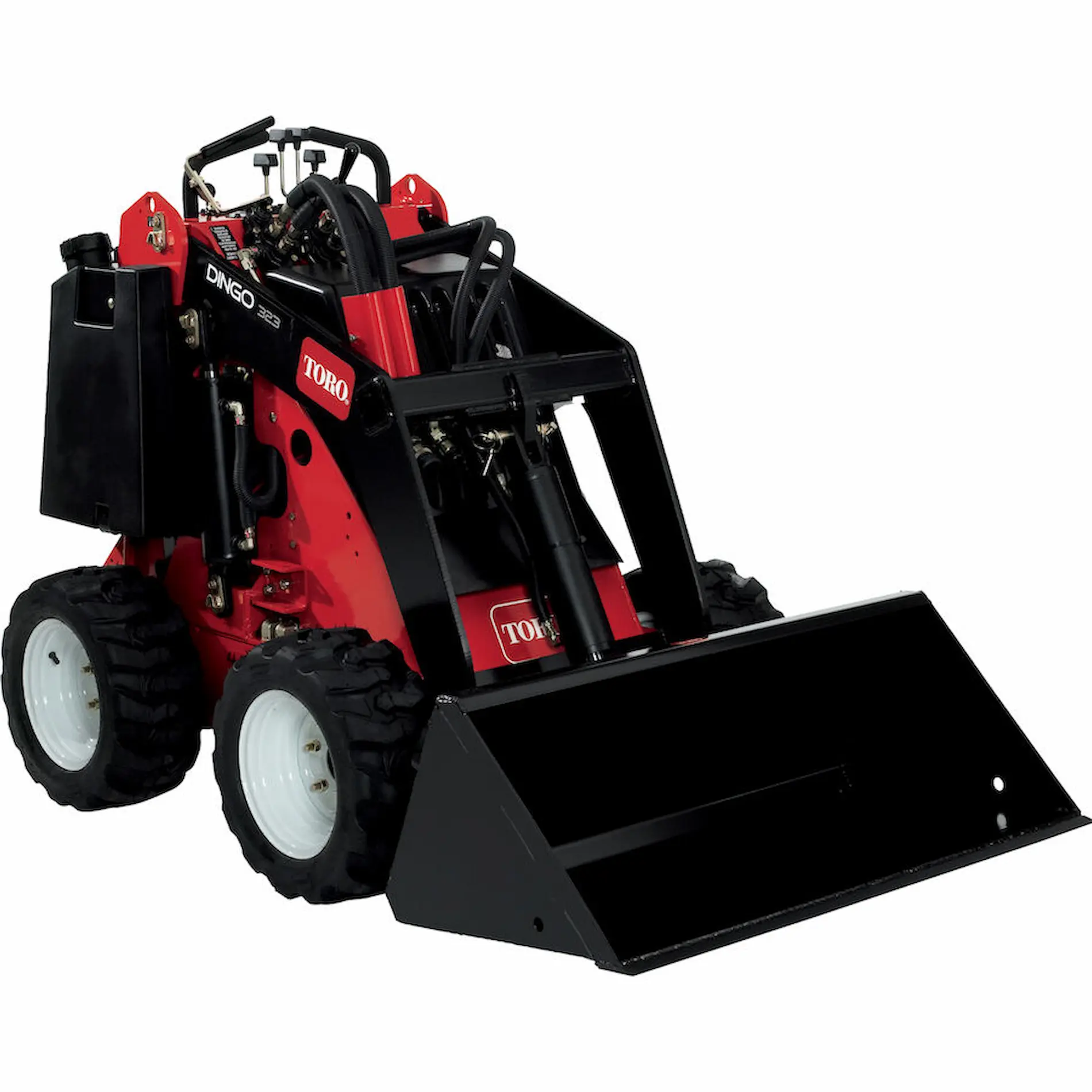

Toro Dingo® 323 Mini Skid Steer
Request more information:
The Toro® Dingo® 323 Mini Skid Steer is your compact powerhouse, designed to navigate confined spaces easily while offering the robust hydraulic power necessary for various tasks.
PDF BROCHURE: 623_fe6baff2-1222-41e5-ad1d-c1016241f64a
SELL SHEET: 623_637d5b7e-2e7b-443c-b88d-d7f1aa120d5f
Toro Dingo® 323 Mini Skid Steer
The Toro® Dingo® 323 Mini Skid Steer is your compact powerhouse, designed to navigate confined spaces easily while offering the robust hydraulic power necessary for various tasks. Ideal for tight spaces or hard surfaces, the Dingo® 323 revolutionizes work in areas previously accessible only by hand labor.
323 Mini Features
4-PAW® Independent Four-Wheel Drive
Equipped with the innovative 4-PAW® Independent Four-Wheel Drive system, the Dingo® 323 Mini Skid Steer ensures superior traction and mobility across all four wheels. This unique system delivers hydraulic flow and pressure to each wheel, enhancing the loader’s performance on uneven terrain and reducing maintenance needs thanks to fewer moving parts.
Enhanced Operator Visibility
The Dingo® 323 features an integrated ride-on operator platform, significantly improving the operator’s visibility over the working area and attachments. This design increases safety and precision during operation and allows for more confident navigation and control in compact environments.
Highly Maneuverable for Tight Spaces
With its short wheelbase and zero-turn capability, the Dingo® 323 Mini Skid Steer excels in maneuverability. It effortlessly navigates through narrow passages and tight spaces where traditional equipment cannot reach, transforming complex tasks into efficient and manageable operations.
Compact, Yet Mighty
Whether you’re working in landscaping, construction, or utility jobs, the Dingo® 323 offers the flexibility and power needed to tackle various tasks. Its ability to use multiple attachments makes it an invaluable tool for any project demanding precision and versatility in confined spaces.
Equipment is Our Product; Service is Our Business
At Luby Equipment, we’re committed to providing high-quality construction equipment that meets the diverse needs of our customers. The Dingo® 323 Mini Skid Steer exemplifies our dedication to offering solutions that enhance productivity and efficiency on every job site. Explore the capabilities of the Dingo® 323 and discover how it can improve your operational workflow.
323 Mini Specs
| Air Filter | Two-stage, heavy-duty, remote |
|---|---|
| Cooling System | Air Cooled |
| Displacement (cc) | 674 |
| Displacement (cu. in.) | 41 |
| Dump Angle | 34 degrees |
| Dump Height (cm) | 119 |
| Dump Height (inches) | 47 |
| Engine Make | Kohler |
| Engine Model | Command Series CH23 |
| Fuel Tank (gallons) | 11.2 |
| Fuel Tank (liters) | 42.4 |
| Fuel Type | Gasoline |
| Ground Clearance (cm) | 14.7 |
| Ground Clearance (inches) | 5.8 |
| Ground Speed Forward (mph) | 3.7 |
| Ground Speed Foward (km/h) | 6 |
| Ground Speed Reverse (km/h) | 6 |
| Ground Speed Reverse (mph) | 3.7 |
| Hinge Pin Height (cm) | 167.6 |
| Hinge Pin Height (inches) | 66 |
| Hydraulic Flow | 10.8 gpm high-flow hydraulic circuit, 4 gpm low-flow hydraulic circuit |
| Hydraulic Flow Auxilary | 13.8 gpm |
| Hydraulic Pressure | 3250 psi |
| Loader Arms | Radial |
| Manufacturer’s Gross HP Rating (HP) | 25 |
| Manufacturer’s Gross HP Rating (kW) | 18.6 |
| Max Operating Height (cm) | 231.6 |
| Max Operating Height (inches) | 91.2 |
| Oil Capacity (liters) | 1.9 |
| Oil Capacity (quarts) | 2 |
| Overall Height w/bucket (cm) | 123.7 |
| Overall Height w/bucket (inches) | 48.7 |
| Overall Height w/o bucket (cm) | 123.7 |
| Overall Height w/o bucket (inches) | 48.7 |
| Overall Length w/bucket (cm) | 157.5 |
| Overall Length w/bucket (inches) | 62 |
| Overall Length w/o bucket (cm) | 157.5 |
| Overall Length w/o bucket (inches) | 62 |
| Overall Width w/bucket (cm) | 102.8 |
| Overall Width w/bucket (inches) | 40.5 |
| Overall Width w/o bucket (cm) | 88.9 |
| Overall Width w/o bucket (inches) | 35 |
| Rated Operating Capacity* (kg) | 233 |
| Rated Operating Capacity* (lbs) | 515 |
| Reach – Fully Raised (cm) | 71.1 |
| Reach – Fully Raised (inches) | 28 |
| Reservoir Capacity (gallons) | 17 |
| Reservoir Capacity (liters) | 64 |
| RPM | 3600 |
| Tip Capacity (kg) | 467 |
| Tip Capacity (lbs) | 1030 |
| Weight (kg) | 710 |
| Weight (lbs) | 1567 |
| Wheelbase (inches) | 28 |
323 Mini Dimensions
| Specification Category | Details With Standard Tires | Details With Narrow Tires |
|---|---|---|
| Wheelbase | 28″ (71.1 cm) | 28″ (71.1 cm) |
| Ground Clearance | 5.8″ (14.7 cm) front & rear | 5.8″ (14.7 cm) front & rear |
| Overall Dimensions (WxLxH) | 40.5″ x 62″ x 48.7″ (102.8 x 157.5 x 123.7 cm) | 35″ x 62″ x 48.7″ (88.9 x 157.5 x 123.7 cm) |
| Maximum Operating Height | 91.2″ (231.6 cm) | 91.2″ (231.6 cm) |
| Hinge Pin Height | 66″ (167.6 cm) | 66″ (167.6 cm) |
| Dump Height | 47″ (119 cm) | 47″ (119 cm) |
| Dump Angle | 34-degrees | 34-degrees |
| Reach – Fully Raised | 28″ (71.1 cm) | 28″ (71.1 cm) |
| Ground Speed | 0–3.7 mph (0–6 km/h) | 0–3.0 mph (0–4.8 km/h) |
| Weight | 1,567 lbs (710.7 kg) | 1,722 lbs (781.0 kg) |
| Tip Capacity | 1,030 lbs (467.2 kg) | 1,048 lbs (475.3 kg) |
| Rated Operating Capacity (35% of Tip Capacity) | 515 lbs (233.6 kg) | 524 lbs (237.6 kg) |
