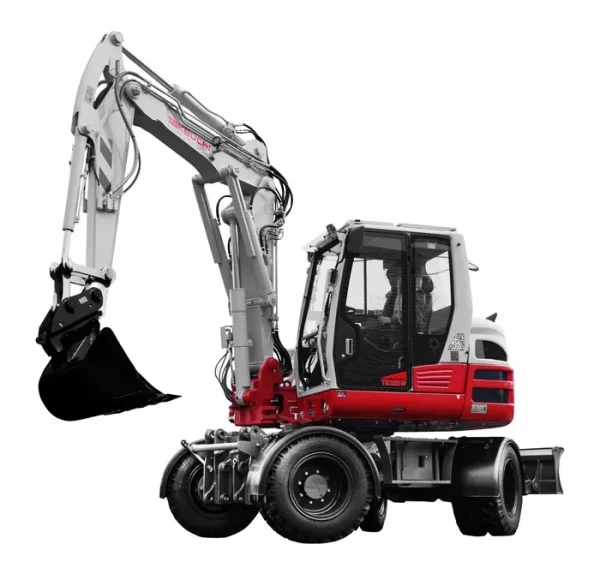

Takeuchi TB395W Wheeled Excavator
Request more information:
NEW Takeuchi TB395W Wheeled Excavator – Weighing in at 23,424 lbs and powered by a 114-horsepower engine, this machine offers a maximum dig depth of 13 ft 5.2 in and exceptional on-road performance, reaching speeds of up to 18 mph.
PDF BROCHURE: Takeuchi TB395W Wheeled Excavator
Takeuchi TB395W Wheeled Excavator For Sale
The TB395W, available for sale at Luby Equipment, combines robust performance with advanced excavating capabilities. Weighing in at 23,424 lbs and powered by a 114-horsepower engine, this machine offers a maximum dig depth of 13 ft 5.2 in and exceptional on-road performance, reaching speeds of up to 18 mph.
Featuring a standard two-piece, heavy-duty swing boom, operators can easily dig both farther away from and closer to the machine, while hydraulic outriggers and a dozer blade enhance stability. The TB395W is equipped with three auxiliary circuits to meet various hydraulic needs: a primary circuit delivering an impressive 32 gpm, a secondary circuit providing 14.5 gpm, and a third circuit designed for a hydraulic quick coupler.
With two steering options—2-wheel steer and 4-wheel/crab steer—the TB395W offers precise maneuverability in any work environment. The interior is equipped with an 8” color touch screen display and jog dial, ensuring easy access to essential machine information and controls. Additionally, a 270-degree camera system provides operators with an unmatched field of view around the rear and sides of the machine, enhancing safety and awareness.
The TB395W is the perfect blend of performance, durability, serviceability, and operator comfort, ensuring top-notch results on every job site.
Two-Piece Swing Boom
This heavy-duty swing boom enhances the versatility of your machine, allowing you to dig further, closer, and at an offset to both the right and left.
Precise Steering
With two steering options—2-wheel steer and 4-wheel/crab steer—you can achieve exceptional maneuverability in a variety of work environments.
Transport Speed
Experience superior on-road performance with speeds of up to 18 mph, saving you both time and transportation costs as you move efficiently from job site to job site.
Cabin Comforts
Experience enhanced comfort with roomy floorboard controls, a 6-way adjustable high-back suspension seat, and an intuitive 8” color touchscreen, plus more.
270° Visibility
Gain confidence with a 270° camera system that offers an expansive view around the rear and sides of the machine, ensuring unmatched situational awareness and peace of mind.
Serviceability
A streamlined engine design and large, lockable overhead service doors ensure easy access to key components, making routine maintenance quick and hassle-free.
TB395W Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight | 23,424 lb | 10,625 kg |
| Bucket Capacity (Heaped) | 1.5 cu yd | 1.15 m3 |
| Slew Speed | 9.7 rpm | |
| Travel Speed | ||
| Low Speed 1 | 3.5 mph | 5.6 km/h |
| High Speed 1 | 9.7 mph | 15.6 km/h |
| Low Speed 2 | 6.5 mph | 10.5 km/h |
| High Speed 2 | 18.1 mph | 29.1 km/h |
| Gradeability | 35° | |
| Maximum Bucket Digging Force | 13,241 lbf | 6,006 kgf |
| Maximum Arm Digging Force | 8,925 lbf | 4,048 kgf |
| Traction Force | 12,994 lbf | 5,894 kgf |
| Boom Swing Angle (Left/Right) | 68°/59° | |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 46.5 gpm | 176 L/min |
| Primary Auxiliary Flow | 31.7 gpm | 120 L/min |
| Secondary Auxiliary Flow | 14.5 gpm | 55 L/min |
| Third Auxiliary | 3,046 psi | 21 MPa |
| Hydraulic System Pressure | 3,988 psi | 27.5 MPa |
| Auxiliary 1 Pressure | 3,046 psi | 21 MPa |
| Auxiliary 2 Pressure | 3,046 psi | 21 MPa |
| ENGINE | ||
| Make/Model | DEUTZ/TCD3.6 L4 | |
| Rated Output (ISO 14396) | 114 hp | 85.0 kW / 2,200 min-1 |
| Maximum Torque | 339 ft lb | 460.0 Nm / 1,600 min-1 |
| Displacement | 221 cu in | 3,621 ml |
| Alternator | 28 V – 2.24 kW | |
| Battery (IEC 60095-1) | 12 v 90 A • h X2 | |
| FLUID CAPACITIES | ||
| Engine Lubrication | 10.6 qt | 10 L |
| Cooling System | 25.4 qt | 24 L |
| Fuel Tank Capacity | 42.8 gal | 162 L |
| Hydraulic Reservoir Capacity | 24.2 gal | 91.6 L |
| Hydraulic System Capacity | 54.1 gal | 205 L |
| DEF Tank Capacity | 2.6 gal | 10 L |
TB395W Dimensions
| WORKING DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 25 ft 2.1 in | 7,675 mm |
| Maximum Reach at Ground Level | 24 ft 5.3 in | 7,450 mm |
| Maximum Digging Depth | 13 ft 5.2 in | 4,095 mm |
| Maximum Vertical Digging Depth | 11 ft 6.8 in | 3,525 mm |
| Reach at Maximum Digging Depth | 9 ft | 2,745 mm |
| Maximum Height at Cutting Edge | 27 ft 1.2 in | 8,260 mm |
| Maximum Dumping Height | 20 ft 5.7 in | 6,240 mm |
| Minimum Dumping Height | 8 ft 6.5 in | 2,605 mm |
| Reach at Maximum Height | 6 ft 11.9 in | 2,130 mm |
| Reach at Maximum Dumping Height | 7 ft 7.9 in | 2,335 mm |
| Dozer Blade Maximum Lifting Height | 15.7 in | 400 mm |
| Dozer Blade Maximum Lowering Depth | 5.9 in | 150 mm |
| Outrigger Maximum Lowering Depth | 5.9 in | 150 mm |
| MACHINE DIMENSIONS | ||
| Overall Length | 22 ft 3.3 in | 6,790 mm |
| Overall Width | 7 ft 7.3 in | 2,320 mm |
| Overall Height | 9 ft 10.9 in | 3,020 mm |
| Slew Radius | 5 ft 6.5 in | 1,690 mm |
| Clearance Height Under Upper Structure | 3 ft 7.9 in | 1,115 mm |
| Overall Width of Upper Structure | 7 ft 5.4 in | 2,270 mm |
| Overall Length of Undercarriage | 13 ft 8 in | 4,165 mm |
| Ground Clearance of Undercarriage | 12.6 in | 320 mm |
| Wheel Base | 7 ft 2.6 in | 2,200 mm |
| Dozer Blade Width | 7ft 6.5 in | 2,300 mm |
| Dozer Blade Height | 19.7 in | 500 mm |
Additional information
| Condition | New |
|---|---|
| Location | Fenton, MO |
