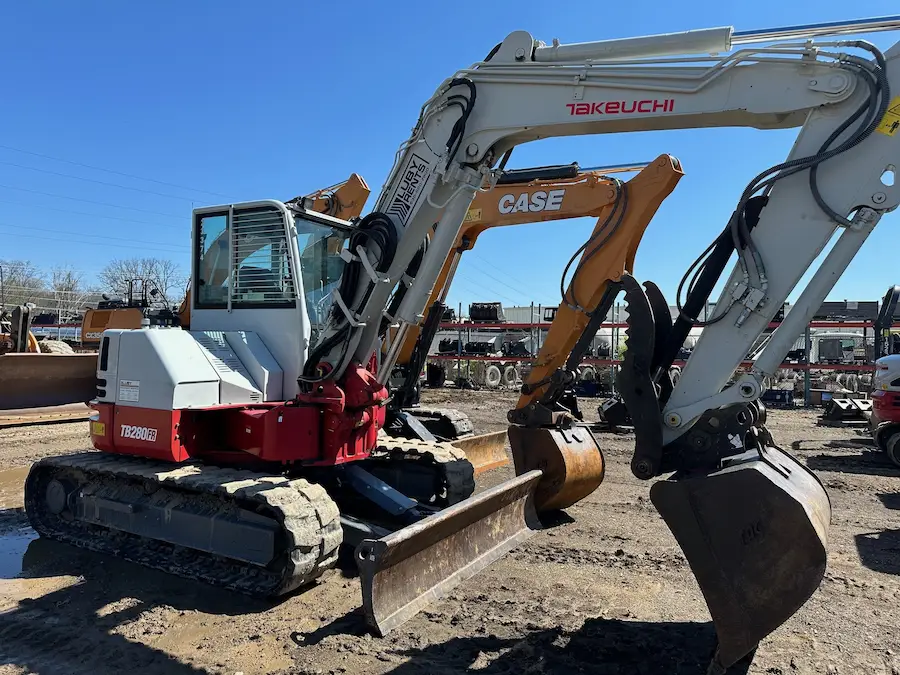

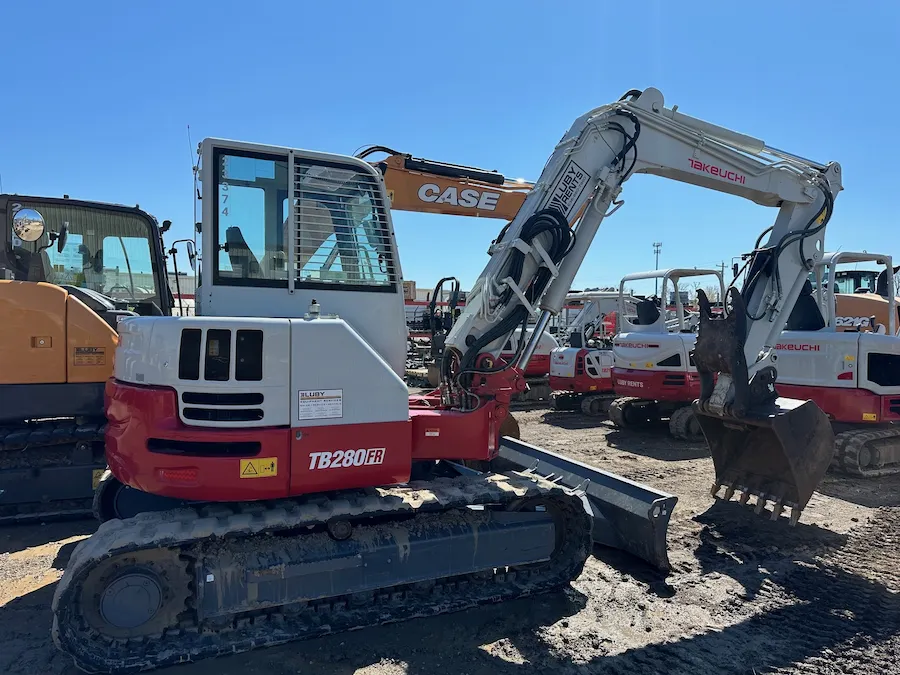

Takeuchi TB280FR Compact Excavator – 178501720

Engine and Efficiency:

Equipped with a U.S. EPA Final Tier 4 compliant engine, the TB280FR combines environmental responsibility with powerful performance. The turbocharged engine, complete with DOC+DPF exhaust after-treatment, delivers reliable power under various conditions. This excavator is designed for optimal efficiency and adaptability with features like an automatic fuel bleed system, dual-element air filter, and multiple working modes (Power, Eco, and High Altitude).

Operational Excellence:

The TB280FR’s hydraulic system is a testament to Takeuchi’s commitment to precision and control. Variable displacement, open center hydraulics, cushioned boom, arm, swing cylinders, and hydraulic pilot controls ensure smooth and responsive operation. The excavator’s proportional auxiliary controls with detent and adjustable auxiliary flow allow for precise handling of various attachments, making it a versatile tool for any project.

Undercarriage and Construction:

This compact excavator features a robust undercarriage and frame design, including triple-flanged track rollers and a high-torque planetary final drive. Operators can efficiently navigate challenging terrains with 2-speed travel and automatic shift. The heavy-duty dozer blade with float and large wraparound counterweight further contributes to the machine’s stability and performance.

Visibility and Safety:

The TB280FR is designed with safety and visibility in mind. The cab is equipped with air conditioning, heat, defrost, and a windshield wiper and washer, ensuring comfort and clear vision in all weather conditions. ROPS and OPG Level 1 certification and a deluxe high back suspension seat and adjustable armrests provide a secure and comfortable operator environment.

Takeuchi Fleet Management:

With the Takeuchi Fleet Management system, owners can minimize downtime, perform remote diagnostics, track utilization, and conduct proactive maintenance. This two-year standard service helps control costs and ensures the TB280FR remains a reliable asset to any fleet.

Versatile Attachment Platform:

The TB280FR’s multiple attachment presets and hydraulic circuits, including a primary and secondary auxiliary hydraulic circuit plumbed to the arm, make it an outstanding platform for a broad range of attachments. Whether equipped with a dual pin position bucket, mechanical bucket quick coupler, or main pin hydraulic thumb (all optional), this excavator can easily adapt to various tasks.

The Takeuchi TB280FR: A New Era of Compact Excavation

It offers unmatched versatility, stability, and power, the Takeuchi TB280FR compact excavator is designed to meet the rigorous demands of modern construction, landscaping, and utility projects. Its innovative features and robust construction make it an invaluable tool for professionals seeking efficiency, precision, and reliability.

OPERATING PERFORMANCE
Operating Weight – Cab (Rubber)	18,810 lb	(8,530 kg)
Operating Weight – Cab (Steel)	19,240 lb	(8,730 kg)
Maximum Bucket Breakout Force	16,335 lb	(7,409 kg)
Maximum Arm Digging Force	7,037 lb	(3,192 kg)
Arm Length	6 ft 7.0 in	(2,000 mm)
Slew Speed	10.0 rpm
Traction Force	19,783 lb	(8,973 kg)
Ground Pressure – Cab (Rubber)	5.5 psi	(38.1 kPa)
Ground Pressure – Cab (Steel)	5.7 psi	(39.5 kPa)
Travel Speed – Low Range	1.7 mph	(2.7 km / hr)
Travel Speed – High Range	3.2 mph	(5.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow	52.5 gpm	(198.0 L / min)
Auxiliary Flow – Primary Circuit	39.0 gpm	(148.0 L / min)
Auxiliary Flow – Secondary Circuit	15.0 gpm	(58.0 L / min)
Hydraulic System Pressure	3,990 psi	(27.5 MPa)
ENGINE
Make / Model	Yanmar / 4TNV98CT
Displacement	202 cu in	(3.3 L)
Horsepower @2,000 rpm	69.2 hp	(51.6 kW )
Maximum Torque @ 1,300 rpm	22.7.2 ft-lb	(308 Nm )
FLUID CAPACITIES
Engine Lubrication	9.9 qt	(9.4 L)
Cooling System	14.8 qt	(14.0 L)
Fuel Tank Capacity	26.3 gal	(100.0 L)
Fuel Consumption (65% of Full Load)	2.5 gal / hr	(9.1 L / hr)
Hydraulic Reservoir Capacity	18.7 gal	(71.0 L)
Hydraulic System Capacity	38.8 gal	(147.0 L)

MACHINE DIMENSIONS
Maximum Reach	23 ft 7.2 in	(7,195 mm)
Maximum Reach at Ground Level	23 ft 1.4 in	(7,045 mm)
Maximum Digging Depth	14 ft 11.0 in	(4,540 mm)
Maximum Vertical Digging Depth	11 ft 5.5 in	(3,495 mm)
Maximum Dig Height	21 ft 2.0 in	(6,465 mm)
Maximum Dumping Height	14 ft 8.4 in	(4,480 mm)
Front Swing Radius	9 ft 5.4 in	(2,880 mm)
Front Swing Radius with Boom Offset	5 ft 3.5 in	(1,610 mm)
Tail Swing (Slew) Radius	4 ft 2.4 in	(1,280 mm)
Transport Length	20 ft 7.4 in	(6,285 mm)
Transport Height	8 ft 11.4 in	(2,725 mm)
Ground Clearance	12.3 in	(315 mm)
Undercarriage Length	9 ft 4.0 in	(2,855 mm)
Track Width (Rubber)	17.7 in	(450 mm)
Undercarriage Width	7 ft 7.0 in	(2,300 mm)
