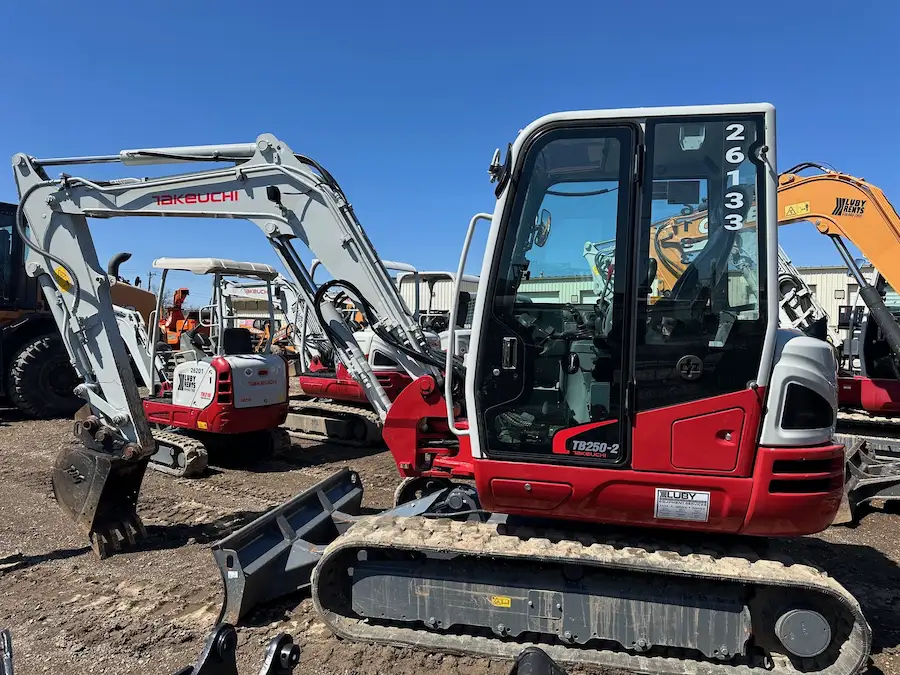

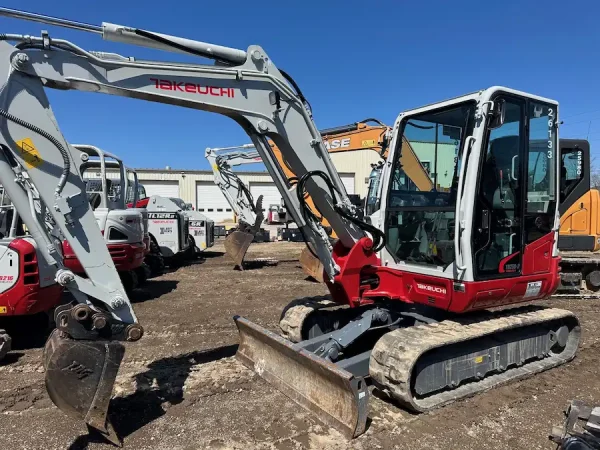

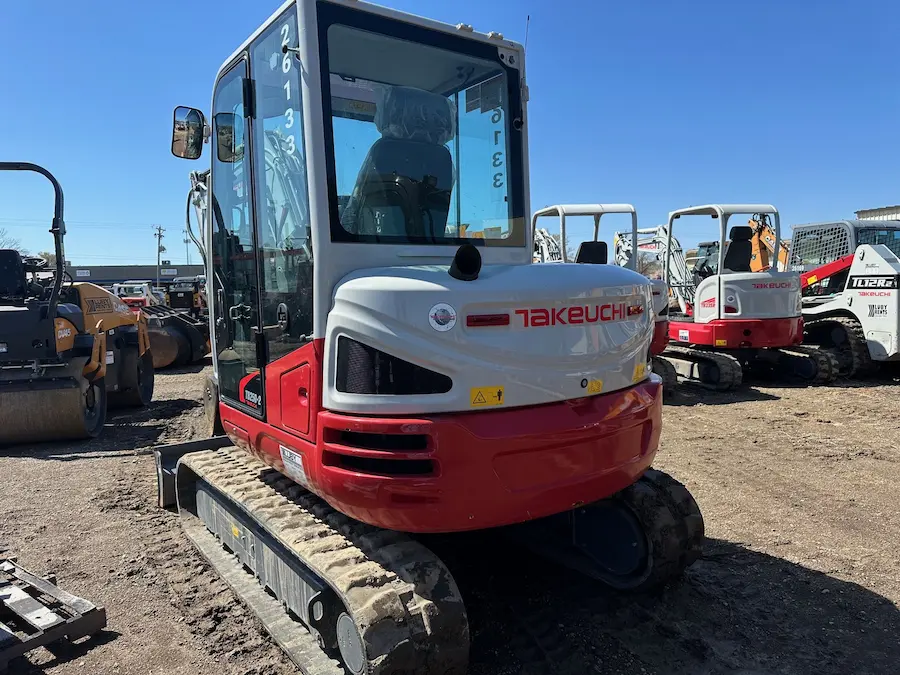

Takeuchi TB250-2 Compact Excavator – 125103465
$375.00 – $3,315.00
Request more information:
Available for rent at Luby Equipment, the TB250-2 from Takeuchi is an innovative addition to the 5-ton weight class, bridging the gap between the TB240 and TB260 models. With an operating weight ranging from 10,957 lbs. (canopy) to 11,288 lbs. (cab), this compact powerhouse achieves a dig depth of 12′ 4.8″ and a reach extending over 20′.
| BRAND |
TAKEUCHI |
|---|---|
| MODEL |
TB250-2CR |
| CONDITION |
Rental |
| DAILY RATE |
$375.00 |
| WEEKLY RATE |
$1,125.00 |
| 4 WEEK RATE |
$3,315.00 |
| NET HP |
39 HP |
| OPERATING WEIGHT |
11,288 lbs |
| PRODUCT |
Mini Excavator |
| LOCATION |
Fenton, MO |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of St. Louis, MO and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!
PDF BROCHURE: Takeuchi Compact Excavator TB250-2
Discover the Power and Precision of the Takeuchi TB250-2 Compact Excavator
Available for rent at Luby Equipment, the TB250-2 from Takeuchi is an innovative addition to the 5-ton weight class, bridging the gap between the TB240 and TB260 models. With an operating weight ranging from 10,957 lbs. (canopy) to 11,288 lbs. (cab), this compact powerhouse achieves a dig depth of 12′ 4.8″ and a reach extending over 20′. Its robust 39 hp engine adheres to stringent Tier 4 Final EPA emissions regulations and offers exceptional accessibility to all daily service points, simplifying maintenance routines. The TB250-2 serves as an ideal platform for various hydraulic attachments, thanks to its primary auxiliary circuit delivering a generous 24.2
TB250-2 Features
Engine and Performance:
- Tier 4 Final Compliant: Meets all current EPA emissions regulations, ensuring environmentally responsible operation.
- Efficient Systems: Features an automatic fuel bleed system, dual-element air filter, and multiple working modes (Standard, Eco, High Altitude) to cater to diverse job requirements.
- Enhanced Support: Equipped with engine preheat starting aid, high-capacity radiator, and hydraulic oil cooler for optimal performance under various conditions.
Electrical and Functional Excellence:
- Advanced Displays: Offers a multi-informational display for canopy models and a 5.7″ color display for cab variants, ensuring critical operational data is always at the operator’s fingertips.
- Illumination and Safety: LED lighting for enhanced visibility and safety features, including a travel alarm and horn, to maintain a secure work environment.
Hydraulic and Working Equipment:
- Versatile Hydraulics: The excavator features variable displacement, open center hydraulics, cushioned boom, arm, and swing cylinders for smooth operation.
- Precise Control: Hydraulic pilot and proportional auxiliary controls with detent provide fine-tuned operation, complemented by a sizeable hydraulic reservoir and fluid level sight gauge.
Operator Comfort and Safety:
- Secure and Comfortable Workstation: Includes a ROPS/OPG Level 1 certified four-post canopy, deluxe high-back suspension seat, and adjustable armrests, with optional cab features such as air conditioning, heat, defrost, windshield wiper, washer, skylight with sunshade, and an AM/FM/MP3/Bluetooth radio.
Undercarriage and Frame:
- Robust Design: Features triple-flanged track rollers, 2-speed travel with automatic shift, and a high torque planetary final drive. The heavy-duty dozer blade with float and large wrap-around counterweight enhances stability and performance.
Takeuchi Fleet Management (TFM):
- Comprehensive Service and Support: A 2-year standard service package that includes minimizing downtime, remote diagnostics, utilization tracking, proactive maintenance, and cost control measures.
Designed for versatility and powered by innovative technology, the TB250-2 Compact Excavator from Takeuchi is set to redefine expectations in the compact excavator segment, offering unparalleled efficiency and performance tailored to the demanding needs of modern construction sites.
TB250-2 Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight – Canopy | 10,957 lb | (4,970 kg) |
| Operating Weight – Cab | 11,288 lb | (5,120 kg) |
| Maximum Bucket Breakout Force | 10,430 lb | (4,731 kg) |
| Maximum Arm Digging Force | 5,261 lb | (2,386 kg) |
| Arm Length | 5 ft 9.2 in | (1,760 mm) |
| Slew Speed | 9.5 rpm | |
| Traction Force | 12,320 lb | (5,588 kg) |
| Ground Pressure – Cab (Rubber) | 4.2 psi | (29.0 kPa) |
| Ground Pressure – Cab (Steel) | 4.4 psi | (30.0 kPa) |
| Travel Speed – Low Range | 1.7 mph | (2.8 km / hr) |
| Travel Speed – High Range | 3.2 mph | (2.8 km/hr) |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 40.9 gpm | (155.3 L / min) |
| Auxiliary Flow – Primary Circuit | 24.2 gpm | (91.7 L / min) |
| Hydraulic System Pressure | 3,481 psi | (24.0 MPa) |
| ENGINE | ||
| Make / Model | Yanmar / 4TNV88C-PTB | |
| Displacement | 133.6 cu in | (2.2 L) |
| Horsepower @ 2,400 rpm | 39.0 hp | (29.1 kW) |
| Maximum Torque @ 1,440 rpm | 106.9 ft-lb | (144.9 Nm) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 7.8 qt | (7.4 L) |
| Cooling System | 7.4 qt | (7.0 L) |
| Fuel Tank Capacity | 18.5 gal | (70.0 L) |
| Fuel Consumption (65% of Full Load) | (5.2 km/hr) | (5.5 L / hr) |
| Hydraulic Reservoir Capacity | 11.9 gal | (45.0 L) |
| Hydraulic System Capacity | 25.1 gal | (95.0 L) |
TB250-2 Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 20 ft 1.0 in | (6,120 mm) |
| Maximum Reach at Ground Level | 19 ft 7.6 in | (5,985 mm) |
| Maximum Digging Depth | 12 ft 4.8 in | (3,780 mm) |
| Maximum Vertical Digging Depth | 9 ft 9.5 in | (2,985 mm) |
| Maximum Dig Height | 18 ft 6.6 in | (5,655 mm) |
| Maximum Dumping Height | 13 ft 3.3 in | (4,045 mm) |
| Front Swing Radius | 7 ft 7.7 in | (2,330 mm) |
| Front Swing Radius with Boom Offset | 6 ft 0.8 in | (1,850 mm) |
| Tail Swing (Slew) Radius | 4 ft 5.5 in | (1,360 mm) |
| Transport Length | 18 ft 0.3 in | (5,495 mm) |
| Transport Height | 8 ft 5.2 in | (2,570 mm) |
| Ground Clearance | 13.2 in | (335 mm) |
| Undercarriage Length | 8 ft 2.4 in | (2,500 mm) |
| Track Width (Rubber) | 15.7 in | (400 mm) |
| Undercarriage Width | 6 ft 0.0 in | (1,839 mm) |
Additional information
| Rental | Daily, Weekly, 4 Weeks |
|---|
