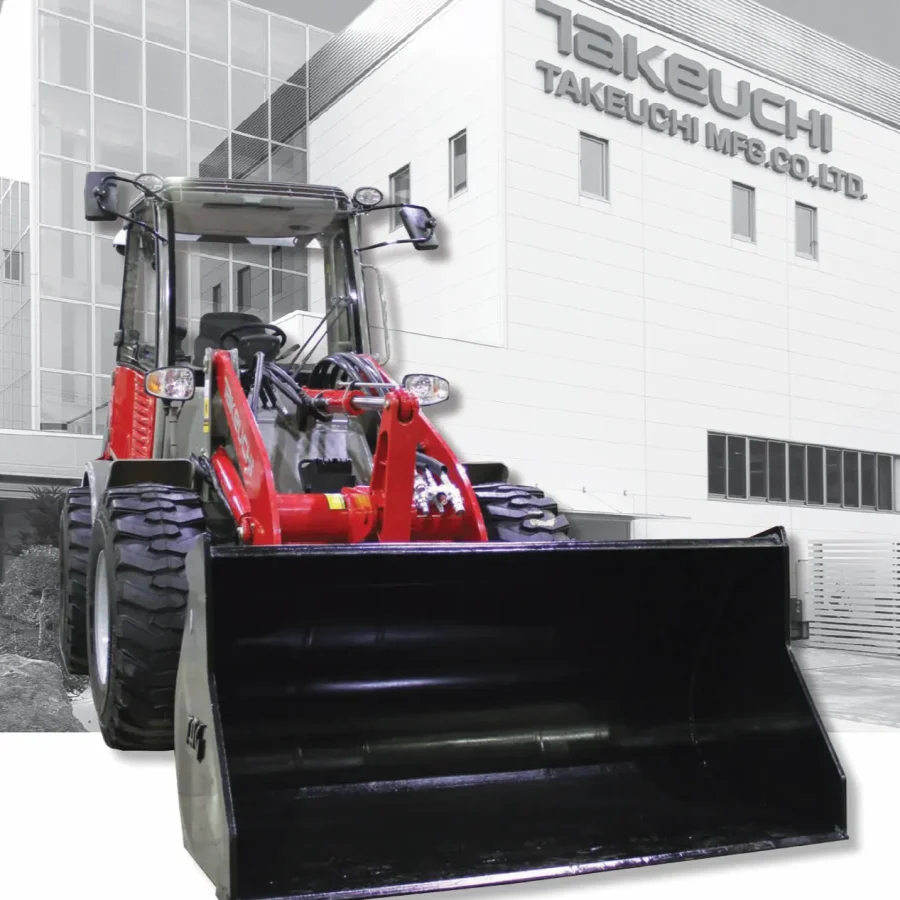

Takeuchi TW60 Series 2 Compact Wheel Loader

Compact and Nimble Design:

• The TW60 Series 2 is compact and handy, making it well-suited for various jobs and attachments.
• Its universal hydraulic skid steer coupler allows it to utilize a variety of skid steer attachments, enhancing its versatility on the job site.
• The machine is easily controlled from the operator’s station, providing intuitive operation.

Powerful Engine:

• Equipped with a quiet and turbocharged engine that is EPA Tier 4 compliant, ensuring reduced emissions without compromising power.
• Features a DOC/DPF exhaust after-treatment system for cleaner operation.
• Produces 61 horsepower (45.6 kW), delivering excellent power and performance for various applications.

Terrain Adaptability:

• 100% locking differentials can be engaged at low speeds, allowing the operator to work confidently in varied terrain and extreme conditions.

Easy Maintenance:

• Daily maintenance and inspections are simple to perform thanks to the overhead engine hood, providing easy access to crucial inspection points.
• Grease points are easily accessed on the loader and articulation points, facilitating routine maintenance tasks.

Engine and Electrical System:

• Turbocharged and water-cooled engine ensures optimal performance and durability.
• Equipped with a dual-element air cleaner for efficient filtration.
• Heavy-duty radiator and hydraulic oil cooler provide proper cooling even in demanding conditions.
• Electronic engine monitoring system includes indicators for high beam, turn signals, high speed, and directional lights.
• A 12-volt system with a 55 amp alternator provides ample electrical power.
• Work lights, driving lights, turn signals, and backup alarms enhance visibility and safety on the job site.

Drive Train:

• Hydrostatic drive with a 100% inching pedal offers precise control and maneuverability.
• Outboard planetary drives ensure reliable performance.
• Spring-applied parking brakes and a multi-wet disc brake system ensure safety during operation.
• Optional features include high-speed travel and heavy-duty construction tire assembly for enhanced performance in specific conditions.

Hydraulic & Working Equipment:

• Priority steering system ensures responsive and precise steering control.
• Auxiliary hydraulic lines plumbed to the end of the loader arms enable easy attachment of hydraulic tools.
• Loader arm float function enhances efficiency during material handling tasks.
• Heavy-duty hydraulic SSL-style quick-attach coupler allows for quick and easy attachment changes.
• Z-bar linkage and bucket float function ensure smooth operation and versatility.
• Optional features include a bolt-on reversible cutting edge for the bucket and a flat-face hydraulic coupler kit with case drain and pressure release knob.

Operator’s Station:

• Enclosed cab with A/C, heat, front and rear wipers, front and rear washer, and rear window defrost provides a comfortable working environment in all weather conditions.
• Deluxe lighting package for work, driving, and signal lights enhances visibility during operation.
• Elevated operator’s station offers a clear view of the work area.
• ROPS/FOPS level 1 protection ensures operator safety.
• Multi-function joystick for machine direction, loader controls, and a suspension seat provides ergonomic and comfortable operation.
• Large steps and grab handles facilitate easy entry and exit from the machine.

The Takeuchi TW60 Series 2 Compact Wheel Loader combines power, versatility, and ease of operation, making it an ideal choice for various construction and landscaping applications.

OPERATING PERFORMANCE
Operating Weight – Cab	10,692 lb	(4,850 kg)
Tipping Load, Straight	6,689 lb	(3,034 kg)
Tipping Load, Full Turn	5,906 lb	(2,679 kg)
Operating Capacity, SAE J818*	2,953 lb	(1,340 kg)
Bucket Breakout Force	6,294 lb	(2,855kg)
Lift Arm Breakout Force	6,002 lb	(2,722 kg)
Traction Force	8,818 lb	(4,000 kg)
Travel Speed – Low Range	4.0 mph	(6.5 km/hr)
Travel Speed – High Range	12.4 mph	(20.0 km/hr)
Optional High Speed Travel	17.4 mph	(28.0 km/hr)
* Rate Operating Capacity (ROC) for wheel loaders is rated with a bucket according to SAE J818 at no more than 50% of the full turn tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit	15.2 gpm	(57.5 Lpm)
Hydraulic System Pressure	3,408 psi	(23.5 MPa)
ENGINE
Make/Model	Yanmar 4TNV86CHT-MAW
Engine Displacement	128.0 cu in	(2.1 L)
Horsepower @ 2,300 rpm	61.2 hp	(45.6 kW)
Maximum Torque @ 1,800 rpm	146.0 ft-lb	(198.0 Nm)
FLUID CAPACITIES
Engine Lubrication	7.8 qt	(7.4 L)
Cooling System	8.9 qt	(8.5 L)
Fuel Tank Capacity	16.2 gal	(61.5 L)
Fuel Consumption (65% of Full Load)	3.4 gal/hr	(12.8 L/hr)
Hydraulic Reservoir Capacity	10.8 gal	(41.0 L)
Front Axle Lubrication	4.9 qt	(4.6 L)
Rear Axle Lubrication	4.6 qt	(4.4 L)

MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin	10 ft 9.7 in	(3,294 mm)
Dump Height Fully Raised	7 ft 5.0 in	(2,263 mm)
Max. Reach Fully Raised	2 ft 2.4 in	(670 mm)
Dump Angle	46°
Rollback Angle	43°
Overall Length with Bucket	17 ft 7.1 in	(5,360 mm)
Overall Height	8 ft 6.4 in	(2,599 mm)
Overall Operating Height	12 ft 4.3 in	(3,766 mm)
Bucket Clearance Height	9 ft 8.7 in	(2,964 mm)
Wheel Base	6 ft 6.7 in	(2,000 mm)
Ground Clearance	20.5 in	520 mm)
Overall Width without Bucket	6 ft 3.0 in	(1,905 mm)
Outside Turning Radius	12 ft 1.3 in	(3,690 mm)
Inside Turning Radius	6 ft 5.3 in	(1,840 mm)
Recommended Bucket Width	76.5 in	(1,943 mm)
