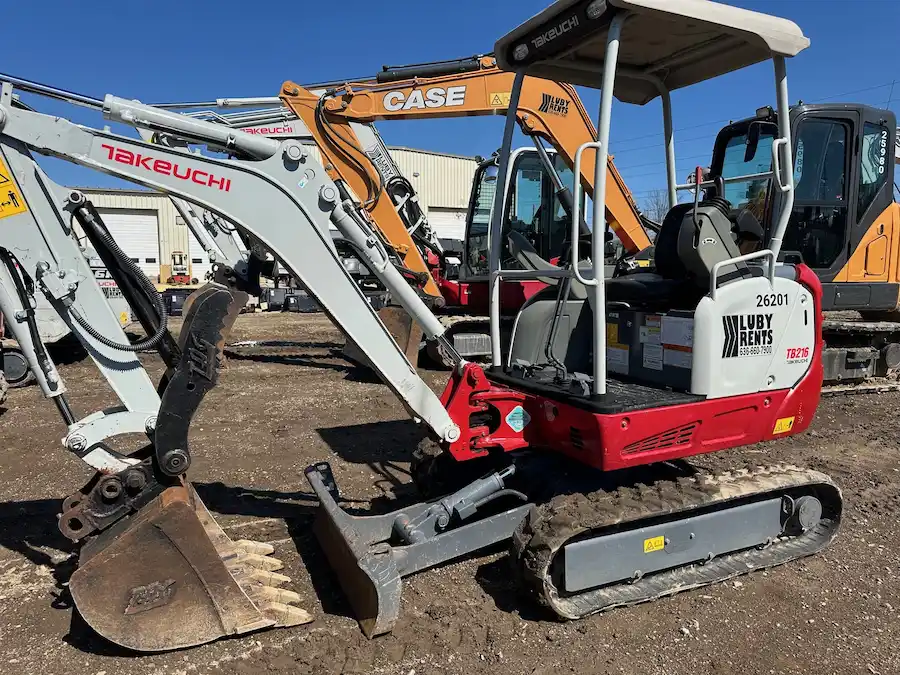

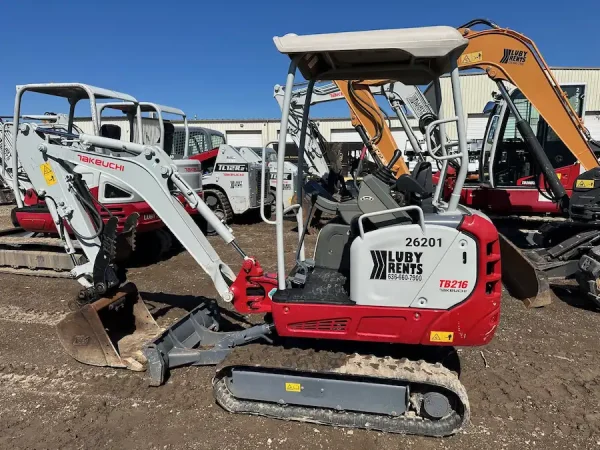

Takeuchi TB216 Compact Excavator – 216102763
$260.00 – $2,220.00
Request more information:
Available for rent at Luby Equipment, the Takeuchi TB216 Compact Excavator sets new standards for compact excavators, delivering power, functionality, and operator convenience.
| BRAND |
TAKEUCHI |
|---|---|
| MODEL |
TB216R |
| CONDITION |
Rental |
| DAILY RATE |
$260.00 |
| WEEKLY RATE |
$840.00 |
| 4 WEEK RATE |
$2,220.00 |
| NET HP |
15 HP |
| OPERATING WEIGHT |
3,902 lbs |
| PRODUCT |
Mini Excavator |
| LOCATION |
Fenton, MO |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of Fenton, MO and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!
PDF BROCHURE: Takeuchi TB216 Compact Excavator
Takeuchi TB216 Compact Excavator For Rent
Available for rent at Luby Equipment, the Takeuchi TB216 Compact Excavator sets new standards for compact excavators, delivering power, functionality, and operator convenience. With a focus on operator comfort, performance, and serviceability, this machine is engineered to excel in landscaping, construction, and other applications, meeting diverse needs with ease.
TB216 Features
Engine and Performance
- EPA Final Tier 4 Emission Compliance: Ensures environmentally friendly operation without compromising power.
- Efficient Operation: Features like engine preheat, extended life coolant, dual-element air filters, and an automatic fuel bleed system maximize performance and reliability.
Advanced Electrical System
- Intuitive Multi-Informational Display: Offers critical data at a glance, including engine preheat, high speed, water temperature, and fuel gauge.
- User-Friendly Functionality: Navigate through the hour/trip meter, time and alarm settings, and contrast adjustments with ease.
- Essential Alarms: Equipped with an hour meter and travel alarm for operational safety.
Undercarriage and Durability
- Sturdy Design: Triple-flanged track rollers and a hydraulically retractable track frame enhance stability and adaptability across various terrains.
- Versatile Backfill Blade: Adjustable width for precision work and a cast iron wrap-around protective counterweight for added durability.
- Optimized Mobility: Features low and high-range travel with auto downshift for seamless transitions.
Hydraulic Excellence
- Precise Control: Variable displacement piston pumps paired with cushioned boom and swing cylinders ensure smooth operation.
- Pilot Operated Joystick Controls: Offer intuitive operation for all movement and digging functions.
- Robust Hydraulic System: Includes a steel hydraulic tank with a fluid level sight gauge and a primary auxiliary circuit plumbed to the arm for versatile attachment use.
Working Equipment
- Enhanced Durability: Top mount boom cylinder and internally protected hydraulic hoses minimize damage and wear.
- Versatility Built-In: Long arm with integrated thumb mount enhances functionality, with options for a dual pin position bucket, mechanical bucket quick coupler, and central pin hydraulic thumb to suit various job requirements.
Operator’s Comfort and Safety
- Safety First Design: ROPS/TOPS/FOPS four post canopy ensures operator safety in varying conditions.
- Ergonomic Seating: Suspension seat with fore and aft adjustments, complemented by auxiliary hydraulics controlled with a foot pedal for ease of use.
- Enhanced Security: Comes standard with a 2″ retractable seat belt, with an option for a 3″ non-retractable seat belt for added safety.
Takeuchi Fleet Management (TFM)
- Comprehensive Service: A 2-year standard service provides peace of mind and minimizes downtime with remote diagnostics, utilization tracking, proactive maintenance, and cost control features.
The TB216: A Compact Powerhouse
The Takeuchi TB216 is not just a compact excavator; it’s a versatile tool designed to excel in the most demanding environments. Whether for intricate landscaping projects, general construction tasks, or utility work, the TB216 combines the latest excavator technology with Takeuchi’s renowned reliability and performance, making it an essential addition to any fleet.
TB216 Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight | 3,900 lb | (1,770 kg) |
| Max. Bucket Breakout Force | 4,250 lb | (1,928 kg) |
| Max. Arm Digging Force | 1,843 lb | (836 kg) |
| Arm Length | 3 ft 8.5 in | (1,130 mm) |
| Slew Speed | 9.2 rpm | |
| Traction Force | 4,361 lb | (1,978 kg) |
| Ground Pressure | 4.3 psi | 29.4 kPa |
| Travel Speed – Low | 1.4 mph | (2.2 km / hr) |
| Travel Speed – High | 2.6 mph | (4.2 km / hr) |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 13.4 gpm | (50.9 L / min) |
| Auxiliary Hydraulic Flow | 8.9 gpm | (33.6 L / min) |
| Hydraulic System Pressure | 3,046 psi | (21.0 Mpa) |
| ENGINE | ||
| Model / Make | Yanmar / 3TNV74 | |
| Displacement | 60.2 cu in | (.98 L) |
| Horsepower @ 2,400 rpm | 15 hp | (11.2 kW) |
| Max. Torque @ 1,800 rpm | 38.2 ft-lb | (51.8 Nm) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 4.5 qt | (4.3 L) |
| Cooling System | 4.0 qt | (3.8 L) |
| Fuel Tank Capacity | 5.8 gal | (22.0 L) |
| Hydraulic Reservoir Capacity | 4.2 gal | (16.0 L) |
| Hydraulic System Capacity | 6.5 gal | (24.5 L) |
TB216 Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 13 ft 5.0 in | (4,090 mm) |
| Maximum Reach at Ground Level | 13 ft 2.9in | (4,035 mm) |
| Maximum Digging Depth | 7 ft 10.0 in | (2,390 mm) |
| Maximum Vertical Digging Depth | 6 ft 9.1 in | (2,060 mm) |
| Maximum Dig Height | 12 ft 3.2 in | (3,740 mm) |
| Maximum Dumping Height | 8 ft 10.5 in | (2,705 mm) |
| Front Swing Radius | 4 ft 10.3 in | (1,480 mm) |
| Front Swing Radius with Boom Offset | 3 ft 9.4 in | (1,155 mm) |
| Tail Swing (Slew) Radius | 3 ft 6.3 in | (1,075 mm) |
| Transport Length | 12 ft 8.3 in | (3,870 mm) |
| Transport Height | 7 ft 4.8 in | (2,255 mm) |
| Ground Clearance | 8.1 in | (205 mm) |
| Undercarriage Length | 4 ft 11.9 in | (1,520 mm) |
| Track Width (Rubber) | 9.0 in | (230 mm) |
| Undercarriage Width – Track Retracted | 38.6 in | (980 mm) |
| Undercarriage Width – Track Extended | 51.2 in | (1,300 mm) |
Additional information
| Rental | Daily, Weekly, 4 Weeks |
|---|
