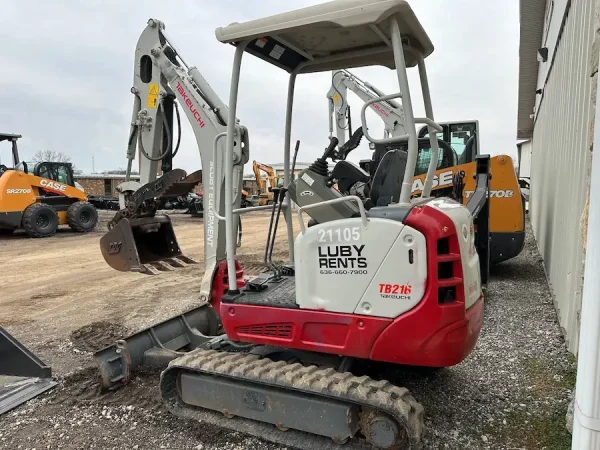

Takeuchi TB216 Compact Excavator – 216102174

Engine and Performance

• EPA Final Tier 4 Emission Compliance: Ensures environmentally friendly operation without compromising power.
• Efficient Operation: Features like engine preheat, extended life coolant, dual-element air filters, and an automatic fuel bleed system maximize performance and reliability.

Advanced Electrical System

• Intuitive Multi-Informational Display: Offers critical data at a glance, including engine preheat, high speed, water temperature, and fuel gauge.
• User-Friendly Functionality: Navigate through the hour/trip meter, time and alarm settings, and contrast adjustments with ease.
• Essential Alarms: Equipped with an hour meter and travel alarm for operational safety.

Undercarriage and Durability

• Sturdy Design: Triple-flanged track rollers and a hydraulically retractable track frame enhance stability and adaptability across various terrains.
• Versatile Backfill Blade: Adjustable width for precision work and a cast iron wrap-around protective counterweight for added durability.
• Optimized Mobility: Features low and high-range travel with auto downshift for seamless transitions.

Hydraulic Excellence

• Precise Control: Variable displacement piston pumps paired with cushioned boom and swing cylinders ensure smooth operation.
• Pilot Operated Joystick Controls: Offer intuitive operation for all movement and digging functions.
• Robust Hydraulic System: Includes a steel hydraulic tank with a fluid level sight gauge and a primary auxiliary circuit plumbed to the arm for versatile attachment use.

Working Equipment

• Enhanced Durability: Top mount boom cylinder and internally protected hydraulic hoses minimize damage and wear.
• Versatility Built-In: Long arm with integrated thumb mount enhances functionality, with options for a dual pin position bucket, mechanical bucket quick coupler, and central pin hydraulic thumb to suit various job requirements.

Operator’s Comfort and Safety

• Safety First Design: ROPS/TOPS/FOPS four post canopy ensures operator safety in varying conditions.
• Ergonomic Seating: Suspension seat with fore and aft adjustments, complemented by auxiliary hydraulics controlled with a foot pedal for ease of use.
• Enhanced Security: Comes standard with a 2″ retractable seat belt, with an option for a 3″ non-retractable seat belt for added safety.

Takeuchi Fleet Management (TFM)

• Comprehensive Service: A 2-year standard service provides peace of mind and minimizes downtime with remote diagnostics, utilization tracking, proactive maintenance, and cost control features.

The TB216: A Compact Powerhouse

The Takeuchi TB216 is not just a compact excavator; it’s a versatile tool designed to excel in the most demanding environments. Whether for intricate landscaping projects, general construction tasks, or utility work, the TB216 combines the latest excavator technology with Takeuchi’s renowned reliability and performance, making it an essential addition to any fleet.

OPERATING PERFORMANCE
Operating Weight	3,900 lb	(1,770 kg)
Max. Bucket Breakout Force	4,250 lb	(1,928 kg)
Max. Arm Digging Force	1,843 lb	(836 kg)
Arm Length	3 ft 8.5 in	(1,130 mm)
Slew Speed	9.2 rpm
Traction Force	4,361 lb	(1,978 kg)
Ground Pressure	4.3 psi	29.4 kPa
Travel Speed – Low	1.4 mph	(2.2 km / hr)
Travel Speed – High	2.6 mph	(4.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow	13.4 gpm	(50.9 L / min)
Auxiliary Hydraulic Flow	8.9 gpm	(33.6 L / min)
Hydraulic System Pressure	3,046 psi	(21.0 Mpa)
ENGINE
Model / Make	Yanmar / 3TNV74
Displacement	60.2 cu in	(.98 L)
Horsepower @ 2,400 rpm	15 hp	(11.2 kW)
Max. Torque @ 1,800 rpm	38.2 ft-lb	(51.8 Nm)
FLUID CAPACITIES
Engine Lubrication	4.5 qt	(4.3 L)
Cooling System	4.0 qt	(3.8 L)
Fuel Tank Capacity	5.8 gal	(22.0 L)
Hydraulic Reservoir Capacity	4.2 gal	(16.0 L)
Hydraulic System Capacity	6.5 gal	(24.5 L)

MACHINE DIMENSIONS
Maximum Reach	13 ft 5.0 in	(4,090 mm)
Maximum Reach at Ground Level	13 ft 2.9in	(4,035 mm)
Maximum Digging Depth	7 ft 10.0 in	(2,390 mm)
Maximum Vertical Digging Depth	6 ft 9.1 in	(2,060 mm)
Maximum Dig Height	12 ft 3.2 in	(3,740 mm)
Maximum Dumping Height	8 ft 10.5 in	(2,705 mm)
Front Swing Radius	4 ft 10.3 in	(1,480 mm)
Front Swing Radius with Boom Offset	3 ft 9.4 in	(1,155 mm)
Tail Swing (Slew) Radius	3 ft 6.3 in	(1,075 mm)
Transport Length	12 ft 8.3 in	(3,870 mm)
Transport Height	7 ft 4.8 in	(2,255 mm)
Ground Clearance	8.1 in	(205 mm)
Undercarriage Length	4 ft 11.9 in	(1,520 mm)
Track Width (Rubber)	9.0 in	(230 mm)
Undercarriage Width – Track Retracted	38.6 in	(980 mm)
Undercarriage Width – Track Extended	51.2 in	(1,300 mm)
