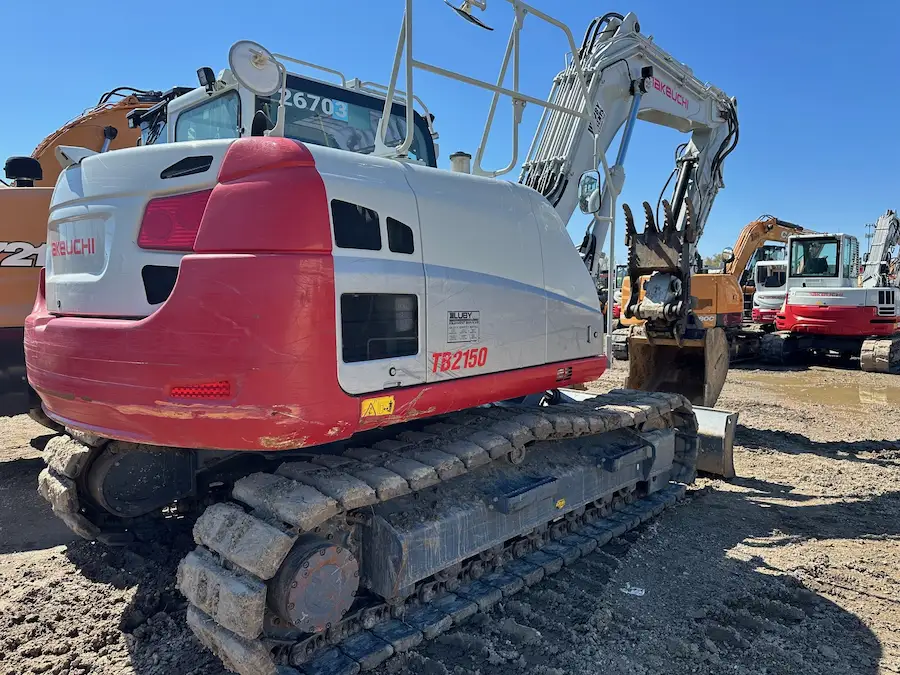

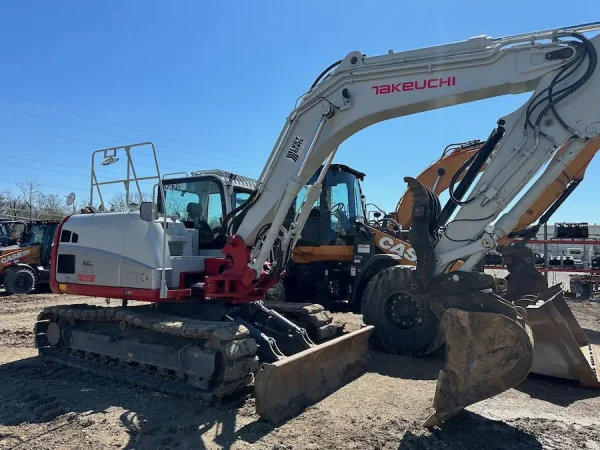

Takeuchi TB2150 CL Compact Excavator – 514601005

Engine and Performance:

Powered by an engine compliant with EPA Final Tier 4 emissions, the TB2150 combines eco-friendliness with robust performance. Its turbocharged engine features high-pressure common rail fuel injection and DOC+SCR exhaust after treatment, optimizing power while minimizing environmental impact. The automatic fuel bleed system, variable speed hydraulic fan drive, and high-efficiency fuel filters ensure seamless operation across different working modes, including Standard, Power, and High Altitude.

Operator Comfort and Control:

The cab of the TB2150 has been completely redesigned for maximum operator comfort and efficiency. It features an air-ride suspension seat with heat, automatic climate control, and a color monitor panel that tracks machine performance and provides a view from the rear camera. This advanced operator’s station ensures operators can work comfortably and with excellent visibility, enhancing productivity on long workdays.

Hydraulic System and Attachments:

With multiple auxiliary circuits as standard equipment, the TB2150 is a formidable attachment platform. Its hydraulic system includes variable displacement, open center hydraulics, and proportional auxiliary controls with detent, allowing precise operation and control. The excavator is ready for various tasks with its dual boom cylinders, primary and secondary auxiliary hydraulic circuits, and a high-pressure third auxiliary circuit, providing flexibility and efficiency.

Undercarriage and Durability:

The TB2150 features a robust undercarriage and frame, including triple-flanged track rollers and high-torque planetary final drives. The heavy-duty dozer blade with float and wrap-around counterweight ensures stability and performance. Options for 20” rubber tracks, 24” steel tracks, or segmented rubber tracks offer versatility to match different ground conditions.

Advanced Features for Enhanced Productivity:

• Deluxe LED Light Package: Ensures excellent visibility in low light conditions.
• Rear View Camera: Enhances safety and operational efficiency.
• Takeuchi Fleet Management (TFM): Offers tools for minimizing downtime, remote diagnostics, utilization tracking, proactive maintenance, and cost control.

Safety and Convenience:

Safety features include:

• ROPS/OPG Level 2 protection.
• An adjustable armrest.
• A deluxe high-back air ride suspension seat with heat.

The operator’s station is equipped with a polycarbonate skylight with a sunshade, an AM/FM/MP3 radio, and 24v and 12v power outlets, ensuring safety and convenience.

Customization and Flexibility:

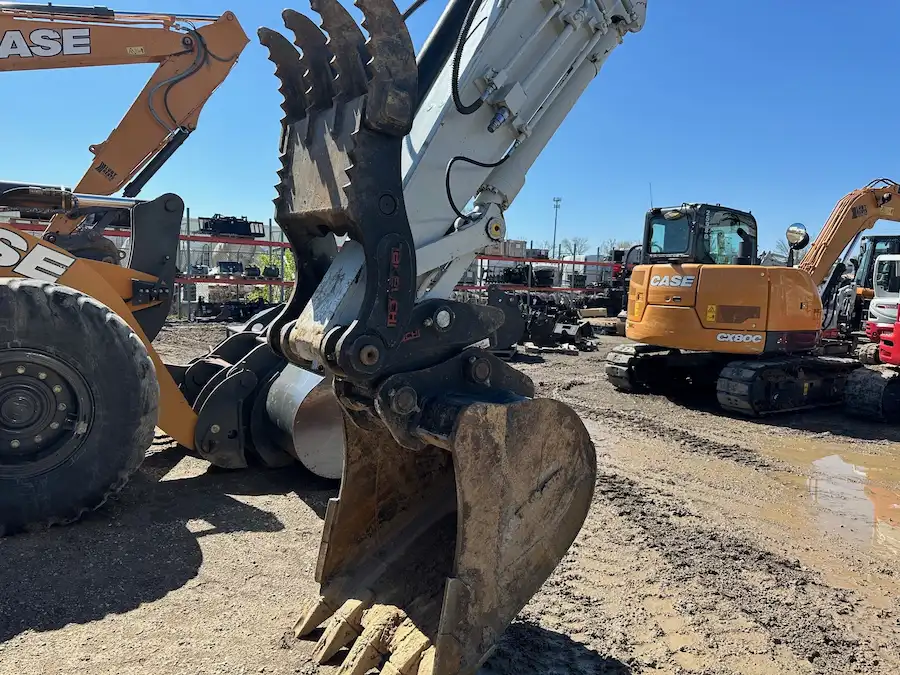

The TB2150 offers various options for customization, including a pin grabber bucket coupler and a main pin hydraulic thumb, catering to the specific needs of different projects and enhancing its versatility as an attachment platform.

The Takeuchi TB2150 Compact Excavator: Your Partner in Productivity

The TB2150 redefines expectations for compact excavator performance, comfort, and versatility. Whether tackling heavy-duty digging, precision grading, or complex lifting, the TB2150 is engineered to deliver outstanding results, making it the excavator for professionals seeking reliability and efficiency in their equipment.

OPERATING PERFORMANCE
Operating Weight – Cab (Rubber)	34,646 lb	15,715 kg
Operating Weight – Cab (Steel)	35,274 lb	16,000 kg
Operating Weight – Cab (Segmented Rubber)	34,976 lb	15,865 kg
Maximum Bucket Breakout Force	22,256 lbf	10,095 kgf
Maximum Arm Digging Force	14,590 lbf	6,618 kgf
Arm Length	8 ft 5.0 in	2,570 mm
Slew Speed	10.8 rpm
Traction Force	32,600 lbf	14,786 kgf
Ground Pressure – Cab (Rubber)	6.83 psi	47.1 kPa
Ground Pressure – Cab (Steel)	6.92 psi	47.7 kPa
Max Travel Speed
Low Range	1.9 mph	3.1 km/h
High Range	3.4 mph	(5.5 km/h
ENGINE
Make / Model	Deutz / TCD 3.6 L4 – Turbo
Displacement	221.0 cu in	3.6 L
Horsepower @ 2,000 rpm	114.0 hp	85.0 kW
Maximum Torque @ 1,600 rpm	339.3 ft-lb	460.0 Nm
HYDRAULIC SYSTEM
Total Hydraulic Flow	78.9 gpm	293.0 L/min
Auxiliary Flow – Primary Circuit	59.0 gpm	224.0 L/min
Auxiliary Flow – Secondary Circuit	14.5 gpm	55.0 L/min
Hydraulic System Pressure	4,977 psi	34.3 MPa
FLUID CAPACITIES
Engine Lubrication	10.6 qt	10.0 L
Cooling System	21.1 qt	20.0 L
Fuel Tank Capacity	73.4 gal	278.0 L
DEF Fluid Tank Capacity	5.3 gal	20.0 L
Fuel Consumption (65% of Full Load)	3.84 gal/h	14.5 L/h
Hydraulic Reservoir Capacity	28.1 gal	107.0 L
Hydraulic System Capacity	61.8 gal	234.0 L

MACHINE DIMENSIONS
Maximum Reach	28 ft 8.9 in	(8,760 mm)
Maximum Reach at Ground Level	28 ft 1.2 in	(8,565 mm)
Maximum Digging Depth	18 ft 0.0 in	(5,486 mm)
Maximum Vertical Digging Depth	15 ft 2.5 in	(4,635 mm)
Maximum Dig Height	28 ft 5.0 in	(8,670 mm)
Maximum Dumping Height	20 ft 4.9 in	(6,220 mm)
Front Swing Radius	9 ft 11.0 in	(3,015 mm)
Front Swing Radius with Boom Offset	7 ft 10.0 in	(2,405 mm)
Slew Radius	6 ft 6.7 in	(2,000 mm)
Transport Length	25 ft 7.3 in	(7,805 mm)
Transport Height	9 ft 8.5 in	(2,960 mm)
Ground Clearance	1 ft 7.0 in	(475 mm)
Track Overall Length	11 ft 10.3 in	(3,615 mm)
Track Width (Rubber)	20.0 in	(500 mm)
Track Overall Width	8 ft 2.0 in	(2,490 mm)
