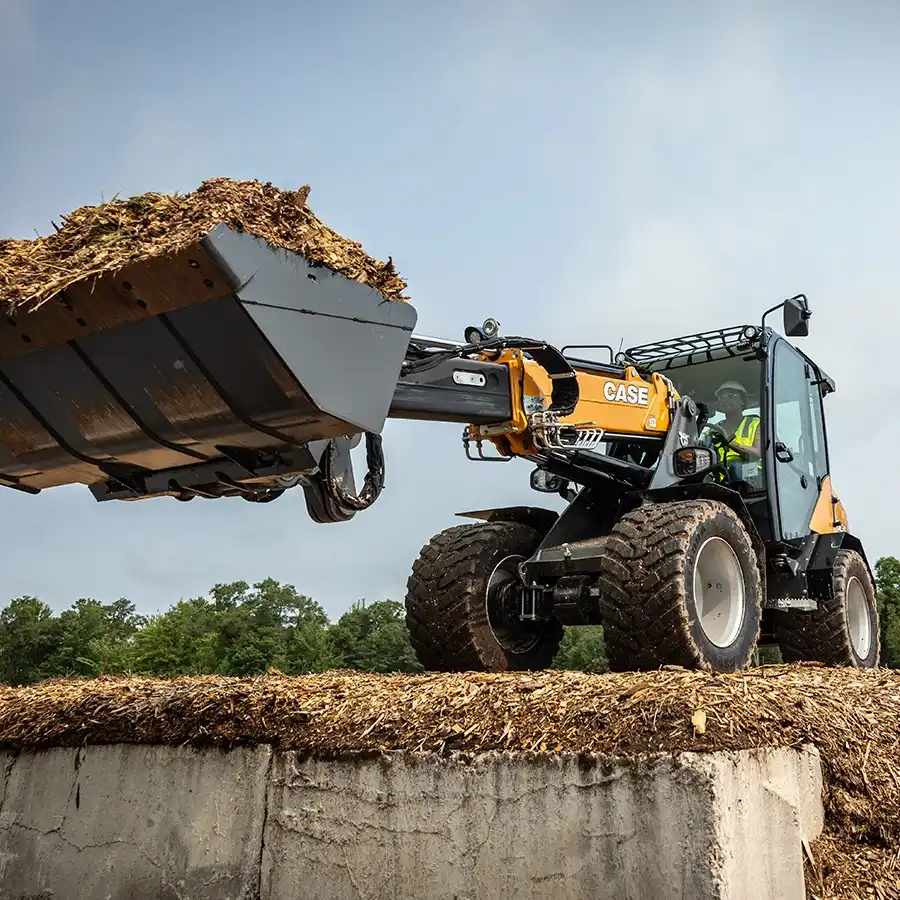

CASE SL12 TR Telescopic Reach Small Articulated Loader

CALL FOR PRICE

Request more information:


The CASE SL12 TR is a telescopic reach model designed for those who demand more versatility and reach in their operations. At Luby Equipment, we understand the importance of efficiency and precision in your projects. The SL12 TR is here to elevate your capabilities to new heights.

BROCHURE: CASE Small Articulated Loader Family Brochure

ATTACHMENTS: CASE Mini Attachments

SELL SHEET: CASE SL12 TR Specs

Categories: , Tag:

CASE SL12 TR Telescopic Reach Small Articulated Loader

Available now at Luby Equipment, the CASE SL12 TR telescopic boom model is tailor-made for those requiring extra reach. Boasting a lifting height of 108 inches, this model provides over two feet of additional extension, enabling more precise offloading to taller trailers, and enhanced placement of materials like mulch or stone. Its compact design allows for maneuvering in tight spaces, while the narrow width makes it perfect for clearing snow-covered sidewalks. The lower operating weight and articulated steering of the SL12 TR also help to minimize ground surface damage. Consider this model if your tasks take you to greater heights and tighter spots.

SL12 TR Features

Key Features:

  • Extended Reach for Enhanced Productivity:
    • Telescoping boom with a lifting height of 108 inches.
    • Ability to offload to taller trailers and stack pallets higher.
    • Precise placement of materials like mulch or stone.
  • Compact Design for Tight Spaces:
    • It is ideal for navigating narrow passageways and confined areas.
    • Perfect for use in small backyards, interior courtyards, and other restricted spaces.
  • Optimized for Delicate Surfaces:
    • Lower operating weight and articulated steering to minimize ground damage.
    • Wide variety of tire options for customization to specific ground conditions.
    • Enhanced mobility with minimal impact on turf and paved surfaces.
  • Narrow Width for Specialized Tasks:
    • Slim profile at just 36 inches wide, fitting through tight gates and doorways.
    • Optimal for clearing snow from sidewalks and other narrow pathways.

Advantages of the SL12 TR:

  • Reach New Heights: The telescopic arm extends your capabilities, allowing for more efficient and precise operations.
  • Access Restricted Areas: The compact and maneuverable design opens up new possibilities in confined work environments.
  • Preserve Ground Integrity: Tailor the loader to your site with various tire options, ensuring a gentle touch on sensitive surfaces.
  • Versatile Applications: From material handling to snow clearing, the SL12 TR is a multifaceted tool that adapts to your project needs.

Elevate Your Operations with the SL12 TR

The CASE SL12 TR Telescopic Reach Small Articulated Loader is more than just a machine; it’s a solution that extends your reach and enhances your project outcomes.

SL12 TR Standard Equipment

Operator Environment:

  • ROPS/FOPS Safety Roof: Ensures operator protection in compliance with safety standards.
  • Safety Entry Bar: Provides an added layer of safety during entry and exit.
  • Key Start: For easy and reliable operation.
  • Non-suspension Vinyl Seat with Armrests: Offers comfort during long working hours.
  • Retractable Seat Belt: Ensures operator safety at all times.
  • Exterior Mirrors: Enhance visibility and operational safety.

Engine:

  • Glow Plug Starting Aid: Facilitates easy starts in cold conditions.
  • Engine Block Heater: Aids in engine performance in low temperatures.
  • Locking Fuel Cap: Secures your fuel supply.

Drivetrain:

  • Hydrostatic 4-Wheel Drive: Delivers superior traction and maneuverability.
  • FNR Control on Joystick: Allows for intuitive forward and reverse movements.
  • Electro-hydraulic Controlled, Manually Activated Differential: Enhances traction in challenging conditions.
  • Hydraulic Parking Brake: Ensures secure parking on various terrains.

Hydraulics:

  • Extension/Retraction of Lift Arm Controlled by Lever or Joystick: Provides precise control over the telescopic arm.
  • 3-Spool Main Control Valve: Facilitates smooth operation of multiple hydraulic functions.
  • 1x Dual Acting Auxiliary Hydraulics: Various attachments expand the loader’s versatility.
  • Attachment Case Drain Return: Prevents hydraulic overflow.
  • Loader Arm Float: Allows the bucket to follow the ground’s contour for smooth operation.
  • Hydraulic Self-level Function: Keeps the load level during lifting, enhancing safety and efficiency.
  • Oil Cooler: Maintains optimal hydraulic fluid temperatures.

Loader:

  • Telescopic Reach Loader Arm: Extends the reach and versatility of the loader.
  • Loader Lift Arm Support Strut: Provides stability and safety during maintenance.
  • CII Mechanical Attachment Coupler: Facilitates easy and secure attachment changes.
  • Additional Counterweights: Enhance lifting capacity and stability.

Electrical:

  • 12 Volt System: Powers all electrical components efficiently.
  • 52 AHR, 520 CCA Battery: Ensures reliable power and performance.
  • 40 A Alternator: Keeps the battery and electrical system running smoothly.
  • 2 Front Cab Work Lights: Enhance visibility for safe operation in low light conditions.
  • Remote Jumpstart Provision: Provides a convenient solution for battery recharging.

Other Standard Features:

  • Recovery Hook: Facilitates towing and rescue operations.
  • Lifting Eyes: Allow for easy transport and lifting of the loader.
  • Backup Alarm: Alerts nearby personnel and enhances safety during reverse operation.
  • Horn: Improves onsite communication and safety.

SL12 TR Optional Equipment

Engine Customization:

  • Hand Throttle: Allows for precise control over engine speed, facilitating smoother operation and improved response to specific job requirements.

Drivetrain Enhancements:

  • Hand-inch Creep Control: Offers meticulous speed control for precision tasks, enabling the operator to maneuver the loader with exceptional accuracy in tight spaces or during delicate operations.

Hydraulic System Upgrades:

  • Dual Acting Auxiliary Hydraulics: Expands the loader’s functionality with two additional hydraulic circuits, allowing for the use of complex attachments that require multiple hydraulic functions.
  • Auxiliary Hydraulic Hold Function: Ensures continuous hydraulic pressure for attachments that need constant power, enhancing efficiency and effectiveness.
  • Continuous Flow Auxiliary Hydraulics: Provides a steady hydraulic flow, ideal for attachments requiring continuous operation, such as hydraulic brooms or snow blowers.

Electrical Options:

  • Enhanced Lighting: An additional boom worklight and two cab rear worklights improve visibility and safety, ensuring clear visibility in all working conditions.
  • 3-Pin Electrical Auxiliary Connection: Facilitates easy connection to powered attachments, broadening the range of tools that can be utilized.
  • Rotating Beacon Light: Enhances the loader’s visibility on busy sites or in low-light conditions, ensuring safety for the operator and surrounding personnel.

Additional Features:

  • Multilingual Operator Manual: Available in English, Spanish, or French, ensuring comprehensive understanding and safe operation for all users.
  • Groundskeeper Tool Carrying Kit: A specialized accessory for landscape maintenance, offering convenient storage and transport for essential tools, directly on the loader.

SL12 TR Engine Specs

Engine SpecificationDetail
ModelKubota D902
Emissions CertificationTier 4 Final/Stage V
Cylinders3
Displacement54.8 in³ (0.898 L)
FuelDiesel
Exhaust AftertreatmentN/A
Engine Speeds RPMRated – Full Load: 3600
Horsepower @ 3600 RPM – SAE J1349Gross: 25 hp (18.5 kW)
Peak Torque @ 2600 RPM41.4 lb·ft (56.1 N·m)

SL12 TR Dimensions

DimensionSpecification
A. Wheelbase49.1 in (1,247 mm)
B. Total Length89.2 in (2,265 mm)
C. Length with Bucket115.2 in (2,927 mm)
D. Seat Height40.2 in (1,020 mm)
E. Max. Height with Safety Roof81.1 in (2,060 mm)
F. Max. Height with CabinN/A
G. Height Front Frame51.6 in (1,310 mm)
H. Max. Dumping Height81.1 in (2,060 mm)
I. Lifting Height107.9 in (2,740 mm)
J. Height with Bucket129.9 in (3,300 mm)
K. Rollback Angle on the Ground43°
L. Rollback Angle at Max. Lift Height50°
M. Max. Dumping Angle40°
N. Max. Loading Angle34°
O. Outer Size of Tires22.4 in (570 mm)
P. Maximum Radius External87.6 in (2,225 mm)
Q. Turning Radius on Outer Edge77.4 in (1,967 mm)
R. Inner Turning Radius38.5 in (978 mm)
S. Width on Standard Tires36.2 in (920 mm)
Tipping Load PathSpecification
T.440 lb (200 kg)
U.1,010 lb (460 kg)
V.1,650 lb (750 kg)

Warranty

  • Base warranty coverage: 2-Year/1,000-Hour
  • Full Machine Limited Warranty
  • Electric power train warranty coverage: 3-year/3,000 Hour Limited Warranty (EV models only)
