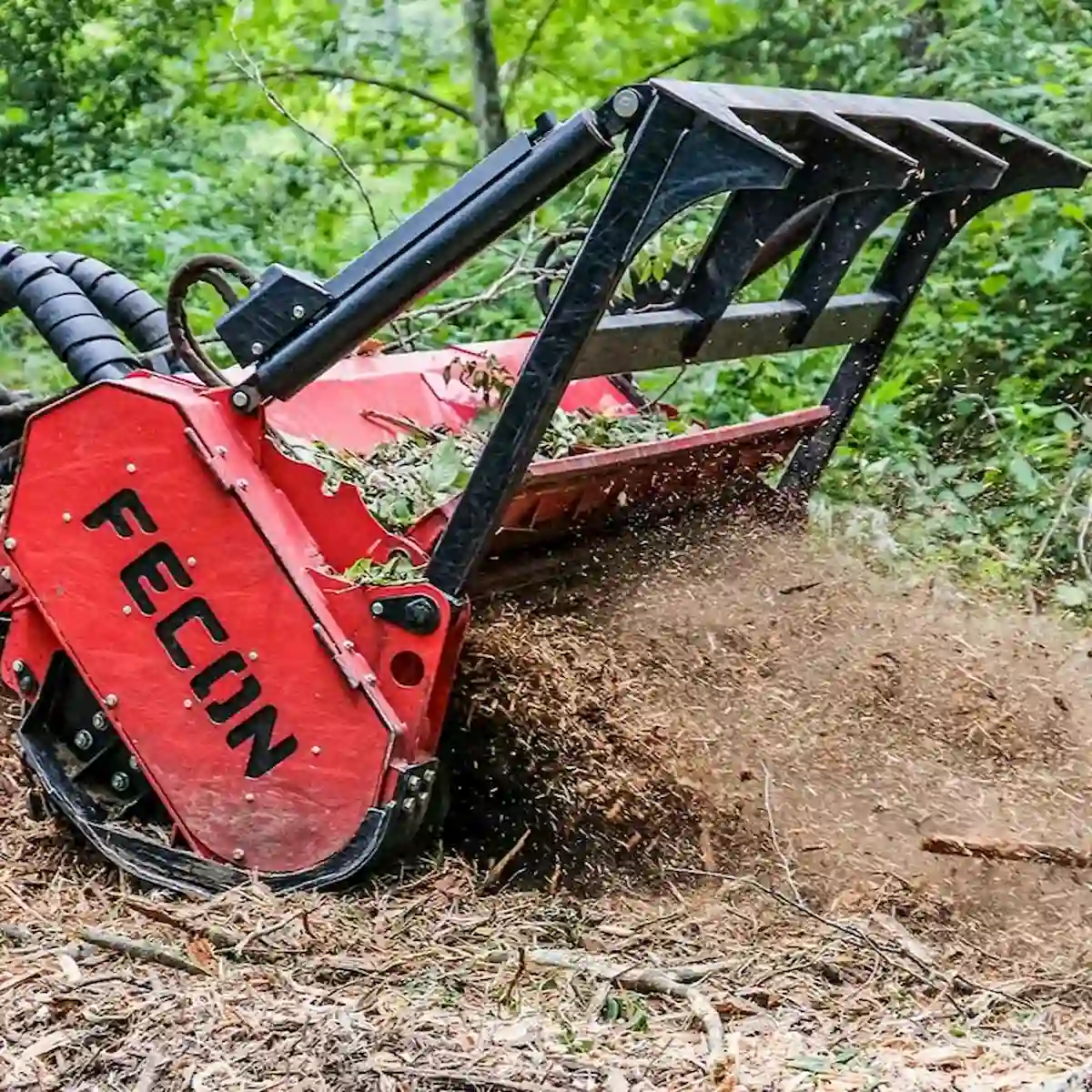

Fecon Bullhog 200+ HP Tractor Mulching Attachment

CALL FOR PRICE

Request more information:


The Fecon Bullhog 200+ HP Tractor Mulching Attachment is tailored for peak performance across diverse terrains and hydraulic systems up to 600 hp. Expertly configured with optimal cutting tools, width, and weight, it suits open-loop, load sense, or closed-loop systems. Ideal for tracked and wheeled prime movers, it excels in climbing slopes, crossing wetlands, or traversing paved roads, embodying Fecon’s hallmark reliability and efficiency in heavy-duty mulching tasks.

Brochure: Fecon Bullhog 200+ HP Tractor Mulching Attachment Brochure

Categories: , , Tags: ,

Fecon Bullhog 200+ HP Tractor Mulching Attachment

The Fecon Bullhog 200+ HP Tractor Mulching Attachment is tailored for peak performance across diverse terrains and hydraulic systems up to 600 hp. Expertly configured with optimal cutting tools, width, and weight, it suits open-loop, load sense, or closed-loop systems. Ideal for tracked and wheeled prime movers, it excels in climbing slopes, crossing wetlands, or traversing paved roads, embodying Fecon’s hallmark reliability and efficiency in heavy-duty mulching tasks.

Bullhog 200+ HP FEatures

Heavy-Duty Construction

  • Severe Duty Body: Engineered with the industry’s most robust body construction, it withstands the rigors of daily, full-time usage across thousands of hours, offering a heavy-duty solution for extreme demands.

Cutting Technology

  • Versatile Rotor Systems: These systems are equipped with two rotor options and are compatible with various cutting tools such as Double Carbide, High Abrasion, Stone Tool, Viking Sword, and Viking Axe, catering to different mulching needs.

Performance Optimization

  • Variable Speed Motor: Incorporates Fecon’s advanced variable speed technology, automatically adjusting motor displacement to optimize rotor speed and torque in response to varying material loads. This ensures:
    • Higher RPM and more bites per second under lighter loads for finer material sizing.
    • Increased rotor torque under heavier loads to maintain performance without stalling has been proven to enhance productivity significantly.

Control and Efficiency

  • Adjustable Pin-On Push Bar: Comes with serrated ears for effective material direction, enhancing mulching precision and efficiency.
  • Curved Skid Shoes: Made from durable AR400 steel, these adjustable shoes are designed for optimal ground engagement, reducing material plowing and ensuring more uniform mulching results.
    Bull Hog Trap Door: This door facilitates debris containment and finer material sizing, contributing to a cleaner finish.

Compatibility and Mounting

  • Mounting Options: The company offers standard pin-on and quick-attach mounts to fit a wide range of prime movers. Custom mounts are also available to accommodate specific requirements, ensuring seamless integration with various equipment types.

Bullhog 200+ HP RK8620 Specs

MODELRK8620 – 3RK8620 – 4
WORKING WIDTH86″ / 2184mm86″ / 2184mm
OVERALL WIDTH101″ / 2565mm101″ / 2565mm
WEIGHT (LBS/KG)4400lbs / 1996kg4500lbs / 2042kg
FLOW RANGE (GPM)50 – 10580 – 150
FLOW RANGE (LPH)190 – 398303 – 568
MAX PRESSURE (PSI)6,0006,000
TOOLS PER STANDARD ROTOR4848
TOOLS PER DCR ROTOR3636
ROTOR DIAMETER20″ / 500mm20″ / 500mm
ROTOR SPEED (RPM)20002000
ROTOR BEARING SIZE (MM)SD65SD65
MOTOR(S)2 x 107V2 x 160V

Bullhog 200+ HP BH120H Specs

MODELBH120H – 3BH120H – 4
WORKING WIDTH86″ / 2184mm86″ / 2184mm
OVERALL WIDTH101″ / 2565mm101″ / 2565mm
WEIGHT (LBS/KG)4800lbs / 2177kg4950lbs / 2245kg
FLOW RANGE (GPM)50 – 10580 – 150
FLOW RANGE (LPH)190 – 398303 – 568
MAX PRESSURE (PSI)6,0006,000
TOOLS PER STANDARD ROTOR4848
TOOLS PER DCR ROTOR3636
ROTOR DIAMETER20″ / 500mm20″ / 500mm
ROTOR SPEED (RPM)20002000
ROTOR BEARING SIZE (MM)SD65SD65
MOTOR(S)2 x 107V2 x 160V

Bullhog 200+ HP BH230HXD Specs

MODELBH230HXD – 3BH230HXD – 4
WORKING WIDTH100″ / 2540mm100″ / 2540mm
OVERALL WIDTH117″ / 2972mm117″ / 2972mm
WEIGHT (LBS/KG)6750lbs / 3062kg6850lbs / 3107kg
FLOW RANGE (GPM)50 – 105100 – 150
FLOW RANGE (LPH)190 – 398379 – 568
MAX PRESSURE (PSI)6,0006,000
TOOLS PER STANDARD ROTOR4848
TOOLS PER DCR ROTOR4242
ROTOR DIAMETER22″ / 554mm22″ / 554mm
ROTOR SPEED (RPM)18001800
ROTOR BEARING SIZE (MM)SD90SD90
MOTOR(S)2 x 107V2 x 160V

Bullhog 200+ HP BH300HXD Specs

MODELBH300HXD – 3BH300HXD – 4BH300HXD – 5
WORKING WIDTH89″ / 2261mm89″ / 2261mm89″ / 2261mm
OVERALL WIDTH109″ / 2769mm109″ / 2769mm109″ / 2769mm
WEIGHT (LBS/KG)7710lbs / 3497kg7850lbs / 3561kg7950lbs / 3606kg
FLOW RANGE (GPM)80 -105100 – 150180 – 210
FLOW RANGE (LPH)303 – 398379 – 568681 – 210
MAX PRESSURE (PSI)6,0006,0006,000
TOOLS PER STANDARD ROTOR484848
TOOLS PER DCR ROTOR424242
ROTOR DIAMETER26″ / 650mm26″ / 650mm26″ / 650mm
ROTOR SPEED (RPM)160016001600
ROTOR BEARING SIZE (MM)SD90SD90SD90
MOTOR(S)2 x 107V2 x 160V2 x 250V

Bullhog 200+ HP Warranty

FECON STANDARD WARRANTY 12 MONTHS / 1,000 HRS
