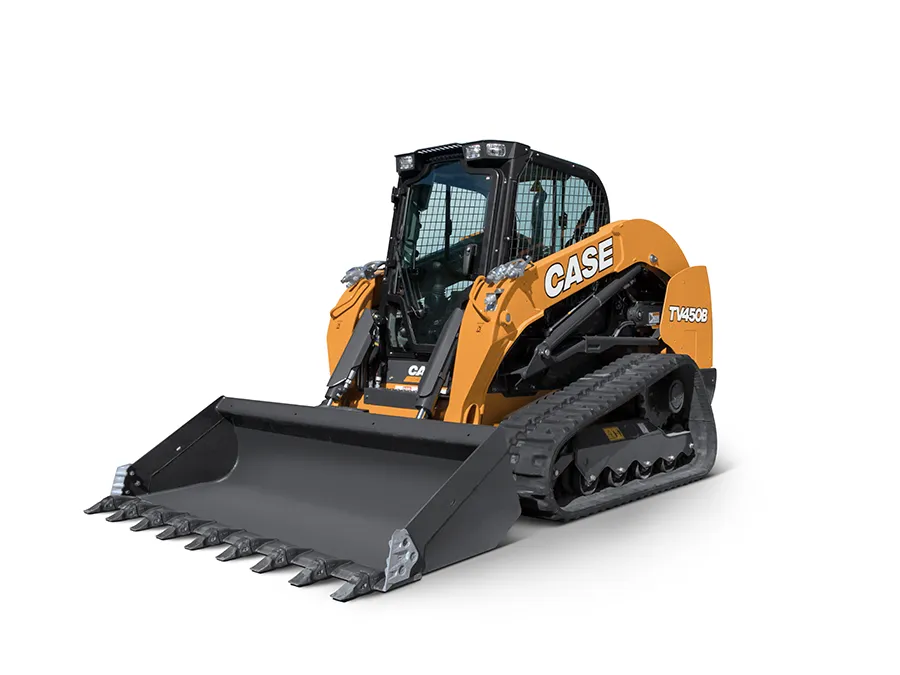

2024 CASE TV450B Compact Track Loader

CALL FOR PRICE

Request more information:


The CASE TV450B Compact Track Loader (CTL) is a pinnacle of strength and efficiency in the CASE lineup. Designed for contractors who demand more lift, load, and power, the TV450B is your ultimate ally in the race against time on every construction site.

BROCHURE: CCE202109CTL_d3

SELL SHEET: CCE-TV450B-CCE202310TV450B

Categories: , Tag:

2024 CASE TV450B Compact Track Loader

The CASE TV450B Compact Track Loader (CTL) is a pinnacle of strength and efficiency in the CASE lineup. Designed for contractors who demand more lift, load, and power, the TV450B is your ultimate ally in the race against time on every construction site.

TV450B Features

Powerful Performance:

  • Rated Operating Capacity: A formidable 4,500-pound capacity at 50 percent tipping load.
  • Breakout Forces: High bucket and lift cylinder breakout forces for demanding tasks.
  • Enhanced Hydraulics: Optional enhanced high-flow auxiliary hydraulics for superior performance.

Unrivaled Visibility and Comfort:

  • 360-Degree Visibility: Equipped with a backup camera, rearview mirror, and large windows for unmatched job site awareness.
  • Ease of Access: Low entry threshold and sloping rear hood for enhanced visibility to the bucket.
  • Spacious Cab: Industry-leading cab width and redesigned controls for maximum comfort during long hours of operation.

Optimal Control:

  • Control Options: Available in electro-hydraulic, mechanical, and mechanical hand and foot configurations.
  • Advanced Display: An 8-inch LCD multi-function display for easy control adjustments and real-time data monitoring.
  • Customizable Operation: Ability to set and save operator profiles and machine responsiveness settings.

Peak Productivity and Performance:

  • Impressive Specifications: 9,188-pound bucket breakout force and nearly 12-foot hinge pin height.
  • High-Flow Hydraulics: 35 gpm at 4,000 psi for running heavy-duty attachments like mulchers and cold planers.
  • Built for Tough Jobs: Ideal for high-performance, production-level environments.

Ease of Ownership:

  • Accessible Maintenance: Critical service points are conveniently located at the machine’s rear.
  • Informative Display: The 8-inch LCD provides vital operation and performance data.
  • Low Maintenance Solution: Features a selective catalytic reduction (SCR) emissions solution that simplifies upkeep.

TV450B Standard Equipment

Operator Environment:

  • Safety First: ROPS/FOPS Level 1 canopy with side screens and a tilt function for added protection.
  • Comfort and Control: Suspension seat with vinyl covering and a 2-inch retractable seat belt ensures operator comfort throughout the day.
  • Intuitive Operation: Features both hand and foot throttles, along with an advanced instrument cluster that includes a digital hour meter, fuel level LCD bar graph, and diagnostic features.
  • Visibility and Awareness: Equipped with rearview mirror, dome light, top window, and a rear window with emergency escape for superior visibility and safety.
  • Convenience Features: Includes a cup holder, 12V power plug socket, footrest, seat pocket, and a padded seat bar with integral armrests for enhanced comfort and convenience.

Engine:

  • Powerful and Efficient: The TV450B boasts a dual-element air cleaner and an integral engine oil cooler for optimal performance.
  • Fuel Efficiency: A 25.5-gallon fuel tank and an anti-freeze solution to -34°F ensure long operating hours and reliable performance in cold conditions.

Drivetrain and Hydraulics:

  • Smooth Operation: The 2-speed hydrostatic drivetrain is complemented by a SAHR disc parking brake for precise control and safety.
  • Versatile Hydraulics: Auxiliary hydraulics provide 24.2 gpm flow at 3,450 psi, supported by a 6-micron oil filtration system for reliable and efficient operation.

Loader:

  • Heavy-Duty Performance: With a manual attachment coupler and vertical lift geometry, the loader is designed for high lifting capacity and stability.
  • Robust Capacity: The SAE operating load is rated at 3,150 lbs, with a tipping load of 9,000 lbs, ensuring heavy-duty lifting capability.

Tracks and Lighting:

  • Durable Tracks: The TV450B has rubber tracks for superior traction and minimal ground disturbance.
  • Enhanced Visibility: LED lighting (two front, two sides, two rear floods) ensures the workspace is well-lit for safe and efficient operation, even in low-light conditions.

Telematics and Additional Features:

  • Advanced Monitoring: CASE SiteWatch™ Telematics with a 5-year data subscription and SiteConnect Module for remote diagnostics enhance fleet management and operational efficiency.
  • User-Friendly Maintenance: Lockable service access hood, single-point daily servicing, and remote oil and fuel filters for easy maintenance.

TV450B Optional Equipment

Operator Environment Enhancements:

  • Enclosed Cab Comfort: Experience the luxury of a fully sealed and pressurized cab, complete with a glass door featuring a wiper and washer, removable sliding side windows, and an integrated ventilation system with a heater and air conditioner for year-round comfort.
  • Entertainment on the Go: Stay connected and entertained with an AM/FM Bluetooth radio featuring two speakers and a USB port, ensuring a pleasant work environment.
  • Advanced Control: Benefit from the convenience of keyless start ignition, an 8-inch color LCD display, and economy mode for auto idle shutdown and auto engine protection shutdown for enhanced efficiency and safety.
  • Customized Controls: Choose between mechanical hand controls or the versatility of hand and foot controls, with hand managing the loader drive and foot controlling the bucket and boom for optimal operation.
  • Deluxe Seating: Upgrade to a deluxe cloth, air suspension seat with heater and lumbar support for ultimate comfort during long working hours.

Hydraulic System Options:

  • Enhanced Hydraulics: Opt for high-flow auxiliary hydraulics for increased versatility and power in attachment use or the enhanced high-flow auxiliary hydraulics for even more demanding tasks.
  • Additional Hydraulic Features: Consider the convenience of second auxiliary hydraulics, hydraulic one-way self-leveling, and ride control for a smoother, more efficient operation.

Loader and Drivetrain Customizations:

  • Loader Upgrades: Enhance your loader with auxiliary front electric control and a hydraulic attachment coupler for quick and easy attachment changes.
  • Drivetrain Adaptations: Creep Speed Mode is available for precision work, and EZ Trac offers a suspension track with a bogey wheel design for improved traction and ride comfort.

Additional Options and Attachments:

  • Customization and Convenience: Select from language decals, various buckets, bolt-on edges, spill guards, special paint, and offsite service arrangements to tailor the TV450B to your specific needs.
  • Factory Supplied Attachments: Increase functionality with a rotating beacon, four-point lift hook, and 48-inch pallet forks, expanding your machine’s versatility.

Service Parts and Safety Features:

  • Enhanced Safety and Utility: Add-on counterweights for improved stability, road lights, and a four-corner LED strobe for increased visibility, along with a single-point lift hook for easy transportation.
  • Maintenance and Durability Upgrades: Consider an aspirator, precleaner for the air intake, a 3-inch retractable seat belt for added safety, and bolt-on heavy-duty bucket teeth for increased durability and performance.

With these optional features and attachments, the CASE TV450B Compact Track Loader can be customized to meet any construction site’s diverse needs and challenges, making it a truly versatile addition to your fleet.

TV450B Engine Specs

ENGINE FeatureSpecification
ModelFPT F5B FL413 D*C001
Emissions CertificationTier 4 Final
TypeDiesel 4-stroke, Turbo, D.I.
Cylinders4
Bore/Stroke3.9 x 4.3 in (99 x 110 mm)
Displacement207 in³ (3.4 L)
Fuel injectionDirect, high pressure common rail – HPCR
Fuel#2 Diesel
Fuel filter: Pre-filterBeta (30) = 200/spin-on
Fuel filter: Main filterBeta (4) = 20/spin-on
Air intakeTurbocharged w/ waste gate and external cooled EGR
Exhaust aftertreatmentSelective Catalytic Reduction (SCR)
CoolingLiquid
Engine speeds RPM
High idle – no load2500 +/- 25
Rated – full load2500
Low idle1150 +/- 25
Horsepower @ 2500 RPM – SAE J1349
Gross90 hp (67 kW)
Net84 hp (63 kW)
Peak torque @ 1400 RPM282 lb·ft (383 N·m)
Radiator:
Core typeAluminum bar and plate
Core size area319 in² (0.206 m²)
Rows of tubes21 rows
Cap pressure16 +/- 2 psi (1.10 +/- 0.14 bar)
Fan:
Diameter22 in (560 mm)
Ratio0.96:1 standard, 1.1:1 high-flow
Water pump:
StyleCentrifugal
Flow47.8 gpm (181 L/min)
Engine lubrication pump:
TypeRotor pump w/ deep sump pan, plate cooler, and pressurized under-piston nozzles
Pump operating angle ratings:
Side to side45°
Bucket up35°
Bucket Down45°

TV450B Dimensions

DimensionDescriptionMeasurement
AOverall operating height with foundry/excavating bucket161.4 in (4.10 m)
AOverall operating height with heavy duty bucket165.6 in (4.21 m)
AOverall operating height with low profile extended bucket170.4 in (4.33 m)
BHeight to bucket hinge pin131.6 in (3.34 m)
CHeight to top of ROPS80.4 in (2.04 m)
DBottom of level bucket, fully raised123.2 in (3.13 m)
EOverall length without attachment with coupler120.2 in (3.05 m)
FOverall length with foundry/excavating bucket on ground144.4 in (3.67 m)
FOverall length with heavy duty bucket148.6 in (3.78 m)
FOverall length with low profile extended bucket153.5 in (3.89 m)
GMaximum dump angle45.3°
HDump height with foundry/excavating bucket @ 45.0°104.1 in (2.65 m)
HDump height with heavy duty bucket @ 45.0°101.1 in (2.57 m)
IDump reach at maximum height with low profile extended bucket @ 45.0°35.1 in (0.89 m)
JMaximum attachment rollback: Bucket on ground32.0°
KMaximum attachment rollback: Bucket at full height83.1°
LTrack on ground64.5 in (1.64 m)
MGround clearance – bottom of belly pan9.5 in (0.24 m)
NAngle of departure32.0°
OClearance circle without bucket57.7 in (1.47 m)
PClearance circle with 78 in foundry/excavating bucket on ground87.8 in (2.23 m)
QClearance circle rear68.6 in (1.74 m)
RTrack gauge58.6 in (1.49 m)
SOver the track width76.5 in (1.94 m)

Emissions

Tier 4 Final

HPCR, EXTERNAL CEGR WITH DOC & SCR

Why this solution: As an after-treatment system, Selective Catalytic Reduction (SCR) lowers exhaust temperatures and does not require unproductive fuel use associated with burning off particulate matter, plus there’s no Diesel Particulate Filter (DPF) to replace making it a great solution for larger, high-productivity engines.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. Then the diesel oxidation catalyst (DOC) oxidizes the machine’s exhaust to create heat, further managing particulate matter emissions.

SCR is a simple solution that combines DEF (Diesel Exhaust Fluid) with exhaust to convert NOx emissions into nitrogen and water. DEF is a non-toxic liquid that reacts with engine exhaust in the presence of a catalyst to perform emissions conversion.

What this means to you: SCR provides a significant reduction in fuel use and has no DPF to replace, resulting in a lower total operating cost for the life of the machine. Keeping it running is simple – just refill DEF as needed.

Powered by an FPT engine.

Warranty

Base & Extended Warranty Coverage

  • 1-Year/Unlimited-Hour Full-Coverage Base Warranty
  • 2-Year/2,000-Hour Full Coverage Base Limited Warranty
  • 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Compact Track Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
