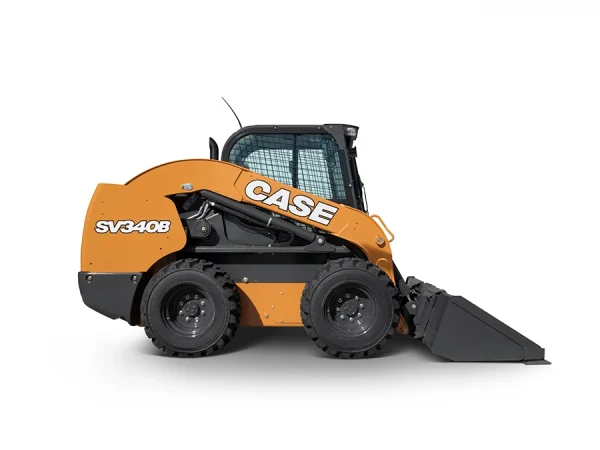

CASE SV340B Skid Steer Loader – NNM416550

Visibility and Comfort
The SV340B sets the standard for visibility and comfort in the industry. It features a backup camera that is operational both forward and reverse, ensuring optimal sightlines. It includes a cab-wide rearview mirror, expansive front and side windows, and a low entry threshold that maximizes visibility down to the bucket. A gently sloping rear hood and comprehensive 360-degree lighting enhance all-around visibility. Notably, its vertical-lift design incorporates a low-profile H-link, improving rear visibility over competitors. The cabin has ergonomic control handles and redesigned controls, cupholders, and air vents to maximize legroom and operational comfort throughout the day.

Optimal Control
The SV340B offers unparalleled control through its diverse configurations, including electro-hydraulic, mechanical, and hand-and-foot control setups. Electro-hydraulic models boast an 8-inch LCD multi-function display for supreme control. This allows operators to easily switch between ISO and H patterns, save profiles and settings, and adjust machine responsiveness to precise preferences, ensuring a customized operating experience.

Productivity and Performance
With a staggering bucket breakout force of 9,531 pounds and a rated operating capacity of 3,400 pounds (which can increase to 3,650 pounds with optional counterweights), the SV340B excels in productivity and performance. It offers optional high-flow (38.7 gpm at 3,450 psi) and enhanced high-flow (35 gpm at 4,000 psi) auxiliary hydraulics, providing exceptional power and attachment versatility for various tasks.

Ease of Ownership
Designed with the operator in mind, all critical checks and service points are conveniently located at the rear of the machine for easy access. The 8-inch LCD display offers real-time operational and performance data, simplifying maintenance routines. Additionally, the SV340B employs a selective catalytic reduction (SCR) emissions solution that eliminates regular maintenance or filter replacements, requiring only periodic diesel exhaust fluid (DEF) refills.

Operator Environment

• Safety and Structure: For optimal safety, the ROPS/FOPS Level 1 canopy has side screens, a tilt ROPS/FOPS, and a rear window with an emergency escape.
• Comfort: The deluxe cloth air suspension seat has a 2-inch retractable 3-point lap seat belt, heater, and lumbar support, ensuring comfort during operation.
• Controls and Convenience: Hand and foot throttle, alarm package including back-up and horn, rearview mirror, headliner, dome light, top window, cup holder, 12V power plug socket, footrest, seat pocket, and a padded seat bar with integral armrests for enhanced comfort and convenience.
• Operational Efficiency: Loader control lockout system, electric parking brake control, operator’s compartment floor cleanout, proportional auxiliary hydraulic control on the joystick, and an advanced instrument cluster with a digital hour meter, tachometer, full level LCD bar graph with alarm, DEF level, and diagnostic features for superior control and monitoring.
• Safety Indicators: Warning lights and alarms for engine coolant temperature, engine oil pressure, engine malfunction, hydraulic charge pressure, hydraulic filter restriction, hydraulic oil temperature, critical system stop, engine system, hydraulic system, electrical and diagnostic system. Additional warnings for battery voltage, diesel exhaust fluid (DEF), oil service, and indicator lights for engine preheat, parking brake, and seat bar reminder.

Engine and Cooling

• Engine Cooling and Maintenance: A Charged Air Cooler (CAC), dual-element air cleaner, Organic Acid Technology (OAT) anti-freeze solution effective to -34º F, and a 25.5-gallon fuel tank for extended operation.
• System Configuration: Over-and-under radiator and oil cooler with a 3-stack aftercooler/radiator/oil cooler configuration, glow plugs, integral engine oil cooler, and a fuel filter with water trap for optimal performance and maintenance.
• Electrical System: It is equipped with a 1,000 CCA 12V battery, master electrical disconnect, and a jump-start terminal for reliability and ease of maintenance.

Drivetrain

• 2-Speed Hydrostatic Four-Wheel Drive: Ensures adaptable and reliable traction.
• ASA #100HS Drive Chain: Provides durability and strength.
• SAHR Disc Parking Brake: This is for secure stopping and parking.

Hydraulics

• Auxiliary Hydraulics: These operate at 3,450 psi (238 bar)—24.2 gpm (91.5 L/min) for powerful attachment use.
• 6 Micron Oil Filtration System: Keeps hydraulic operations clean.
• 3-Spool Loader Control Valve: Allows for precise control over loader functions.
• Auxiliary Hydraulic Disconnects: ISO flat-face, connect-under-pressure with case drain for easy attachment changes.
• Hydraulic Circuit Pedal Lock and Auxiliary Function Lockout Override: Enhance operational safety.
• Loader Lift Lockout Override: Provides additional safety features.
• Heavy-Duty Hydraulic Oil Cooler: Maintains optimal hydraulic temperatures.
• Loader Arm Float Position: Offers enhanced control.
• Connect Under Pressure Auxiliary Hydraulic Disconnects: For easy hydraulic attachment changes. Loader
• Auxiliary Front Electric Control: Simplifies operation of attachments.
• Heavy Duty Hydraulic Attachment Coupler: For robust and quick attachment changes.
• Vertical Lift Geometry: Maximizes reach and lift capacity.
• Loader Lift Arm Support Strut and In-Cab Loader Lock: Aid in maintenance and enhance safety.

Tires

• 14 X 17.5 Heavy Duty Tires: Designed for superior durability and traction.

Other Standard Features

• Halogen Lights: 2 front, 2 side, 2 rear floodlights for excellent visibility.
• Pre-Wired for Rotating Beacon: Enhances safety and visibility.
• Lockable Service Access Hood and Single-Point Daily Service: Simplify maintenance.
• Rear Tail Lights, Remote Oil, and Fuel Filters: For easy maintenance.
• Block Heater: Ensures reliable cold starts.
• Debris Ingression Sealing: Protects against harmful particles.
• Mounting Points for Add-On Counterweights: Increases stability and lifting capacity.
• Deluxe Cloth, Air Suspension Seat: Provides operator comfort.

Telematics

• CASE SiteWatch™ Telematics: This service provides hardware and a 5-year data subscription for comprehensive machine monitoring and management.
• SiteConnect Module: Offers remote diagnostics capability, improving maintenance and troubleshooting.

Operator Environment Options

• Enclosed Cab: It is fully sealed and pressurized for optimal comfort, and it includes a glass door with a wiper and washer and removable sliding side windows.
• Comfort Features: Heater and air conditioner, AM/FM Bluetooth radio with 2 speakers, and an air ride seat enhance operator comfort.
• Control and Security: Keyless start ignition, 8-inch color LCD display, economy mode with auto idle shutdown, auto engine protection shutdown, electro-hydraulic controls for drive/steering and loader functions with adjustable sensitivity, hand and foot controls for precise operation, demolition cab door with polycarbonate for added safety, ignition timeout, machine settings user access levels, operator security codes, and auto idle setting.

Hydraulics

• High-Flow Auxiliary Hydraulics: They operate at 3,450 psi (238 bar)—38.7 gpm (146.5 L/min) for increased hydraulic power.
• Enhanced High-Flow Auxiliary Hydraulics – EHF: @ 4,000 psi (276 bar) – 35.0 gpm (132.5 L/min) for running even the most demanding attachments.
• Additional Hydraulic Features: Second auxiliary hydraulics, one-way self-leveling, and ride control for improved performance and versatility.

Loader

• Attachment Flexibility: Hydraulic attachment coupler for quick and easy attachment changes.

Drivetrain

• Creep Speed Mode: Available for EH machines only, allows for precise speed control during delicate operations.

Other Customization Options

• Personalization and Convenience: Language decals, a selection of buckets, bolt-on bucket cutting edges for enhanced durability, special paint options for customization, and offsite service arrangements for maintenance flexibility.

Factory Supplied Attachments

• Visibility and Utility: Rotating beacon, four-point lift hook for easy lifting and carrying, and 48 in (1.22 m) pallet forks for material handling tasks.

Service Parts

• Operational Efficiency: Add-on counterweights for enhanced lifting capacity, road lights, a four-corner LED strobe for increased visibility, a single-point lift hook for lifting, an aspirator, a precleaner for cleaner air intake, a 3-inch (76.2 mm) retractable seat belt for safety, and bolt-on heavy-duty bucket teeth for improved digging performance.

Tier 4 Final

HPCR, EXTERNAL CEGR WITH DOC & SCR

Why this solution: As an after-treatment system, Selective Catalytic Reduction (SCR) lowers exhaust temperatures and does not require unproductive fuel use associated with burning off particulate matter, plus there’s no Diesel Particulate Filter (DPF) to replace making it a great solution for larger, high-productivity engines.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and then returned to the cylinder. Then the Diesel Oxidation Catalyst (DOC) oxidizes the machine’s exhaust to create heat, further managing particulate matter emissions.

SCR is a simple solution that combines DEF (Diesel Exhaust Fluid) with exhaust to convert NOx emissions into nitrogen and water. DEF is a non-toxic liquid that reacts with engine exhaust in the presence of a catalyst to perform emissions conversion.

What this means to you: SCR reduces fuel use and eliminates the need for DPF replacement, resulting in lower operating costs. Refill DEF as needed.

Powered by an FPT engine

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover, flywheel housing, turbocharger, engine oil cooler, and water pump.

Purchased Protection

The Purchased Protection Plan extends the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to three years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
