CASE SV208E Single Drum Vibratory Roller – NJWTA2166
$570.00 – $4,775.00
Request more information:
Available for rent at Luby Equipment, the CASE SV208 Single Drum Vibratory Roller, 66″ Drum, Padfoot, Canopy – combines power, high centrifugal force, and 360-degree visibility to achieve the highest performance levels.
| BRAND |
CASE |
|---|---|
| MODEL |
SV208DSM |
| CONDITION |
Rental |
| DAILY RATE |
$570.00 |
| WEEKLY RATE |
$1,650.00 |
| 4 WEEK RATE |
$4,775.00 |
| NET HP |
75 HP |
| OPERATING WEIGHT |
15,100 lbs |
| PRODUCT |
Single Drum Roller |
| LOCATION |
Quincy, IL |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of Quincy, IL and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!

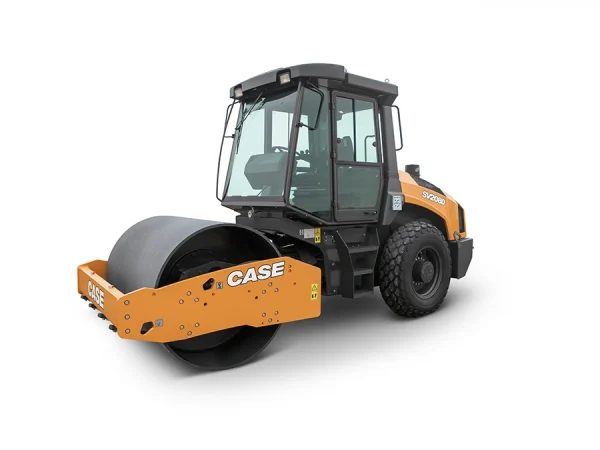

*The stock photo displayed here is for illustrative purposes only. Please note that rental units may not be brand new, but they are guaranteed to be in sound working order.
BROCHURE: E Series Compactors
SPEC SHEET: CASE SV208E Specs
CASE SV208E Single Drum Vibratory Roller For Rent
Available for rent at Luby Equipment, the CASE SV208 Smooth Single Drum Vibratory Roller combines power, high centrifugal force, and 360-degree visibility to achieve the highest performance levels. With 99hp (73.8kW), it’s a highly reliable, effective, easy-to-maintain, and simple-to-operate compaction machine.
SV208E Features
PRODUCTIVITY
Excellent gradeability is provided through the high-traction, hydrostatic drive system. Effectiveness on uneven or difficult terrain is enhanced by an articulation joint that oscillates as well.
FUEL EFFICIENCY
Meet current environmental standards and consume less fuel with Tier III-certified engines.
COMFORT/VISIBILITY
Comfort is increased with an ergonomic work environment and swivel seat that adjusts 50 degrees. Rear visibility is maximized with the sloping rear deck.
SERVICEABILITY
This machine offers outstanding service access with an easy-lift engine cover and operator platform.
SV208E Standard Equipment
- ROPS & FOPS protection.
- Anti-vandal guard.
- Hydrostatic drive for both drum and wheels.
- Dual amplitude vibration.
- Interwheel differential lock.
- Articulated chassis.
- Front and rear pull points.
- 4 point lift and tie down provision. -14.9 x 24 8PR tires.
- Electro-hydraulic platform and hood tilt.
- Fan guard.
- Alternator guard.
- Backup alarm.
- Tire ballast for -13°F (-25°C).
- Halogen work lights, 2F/2R.
- Auto-vibration control.
- Centralized diagnostic access door.
- Master disconnect switch.
- Spring applied, hydraulic release parking brake.
- 3 working speeds plus transport speed selection.
- Isolated operator’s compartment.
- Single lever speed/direction control.
- Steering wheel spinner knob.
- Vinyl suspension swivel seat with foldable armrest.
- 2 in (50.8 mm) retractable seat belt.
- Lockable tool box.
- Cup holder.
- Horn.
- Emergency stop button.
- Anti-slip traction control with high traction drive components (Padfoot version).
- Spin-on fuel, engine oil and hydraulic filters.
SV208E SPECIFICATIONS
| Engine make / model: | Cummins – QSB 3.3 C99 |
| Rated HP @ RPM: | 99 hp (74.5 kW) |
| Transmission type: | Hydrostatic drive |
| Max travel speed, fwd | 6.8 mph (11.0 kph) |
| Theoretical gradability | 78% |
| No of vibrating drums | 1 |
| Nominal amplitude or range | .034″ (.86mm) |
| Vibration frequency range | 1800 VPM (30 Hz) – 2460 VPM (41 Hz) |
| Centrifugal force range | 29,215 lbs (130 kN) – 32,586 lbs (145 kN) |
| Overall length | 205″ (5.2 m) |
| Overall width | 74″ (1.88 m) |
| Overall height | 113″ (2.87 m) |
| Ground clearance | 15.2″ (0.39 m) |
| Steering angle, L / R | 36° |
| Oscillation angle, L / R | 12° |
| Inside turning radius | 10.2′ (3.09 m) |
| Drum width | 66″ (1.68 m) |
| Drum diameter | 51 ” (1.3 m) (smooth) |
| Drum thickness | 1.0″ (0.025 m) |
| Operating weight | 15,741 lb (7 140 kg) |
| Drum weight | 8,863 lb (4 020 kg) |
| Fuel tank | 72.7 gal (275 L) |
| Water tank | N/A |
| Hydraulic reservoir | 77 qt (73 L) |
Warranty
Base & Extended Warranty Coverage
1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
Additional information
| Rental | Daily, Weekly, 4 Weeks |
|---|
