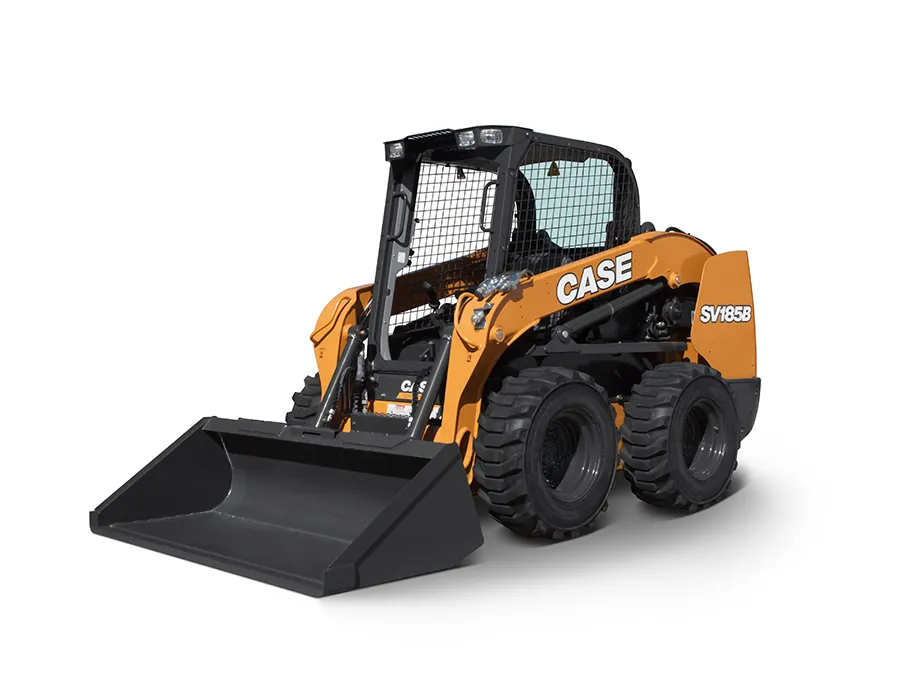

CASE SV185B Skid Steer Loader

Visibility and Comfort

• The SV185B sets the industry standard for visibility and is equipped with a backup camera that works in forward or reverse, ensuring safety and precision.
• A cab-wide rearview mirror, expansive front and side windows, and a low entry threshold enhance visibility down to the bucket and facilitate easy access to the cab.
• The low-sloping rear hood and 360-degree lighting provide unobstructed views around the machine, enhancing operational safety.
• A unique low-profile H-link on the vertical-lift model significantly improves rear visibility, setting the SV185B apart from its competitors.
• The cab, one of the widest in the industry, paired with comfortable control handles, makes for a more comfortable operation throughout the day.
• Redesigned controls, cupholders, and air vents have been thoughtfully positioned to create additional legroom and enhance overall comfort.

Optimal Control

• The SV185B offers various control configurations, including electro-hydraulic, mechanical, and hand-and-foot, to suit different operator preferences.
• Electro-hydraulic models feature an 8-inch LCD multi-function display, enabling precise control over the machine with features like easy switching between ISO and H operating patterns, saving operator profiles, application settings, and adjusting machine responsiveness (low, medium, or high) to meet specific operator preferences.

Productivity and Performance

• With a 1,850-pound rated operating capacity (which increases to 1,950 pounds with optional counterweights), 60 horsepower, and both standard and high-flow auxiliary hydraulics, the SV185B is engineered to handle a wide range of tasks efficiently.
• The optional electro-hydraulic controls and the 8-inch LCD multi-function display empower operators to maximize the skid steer’s capabilities, making it a compact yet powerful platform for diverse applications.

Ease of Ownership

• Critical maintenance checks and service points are conveniently located at the rear of the machine, simplifying routine upkeep and saving time for operators.
• The 8-inch LCD multi-function display provides operators with real-time data on machine operation and performance, facilitating efficient and effective use of the skid steer.

Operator Environment:

• ROPS/FOPS Level 1 canopy with side screens for safety.
• Keyed start ignition for secure operation.
• Tilt ROPS/FOPS for easy access and maintenance.
• Rear window with emergency escape feature for safety.
• Vinyl suspension seat with a 2 in (51 mm) retractable 3-point lap seat belt for comfort and security.
• Hand and foot throttle for precise control.
• Alarm package includes backup and horn for safety alerts.
• Rearview mirror for enhanced visibility.
• Headliner and dome light for cabin comfort.
• Top window, cup holder, and 12V power plug socket for convenience.
• Footrest and seat pocket for added comfort.
• Padded seat bar with integral armrests for support during operation.
• Loader control lockout system to prevent accidental operation.
• Electric parking brake control for secure stopping.
• Operator’s compartment floor cleanout for easy cleaning.
• Proportional auxiliary hydraulic control on the joystick for precise attachment operation.
• Advanced Instrument Cluster has a digital hour meter, tachometer, fuel level LCD bar graph with alarm, diagnostic features, and security lockout for comprehensive monitoring.
• Warning lights with alarms for engine coolant temperature, engine oil pressure, engine malfunction, hydraulic charge pressure, hydraulic filter restriction, and hydraulic oil temperature.
• Critical system stop, engine system, hydraulic system, electrical, and diagnostic system alarms for comprehensive safety and maintenance alerts.
• Battery voltage display, oil service, engine preheat, parking brake, and seat bar reminder indicator lights for operational awareness.

Engine

• Perkins 404F-E22TA, 135.2 CID (2.2 L) Turbo, Tier 4 Final Certified engine for efficient and powerful performance.
• Spark Arresting Diesel Oxidation Catalyst (DOC) muffler and Charged Air Cooler (CAC) for emission control and engine efficiency.
• High-Pressure Common Rail (HPCR) fuel injection for optimal fuel delivery.
• 60 hp gross and 57 hp net power output, with a peak torque of 135 lb·ft for robust operation.
• 120 amp alternator and dual-element air cleaner for reliable power and clean operation.
• Organic Acid Technology (OAT) anti-freeze solution to -34º F and a 20 gal fuel tank for extended operation.
• Over and under radiator and oil cooler with a 3-stack aftercooler/radiator/oil cooler configuration for optimal engine cooling.
• Glow plugs for cold weather starting, an integral engine oil cooler for temperature management, and a fuel filter with a water trap for a clean fuel supply.
• 925 CCA 12V battery and master electrical disconnect for maintenance and safety.

Drivetrain

• 2-speed hydrostatic four-wheel drive for optimal maneuverability and control.
• ASA #80 drive chain, ensuring durability and strength.
• SAHR (Spring Applied, Hydraulic Release) disc parking brake for secure stopping and parking.

Hydraulics

• Auxiliary hydraulics at 3,050 psi (210 bar) and 24.2 gpm (91.5 L/min) for robust attachment operation.
• 6-micron oil filtration system to maintain hydraulic fluid cleanliness.
• 3-spool loader control valve for precise operation of loader functions.
• ISO flat-face hydraulic disconnects allow easy attachment changes under pressure with a case drain.
• Hydraulic circuit pedal lock and auxiliary function lockout override for enhanced safety.
• Loader lift lockout override for additional operational control.
• Heavy-duty hydraulic oil cooler to keep the system running at optimal temperatures.
• Loader arm float position for smoother grading and leveling operations.
• Loader function lockout system ensures safety during maintenance or when the loader is unused.

Loader

• An auxiliary front electric control is used to operate electrical attachments conveniently.
• Manual attachment coupler for easy and secure attachment changes.
• Vertical lift geometry provides excellent reach and height for loading and unloading tasks.
• In-cab loader lock for additional safety.

Tires

• 10 X 16.5 heavy-duty tires designed to handle challenging terrain and job site conditions.

Other Standard Features

• LED lights (2 front, 2 sides, 2 rear floods) for enhanced visibility in low-light conditions.
• Pre-wiring for a rotating beacon to accommodate additional safety equipment.
• Lockable service access hood for secure and convenient maintenance access.
• Single-point daily service design simplifies routine maintenance checks.
• Rear tail lights for improved visibility and safety on the job site.
• Remote oil and fuel filters for easier maintenance access.
• Block heater for improved cold-weather starting performance.
• Debris ingression sealing to protect against dust and debris.
• Mounting points for add-on counterweights to increase stability and lifting capacity.

Telematics

• CASE SiteWatch™ Telematics system includes hardware and a 5-year data subscription for advanced monitoring and management.
• SiteConnect Module offers remote diagnostics capability, enhancing maintenance and troubleshooting efforts.

Operator Environment

• Enclosed cab that is fully sealed and pressurized for optimal comfort.
• Glass door with wiper and washer for clear visibility in all conditions.
• Removable sliding side windows for increased ventilation and communication.
• Heater and air conditioner to maintain a comfortable working environment.
• AM/FM Bluetooth radio with 2 speakers for onboard entertainment and connectivity.
• Keyless start ignition for enhanced security and convenience.
• 8-inch Color LCD Display for easy monitoring of machine functions.
• Economy Mode with auto idle shutdown to conserve fuel.
• Auto Engine Protection Shutdown to safeguard the engine from damage.
• Electro-hydraulic controls for drive/steering and loader functions, with adjustable sensitivity and the ability to switch between H and ISO patterns.
• Mechanical hand controls for straightforward operation.
• Hand and foot controls allow separate operation of loader drive and bucket/boom functions.
• Deluxe cloth, air suspension seat with heater and lumbar support for superior comfort.
• Demolition cab door with polycarbonate for added safety in hazardous environments.
• Ignition Timeout, Machine Settings, User Access Levels, Operator Security Codes, and Auto Idle settings for customized operation.

Hydraulics

• High-flow auxiliary hydraulics for enhanced attachment performance.
• Hydraulic one-way self-leveling for easier load management.
• Ride control and Auto Ride Control for smoother operation over uneven terrain.

Loader

• Hydraulic attachment coupler for quick and easy attachment changes.

Drivetrain

• Creep Speed Mode is available on electro-hydraulic models for precise speed control.

Other

• Language decals to accommodate multilingual operators.
• A variety of buckets and bolt-on bucket cutting edges for specific tasks.
• Special paint options for customization or corporate branding.
• Rotating beacon and 4 Point Lift Hook for enhanced safety and versatility.

Service Parts

• 3-inch retractable seat belt for added safety.
• Bolt-on heavy-duty bucket teeth for improved digging performance.
• Second auxiliary hydraulics for additional hydraulic functions.
• Add-on counterweights for increased stability and lifting capacity.
• Road lights and four-corner LED strobe for improved visibility and safety.
• Fire Extinguisher, Tamper-Resistant Front Door Bracket, Bucket Cylinder Guards, Single-Point Lift Hook, Aspirator, Attachment Hose Guide Kit, and Drawbar for enhanced safety, protection, and utility.

Tier 4 Final

EXTERNAL CEGR WITH DOC & DPF

Why this solution: The SV185B offers an economical entry into the skid steer market while still providing the power and performance associated with the CASE B Series. Using more affordable Tier 4 Final technology, this solution helps keep the unit price down.

How it works: With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and then returned to the cylinder. This lowers combustion temperatures and dramatically reduces emissions but produces more particulate matter. Then the diesel oxidation catalyst (DOC) oxidizes the machine’s exhaust to create heat and further manage emissions while the diesel particulate filter (DPF) captures excess particulate matter and then burns it off through a combustion process known as “regeneration,” which helps maximize the life of the filter.

What this means to you: This solution requires no new additive and provides a lower upfront machine cost, but as with all DPF systems, the filter requires replacement over time, which impacts the total cost of ownership. DPF regeneration also requires additional fuel burn.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
