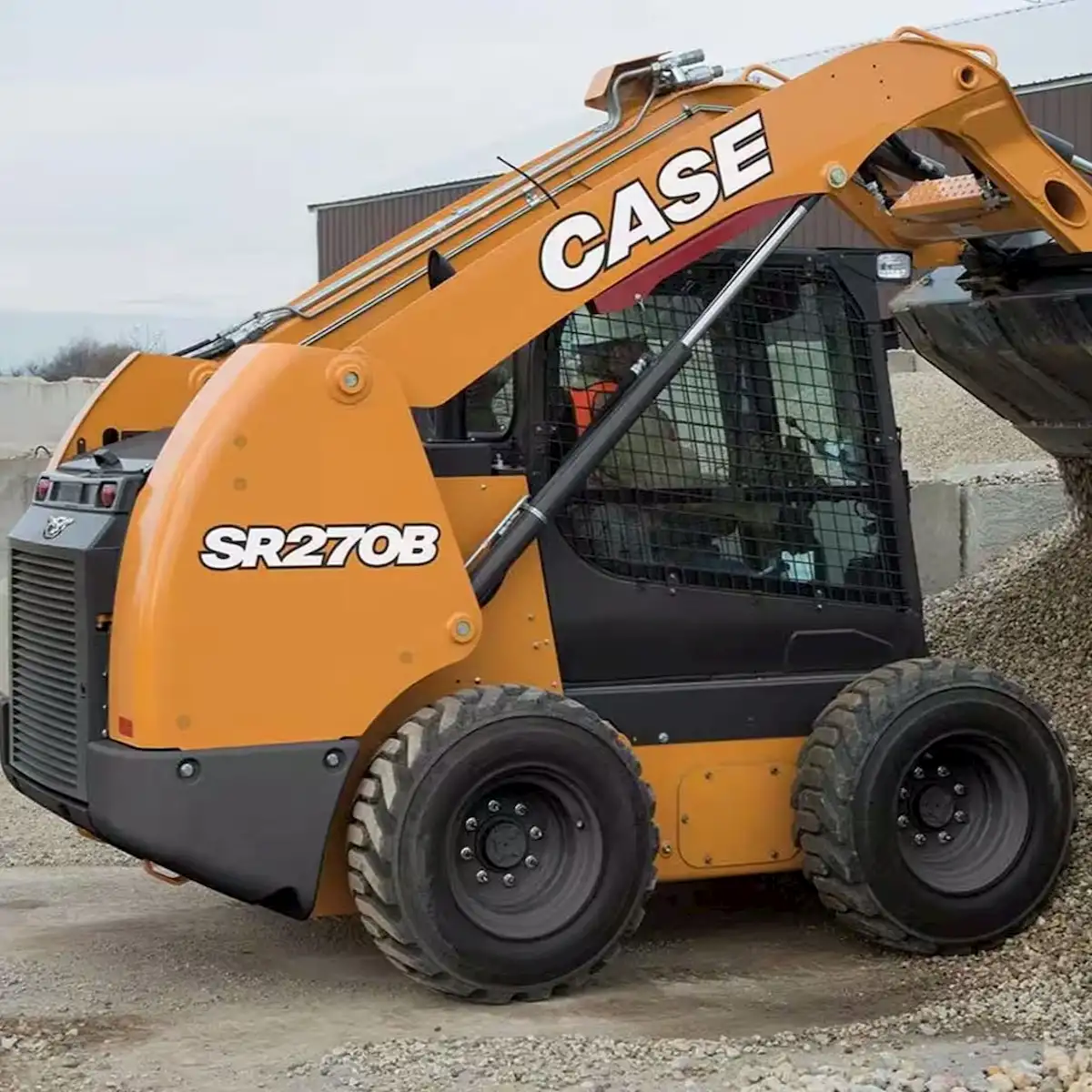

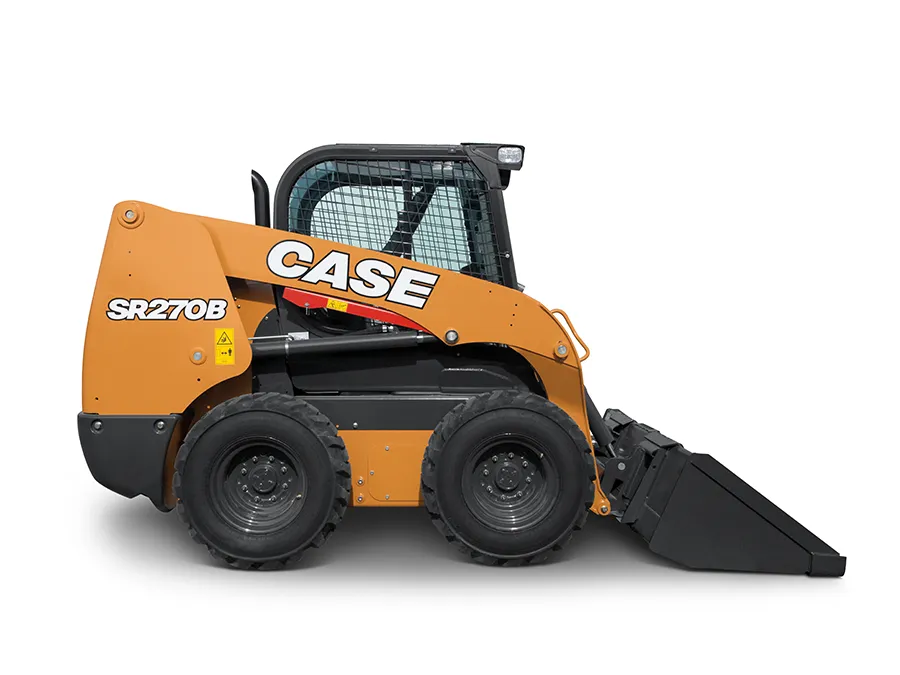

CASE SR270B Skid Steer Loader

Visibility and Comfort
This model sets the industry benchmark for visibility with its innovative design incorporating a backup camera operational in both forward and reverse, ensuring operators have clear sightlines. The cab-wide rearview mirror, extensive front and side windows, and a low entry threshold enhance visibility down to the bucket. A gently sloping rear hood and 360-degree lighting further contribute to the operator’s ability to see all around the machine. The SR270B also features one of the widest cabs in the industry, equipped with redesigned control handles, cupholders, and air vents that increase legroom and comfort for day-long operations.

Optimal Control
With options for electro-hydraulic, mechanical, and mechanical hand and foot controls, the SR270B caters to various operator preferences. The electro-hydraulic models are particularly noteworthy, featuring an 8-inch LCD multi-function display that allows for seamless switching between ISO and H operating patterns. This system enables operators to save profiles and settings, adjust the machine’s responsiveness to low, medium, or high, or even set loader arm and drive response independently, tailoring the machine to specific tasks or operator preferences.

Productivity and Performance
The SR270B excels as a large and powerful radial lift skid steer, adept at handling challenging terrain and demanding hydraulic attachments. Its 2,700-pound rated operating capacity can be further enhanced with optional high-flow and enhanced high-flow auxiliary hydraulics, making it a formidable force for any job site. Optional counterweights and a large-frame design with a long, stable wheelbase ensure both performance and stability, securing its place as one of the most productive skid steers available.

Ease of Ownership
All critical checks and service points are easily accessible from the rear of the machine. The 8-inch LCD display offers operators real-time data on machine operation and performance, simplifying maintenance routines. Additionally, the SR270B features a selective catalytic reduction (SCR) emissions solution that eliminates the need for regular maintenance or filter replacement, requiring only periodic diesel exhaust fluid (DEF) refills.

Operator Environment

• Safety Features:
  • ROPS/FOPS Level 1 canopy with side screens.
  • Tilt ROPS/FOPS.
  • Rear window with emergency escape.
• Comfort and Convenience:
  • Deluxe cloth, air suspension seat with 2 in (51 mm) retractable 3-point lap seat belt, heater, and lumbar support.
  • Hand and foot throttle.
  • Alarm package – backup and horn.
  • The rearview mirror, headliner, dome light, and top window are also included.
  • Cup holder, 12V power plug socket, footrest, seat pocket.
  • Padded seat bar with integral armrests.
• Control and Monitoring:
  • Loader control lockout system.
  • Electric parking brake control.
  • Operator’s compartment floor cleanout.
  • Proportional auxiliary hydraulic control on the joystick.
  • Advanced Instrument Cluster has a digital hour meter, tachometer, fuel level LCD bar graph with alarm, DEF Level, diagnostic features, and security lockout.
• Warning Systems:
  • There are warning lights and alarms for engine coolant temperature, engine oil pressure, engine malfunction, hydraulic charge pressure, hydraulic filter restriction, and hydraulic oil temperature.
  • Critical system stop, engine system, hydraulic system, electrical and diagnostic system warnings.
  • Battery voltage plus display, diesel exhaust fluid (DEF), oil service indicators.
  • Engine preheat, parking brake, seat bar reminder lights.

Engine Specifications

• Model and Certification:
  • FPT F5B FL413 D*C001, 207 CID (3.4 L) Turbo, Tier 4 Final Certified.
• Emissions and Cooling:
  • Diesel Oxidation Catalyst (DOC) with Selective Catalytic Reduction (SCR) muffler.
  • Charged Air Cooler (CAC).
  • High-Pressure Common Rail (HPCR) fuel injection.
• Performance:
  • Gross: 90 hp (67 kW), Net: 84 hp (63 kW), Peak torque: 282 lb·ft (383 N·m).
• Maintenance and Efficiency:
  • 160 amp alternator, dual element air cooler.
  • Organic Acid Technology (OAT) anti-freeze solution to -34º F.
  • Fuel tank – 25.5 gal (U.S.), over and under radiator and oil cooler.
  • 3-stack after cooler/radiator/oil cooler configuration, glow plugs.
  • Integral engine oil cooler and fuel filter with water trap.
  • 1,000 CCA 12V battery, master electrical disconnect, jump start terminal.

Drivetrain

• 2-Speed Hydrostatic Four-Wheel Drive: Provides adaptable control and traction.
• ASA #100HS Drive Chain: Ensures durability and reliability.
• SAHR Disc Parking Brake: Offers secure stopping and parking.

Hydraulics

• Auxiliary Hydraulics: Operating at 3,050 psi (210 bar) and 24.2 gpm (91.5 L/min) for powerful attachment use.
• 6 Micron Oil Filtration System: Keeps hydraulic operations clean.
• 3-Spool Loader Control Valve: Allows for precise control over loader functions.
• ISO Flat-Face Hydraulic Disconnects: Facilitate easy attachment changes under pressure with case drain.
• Hydraulic Circuit Pedal Lock: Enhances operational safety.
• Auxiliary Function Lockout Override and Loader Lift Lockout Override: Provide additional safety features.
• Heavy-Duty Hydraulic Oil Cooler: Maintains optimal hydraulic temperatures.
• Loader Arm Float Position and Function Lockout System: Offer enhanced control.

Loader

• Auxiliary Front Electric Control: Simplifies operation of attachments.
• Heavy-Duty Hydraulic Attachment Coupler: Enables quick and easy attachment changes.
• Radial Lift Geometry: Provides excellent reach and lift capacity.
• Loader Lift Arm Support Strut: Aids in maintenance and safety.

Tires

• 12 X 16.5 Heavy-Duty Tires: Designed for durability and superior traction across varied terrains.

Other Standard Features

• LED Lights: 2 front, 2 sides, 2 rear floods for optimal visibility.
• Pre-Wired for Rotating Beacon: Enhances safety.
• Lockable Service Access Hood and Single-Point Daily Service: This is for convenient maintenance.
• Rear Tail Lights, Remote Oil, and Fuel Filters: Facilitate easy maintenance.
• Block Heater: For reliable cold starts.
• Debris Ingression Sealing: Protects against foreign particles.
• Mounting Points for Add-On Counterweights: For enhanced stability.

Telematics

• CASE SiteWatch™ Telematics: Includes hardware and a 5-year data subscription for machine monitoring and management.
• SiteConnect Module: Provides remote diagnostics capability, enhancing maintenance and troubleshooting efficiency.

Operator Environment Options

• Enclosed Cab: This cab is fully sealed and pressurized for maximum comfort. It includes a glass door with a wiper and washer, removable sliding side windows, a heater, an air conditioner, and an AM/FM Bluetooth radio with two speakers.
• Starting and Security: Keyless start ignition, with added features like Economy Mode for auto idle shutdown, Auto Engine Protection Shutdown, a 3-point seat belt for enhanced safety, and Ignition Timeout.
• Controls: Electro-hydraulic controls for drive/steering and loader functions, allowing switchability between H and ISO patterns and adjustable sensitivity. Mechanical hand controls and dual hand and foot controls for versatile operation. Includes a demolition cab door with polycarbonate for increased durability.
• Comfort and Customization: Suspension seat in vinyl for additional comfort, and features like Machine Settings, User Access Levels, Operator Security Codes, and Auto Idle settings for personalized machine use.

Hydraulics

• High-Flow Options: High-flow auxiliary hydraulics at 3,050 psi (210 bar) – 37.6 gpm (142.5 L/min) and Enhanced high-flow auxiliary hydraulics at 4,000 psi (276 bar) – 35.0 gpm (132.5 L/min) for demanding attachments. Plus, Second auxiliary hydraulics, Hydraulic one-way self-leveling, and Ride control for enhanced functionality.

Loader

• Attachment Coupler: Hydraulic attachment coupler for quick and easy attachment changes.

Drivetrain

• Precision Operation: Creep Speed Mode is available for electro-hydraulic (EH) machines, facilitating controlled, slow movement.

Other Customizations

• Personalization: Language decals, various buckets, bolt-on bucket cutting edges for increased durability, and special paint options for unique machine identification.
• Service Flexibility: Offsite service arrangement for convenient maintenance.

Factory Supplied Attachments

• Enhancements: Add-on counterweights for increased stability, road lights, a rotating beacon, and a four-corner LED strobe for improved visibility and safety.

Service Parts

• Safety Features: A 3-inch (76.2 mm) retractable seat belt and bolt-on heavy-duty bucket teeth for operational safety and durability.

Tier 4 Final

HPCR, EXTERNAL CEGR WITH DOC & SCR

Why this solution: As an after-treatment system, Selective Catalytic Reduction (SCR) lowers exhaust temperatures and does not require unproductive fuel use associated with burning off particulate matter. Plus, there’s no Diesel Particulate Filter (DPF) to replace, making it a great solution for larger, high-productivity engines.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and returned to the cylinder. Then, the Diesel Oxidation Catalyst (DOC) oxidizes the machine’s exhaust to create heat, further managing particulate matter emissions.

SCR is a simple solution that combines DEF (Diesel Exhaust Fluid) with exhaust to convert NOx emissions into nitrogen and water. DEF is a non-toxic liquid that reacts with engine exhaust in the presence of a catalyst to perform emissions conversion.

What this means to you: SCR significantly reduces fuel use and has no DPF to replace, resulting in a lower total operating cost for the machine’s life. Keeping it running is simple – just refill DEF as needed.

Powered by an FPT engine.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
