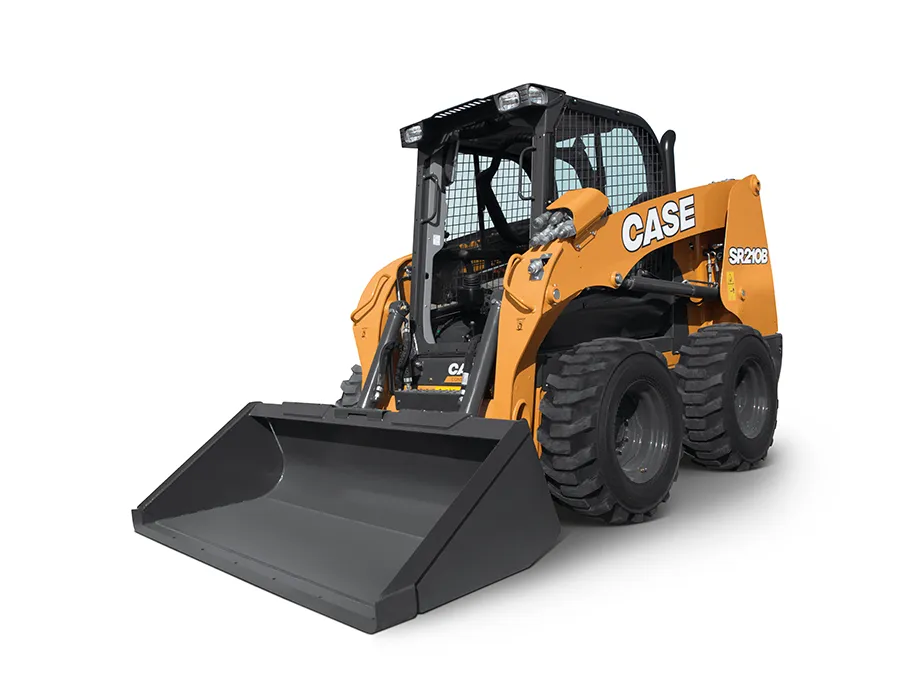

CASE SR210B Skid Steer Loader

Visibility and Comfort:

• Industry-Leading Visibility: Equipped with a backup camera that is operational in both directions, a wide cab rearview mirror, extensive front and side windows, and a low entry threshold for improved visibility to the bucket area.
• Enhanced Operator Comfort: This model features one of the industry’s widest cabs for increased comfort, alongside redesigned control handles, cupholders, and air vents for more legroom.
  360-Degree Lighting: The low-sloping rear hood ensures complete visibility around the clock, allowing for unobstructed rear views.

Optimal Control:

• Control Configurations: These are available in electro-hydraulic, mechanical, and hand and foot configurations to suit any preference.
• Advanced Functionality: Electrohydraulic models include an 8-inch LCD multi-function display for easy control over operating patterns (ISO and H), storage of operator profiles and application settings, and adjustable machine responsiveness.

Productivity and Performance:

• Operating Capacity: Its rated operating capacity is 2,100 pounds, which can be extended to 2,200 pounds with optional counterweights.
• Auxiliary Hydraulics: This model features standard (3,050 psi and 24.2 gpm) and high-flow (3,050 psi and 33.2 gpm) options for enhanced attachment performance.
• Powerful Breakout Force: This bucket breakout force is 7,270 pounds, optimized for groundwork efficiency on varied terrain.

Ease of Ownership:

• Convenient Maintenance: Critical checks and service points are easily accessible, with a comprehensive 8-inch LCD display providing real-time operation and performance data.
• Maintenance-Free Operation: Powered by a 74 horsepower engine, it has a Tier 4 Final emissions solution that requires no additional fluids or filter servicing.

Operator Environment

• Safety and Comfort ROPS/FOPS Level 1 canopy with side screens, vinyl suspension seat with a 2-inch retractable 3-point lap seat belt, and padded seat bar with integral armrests ensure operator safety and comfort.
• Convenience Features: This vehicle includes keyed start ignition, tilt ROPS/FOPS, rear window with emergency escape, hand and foot throttle, rearview mirror, dome light, top window, cup holder, 12V power plug socket, footrest, seat pocket, and loader control lockout system.
• Control and Indicators: Electric parking brake control, operator’s compartment floor cleanout, proportional auxiliary hydraulic control on the joystick, advanced instrument operators, a digital hour meter, tachometer, fuel level LCD bar graph with alarm, diagnostic features, and security lockout.
• Warning Systems: This system features various warning lights with alarms for engine coolant temperature, engine oil pressure, engine malfunction, hydraulic charge pressure, hydraulic filter restriction, hydraulic oil temperature, battery voltage, and service reminders. Indicator lights for engine preheat, parking brake, and seat bar reminder are also included.
• Alarm Package: Back-up alarm and horn for enhanced safety.

Engine Specifications

• Engine Model: FPT F5H FL463 A*G001, 207 CID (3.4 L) Turbo, Tier 4 Final Certified, featuring High-Pressure Common Rail (HPCR) fuel injection.
• Power: The engine has a Gross horsepower of 74 hp (55 kW) and a net horsepower of 68 hp (51 kW), and its peak torque is 232 lb·ft (314 N·m).
• Efficiency and Durability: It has a 120-amp alternator, dual-element air cleaner, and an organic acid technology (OAT) anti-freeze solution effective to -34º F.
• Fuel System: It includes a fuel tank with a capacity of 19.5 gallons (U.S.), a fuel filter with a water trap, and glow plugs for reliable operation in cold conditions.
• Cooling System: This system features an over-and-under radiator and oil cooler with a 3-stack after cooler/radiator/oil cooler configuration, plus an integral engine oil cooler.
• Electrical System: Includes a 1,000 CCA 12V battery and master electrical disconnect for safety and maintenance.

Drivetrain

• Speed and Control: 2-speed hydrostatic four-wheel drive for adaptable speed and traction.
• Durability: ASA #100HS drive chain for reliable power transmission.
• Safety: SAHR (Spring Applied, Hydraulic Release) disc parking brake ensures secure stationary positioning.

Hydraulics

• Powerful Performance: Auxiliary hydraulics at 3,050 psi (210 bar) and 24.2 gpm (91.5 L/min) for robust attachment operation.
• Filtration: 6-micron oil filtration system for clean hydraulic operation.
• Control: 3-spool loader control valve for precise manipulation of attachments.
• Convenience: Auxiliary hydraulic disconnects, ISO flat-face, connect-under-pressure with case drain for easy attachment changes.
• Safety and Efficiency: Hydraulic circuit pedal lock, auxiliary function lockout override, and loader lift lockout override for safe operation.
• Cooling: Heavy-duty hydraulic oil cooler to maintain optimal operating temperatures.
• Versatility: Loader arm float position and loader function lockout system for enhanced control during operations.

Loader

• Control: Auxiliary front electric control for precise handling of attachments.
• Compatibility: Manual attachment coupler to accommodate various tools and accessories.
• Design: Radial lift geometry for increased reach and capacity at mid-range heights.
• Maintenance: Loader lift arm support strut for safe maintenance and service.

Tires

• Durability: 12 X 16.5 heavy-duty tires for superior traction and longevity in rough terrain.

Other Standard Features

• Visibility: LED lights (2 front, 2 sides, 2 rear floods) for excellent visibility in all conditions.
• Safety and Maintenance: It is pre-wired for a rotating beacon, lockable service access hood, single-point daily servicing, rear tail lights, remote oil, and fuel filters for easy maintenance.
• Comfort: Block heater for reliable cold-start performance and debris ingression sealing to keep the operator’s environment clean.
• Versatility: Mounting points for add-on counterweights to enhance lifting capacity and stability.

Telematics

• Advanced Monitoring: CASE SiteWatch™ Telematics with hardware and a 5-year data subscription for comprehensive machine management, monitoring, and optimization.
• Remote Diagnostics: SiteConnect Module enables remote diagnostics capability, ensuring quick troubleshooting and maintenance planning.

Operator Environment

• Enclosed Cab: Fully sealed and pressurized with glass door including wiper and washer, sliding removable side windows, heater, and air conditioner for all-weather comfort.
• Audio: AM/FM Bluetooth radio with 2 speakers for entertainment and connectivity.
• Ignition: Keyless start ignition and ignition timeout for enhanced security and convenience.
• Display: 8-inch color LCD display for clear, interactive machine feedback.
• Controls: Electro-hydraulic controls for drive/steering and loader functions are switchable between H and ISO patterns with adjustable sensitivity. Mechanical hand and foot controls for versatile operation preferences.
• Seat: This is a Deluxe cloth, air suspension seat with heater and lumbar support for optimal operator comfort.
• Additional Features: Economy mode with auto idle shutdown, auto engine protection shutdown, demolition cab door with polycarbonate, machine settings user access levels, operator security codes, and auto idle setting for personalized machine use and efficiency.

Hydraulics

• High-Flow Auxiliary Hydraulics: This combined system operates at 3,050 psi (210 bar)—33.2 gpm (125.7 L/min) for enhanced attachment performance.
• Additional Options: Second auxiliary hydraulics, one-way self-leveling, and ride control for improved handling and stability.

Loader

• Attachment System: Hydraulic attachment coupler for quick and easy changes between tools.

Drivetrain

• Speed Adjustment: Creep speed mode available for electro-hydraulic (EH) machines, allowing precise speed control.

Other Options

• Customization: Language decals, buckets, bolt-on bucket cutting edges, special paint, and offsite service arrangement for specific operational needs and preferences.
• Factory-supplied Attachments: For additional functionality and safety, add-on counterweights, road lights, a rotating beacon, and a four-corner LED strobe.

Service Parts

• Safety and Maintenance: 3-inch (76.2 mm) retractable seat belt and bolt-on heavy-duty bucket teeth for operational safety and equipment durability.

Tier 4 Final

HPCR, EXTERNAL CEGR

Why this solution: This Tier 4 Final solution requires no new actions or upkeep and improves engine power by up to 10% so operators can focus entirely on the work at hand.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and then returned to the cylinder. The Diesel Oxidation Catalyst (DOC) manages the additional particulate matter. The DOC converts emissions into neutral gasses and automatically burns them off using heat from the exhaust.

What this means to you: This solution is a maintenance-free emissions solution, requiring no costly DPF (Diesel Particulate Filter) to replace and no new fluids to add. Powered by an FPT engine.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover, and flywheel housing, turbocharger, engine oil cooler, and water pump.

Purchased Protection

The Purchased Protection Plan extends the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to three years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
