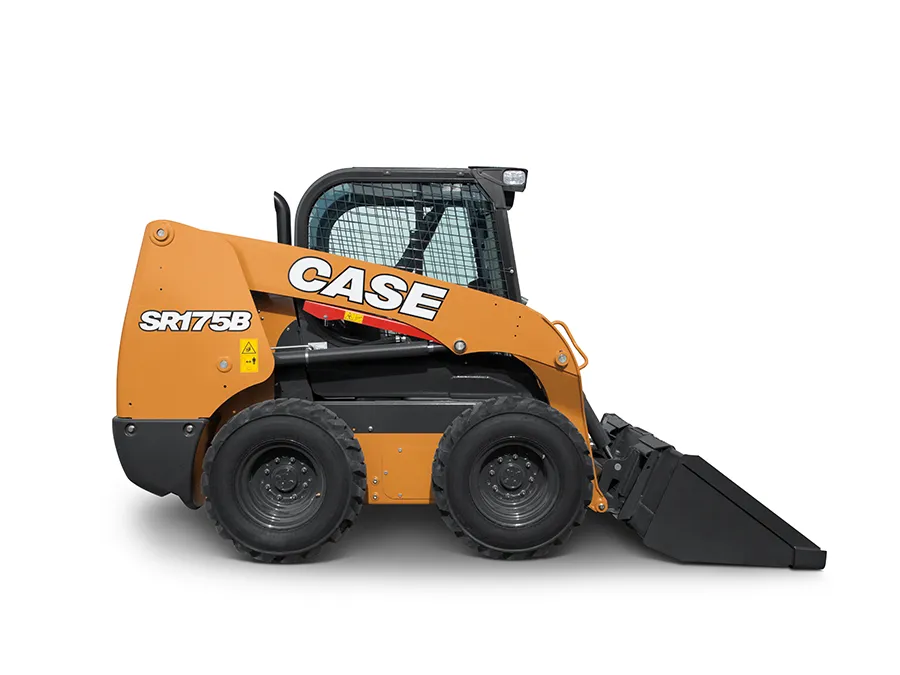

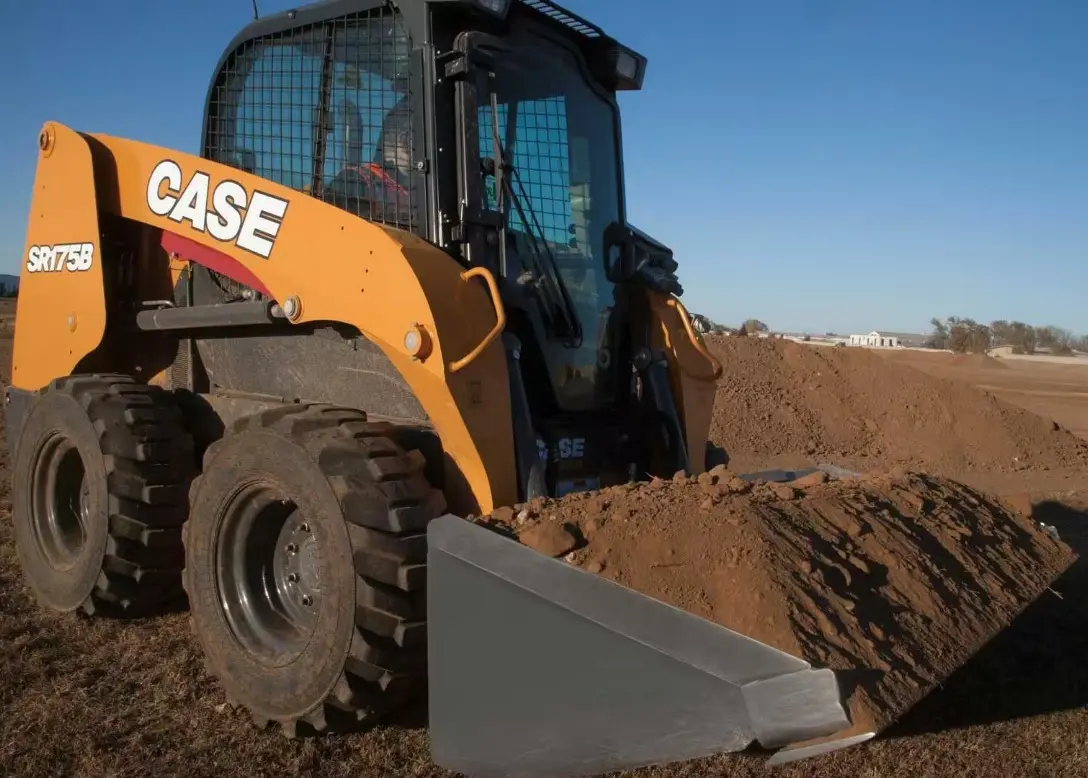

CASE SR175B Skid Steer Loader

Visibility and Comfort

• A backup camera that is operational in both forward and reverse, enhancing safety and precision.
• A cab-wide rearview mirror, expansive front and side windows, and a low entry threshold ensure easy entry and excellent visibility down to the bucket.
• The low-sloping rear hood and 360-degree lighting offer unobstructed views around the machine.
• The SR175B boasts one of the industry’s widest cabs, providing spacious comfort for operators.
• Redesigned control handles, cupholders, and air vents maximize legroom and overall comfort, making extended operation periods more manageable.

Optimal Control

• Control options include electro-hydraulic, mechanical, and hand-and-foot configurations to suit operator preferences.
• Electrohydraulic models feature an 8-inch LCD multi-function display, allowing easy switching between ISO and H operating patterns, saving operator profiles and application settings, and precisely adjusting machine responsiveness to fit operator needs.

Productivity and Performance

• With a 1,750-pound rated operating capacity and 67 horsepower, the SR175B is tailored for light to medium-duty tasks requiring earthmoving, loading, and various attachments.
• Standard auxiliary hydraulics (3,050 psi at 20.6 gpm) and optional high-flow (3,050 psi at 30.7 gpm) enhance the loader’s compatibility with various attachments, broadening its application scope.

Ease of Ownership

• Critical maintenance checks and service points are conveniently located at the rear of the machine, simplifying routine upkeep.
• The 8-inch LCD multi-function display informs operators of real-time data on machine operation and performance, facilitating efficient and effective use.

Operator Environment

• ROPS/FOPS has a Level 1 canopy with side screens.
• Keyed start ignition for secure operation.
• Tilt ROPS/FOPS for easy access and maintenance.
• Rear window with emergency escape feature for safety.
• Vinyl suspension seat with a 2 in (51 mm) retractable 3-point lap seat belt for comfort and security.
• Hand and foot throttle for precise speed control.
• Alarm package includes backup and horn for safety alerts.
• Rearview mirror for enhanced visibility.
• Headliner and dome light for interior comfort.
• Top window, cup holder, and 12V power plug socket for convenience.
• Footrest and seat pocket for added comfort.
• Padded seat bar with integral armrests for support during operation.
• Loader control lockout system to prevent accidental operation.
• Electric parking brake control for secure stopping.
• Operator’s compartment floor cleanout for easy cleaning.
• Proportional auxiliary hydraulic control on the joystick for precise attachment operation.
• Advanced Instrument Cluster with digital hourOperator’schometer, fuel level LCD bar graph with alarm, diagnostic features, and security lockout for comprehensive monitoring.
• Warning lights with alarms for engine coolant temperature, engine oil pressure, engine malfunction, hydraulic charge pressure, hydraulic filter restriction, and hydraulic oil temperature.
• Critical system stop, engine system, hydraulic system, electrical, and diagnostic system alarms for comprehensive safety and maintenance alerts.
• Battery voltage display, oil service, engine preheat, parking brake, and seat bar reminder indicator lights for operational awareness.

Engine

• Perkins 404F-E22TA has a 135.2 CID (2.2 L) Turbo engine that is Tier 4 Final Certified (CEGR, DOC, DPF) for efficient and powerful performance.
• Spark Arresting Diesel Oxidation Catalyst (DOC) muffler and Charged Air Cooler (CAC) for emission control and engine efficiency.
• High-Pressure Common Rail (HPCR) fuel injection for optimal fuel delivery.
• For robust operation, 67 hp gross and 64 hp net power output, with a peak torque of 153 lb·ft.
• 120 amp alternator and dual element air cleaner for reliable power and clean operation.
• Organic Acid Technology (OAT) anti-freeze solution to -34º F and a 20 gal fuel tank for extended operation.
• Over and under radiator and oil cooler with a 3-stack aftercooler/radiator/oil cooler configuration for optimal engine cooling.
• Glow plugs for cold weather starting, an integral engine oil cooler for temperature management, and a fuel filter with a water trap for a clean fuel supply.
• 925 CCA 12V battery and master electrical disconnect for maintenance and safety.
  B’s

Drivetrain

• 2-speed hydrostatic four-wheel drive for versatile speed and traction.
• ASA #80 drive chain for durability and strength.
• SAHR disc parking brake for reliable stopping and safety.

Hydraulics

• Auxiliary hydraulics delivering 20.6 gpm at 3,050 psi for robust attachment performance.
• 6-micron oil filtration system to maintain hydraulic fluid cleanliness.
• 3-spool loader control valve for precise operation of loader functions.
• ISO flat-face auxiliary hydraulic disconnects allow easy attachment changes.
• Hydraulic circuit pedal lock for safety.
• Auxiliary function and loader lift lockout overrides for operational control.
• Heavy-duty hydraulic oil cooler to maintain optimal operating temperatures.
• Loader arm float position for smooth grading and leveling.
• Loader function lockout system for enhanced safety.

Loader

• Auxiliary front electric control for additional attachment capabilities.
• Manual attachment coupler for easy and secure attachment changes.
• Radial lift geometry provides excellent reach and lifting capabilities.
• Loader lift arm support strut for safety during maintenance.

Tires

• 10 X 16.5 heavy-duty tires for durability and traction on various terrains.

Other Standard Features

• LED lights (2 front, 2 sides, 2 rear floods) for superior visibility.
• Pre-wired for a rotating beacon for enhanced safety.
• Lockable service access hood is needed for secure maintenance access.
• Single-point daily service features for easy routine maintenance.
• Rear tail lights for visibility and safety.
• Remote oil and fuel filters for convenient servicing.
• Block heater for improved cold-weather starting.
• Debris ingression sealing to protect against environmental contaminants.
• Mounting points for add-on counterweights to enhance stability and lifting capacity.

Telematics

• CASE SiteWatch™ Telematics with hardware and a 5-year data subscription for advanced equipment monitoring and management.
• SiteConnect Module for remote diagnostics capability, enhancing maintenance efficiency.

Operator Environment

• Enclosed cab that is fully sealed and pressurized for optimal comfort.
• Glass door is equipped with a wiper and washer for clear visibility.
• Removable sliding side windows for ventilation and communication.
• Heater and air conditioner to maintain a comfortable climate.
• AM/FM Bluetooth radio with 2 speakers for entertainment and connectivity.
• Keyless start ignition for enhanced security and convenience.
• 8-inch Color LCD Display for easy monitoring and control.
• Economy Mode with auto idle shutdown to save fuel.
• Auto Engine Protection Shutdown to prevent damage.
• Electro-hydraulic controls with adjustable sensitivity are switchable between H and ISO patterns for personalized operation.
• Mechanical hand controls for straightforward operation.
• Hand and foot controls allow separate operation of loader drive and bucket/boom functions.
• Deluxe cloth, air suspension seat with heater and lumbar support for maximum operator comfort.
• Demolition cab door with polycarbonate for added safety.
• Ignition Timeout, Machine Settings, User Access Levels, and Operator Security Codes for security and customization.
• Auto Idle settings for fuel efficiency.

Hydraulics

• High-flow auxiliary hydraulics for enhanced attachment performance.
• Hydraulic one-way self-leveling for ease of operation.
• Ride and auto ride control are for operator comfort over rough terrain.

Loader

• Hydraulic attachment coupler for quick and easy attachment changes.

Drivetrain

• Creep Speed Mode is available on electro-hydraulic (EH) models for precise speed control during detailed tasks.

Other

• Language decals for multilingual operators.
• Various buckets and bolt-on bucket cutting edges for different applications.
• Special paint options for customization.
• Rotating beacon and four-corner LED strobe for increased visibility and safety.
• 4-Point Lift Hook for versatile lifting options.

Service Parts

• 3-inch retractable seat belt for enhanced safety.
• Bolt-on heavy-duty bucket teeth for improved digging performance.
• Second auxiliary hydraulics for additional hydraulic functions.
• Add-on counterweights for increased stability and lifting capacity.
• Road lights for improved visibility on public roads.
• Fire Extinguisher and Tamper Resistant Front Door Bracket for safety.
• Bucket Cylinder Guards to protect hydraulic cylinders.
• Single Point Lift Hook, Aspirator, Attachment Hose Guide Kit, and Drawbar for convenience and performance enhancements.

Tier 4 Final

EXTERNAL CEGR WITH DOC & DPF

Why this solution: The SR175B offers an economical entry into the skid steer market while still providing the power and performance associated with the CASE B Series. Using more affordable Tier 4 Final technology, this solution helps keep the unit price down.

How it works: With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and then returned to the cylinder. This lowers combustion temperatures and dramatically reduces emissions but produces more particulate matter. Then the diesel oxidation catalyst (DOC) oxidizes the machine’s exhaust to create heat and further manage emissions while the diesel particulate filter (DPF) captures excess particulate matter and then burns it off through a combustion process known as “regeneration,” which helps maximize the life of the filter.

What this means to you: This solution requires no new additive and provides a lower upfront machine cost, but as with all DPF systems, the filter requires replacement over time, which impacts the total cost of ownership. DPF regeneration also requires additional fuel burn.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased Protection

The Purchased Protection Plan extends the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to three years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
