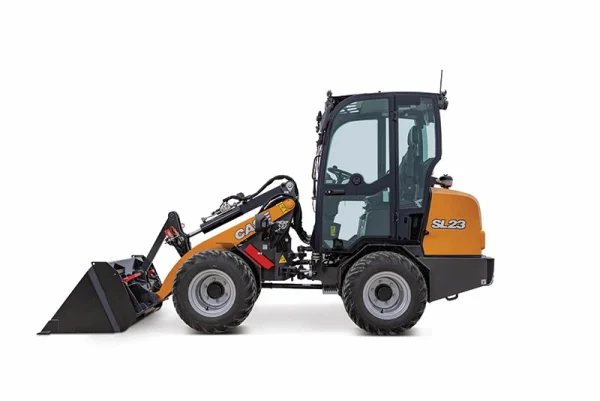

CASE SL23 Small Articulated Loader
Request more information:
CASE SL23 Small Articulated Loader For Sale. At just 48.4 inches wide, it can go where others can’t, all while offering an impressive lifting capacity of 4,850 lbs.
PDF Brochure: CASE Small Equipment
PDF Specifications: CASE SL23 Small Articulated Loader Specs
CASE SL23 Small Articulated Loader For Sale
Crank out a few extra tasks today, and tomorrow you can take on even more. That’s the true power of the CASE SL23. This compact, construction-grade machine is designed to help you get more done. At just 48.4 inches wide, it can go where others can’t, all while offering an impressive lifting capacity of 4,850 lbs.
The SL23’s 4-wheel drive can handle any surface while minimizing impact, and the hydraulic controls offer precise, intuitive command. With a wide range of attachments and an optional 3-pin electrical connector, the possibilities are endless—whether you’re lifting and dumping, snow blowing, digging, or hammering.
What’s your next task? The CASE SL23 is now for sale at Luby Equipment. Contact us today to discover how it can boost your productivity.
SL23 Features
MANUVERABILITY
The new CASE small articulated loaders are narrow and light in design, with shorter overall length, making them easy to use in tight spaces.
OPERATOR-FIRST DESIGN
A simple operator station offers 360-degree visibility and the machine drives like a wheel loader with a steering wheel and loader control.
It’s designed to make operators feel comfortable instantly, and stay that way for hours.
70+ ATTACHEMENTS
We offer a wealth of attachments, and with the standard Common Industry Interface (CII coupler) on our smaller SAL machines (SL12, SL12 TR and SL15).
Our larger SAL machines (SL22EV, SL23, SL27, SL27 TR, SL35 TR and SL50 TR) use SAE couplers offering attachment compatibility with skid steer, compact track and compact wheel loaders.
CONSTRUCTION GRADE SERVICE
We offer a wealth of attachments, and with the standard Common Industry Interface (CII coupler) on our smaller SAL machines (SL12, SL12 TR and SL15).
Our larger SAL machines (SL22EV, SL23, SL27, SL27 TR, SL35 TR and SL50 TR) use SAE couplers offering attachment compatibility with skid steer, compact track and compact wheel loaders.
FORWARD ARTICULATION
CASE small articulated loaders offer front articulation, with the operator station on the rear section, allowing for larger cab size and easier entry/exit.
The rear tires track inline with the front tires for a tighter turn radius. It also allows the operator to work alongside walls and gives clear sightline to the working area. You get greater cab stability with zero cab swing compared to others with rear articulation.
SL23 Specifications
DRIVELINE
| Engine Output – Gross | 26 hp / 19.4 kW |
|---|---|
| Transmission Type | Hydrostatic |
| Fuel Tank | 9.8 gallons (US) / 37 ltr |
|---|
DIMENSIONS
| Height – Over Cab | 7 ft 7 in / 2300mm |
|---|---|
| Full Lift Dump Height | 5 ft 6 in / 1680mm |
| Loader – Geometry | Parallel |
| Height – Pivot Pin | 8 ft 1 in / 2450mm |
| Turn radius over bucket – std. | 8 ft 8 in / 2650mm |
PERFORMANCE
| Straight Tipping Load | 4275lbs / 1940kg |
|---|---|
| Speed – Forward Maximum | 12.4mph / 20kph |
| Loader Control | Joystick |
WEIGHT
| Operating Weight | 5181lbs / 2350kg |
|---|
SL23 Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS safety roof
- Mechanical suspension vinyl seat
ELECTRICAL
- 12 volt system
- 2 front cab work lights
ENGINE
- Glow plug starting aid
- Engine block heater
- Locking fuel cap
- Cyclone air filter
HYDRAULICS
- 1x dual acting auxiliary hydraulics
LOADER
- Additional counterweights
- Standard lift path
- Loader lift arm support strut
SL23 Optional Equipment
OPERATOR ENVIRONMENT
- Fold-able open ROPS
- Air suspension seat
HYDRAULICS
- 2x dual acting auxiliary hydraulics
- Auxiliary hydraulic hold function
- Continuous flow auxiliary hydraulics
ELECTRICAL
- 2 cab rear work lights
- Rotating beacon light
SL23 Warranty
BASE & EXTENDED WARRANTY COVERAGE
- Base warranty coverage: 2-Year/1,000-Hour
- Full Machine Limited Warranty
- Electric power train warranty coverage: 3-year/3,000 Hour Limited Warranty (EV models only)
Additional information
| Condition | New |
|---|
