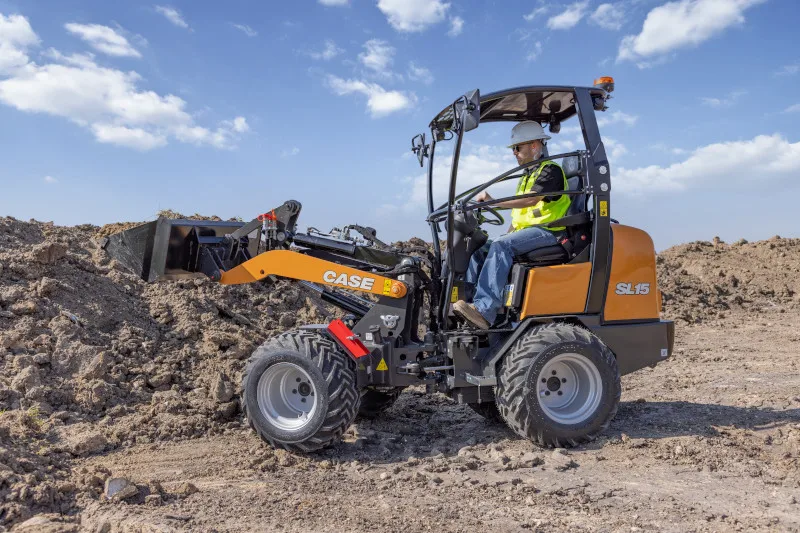

CASE SL15 Small Articulated Loader
Request more information:
CASE SL15 Small Articulated Loader For Sale. With hydrostatic 4-wheel drive, the SL15 ensures solid traction on all surfaces, while its impressive lifting capacity of over 3,000 lbs.
PDF Brochure: CASE Small Equipment
PDF Specifications: CASE SL12 Small Articulated Loader Specs
CASE SL15 Small Articulated Loader For Sale
When the job at hand can only be described as “everything,” the CASE SL15 is the machine you need. This workhorse combines size, power, and versatility in a compact package that’s easy to transport and perfect for fitting into small spaces. It also offers an optional enclosed cab, making it ideal for cold-weather and snow-pushing tasks.
With hydrostatic 4-wheel drive, the SL15 ensures solid traction on all surfaces, while its impressive lifting capacity of over 3,000 lbs. provides more than enough muscle for landscaping applications. Thanks to a wide range of attachments, a CII coupler, and an optional 3-pin electric connector, you can load, dig, sweep, mow, hammer, auger, rake, grapple, and grind through your day with ease.
Ready to get everything done? The CASE SL15 is now for sale at Luby Equipment—contact us today to see how it can transform your workflow!
SL15 Features
MANUVERABILITY
The new CASE small articulated loaders are narrow and light in design, with shorter overall length, making them easy to use in tight spaces.
OPERATOR-FIRST DESIGN
A simple operator station offers 360-degree visibility and the machine drives like a wheel loader with a steering wheel and loader control.
It’s designed to make operators feel comfortable instantly, and stay that way for hours.
70+ ATTACHEMENTS
We offer a wealth of attachments, and with the standard Common Industry Interface (CII coupler) on our smaller SAL machines (SL12, SL12 TR and SL15).
Our larger SAL machines (SL22EV, SL23, SL27, SL27 TR, SL35 TR and SL50 TR) use SAE couplers offering attachment compatibility with skid steer, compact track and compact wheel loaders.
CONSTRUCTION GRADE SERVICE
We offer a wealth of attachments, and with the standard Common Industry Interface (CII coupler) on our smaller SAL machines (SL12, SL12 TR and SL15).
Our larger SAL machines (SL22EV, SL23, SL27, SL27 TR, SL35 TR and SL50 TR) use SAE couplers offering attachment compatibility with skid steer, compact track and compact wheel loaders.
FORWARD ARTICULATION
CASE small articulated loaders offer front articulation, with the operator station on the rear section, allowing for larger cab size and easier entry/exit.
The rear tires track inline with the front tires for a tighter turn radius. It also allows the operator to work alongside walls and gives clear sightline to the working area. You get greater cab stability with zero cab swing compared to others with rear articulation.
SL15 Specifications
DRIVELINE
| Engine Output – Gross | 26 hp / 19.4 kW |
|---|---|
| Transmission Type | Hydrostatic |
| Fuel Tank | 5.5 gallons (US) / 21 ltr |
|---|
DIMENSIONS
| Height – Over Cab | 7 ft 4 in / 2230mm |
|---|---|
| Full Lift Dump Height | 4 ft 6 in / 1360mm |
| Loader – Geometry | Z-Bar |
| Height – Pivot Pin | 6 ft 9 in / 2067mm |
| Turn radius over bucket – std. | 8 ft 1 in / 2469mm |
PERFORMANCE
| Straight Tipping Load | 3527lbs / 1600kg |
|---|---|
| Speed – Forward Maximum | 11.8mph / 19kph |
| Loader Control | Joystick |
WEIGHT
| Operating Weight | 3362 lbs / 1525 kg |
|---|
SL15 Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS safety roof
- Non-suspension vinyl seat
ELECTRICAL
- 12 volt system
- 2 front cab work lights
ENGINE
- Glow plug starting aid
- Engine block heater
- Locking fuel cap
HYDRAULICS
- 1x dual acting auxiliary hydraulics
LOADER
- Additional counterweights
- Telescopic reach loader arm
- Loader lift arm support strut
- CII mechanical attachment coupler
SL15 Optional Equipment
OPERATOR ENVIRONMENT
- Fold-able open ROPS
HYDRAULICS
- 2x dual acting auxiliary hydraulics
- Auxiliary hydraulic hold function
- Continuous flow auxiliary hydraulics
ELECTRICAL
Rotating beacon light
2 cab rear work lights
SL15 Warranty
BASE & EXTENDED WARRANTY COVERAGE
- Base warranty coverage: 2-Year/1,000-Hour
- Full Machine Limited Warranty
- Electric power train warranty coverage: 3-year/3,000 Hour Limited Warranty (EV models only)
Additional information
| Condition | New |
|---|
