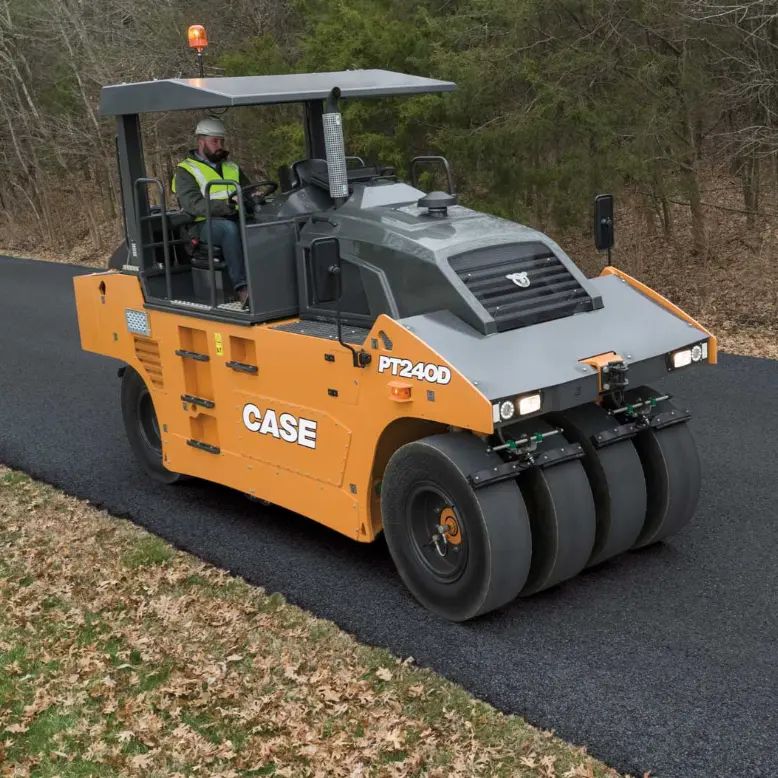

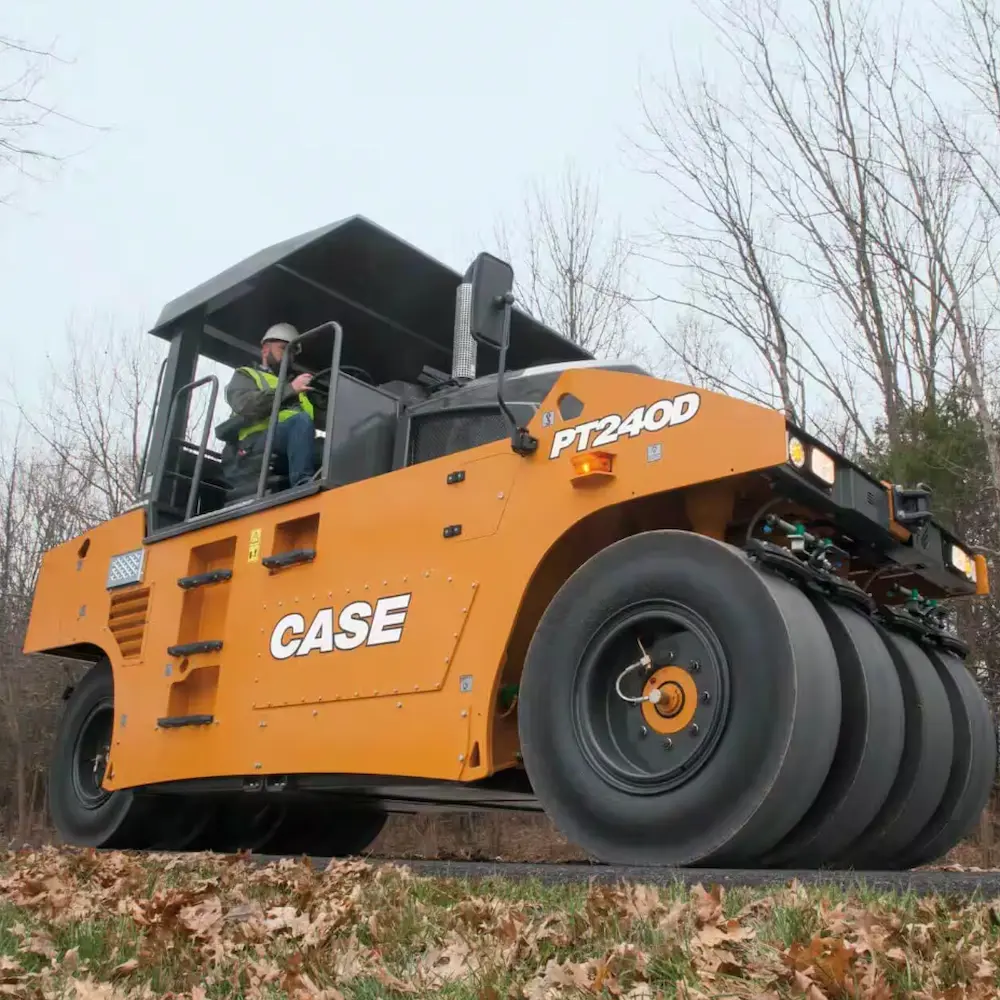

CASE PT240D Pneumatic Tire Roller
Request more information:
The CASE PT240D Pneumatic Tire Roller is engineered for superior performance in large-scale infrastructure projects. It sets the standard for sub-base and asphalt compaction. This powerhouse is essential to any fleet and designed to deliver optimal results in road and highway construction, airport runways, and large commercial developments.
BROCHURE: CCE202003AsphComp_d3_LowRes
SELL SHEET: PT240D-Specs-CCE202309PT240D
CASE PT240D Pneumatic Tire Roller
The CASE PT240D Pneumatic Tire Roller is engineered for superior performance in large-scale infrastructure projects. It sets the standard for sub-base and asphalt compaction. This powerhouse is essential to any fleet and designed to deliver optimal results in road and highway construction, airport runways, and large commercial developments.
PT240D Features
- Robust Construction: With an operating weight of 21,380 pounds, the PT240D is built to withstand the demands of heavy-duty compaction tasks. Its capacity to ballast up to 52,910 pounds ensures it can adapt to various compaction requirements, providing versatility across multiple projects.
- Efficient Compaction: The PT240D is specially designed to achieve desired compaction levels in fewer passes, enhancing productivity and efficiency on the job site. Its ability to utilize steel, sand, and water ballast allows for the adequate compaction of diverse lifts and materials, reducing the need for multiple rollers.

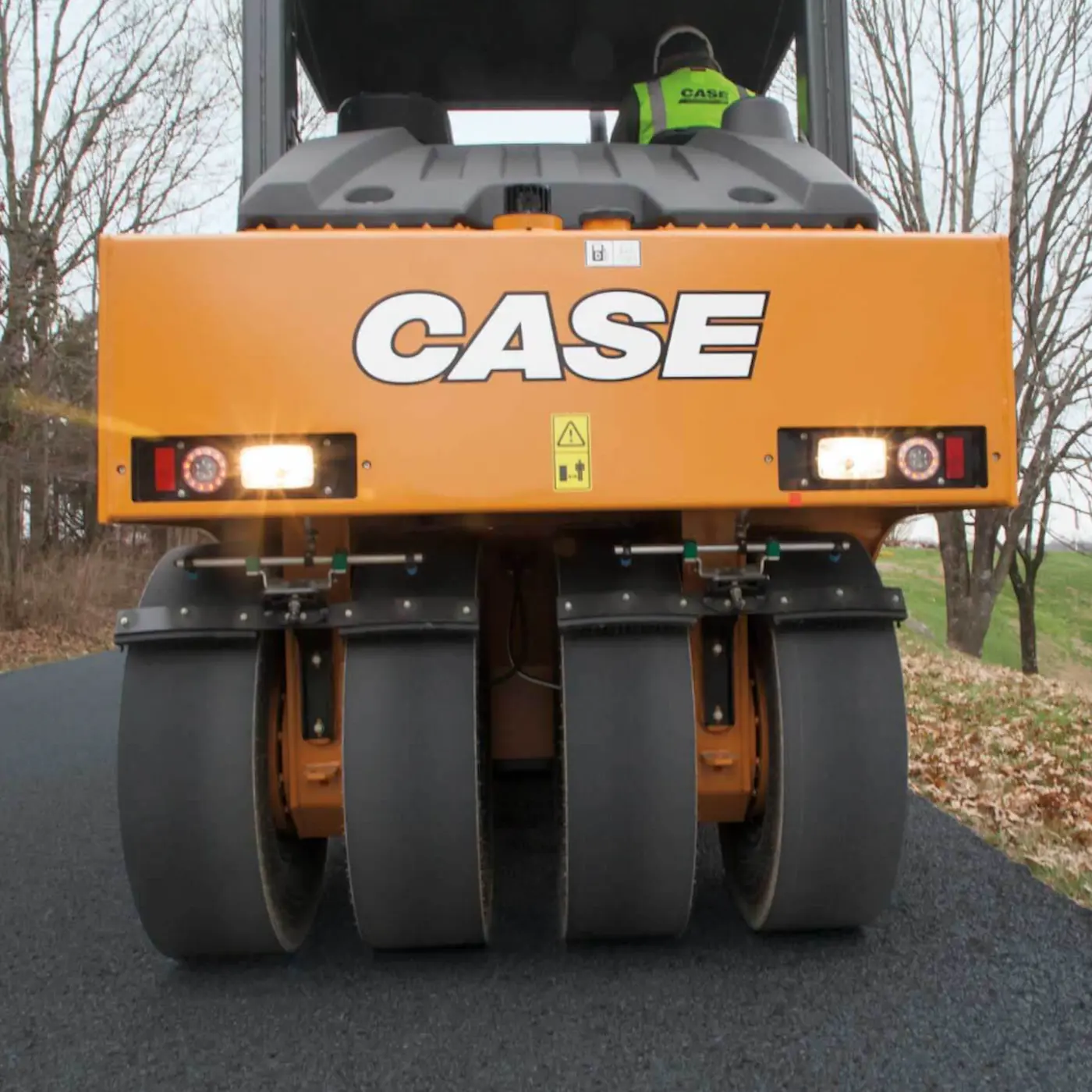

- Innovative Tire Configuration: Featuring eight tires with a two-inch overlap and a total compaction width of 78 inches, this pneumatic tire roller kneads hot mix asphalt gently at the surface. This innovative approach ensures greater asphalt density and minimal voids in the finished product.
- Central Tire Inflation System: The PT240D boasts a central tire inflation system that maintains consistent pressure across all tires. This feature allows on-the-fly adjustments to tire pressure, easily accommodating varying ground conditions and compaction needs.
- Optimal Operator Visibility: Equipped with two operating stations, the PT240D offers unparalleled visibility to the compaction zone, ensuring precise and efficient operation. Centralized controls enhance ease of use, and an optional enclosed cab with heat offers comfort in diverse working conditions.
- Eco-Friendly Performance: Adhering to Tier 4 Final emissions standards, the PT240D combines Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) aftertreatment systems. This design eliminates the need for lifetime service associated with DPF, ensuring sustainable operation.
- Convenient Maintenance: All primary service points are thoughtfully grouped for easy access, simplifying maintenance routines. Compatibility with CASE SiteWatch™ telematics further enhances the ease of monitoring and preventive maintenance, ensuring the PT240D remains ready for action.
The CASE PT240D Pneumatic Tire Roller is a testament to CASE’s commitment to innovation, efficiency, and sustainability. Offering unmatched compaction performance and versatility, it is the ideal choice for contractors looking to elevate their operational capabilities on large-scale projects.
PT240D Standard Equipment
Safety and Durability:
- Fixed ROPS Open Platform: Ensures operator safety with handrails and an anti-vandal cover for added security.
- Visibility and Alert Systems: Equipped with halogen worklights (55 watt, front and rear), turn signal indicators, brake lights, and a backup alarm for enhanced safety and visibility on the job site.
- Maintenance and Serviceability: Features a tilt-open hood for easy access, a master disconnect switch for electrical safety, and lift and tie-down provisions for convenient transportation.
Operator Comfort and Control:
- Ergonomic Operator Environment: Comes with dual operator stations, suspension seats with foldable armrests, and a retractable 3-inch seat belt for maximum comfort and flexibility.
- Convenience Features: An emergency stop button and a lockable toolbox are included for safety and storage.
Control and Monitoring:
- Intuitive Instrument Panel: The roller is outfitted with a steering wheel spinner knob, horn, and hour meter for straightforward operation.
- Comprehensive Indicator Lights: Monitor critical functions with indicators for battery status, engine oil pressure, intake preheater, engine temperature, parking brake, and sprinkler system status.
Advanced Monitoring System:
- Monitor Display Panel: Keep track of engine RPM, engine hours, fuel rate, system voltage, engine load, coolant temperature, oil pressure, fuel economy, and current fuel consumption for optimal performance monitoring.
- Water System: Features a pressurized water system with single-stage water filtration and watering system drains to maintain optimal working conditions.
Telematics for Peace of Mind:
- CASE SiteWatch™ Telematics: Includes hardware and a 5-year advanced data subscription, providing remote monitoring capabilities to enhance maintenance planning and machine management.
PT240D Optional Equipment
Comfort and Convenience:
- Enclosed Comfort: Opt for a cab equipped with heating for cold mornings and add air conditioning to stay cool during hot summer days.
- Entertainment on the Go: A radio mounting with two speakers and an antenna is available for those who enjoy music or news while working.
- Visibility and Safety Upgrades: Increase safety and visibility on the job site with a rotating beacon and an air precleaner to ensure clean air intake.
Performance Enhancements:
- Superior Tire Options: Upgrade to radial tires for better traction and durability, and keep a spare tire with the rim on hand to minimize downtime.
- Ballast Options: Utilize scrap metal for ballast to adjust the weight of the roller for different compaction needs, and a water-tight chassis ballast compartment with a capacity of 460 liters (122 gallons) offers additional weight customization.
- Traction Control: A differential lock for the rear axle can be added to improve traction in challenging conditions.
Maintenance and Durability:
- Ease of Maintenance: Choose tiltable scrapers (spring-applied) for easy cleaning and maintenance and cocoa mat scrapers for enhanced cleaning efficiency.
- Protection and Efficiency: Thermal aprons are available to maintain optimal temperatures for asphalt compaction, and an edge cutter can be added for precise work along curbs and obstacles.
- Convenient Extras: Add a spare rim (no tire) to your equipment list for preparedness.
PT240D Specs
| Category | Specification | Details |
|---|---|---|
| ENGINE | ||
| Make | Deutz | |
| Emissions Certification | Tier 4 Final/Stage V | |
| Model | TCD3.6 L4 | |
| Type | Turbocharged / Liquid-cooled | |
| Cylinders | 4 | |
| Displacement | 221 in³ (3 621 cm³) | |
| Horsepower @ 2000 RPM | 100 hp (74.4 kW) | |
| Max. Torque @ 1600 RPM | 302 lbf·ft (410 N·m) | |
| DRIVETRAIN | ||
| Drive | Hydrodynamic | |
| F/R Travel Speed Range | 3 | |
| Working Speeds | 1st – max. 3.1 mph (5 kph) | 2nd – max. 6.8 mph (11 kph) |
| 3rd – max. 11.8 mph (19 kph) | Max. Travel Speed 11.8 mph (19 kph) | |
| Service Brake | Hydrostatic Disc | |
| Parking Brake | Mechanical Disc | |
| Emergency Brake | Mechanical Disc | |
| Independent Front Axles | 2 | |
| Gradeability | 25% | |
| ELECTRICAL | ||
| Voltage | 24 volts | |
| Battery | 2 x 55 Ah | |
| Amp Hour | 100 | |
| Cold Cranking Amps | 420 | |
| OPERATOR ENVIRONMENT | ||
| Operator Work Stations | 2 | |
| Seats | 2 (vinyl/suspension) | |
| Seatbelt | 3 in (76 mm) retractable | |
| Rearview Mirrors | 2 (side mounted) | |
| OPERATING WEIGHT | ||
| Operating Weight | 21,380 lb (9 700 kg) | |
| w/ Cab Option (add) | 1,270 lb (576 kg) | |
| Max. Operating Weight | 52,910 lb (24 000 kg) | |
| Max. Ballast | 52,910 lb (24 000 kg) | |
| One Wheel Load Minimum | 2,566 lb (1 164 kg) | |
| One Wheel Load Maximum | 6,614 lb (3 000 kg) | |
| Compaction Width (Max.) | 78.2 in (1 986 mm) | |
| SERVICE CAPACITIES | ||
| Fuel Tank | 66 gal (250 L) | |
| Engine Oil | 2.5 gal (9.5 L) | |
| Hydraulic Reservoir | 5.8 gal (22 L) | |
| OTHER SPECIFICATIONS | ||
| Steering Type | Hydrostatic | |
| Axles | 4 | |
| Front Axle | Isostatic w/ 2-pivot points | |
| Rear Axle | Driven 2 tire pairs w/ Diff. lock as option | |
| Steering Angle | +/- 32° | |
| Oscillation Angle +/- | (front axle) 3° | |
| Inside Turning Radius | Left 244.1 in (6 200 mm) | Right 240.2 in (6 100 mm) |
| Outside Turning Radius | Left 393.7 in (10 000 mm) | Right 346.5 in (8 800 mm) |
| Water Tank | 103 gal (390 L) | |
| Tank Type | Polyethylene | |
| Water Feed | Pressurized | |
| Watering Pumps | 1 | |
| Water Filtration Stages | 1 | |
| Tire Pressure | 108.8 psi (0.75 MPa) | |
| Number of Tires | 8 | |
| Size of Tires | 11 x 20” |
PT240D Dimensions
| Dimension | Measurement |
|---|---|
| A. Wheelbase | 148.8 in (3,780 mm) |
| B. Overall Length | 198.0 in (5,030 mm) |
| C. Overall Length with Thermal Aprons | 227.6 in (5,780 mm) |
| D. Overall Height | 123.2 in (3,130 mm) |
| E. Seat Height | 93.7 in (2,380 mm) |
| F. Compaction Width | 78.2 in (1,986 mm) |
| G. Overall Width of Fixed Parts | 82.7 in (2,100 mm) |
| H. Overall Width of Fixed Parts with Thermal Aprons | 90.9 in (2,310 mm) |
| I. Ground Clearance | 11 in (280 mm) |
| Ground Clearance with Ballast Plate Under Machine | 9.8 in (250 mm) |
Warranty
Base & Extended Warranty Coverage
1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
