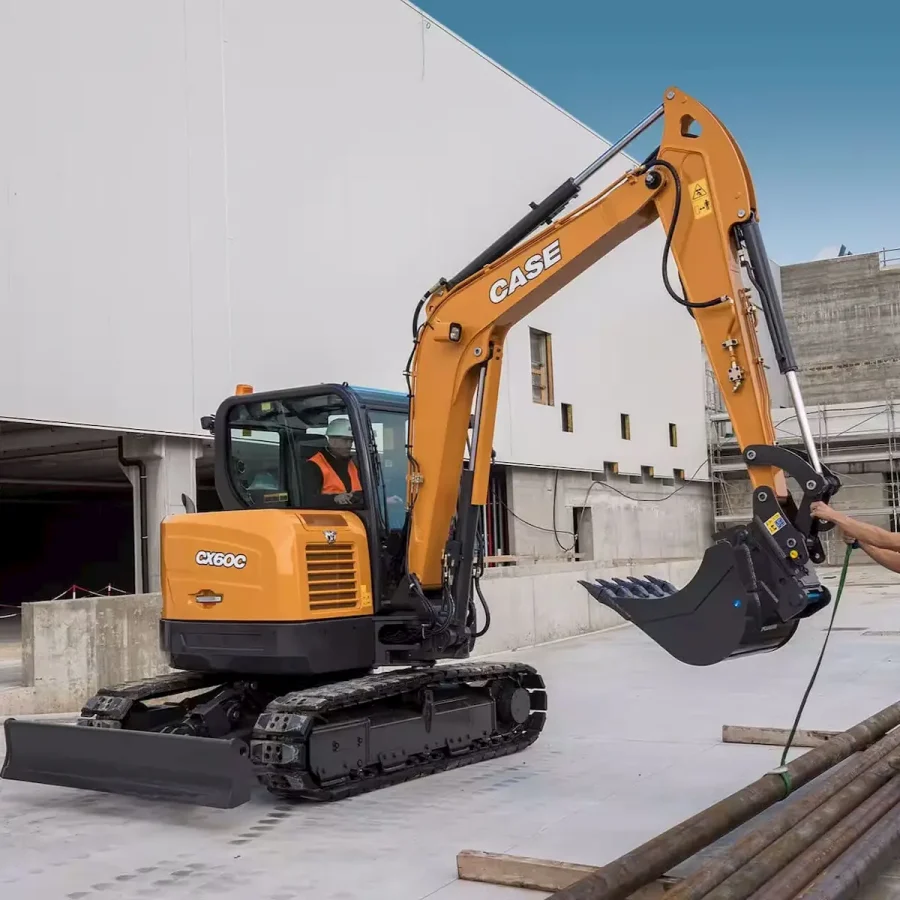

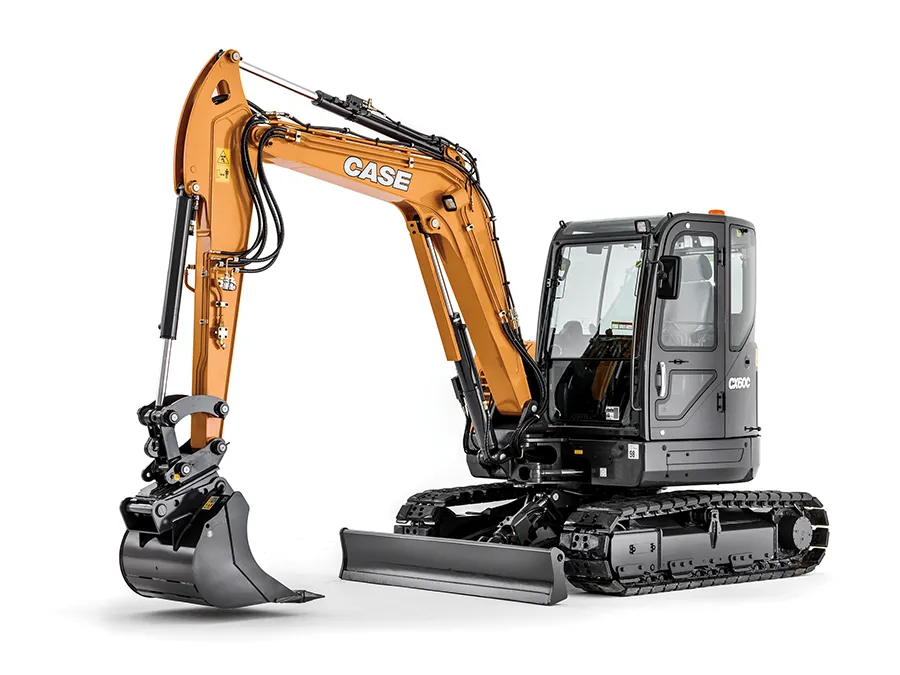

CASE CX60C Mini Excavator

Purpose-Built Productivity:

• Adjustable boom for operation in tight spaces
• Auxiliary hydraulics for the versatile thumb and attachment use
• Push blade for effective backfilling and stability
• Automatic 2-speed Travel that adjusts to load demands
• Control pattern selector for operator preference adaptation
• Optional long-reach configuration for extended operational reach
• Steel tracks for enhanced durability on challenging terrains
• Hydraulic quick coupler for swift attachment changes

Common-Sense Fuel Efficiency:

• 65-hp engine optimized for power and fuel economy
• Tier 4 Final solutions for reduced emissions
• Auto-Idle function to conserve fuel
• Two operational modes to tailor engine output

CASE Comfort and Visibility:

• Spacious deluxe cab with ample storage
• Floor-to-ceiling glass and full-open front window for superior visibility
• Adjustable heated seat and climate control for comfort
• Roller shade and Bluetooth radio with USB for convenience
• Ergonomic pilot controls for reduced operator fatigue
• 7″ LCD touchscreen for easy access to performance data

Simple Serviceability:

• Ground-level access to key service points through lockable panels
• Tilting cab feature for enhanced access to hydraulic systems

ENGINE:

• Yanmar 4TNV98C engine ensures reliable and robust performance.
• Access to the engine is conveniently located under the rear hood.
• Glow plug starting aid for cold starts.
• Dry-type air cleaner with a restriction indicator for optimal engine air intake.

ELECTRICAL:

• 12-volt electrical starting system for reliable ignition.
• Heavy-duty battery designed for longevity and durability.
• Battery Master Switch to control power supply.
• Key Start for straightforward operation.
• Anti-theft engine starting passwords enhance security.
• Front and rear working lights improve visibility.
• 12 V power outlet for auxiliary power needs.
• Auto-idle feature with on/off switch conserves fuel.
• Horn for signaling and safety on job sites.
• Pre-wired for Telematics, facilitating equipment tracking and management.

HYDRAULICS:

• Auxiliary hydraulics with independent single and bi-directional flow, plus arm plumbing for versatile attachment use.
• Large hydraulic oil cooler to maintain optimal fluid temperatures.
• Control pattern selector valve allows for easy switching between control patterns.
• Cylinder rod protection covers for the backfill blade and boom to prevent damage.

TRACK DRIVE:

• Rubber belt tracks for reduced ground damage and improved traction.
• Automatic 2-speed travel adjusts to terrain and load conditions.
• Fully hydrostatic drive system for precise control and maneuverability.
• Sealed and lubricated track rollers for durability and reduced maintenance.
• Grease-type track tension adjustment for easy maintenance.

Operator Environment:

• Enclosed Cab: Features heating and air conditioning for year-round comfort.
• Sound Level: This product complies with ISO 6396:2008, ensuring a sound pressure level of LpA=77dB(A) for reduced operator fatigue.
• Controls: Pilot-operated hand controls and foot pedals are used for precise machine operation.
• Seating: An adjustable seat has a seat belt and seat heater for enhanced operator comfort and safety.
• Convenience: Armrests, a 12V socket, a cup holder, and a cell phone holder are provided for added comfort and utility.
• Display: A 5.7-inch color LCD display offers clear visibility of machine status and operational metrics.
• Connectivity: Bluetooth radio with USB input, 2 speakers, and remote control for entertainment and connectivity on the job.

Display Features:

• Warning Lamps: Include hydraulic oil temperature, air cleaner, engine stop, check engine, water in fuel, battery charging, emergency, engine coolant temperature, engine oil pressure, DPF regeneration inhibit, DPF regeneration acknowledge, DPF, high exhaust temperature, and low fuel level warnings.
• Gauges and Meters: The engine coolant temperature gauge, hydraulic oil temperature gauge, fuel gauge, engine RPM, and hour meter are used to monitor excavator health and performance.

UPPER STRUCTURE:

• Short radius tail swing is used for operation in confined spaces.
• Standard arm length of 4 ft 10 in (1.48 m) for balanced performance.
• Bucket linkage with lifting hook for versatile lifting and digging tasks.
• Thumb bracket is used for easy attachment of hydraulic thumbs.

OTHER:

• Swing boom with 70° left and 50° right movement for enhanced maneuverability.
• Hydraulic backfill blade for efficient backfilling and grading tasks.

Operator Environment:

• Rearview Camera: This camera enhances safety and operational awareness by providing a clear view of the area behind the excavator.
• Travel Alarm: Alerts nearby personnel when the excavator moves, increasing job site safety.

Track Options:

• Steel Tracks: Available in widths of 1 ft 4 in (400 mm) and 1 ft 6 in (450 mm) for enhanced durability and traction.
• Steel Tracks with Bolt-On Rubber Pads (1 ft 4 in): Offer the benefits of steel tracks with reduced ground damage.
• Roadliner Tracks: Steel chain tracks with rubber grousers/shoes in 1 ft 4 in (400 mm) width, ideal for versatility across different surfaces.
• Rubber Belt Tracks (1 ft 4 in): These tracks Provide excellent traction with minimal ground disturbance.
• Track Guides (3-piece): Designed for steel with bolt-on rubber pads, enhancing stability and track alignment.

Other Options:

• Additional Counterweight (440 lb): Enhances machine stability and lifting capabilities.
• Optional Long Arm (6 ft 3 in): This arm extends the reach and depth capability for digging and trenching tasks.
• Hydraulic Quick Coupler Provision: Facilitates quick and easy attachment changes, improving versatility.
• Hydraulic Coupler: Offers a secure and convenient attachment swapping system.
• Klac Coupler: A mechanical quick-coupler system for easy attachment changes.
• Mechanical Coupler: Provides a simple, tool-free method to change attachments.
• Hydraulic Hammer: Ideal for demolition and breaking tasks, providing powerful impact force.
• Beacon: A safety feature that enhances the visibility of the excavator on the job site.
• 2nd Auxiliary Circuit: Adds hydraulic circuit for using more complex or multiple attachments simultaneously.

Base & Extended Warranty Coverage

• 2yr/3,000 hours Full machine limited warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
