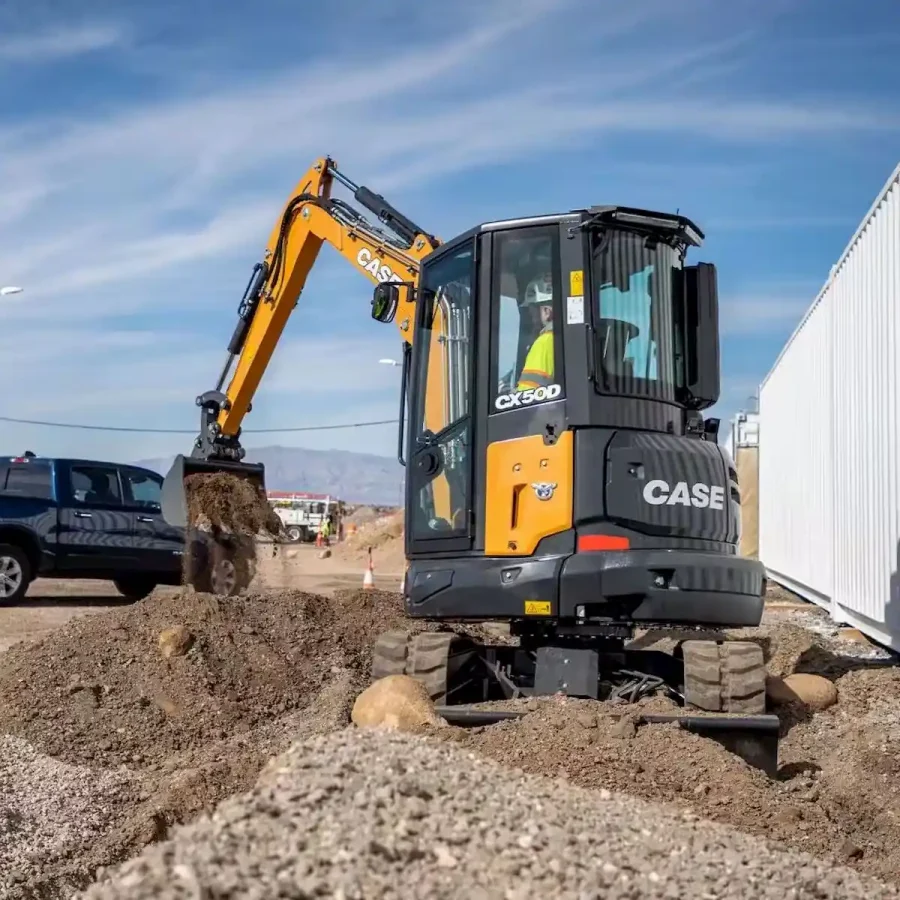

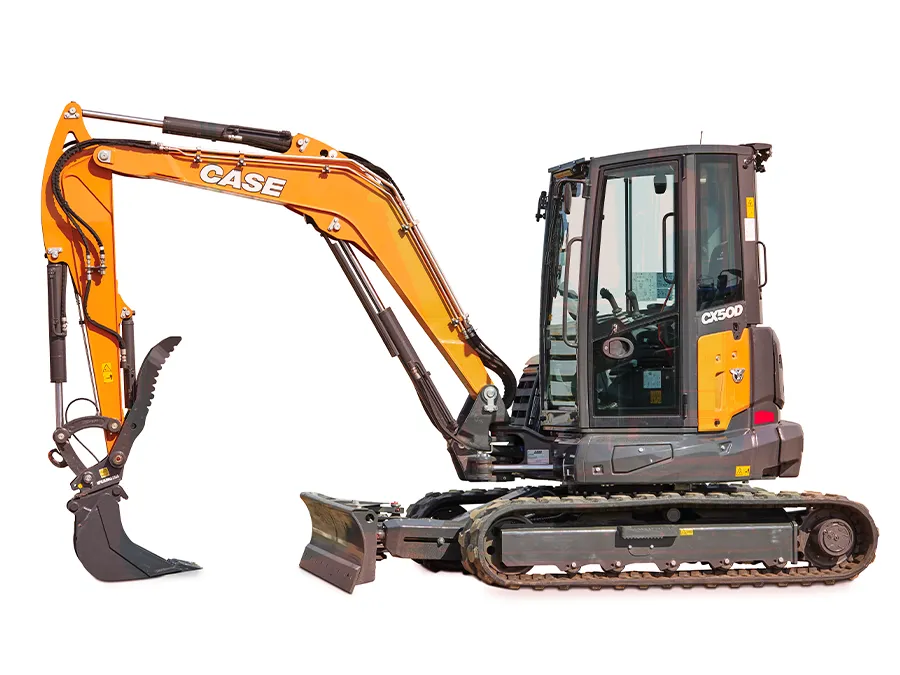

CASE CX50D Mini Excavator

Advanced Control for Enhanced Performance:

• Customizable Power Modes: Choose from three power settings to match the task, optimizing fuel efficiency and machine power.
• Proportional Hydraulic Controls: Gain precise control over attachments with intuitive hydraulic operations tailored to your preferences for smooth and efficient execution.
• Comprehensive Monitoring: A large seven-inch color LCD monitor presents essential machine data and attachment settings in vivid detail, enabling operators to fine-tune the excavator’s performance easily.

Versatile Attachment Compatibility:

• Multifunction Auxiliary Hydraulics: These hydraulics, along with a second auxiliary circuit and an optional third, are equipped as standard and transform the CX50D into a versatile tool carrier capable of handling various attachments.
• Seamless Integration: This flexibility makes the CX50D an invaluable asset across various tasks, extending its utility beyond traditional excavation.

Engineered for Stability and Precision:

• Dual-Mode Blade Functionality: The standard two-way blade provides reliable backfilling and grading capabilities. In contrast, an optional six-way blade enhances precision and control, empowering operators to tackle complex tasks confidently.

Smart Technology for Efficient Operation:

• CASE SiteWatch Telematics: Integrated as standard, this advanced system delivers insightful analytics on machine performance, utilization, and maintenance needs, facilitating proactive management and reducing downtime.
• Dealer Connectivity: Enhance your fleet efficiency through seamless collaboration with your local CASE dealer, leveraging expert support and insights to optimize your machine’s operation and longevity.

Engine:

• Model: Perkins 404J for reliable and efficient performance.
• Cold Weather Starting: Glow Plugs are included for reliable starts in cold conditions.
• Air Filtration: Dry air filter with a clogged filter warning on the control panel to ensure clean air intake.
• Cooling: Variable Speed Hydraulic cooling fan with reverse function to maintain optimal engine temperatures.

Electrical:

• System: 12-volt electrical system for consistent and reliable power.
• Battery: Heavy-duty battery for strong and dependable starts.
• Safety: The battery disconnect switch is for enhanced safety.
• Convenience: Auxiliary Power Socket and USB type A power socket for charging and operating auxiliary devices.
• Start: Key Start Switch for straightforward operation.
• Beacon Power: Auxiliary Power socket on the roof for beacon installation.
• Efficiency: Auto-idle feature with on/off switch to conserve fuel.
• Alert: Horn for safety and communication on job sites.
• Future-Ready: Pre-wired for Telematics to support advanced connectivity and diagnostics.

Hydraulics:

• Versatility: Standard 1st and 2nd auxiliary hydraulics for diverse attachment capabilities.
• Cooling: Large hydraulic oil cooler to prevent overheating during extended use.
• Control: Control pattern selector valve for customizable control configurations.
• Protection: Cylinder guard on boom and dozer blade cylinder to extend the life of hydraulic components.

Track Drive:

• Tracks: Rubber belt tracks for excellent traction and minimal ground damage.
• Speed: 2-speed travel with an auto-shift feature for efficient movement across job sites.
• Drive: Fully hydrostatic drive system for precise control and maneuverability.
• Maintenance: Track Tensioner Hydraulic adjustment with grease for easy maintenance and optimal track tension.

Lighting:

• Work Area Illumination: LED light under boom and LED strip lights on the right-hand side engine cover for enhanced visibility.
• Courtesy Light: It can be set to always be on, always off, or automatically activate when the cab door is open (for cab models).

Upper Structure:

• Design: Zero Tail Swing with standard counterweight for maneuvering in tight spaces without sacrificing stability.
• Utility: Standard arm with a length of 4 ft 11 in (1.5 m), equipped with a linkage and lifting hook for versatile operations.
• Attachment Readiness: Thumb bracket for use with various attachments.
• Backfill Blade: It has a float function for easy and efficient backfilling.

Other Features:

• Swing Boom: Offers 71° left and 56° right swing for flexible operation around obstacles and confined spaces.

Enclosed Cab Features:

• Visibility and Access: There is an overhead opening front window and a sliding right-side window for enhanced visibility and ventilation.
• Climate Control: Heat & A/C with automatic climate control and 6 adjustable vents to maintain comfort in varying weather conditions.
• Entertainment: Radio & Speakers for a more enjoyable operating experience.
• Comfort: Adjustable Cloth mechanical suspension seat with automatic weight control for optimal comfort and support.
• Safety Features: Front wiper and washer, hammer for emergency exit, and rearview mirror on both the left and right sides for comprehensive safety.
• Maintenance Convenience: Tipping cab/canopy facilitates easier access for servicing.

Control and Comfort:

• Adjustability: Height adjustable armrests and 2 in (51 mm) Seat belt for ergonomic support and safety.
• Convenience: Bottle/cup holder, footrests, and keyed locks with the starting key for added comfort and security.
• Power Sources: 2- 12V auxiliary sockets and a USB-type power socket to keep devices charged and operational.

Control System:

• Idle Control: Auto-idle/manual idle button to manage engine speed based on operational needs.
• Engine Control: Engine rpm hand dial for precise speed adjustments.
• Movement Controls: Travel levers and foldable travel foot pedals for intuitive navigation.
• Operation Controls: Pilot-controlled joysticks for boom, arm, bucket, and swing movements, along with a blade control lever for grading tasks.

Advanced Display Panel:

• 7-inch LCD Control Panel: This panel offers a comprehensive overview of machine status, including coolant temperature, hydraulic oil temperature, fuel level, machine hours, and time.
• Climate Settings: Control options displayed for climate adjustments.
• Engine Monitoring: Displays engine RPM and features various warning indicators for proactive maintenance.
• DPF System: Includes a DPF Regeneration request indicator to manage emissions control.

Operator Environment Enhancements:

• Seat: Upgrade to a Fabric Pneumatic Seat with automatic weight control for superior comfort (available for cab models only).
• Safety Feature: Install a Travel Alarm to alert nearby personnel when the excavator is moving.

Track Options:

• Tracks: Opt for Steel Tracks to improve durability and traction, especially in challenging terrains.

Visibility Improvements:
Rear View Camera: A camera that clearly shows the rear area enhances operational safety.

• LED Lights: Additional LED lights on top of the cab/canopy, both front and rear, for better visibility in low-light conditions.
• Beacon: A high-visibility alert system for increased safety on busy job sites.

Hydraulic System Upgrades:

• Auxiliary Hydraulics: Add 2nd and 3rd auxiliary hydraulic circuits for greater versatility in attachment use.
• Direct Drain to Tank: Improve hydraulic system efficiency with a direct drain option.
• Safety Valves: Install safety valves on the boom and arm for enhanced operational safety and control.
• Mulcher Hydraulics Package: Equip your excavator with a specialized hydraulics package for vegetation control tasks.
• Bio Hydraulic Oil: Opt for an environmentally friendly hydraulic oil option.

Other Options:

• 6-Way Backfill Blade: Offers enhanced grading and backfilling flexibility with multi-directional control.
  Additional Counterweights: To increase stability and lifting capabilities, choose from 617 lb (280 kg) or a heavier option of 926 lb (420 kg).
• Optional Long Arm: For greater versatility, a 5 ft 9 in (1.75 m) long arm extends the reach and digging depth.

Attachment Choices:

• Couplers: Select from Mechanical or Hydraulic couplers for quick and easy attachment changes.
• Digging Buckets: Various bucket sizes and types to suit different excavation needs.
• Thumb: Add a hydraulic or mechanical thumb for improved material handling and precise control over lifting and placement tasks.

Base & Extended Warranty Coverage

• 2yr/3,000 hours Full machine limited warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
