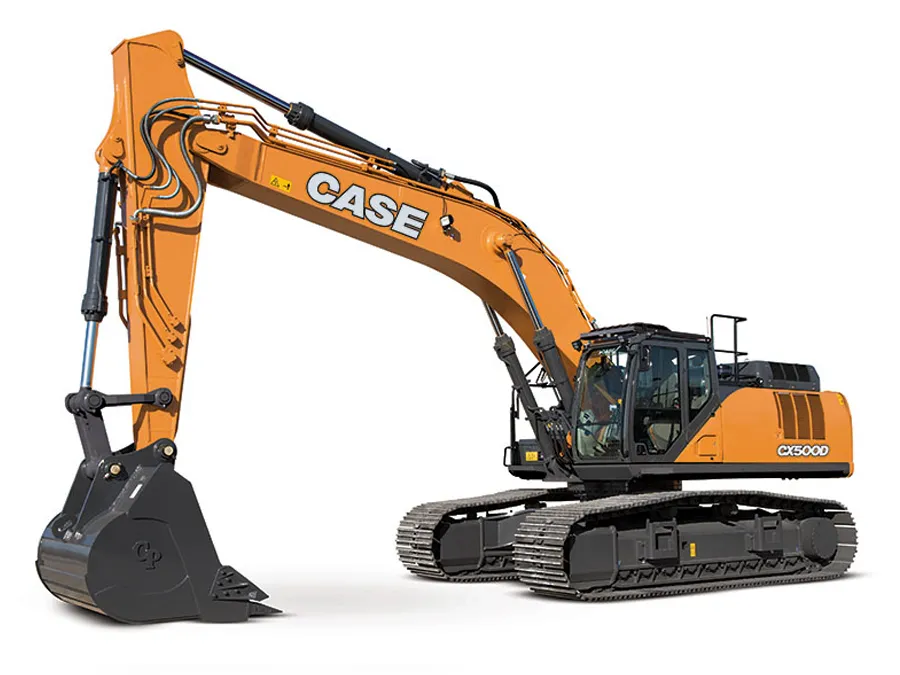

CASE CX500D Mass Excavation Excavator
Request more information:
The CASE CX500D Mass Excavation Excavator redefines the standards for power and efficiency in mass excavation projects. Designed to handle the most demanding tasks, this excavator boasts formidable digging forces exceeding 70,000 lbs., combined with high-capacity performance, enabling it to bench load more trucks and move more pipe in record time. As part of the esteemed CASE D Series, the CX500D incorporates cutting-edge features and systems to deliver unparalleled results.
BROCHURE: CCE-Excavator-Brochure-CCE202209EXCAVATORS
SELL SHEET: Excavator-Specs-CX500D-201812
CASE CX500D Mass Excavation Excavator
The CASE CX500D Mass Excavation Excavator redefines the standards for power and efficiency in mass excavation projects. Designed to handle the most demanding tasks, this excavator boasts formidable digging forces exceeding 70,000 lbs., combined with high-capacity performance, enabling it to bench load more trucks and move more pipe in record time. As part of the esteemed CASE D Series, the CX500D incorporates cutting-edge features and systems to deliver unparalleled results.
CX500D Features
Purpose-Built Performance for Maximum Output:
- Enhanced Digging Forces: Utilizes a shorter boom and arm for increased digging forces, allowing for the use of larger-capacity buckets.
- Intelligent Hydraulic System: Features the CASE Intelligent Hydraulic System for swift and responsive control, reducing cycle times significantly.
- Versatile Work Modes: Includes three selectable work modes – Auto, Heavy, and Speed Priority, tailored to various operational needs.
- Fuel-Saving Innovations: Equipped with One-Touch Idle, Auto-Idle, and Auto-Shutdown features to conserve fuel without compromising performance.
- Advanced Features: Comes standard with rearview and side-view cameras, ten programmable attachment presets, and Free Swing for enhanced craning and precise placement.
Common-Sense Fuel Efficiency:
- Tier 4 Final Solution: Employs a re-engineered Tier 4 Final solution with SCR technology, eliminating the need for a DPF and its associated maintenance.
- Optimized Fuel Efficiency: SCR technology allows for a complete throttle response throughout the work cycle while delivering exceptional fuel efficiency.
- Simple DEF Usage: Only the addition of DEF at fill-up is required, streamlining the refueling process.
Unmatched CASE Comfort & Visibility:
- Spacious, Pressurized Cab: Designed to reduce noise and vibration, offering a serene operating environment.
- Customizable Comfort: Features an adjustable heated air-suspension seat, armrests, and control consoles for personalized comfort.
- Exceptional Visibility: Floor-to-ceiling safety glass and standard 7-inch LCD monitor with cameras provide a comprehensive view of the surroundings.
- Optional Max View Display: A 270-degree aerial view around the machine enhances situational awareness.
- Convenience and Control: It is equipped with automatic climate control, hands-free Bluetooth radio, and a joystick trigger mute for a superior operating experience.
Simple Serviceability:
- Ease of Maintenance: Standard oil sample ports, grouped service points, and removable debris screens facilitate easy and efficient maintenance.
- ProCare Protection: This comes with the added benefit of ProCare, which provides a 3-year/2,000-hour planned maintenance package for peace of mind.
CX500D Standard Equipment
Engine and Performance:
- Robust Isuzu AQ-6UZ1X Engine: A six-cylinder turbo-charged diesel powerhouse optimized with a VGT turbocharger and electronic fuel injection ensures relentless performance.
- Advanced Emission Control: Equipped with Tier 4 Final Certification, utilizing SCR, DOC, and CEGR technologies to meet stringent environmental standards.
- Fuel Economy and Protection: Integrates features like the Fuel Economy Assist System (FEA) and Engine Protection Feature (EPF) alongside dual-stage fuel filtration and a high ambient temperature cooling package for enhanced efficiency and safety.
Hydraulic System:
- Precision Control: Features an intelligent hydraulic system with auto power boost and auto swing priority, coupled with arm and boom speed assistance for swift and responsive operation.
- Versatile Functionality: Includes auxiliary flow control, pre-set pump settings, and an accessible swing feature bolstered by a SAHR brake system for superior control and safety.
Upper Structure:
- Enhanced Visibility and Safety: Comes standard with three ISO mirrors, viscous cab mounts to reduce vibration, and strategically placed work lights for optimal visibility and operation safety.
- Robust Design: Features a swivel guard belly pan, fuel tank belly pan, and ISO guard rails, alongside lockable service doors and a toolbox for secure and convenient access.
Operator Environment:
- Unmatched Comfort: A pressurized ROPS-protected cab with a high-back heated cloth seat, adjustable armrests, and tilting consoles ensures operator comfort throughout long working hours.
- Advanced Technology: Equipped with a 7-inch LED color monitor, rear-view and side-view cameras, an onboard diagnostic system, and a Bluetooth-enabled AM/FM radio for a seamless operational experience.
- Convenience Features: Includes one-touch lock front window, auto climate control, and an anti-theft start code system, ensuring ease of use and security.
Undercarriage and Telematics:
- Durable Undercarriage: Features a long undercarriage with 35.4-inch steel shoes and double-track chain guides for enhanced stability and longevity.
- Intelligent Monitoring: CASE SiteWatch™ Telematics, with a 3-year advanced data subscription, provides real-time machine monitoring and management capabilities.
Attachments and Serviceability:
- Versatile Attachments: Comes with a 21 ft 6 in boom and an 8 ft 4 in arm, along with heavy-duty bucket linkage and centralized grease fittings for ease of maintenance.
- Simplified Maintenance: Standard oil sample ports, grouped service points, and a comprehensive 3-year/2,000-hour planned maintenance package under ProCare ensure the excavator’s longevity and reliability.
CX500D Optional Equipment
Engine Enhancements:
- Refueling Pump: An efficient and convenient refueling pump simplifies the refueling process, ensuring your excavator is ready to go with minimal downtime.
Advanced Hydraulics for Precision Work:
- Versatile Auxiliary Hydraulics: Choose from single-acting, double-acting for thumb operation, multi-function with electronic pressure control, and secondary low-flow options for various attachments and tasks.
- Proportional Hydraulic Controls: Achieve precise control over attachments with intuitive and responsive hydraulic controls.
- Safety and Efficiency: Incorporate a Hose Burst Check Valve (HBCV) and a Hydraulic Counterweight Removal Device to enhance safety and facilitate easy maintenance.
Attachment Flexibility for Diverse Projects:
- Heavy-Duty Arm: Opt for an 8 ft 4 in heavy-duty arm designed for strenuous digging and lifting operations.
- Comprehensive Tool Selection: Expand your capabilities with heavy-duty, extreme-duty, and ditching buckets, hammers, thumbs, and compaction plates, ensuring you have the right tool for every job.
- Load Holding Control: Enhance precision and safety when handling heavy loads, ensuring secure operations.
Upper Structure Customization for Protection and Access:
- Rubber Bumper Guard: Order through Service Parts to protect your excavator from impacts and scrapes during intense operations.
- Accessible Catwalks: Add catwalks on the left and right sides for safe and easy access to maintain your excavator’s upper structure.
Undercarriage Upgrades for Tough Terrains:
- Robust Steel Shoes: Equip your excavator with 29.5-inch steel shoes featuring a triple semi-grouser design for superior traction and stability on challenging terrain.
- Full-Length Track Chain Guards: Protect the undercarriage from debris and reduce maintenance needs with full-length track chain guards.
Operator Environment Enhancements for Safety and Visibility:
- Enhanced Protection: Upgrade with a Level 2 FOPS cab top guard and choose from various front grill and rock guards for added safety against falling debris.
- Vandal Guard: Secure your excavator’s front window with a vandal guard, utilizing a common key for convenience.
- Sun Visor and LED Package: A sun visor improves operator comfort and enhances visibility with an LED package, including additional side view cameras and six LED lights for optimal illumination around the machine.
CX500D Specs
| Category | Specification | Details |
|---|---|---|
| ENGINE | Model | Isuzu AQ-6UZ1X |
| Emissions Certification | Tier 4 Final | |
| Fuel | Requires ultra low-sulfur fuel, B5 biodiesel tolerant | |
| Type | Water-cooled, 4-cycle, high-pressure common rail system, Turbo-charged w/ air-cooled intercooler, SCR system | |
| Cylinders | 6-cylinder in-line | |
| Displacement | 600 in³ (9.8 L) | |
| Bore/Stroke | 4.72 x 5.71 in (120 x 145 mm) | |
| Fuel Injection | Direct injection – electronic | |
| Filters | Fuel: Replaceable full flow spin-on cartridge, Air: Dry type element w/ warning restriction indicator, Oil: Replaceable full flow spin-on cartridge | |
| Engine Gradeability | Side-to-side 35°, Fore and aft 35° | |
| Horsepower | Net: 362 hp (270 kW) @ 2000 RPM, w/ fan pump activated: 329 hp (245 kW) @ 2000 RPM | |
| Torque | Net max: 1,005 lb·ft (1 363 N·m) @ 1500 RPM | |
| Cooling Operating Range | 109° to -13° F (43° to -25° C) | |
| Oil | Requires low-ash oil CJ-4 | |
| DRIVETRAIN | Travel Control | Dual-stage relief/counterbalance design |
| Brakes | Mechanical disc, Service brakes: SAHR disc – each motor | |
| Speed | Max high: 3.3 mph (5.3 kph), Max low: 2.0 mph (3.2 kph) | |
| Drawbar Pull | 76,000 lbf (338 kN) | |
| Gradeability | 70% – 35° Slope | |
| ELECTRICAL | Voltage | 24 Volts |
| Alternator Rating | 50 amp | |
| Batteries | 2 x 12 Volt, Battery reserve capacity: 128 Ah/5 hour | |
| Work Lights | 5 24 Volt/70 watt (2 boom, 1 upper, 2 cab) | |
| OPERATOR ENVIRONMENT | Climate Control | Air conditioner: 18,100 BTU/hr, Heater: 20,150 BTU/hr |
| Sound Level | Inside cab – ISO6395: 71.0 dBA | |
| Cameras | Rear view and Side view cameras: Standard | |
| Seat | Heated, air-suspension | |
| ATTACHMENT | Boom | 21 ft 6 in (6 550 mm) |
| Arm Options | 8 ft 4 in (2 530 mm) | |
| Digging Force | *Based on ISO6015: 64,500 lbf (287 kN), w/ Auto Power-Boost: 70,400 lbf (313 kN) | |
| OPERATING WEIGHT | Weight | 111,800 lb (50 700 kg) w/ standard equipment |
CX500D (Fixed Undercarriage – 8 ft 4 in (2.53 m) Arm) Dimensions
| Measurement | Specification |
|---|---|
| Overall Height w/ Attachment | 12 ft 6 in (3,800 mm) |
| Cab Height | 10 ft 11 in (3,320 mm) |
| Height – Top of Guardrail | 12 ft 0 in (3,650 mm) |
| Overall Length w/ Attachment | 38 ft 4 in (11,680 mm) |
| Length w/o Attachment | 21 ft 2 in (6,450 mm) |
| Width – Upperstructure w/o Catwalks | 10 ft 0 in (3,060 mm) |
| Width – Upperstructure w/ Catwalks | 11 ft 9 in (3,590 mm) |
| Track Overall Length | 17 ft 11 in (5,450 mm) |
| Track Overall Width w/ 35.4 in Shoes | 12 ft 0 in (3,650 mm) |
| Track Shoe Width | 2 ft 11 in (900 mm) |
| Center to Center – Idler to Sprocket | 14 ft 5 in (4,400 mm) |
| Upperstructure Ground Clearance | 4 ft 4 in (1,330 mm) |
| Minimum Ground Clearance | 1 ft 9 in (535 mm) |
| Rear Tail Swing Radius | 12 ft 3 in (3,730 mm) |
CX500D (Retractable Undercarriage – 8 ft 4 in (2.53 m) Arm) Dimensions
| Measurement | Specification |
|---|---|
| Overall Height w/ Attachment | 12 ft 7 in (3,840 mm) |
| Cab Height | 11 ft 5 in (3,470 mm) |
| Height – Top of Guardrail | 12 ft 6 in (3,800 mm) |
| Overall Length w/ Attachment | 38 ft 3 in (11,660 mm) |
| Length w/o Attachment | 21 ft 2 in (6,450 mm) |
| Width – Upperstructure w/o Catwalks | 10 ft 0 in (3,060 mm) |
| Width – Upperstructure w/ Catwalks | 11 ft 9 in (3,590 mm) |
| Track Overall Length | 17 ft 11 in (5,450 mm) |
| Track Overall Width w/ 35.4 in Shoes – Extended | 12 ft 5 in (3,790 mm) |
| Track Overall Width w/ 35.4 in Shoes – Retracted | 10 ft 10 in (3,290 mm) |
| Track Shoe Width | 2 ft 11 in (900 mm) |
| Center to Center – Idler to Sprocket | 14 ft 5 in (4,400 mm) |
| Upperstructure Ground Clearance | 4 ft 10 in (1,480 mm) |
| Minimum Ground Clearance | 2 ft 4 in (720 mm) |
| Rear Tail Swing Radius | 12 ft 3 in (3,730 mm) |
| Operating Weight | 114,600 lb (52,000 kg) |
| Ground Pressure | 8.6 psi (0.59 bar) |
Warranty
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders.
See your CASE dealer for model availability and timing.
