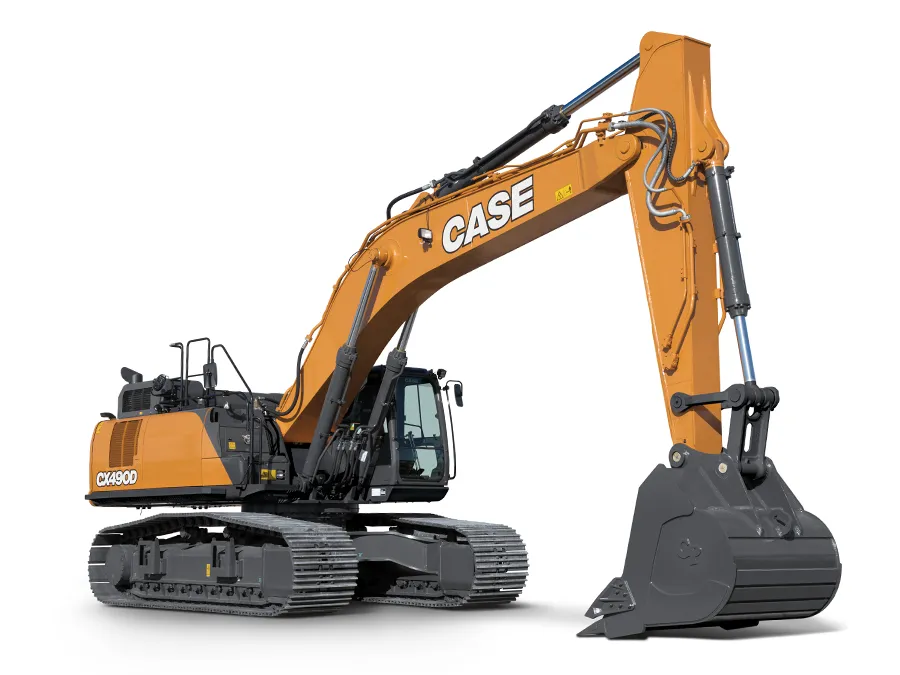

CASE CX490D Full Size Excavator

Request more information:

The CASE CX490D Full Size Excavator is a paragon of heavy machinery innovation, skillfully blending state-of-the-art hydraulics, unparalleled comfort, and exceptional serviceability. This Tier 4 Final compliant powerhouse is designed to tackle the most rigorous construction tasks, allowing for optimal productivity with every operation.

BROCHURE: CCE-Excavator-Brochure-CCE202209EXCAVATORS

SELL SHEET: Excavator-Specs-CX490D-201807

Categories: CASE, Excavator, Full Size Tag: New

Description

CASE CX490D Full Size Excavator

CX490D Features

Unmatched Productivity:

The CX490D sets new standards in operational efficiency and power. Its features include:

Enhanced Hydraulic System: Achieve up to 9% faster cycle times with an improved hydraulic system, including an electronically controlled pump and larger valves.
Free-Swing Feature: Standard inclusion for better control over uneven loads, enhancing craning operations.
Control Customization: The machine comes with a control pattern selector and power mode selector, allowing operators to tailor it to their specific needs.

Advanced Fuel Efficiency:

Efficiency meets innovation with the CX490D’s fuel system:

Tier 4 Final SCR Solution: Maintains peak engine performance while meeting emissions standards and increasing fuel efficiency by up to 5%.
Simplified Maintenance: Since there is no Diesel Particle Filter to replace, maintenance is straightforward, requiring only the addition of Diesel Exhaust Fluid during refills.

Elevated Comfort and Visibility:

The operator’s cab is a haven of comfort and visibility, featuring:

Spacious Cab Design: More entry room and foot space, with a larger air-ride seat to reduce pressure points.
Ergonomic Controls: Adjustable armrests, pedals, and a 7″ widescreen color monitor provide a constant rear camera view.
Modern Amenities: Includes a Bluetooth radio and a climate control system responsive to sunlight for an unparalleled operator experience.

Ease of Serviceability:

The CX490D is built for longevity, with features that simplify maintenance:

Convenient Service Points: Standard oil sample ports, grouped service points, and tilt-out coolers make routine checks and maintenance effortless.
Enhanced Safety: Added handrails and auto-locking side panels that stay open for easy access and service.

CX490D Standard Equipment

Engine and Performance:

Powerful Isuzu AQ-6UZ1X Engine: A six-cylinder turbo-charged diesel engine with a VGT turbocharger and electronic fuel injection for unmatched power and efficiency.
Advanced Emission Control: Features Selective Catalytic Reduction (SCR), Diesel Oxidation Catalyst (DOC), and Cooled Exhaust Gas Recirculation (CEGR) to meet Tier 4 Final standards.
Fuel Economy Assist System (FEA): Optimizes engine performance for maximum fuel efficiency.
Engine Protection Feature (EPF): Safeguards the engine, extending its lifespan and reliability.
Convenient Maintenance: Includes features like a remote oil filter, fuel tank drain, and a 500-hour engine oil change interval.

Hydraulic System:

Enhanced Control: Auto power boost, auto swing priority, and auxiliary flow control for precise operation.
Efficient Design: Electronically controlled hydraulic pumps and a 5,000-hour hydraulic oil change interval ensure consistent performance.
Operator Customization: Control pattern selector and pre-set auxiliary pump settings allow for a tailored operating experience.

Operator Environment:

Safety and Comfort: ROPS protection, FOPS cab top guard, and a pressurized cab with AC/heat/defrost for a secure and comfortable workspace.
Advanced Interface: LED color monitor with 26 selectable languages and an on-board diagnostic system for ease of use.
Ergonomic Design: Heated high-back cloth seat with air suspension, adjustable armrests, and low-effort joystick controls for optimal operator comfort.

Undercarriage and Attachments:

Robust Undercarriage: Long undercarriage with 35.4-inch steel shoes and double-track chain guides for stability and durability.
Versatile Attachments: Includes a 22 ft 11 in boom and 11 ft 1 in arm, along with heavy-duty bucket linkage and auxiliary pipe brackets for a wide range of applications.

Telematics:

CASE SiteWatch™: Comes standard with hardware and a 3-year Advanced data subscription, offering comprehensive machine monitoring and management capabilities.

Fuel Economy Systems:

Comprehensive Idle Management: Auto-idle, one-touch idle, and auto-idle shut-down features significantly save fuel.
Optimized Controls: Incorporates Boom Economy Control (BEC), Auto Economy Control (AEC), and other systems to enhance fuel efficiency.

CX490D Optional Equipment

Engine Enhancements:

Refueling Pump: Simplifies the refueling process, ensuring efficient operations with minimal downtime.

Hydraulic System Options:

Auxiliary Hydraulics: Available in configurations like single-acting, double-acting for thumb operation, multi-function with electronic pressure control, and secondary low-flow, all joystick-activated for precise control.
Proportional Hydraulic Controls: Offer finer control for complex operations, enhancing machine versatility.
Hose Burst Check Valve (HBCV): Provides added safety by preventing the rapid descent of a load in the event of a hose burst.
Hydraulic Counterweight Removal Device: Facilitates easy removal of the counterweight for transport or maintenance.

Attachment Flexibility:

Arms and Tools: Choose from heavy-duty arms in various lengths and an extensive range of tools, including buckets, hammers, thumbs, and compaction plates, to tackle any job.
Load Holding Control: Enhances safety and control when handling loads, ensuring stable and secure operations.

Upper Structure Customization:

Protective Additions: Options include rubber bumper guards, catwalks on both sides for easy access, and various front rock guards for enhanced protection.
LED Package: Elevate visibility with additional LED lights, including front, rear, and side-mounted options, complemented by a side-view camera for increased situational awareness.

Operator Environment Upgrades:

Enhanced Safety: Upgrade to a Level 2 FOPS cab top guard for superior overhead protection.
Vandal Guard: Secure the front window with a vandal guard featuring a common key for added security.
Comfort Enhancements: Options like rain deflectors and sun visors improve operator comfort, while an additional side-view camera enhances safety and operational efficiency.

Undercarriage Adjustments:

Steel Shoes: Opt for 29.5 in steel shoes for increased stability and traction across various terrains.
Full-Length Track Chain Guards: Protect the undercarriage and extend the life of the track chain with these durable guards.

CX490D Specs

Category	Specification	Detail
ENGINE	Model	Isuzu AQ-6UZ1X
	Emissions Certification	Tier 4 Final
	Fuel	Requires ultra-low sulfur fuel, B5 biodiesel tolerant
	Type	Water-cooled, 4-cycle, high pressure common rail system, Turbocharger w/ air cooled intercooler, SCR system
	Cylinders	6-cylinder in-line
	Displacement	600 in³ (9.8 L)
	Bore/Stroke	4.72 x 5.71 in (120 x 145 mm)
	Fuel Injection	Direct injection – electronic
	Engine Gradeability	Side-to-side 35°, Fore and aft 35°
	Net Horsepower @ 2000 RPM	362 hp (270 kW), w/ fan pump activated: 329 hp (245 kW)
	Net Max. Torque @ 1500 RPM	1,005 lbf·ft (1,363 N·m)
DRIVETRAIN	Travel Control	Dual stage relief/counter balance design
	Brakes	Mechanical disc, Service brakes: SAHR disc – each motor
	Two Speed Travel	Max. high speed: 3.3 mph (5.3 kph), Max. low speed: 2.0 mph (3.2 kph)
	Drawbar Pull	76,200 lbf (339 kN)
	Gradeability	70% – 35° Slope
ELECTRICAL	Voltage	24 Volts
	Alternator Rating	50 amp
	Batteries	2 x 12 Volt, Battery reserve capacity: 128 Ah/5 hour
	Work Lights	5 24 Volt/70 watt (2 boom, 1 upper, 2 cab)
OPERATOR ENVIRONMENT	Air-conditioner Output	18,100 BTU/hr
	Heater Output	20,150 BTU/hr
	Sound Level Inside Cab	71.0 dBA (ISO6395)
	Seat	Heated, air-suspension
	Rear View Camera	Standard
ATTACHMENT	Boom	22 ft 11 in (6,980 mm)
	Arm Options	11 ft 1 in (3,380 mm), 8 ft 4 in (2,530 mm), 13 ft 1 in (4,000 mm), 15 ft 11 in (4,850 mm)
	Bucket Digging Force	55,500 lbf (247 kN), w/ Auto Power-Boost: 60,700 lbf (270 kN)

Note: Digging force ratings based on ISO6015.

CX490D (LC) Dimensions

Measurement	11 ft 1 in Arm	8 ft 4 in Arm	13 ft 1 in Arm	15 ft 11 in Arm
Overall Height w/ Attachment	12 ft 0 in	12 ft 0 in	11 ft 11 in	14 ft 6 in
Cab Height	10 ft 11 in	10 ft 11 in	10 ft 11 in	10 ft 11 in
Height – Top of Guardrail	12 ft 0 in	12 ft 0 in	12 ft 0 in	12 ft 0 in
Overall Length w/ Attachment	39 ft 8 in	39 ft 9 in	39 ft 7 in	39 ft 11 in
Length w/o Attachment	21 ft 2 in	21 ft 2 in	21 ft 2 in	21 ft 2 in
Width – Upperstructure w/o Catwalks	10 ft 0 in	10 ft 0 in	10 ft 0 in	10 ft 0 in
Width – Upperstructure w/ Catwalks	11 ft 9 in	11 ft 9 in	11 ft 9 in	11 ft 9 in
Track Overall Length	17 ft 11 in	17 ft 11 in	17 ft 11 in	17 ft 11 in
Track Overall Width w/ 35.4 in Shoes	12 ft 0 in	12 ft 0 in	12 ft 0 in	12 ft 0 in
Track Shoe Width	2 ft 11 in	2 ft 11 in	2 ft 11 in	2 ft 11 in
Center to Center (Idler to Sprocket)	14 ft 5 in	14 ft 5 in	14 ft 5 in	14 ft 5 in
Upperstructure Ground Clearance	4 ft 4 in	4 ft 4 in	4 ft 4 in	4 ft 4 in
Minimum Ground Clearance	1 ft 9 in	1 ft 9 in	1 ft 9 in	1 ft 9 in
Rear Tail Swing Radius	12 ft 3 in	12 ft 3 in	12 ft 3 in	12 ft 3 in

CX490D (Retractable Undercarriage) Dimensions

Measurement	11 ft 1 in Arm	8 ft 4 in Arm	13 ft 1 in Arm	15 ft 11 in Arm
Overall Height w/ Attachment	12 ft 1 in	12 ft 2 in	12 ft 1 in	14 ft 5 in
Cab Height	11 ft 5 in	11 ft 5 in	11 ft 5 in	11 ft 5 in
Height – Top of Guardrail	12 ft 6 in	12 ft 6 in	12 ft 6 in	12 ft 6 in
Overall Length w/ Attachment	39 ft 7 in	39 ft 8 in	39 ft 5 in	40 ft 2 in
Length w/o Attachment	21 ft 2 in	21 ft 2 in	21 ft 2 in	21 ft 2 in
Width – Upperstructure w/o Catwalks	10 ft 0 in	10 ft 0 in	10 ft 0 in	10 ft 0 in
Width – Upperstructure w/ Catwalks	11 ft 9 in	11 ft 9 in	11 ft 9 in	11 ft 9 in
Track Overall Length	17 ft 11 in	17 ft 11 in	17 ft 11 in	17 ft 11 in
Track Width w/ 35.4 in Shoes – Extended	12 ft 5 in	12 ft 5 in	12 ft 5 in	12 ft 5 in
Track Width w/ 35.4 in Shoes – Retracted	10 ft 10 in	10 ft 10 in	10 ft 10 in	10 ft 10 in
Track Shoe Width	2 ft 11 in	2 ft 11 in	2 ft 11 in	2 ft 11 in
Center to Center (Idler to Sprocket)	14 ft 5 in	14 ft 5 in	14 ft 5 in	14 ft 5 in
Upperstructure Ground Clearance	4 ft 10 in	4 ft 10 in	4 ft 10 in	4 ft 10 in
Minimum Ground Clearance	2 ft 4 in	2 ft 4 in	2 ft 4 in	2 ft 4 in
Rear Tail Swing Radius	12 ft 3 in	12 ft 3 in	12 ft 3 in	12 ft 3 in
