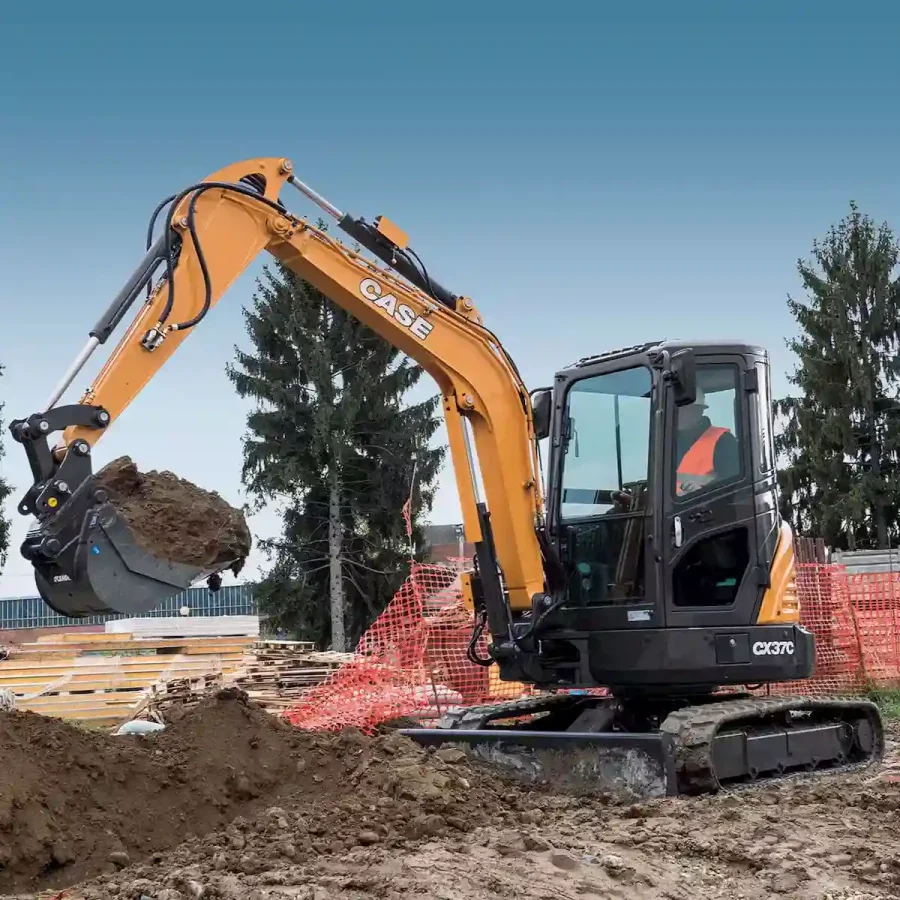

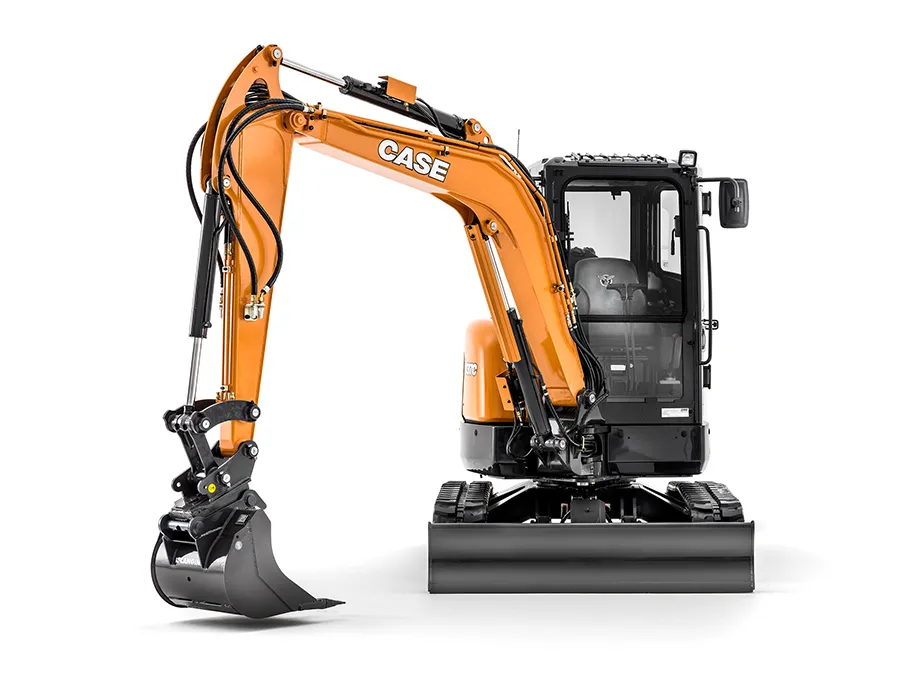

CASE CX37C Mini Excavator

Purpose-Built Productivity:

• Versatile Attachments: It comes standard with a backfill blade and auxiliary hydraulics, ready for any attachments.
• Enhanced Maneuverability: Proportional controls and an Automatic 2-speed Travel system ensure precise handling.
• Adjustable Boom: Features an offsettable boom for left or right adjustments, enhancing flexibility in tight spaces.
• Zero Tailswing: The compact design with zero tail swing prevents counterweight overhang, which is ideal for confined areas.
• Specialty Configurations: Optional long-reach setup, thumb bracket, and steel tracks cater to specific project needs.
• 4-Way Hydraulic Blade: This optional blade can be angled 25 degrees in either direction, expanding its utility.

Common-Sense Fuel Efficiency:

• CEGR Technology: It utilizes Cooled Exhaust Gas Recirculation to meet Tier 4 Final regulations without requiring intensive maintenance.
• Maintenance-Free Operation: No particulate filter or exhaust fluid requirements, eliminating downtime for regeneration.
• Auto-Idle Feature: Coupled with a 24-hp engine, it ensures optimal power with excellent fuel economy.

CASE Comfort and Visibility:

• Operator Environment Options: Choose between a ROPS/FOPS four-post canopy or an enclosed cab with amenities like heat, A/C, and a radio.
• Enhanced Visibility: Designed for exceptional all-around visibility to enhance safety and operational efficiency.
• Ergonomic Controls: Adjustable seat and ergonomic joysticks with proportional controls for precise attachment responsiveness.

Simple Serviceability:

• Easy Maintenance Access: Critical service points like fill ports, filters, gauges, and grease points are conveniently grouped and accessible from the ground level.

ENGINE:

• Model: Yanmar 3TNV88F-ESHYB
• Glow plug starting aid for reliable cold weather starts
• Dry-type air cleaner with restriction indicator to maintain optimal engine performance

ELECTRICAL:

• 12-volt electrical starting system ensures reliable operation
• Heavy-duty battery designed for prolonged use
• Battery Master Switch for enhanced safety and maintenance
• Key Start for straightforward operation
• Anti-theft-engine starting passwords enhance security
• Front working light improves visibility for nighttime or low-light conditions
• Auto-idle feature with on/off switch to conserve fuel and reduce noise
• Horn for signaling and safety on job sites
• Pre-wired and telematics-ready for advanced tracking and diagnostics

HYDRAULICS:

• Auxiliary hydraulics – single/bi-directional – and plumbing to arm for versatile attachment use
• Large hydraulic oil cooler to maintain optimal system temperatures
• Control pattern selector valve allows operators to choose their control pattern preference
• Cylinder rod protection covers for the backfill blade and boom to prevent damage during operation

OPERATOR ENVIRONMENT:

• ROPS/FOPS four-post canopy or enclosed cab options for operator safety
• Complies with ISO 6396:2008 sound pressure level LpA=75dB(A) for a comfortable working environment
• Pilot-operated hand controls and foot pedals for precise operation
• Adjustable seat with seat belt for comfort and safety
• Armrests and a 12V socket for added convenience
• Display includes critical warning lamps and gauges for engine oil pressure, battery charging, engine preheat, coolant temperature, air cleaner, overload, travel speed, fuel level, hydraulic quick coupler lock, along with engine coolant temp gauge, fuel gauge, and hour meter

TRACK DRIVE:

• Rubber belt tracks for reduced ground pressure and improved traction
• Automatic 2-speed travel for efficient site navigation
• Fully hydrostatic drive system for smooth operation
• Sealed and lubricated track rollers for durability and reduced maintenance
• Track tension adjustment – grease type for easy maintenance

UPPER STRUCTURE:

• Zero tail swing design for operation in tight spaces without sacrificing performance
• Standard arm length: 4 ft 3 in (1.3 m) for balanced digging force and reach
• Bucket linkage with lifting hook for versatile lifting and digging tasks
• Thumb bracket for added attachment capability

OTHER FEATURES:

• Swing boom – 75° left /50° right for enhanced digging flexibility and reach
• Hydraulic backfill blade for efficient backfilling and grading tasks

Operator Environment Enhancements:

• Enclosed Cab: It has heat, air conditioning, and a radio equipped with a USB and 2 speakers for a comfortable operator environment.
• Travel Alarm: Increases safety by alerting nearby personnel when the excavator is in motion.

Track Options:

• Steel Tracks: Durable 12 in (300 mm) steel tracks for enhanced traction and performance in challenging terrains.

Additional Features:

• Additional Counterweight: An extra 330 lb (150 kg) to enhance machine stability and lifting capacity.
• Optional Long Arm: Extends reach and depth capabilities with a 5 ft 3 in (1.6 m) arm.
• Hydraulic Quick Coupler Provision: Allows quick and easy attachment changes, increasing versatility and productivity.
• Hydraulic Coupler: Enables secure attachment of various tools and accessories.
• Klac Coupler: Offers a mechanical quick-coupling solution for fast attachment changes.
• Mechanical Coupler: Provides a reliable and straightforward means to switch between attachments.
• Hydraulic Hammer: For demolition and breaking applications, delivering high-impact energy.
• Beacon: Enhances visibility and safety on job sites, especially in low-light or busy areas.
• 2nd Auxiliary Circuit: Adds versatility with the capability for additional hydraulic attachments.
• 4-Way Angle Blade: This blade offers a 25-degree left and right angle offset for precise grading and backfilling, adding 220 lb (100kg) to the machine’s weight for stability.

Base & Extended Warranty Coverage

• 2yr/3,000 hours Full machine limited warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
