2024 CASE CX350D Full Size Excavator – EQ0032449
Request more information:
The CASE CX350D Full Size Excavator excels in extensive excavation operations and precise site work and is known for its blend of power, precision, performance, and efficiency. CASE ProCare supports comprehensive maintenance and SiteWatch telematics for added reliability and peace of mind. Additionally, this model can be equipped with OEM-Fit 2D and 3D machine control solutions for enhanced accuracy and productivity.
Operating Weight: 82,483 lbs Engine Horsepower: 268 hp
Location: Cape Girardeau, MO
Rops: Enclosed
EQ#: EQ0032449
BROCHURE: CASE D Series Excavators
SPEC SHEET: CASE CX350D
Luby Equipment is the authorized CASE CE & Takeuchi dealer of Cape Girardeau, MO and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!
2024 CASE CX350D Full Size Excavator For Sale
The CASE CX350D Full Size Excavator excels in extensive excavation operations and precise site work and is known for its blend of power, precision, performance, and efficiency. CASE ProCare supports comprehensive maintenance and SiteWatch telematics for added reliability and peace of mind. Additionally, this model can be equipped with OEM-Fit 2D and 3D machine control solutions for enhanced accuracy and productivity.
CX350D Features
Purpose-Built Performance:
- Power Modes: Three selectable options to optimize efficiency.
- Intelligent Hydraulics: CASE Intelligent Hydraulics System (CIHS) for precise control.
- Electronically Controlled Pump: Enhances cycle times and power.
- Durability: Reinforced undercarriage, arm, and boom for extended service life.
- Additional Features: Free Swing for controlled craning and programmable attachment presets for easy task switching.
Fuel Efficiency:
- Tier 4 Final Solution: Utilizes SCR and DOC, eliminating the need for a DPF.
- Fuel Savings: Up to 8% greater efficiency compared to previous models.
- DEF uses a simple addition of Diesel Exhaust Fluid during refueling.
Comfort & Visibility:

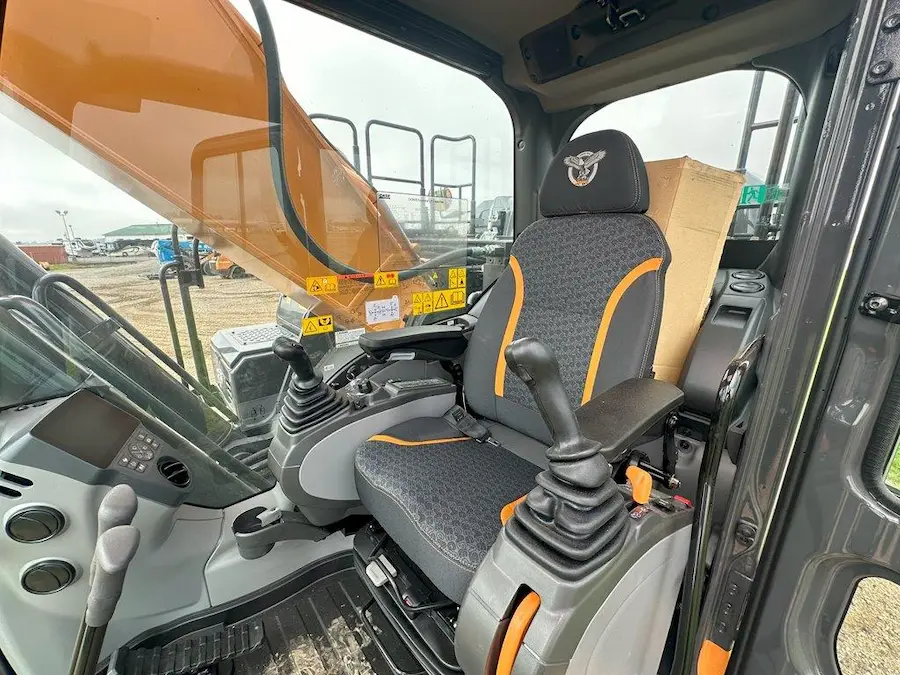

- Cab Design: Spacious with excellent visibility and adjustable controls.
- Seating: Heated air-ride seat with lumbar support and extensive adjustability.
- Convenience: Bluetooth radio, auto-temperature control, and joystick-mounted functions.
- Enhanced Visibility Options: LED lighting and CASE Max View are available for a 270-degree view.
Simple Serviceability:
- Maintenance Access: Easy access to oil sample ports and grouped service points.
- Debris Screens: Removable for quick cooler cleanouts.
- ProCare Protection: A 3-year/2,000-hour planned maintenance package is included.
OEM-Fit Machine Control:
- Precision Technology: Available with 2D and 3D control solutions.
- Expert Installation: Installed and tested by certified CASE specialists.
- Value Addition: Enhances residual/resale value, confirming system compatibility.
Equipped with these features, the CASE CX350D is a versatile and reliable choice for contractors seeking a machine capable of tackling a wide range of tasks efficiently and precisely.
CX350D Standard Equipment
Engine and Fuel Economy:
- Isuzu AQ-6HK1X diesel engine with Tier 4 Final certification.
- Advanced fuel efficiency features include Selective Catalytic Reduction (SCR), Diesel Oxidation Catalyst (DOC), and Cooled Exhaust Gas Recirculation (CEGR).
- Features such as Electronic Fuel Injection, a High-Pressure Common Rail System, and a Fuel Economy Assist System (FEA) contribute to its performance.
- Engine protection and maintenance features like dual-stage fuel filtration, dual-element air filter, remote oil filter, and a 500-hour engine oil change interval ensure longevity and reliability.
- High Ambient Temperature Cooling Package and Cyclone Air Pre-cleaner support optimal engine operation in various conditions.
Hydraulics:
- The excavator’s hydraulic system includes Auto Power Boost, Auto Swing Priority, and an Electronically Controlled Hydraulic Pump for enhanced performance.
- Auxiliary Flow Control and Pre-set Auxiliary Pump Settings enable versatility for various attachments.
- Hydraulic Oil Sample Port and a 5,000-hour Hydraulic Oil Change Interval facilitate maintenance.
Upper Structure:
- Equipped with features like ISO Mirrors, a Swivel Guard Belly Pan, and Lockable Service Doors for both functionality and security.
- The Fuel Tank Belly Pan and Lifting Eyes for Counterweight add to the machine’s durability and convenience for transport.
Operator Environment:
- ROPS/FOPS protection, Pressurized Cab, and One-touch Lock Front Window ensure operator safety and comfort.
- The cab includes AC/Heat/Defrost with Auto Climate Control, an LED Color Monitor, and Low-Effort Joystick Controls for an optimal operator experience.
- Additional amenities like a Heated High-Back Cloth Seat, AM/FM Radio with Bluetooth, and Rear-View Camera enhance convenience and functionality.
Undercarriage and Attachments:
- A Long Undercarriage with 31.5-inch Triple Semi-Grouser Steel Shoes and a Full Overlap Turntable Bearing Tub provides stability and durability.
- The Hydraulic Track Adjustment and Sealed Link Chain are designed for longevity and ease of maintenance.
- Standard equipment includes a 21 ft 2 in Boom, a 10 ft 8 in Arm, and Heavy-duty Bucket Linkage and Centralized Grease Fittings for operational efficiency.
Telematics:
- CASE SiteWatch™ Telematics system with a 3-year Advanced Data Subscription offers advanced monitoring and management capabilities to enhance productivity and maintenance scheduling.
Equipped with these features, the CASE CX350D Full Size Excavator is engineered to deliver exceptional performance, durability, and operator comfort, making it a reliable choice for various excavation projects.
CX350D Optional Equipment
Engine Enhancements:
- Refueling Pump: Simplifies the refueling process, ensuring efficiency and convenience on the jobsite.
Hydraulic System Upgrades:
- Auxiliary Hydraulics: Options include single-acting, double-acting for thumbs, multi-function with or without electronic pressure control, and secondary low-flow, all joystick activated for precise operation.
- Proportional Hydraulic Controls: Offer fine-tuned control for delicate operations.
- Hose Burst Check Valve (HBCV): Enhances safety by preventing the sudden release of hydraulic fluid.
Attachment Versatility:
- Booms and Arms: A selection of heavy-duty, short, and long booms and arms to match various digging depths and reach requirements.
- Quick Coupler/Case Multi-Pin Grabber: Allows swift attachment changes, increasing versatility.
- Tools: Range from heavy-duty and extreme-duty buckets to hammers, thumbs, and compaction plates, facilitating diverse tasks.
- Load Holding Control: Improves safety and control when handling heavy loads.
Upper Structure Additions:
- Rubber Bumper Guard: Protects the excavator’s body from damage during operation.
- Catwalks: Left and right side catwalks provide safe and easy access for maintenance.
Operator Environment Enhancements:
- FOPS Cab Top Guard – Level 2: Offers additional protection against falling objects.
- Front Grill and Rock Guards: Protect the front end from debris with options for two-piece or one-piece vertical bars.
- Vandal Guard: Secures the front window against unauthorized access.
- Rain Deflector and Sun Visor: Improve visibility and operator comfort in varying weather conditions.
- Side-View Camera: Enhances visibility on the sides of the excavator for safer operation.
- LED Package: Includes additional lighting for improved visibility during early morning or late evening work.
Undercarriage Options:
- Steel Shoes: Available in 27.6 in and 33.5 in sizes with triple semi-grousers for enhanced stability and traction.
Machine Control Systems:
- Leica iCON iXE2 – 2D System: Offers advanced grading and depth control for precision work.
- Leica iCON iXE3 – 3D System: Provides comprehensive site work capabilities with GPS integration for complex projects.
These optional features are designed to customize the CASE CX350D Full Size Excavator to specific job requirements, ensuring optimal performance, safety, and operator satisfaction across various construction tasks.
CX350D Specs
| Engine Feature | Specification |
|---|---|
| Model | Isuzu AQ-6HK1X |
| Emissions Certification | Tier 4 Final |
| Fuel Requirement | Ultra-low sulfur fuel; B5 biodiesel tolerant |
| Type | Water-cooled, 4-cycle diesel, 6-cylinder in-line, high-pressure common rail system with electric control, VGT Turbocharger with air-cooled intercooler, SCR system |
| Cylinders | 6-cylinder in-line |
| Displacement | 475 in³ (7.8 L) |
| Bore/Stroke | 4.53 x 4.92 in (115 x 125 mm) |
| Fuel Injection | Direct injection – electronic |
| Fuel Filter | Replaceable, full flow spin-on cartridge |
| Air Filter | Dry type element with warning restriction indicator |
| Oil Filter | Replaceable, full flow spin-on cartridge |
| Engine Gradeability | Side-to-side 35°; Fore and aft 35° |
| Net Horsepower – SAE J1349 | @ 1900 RPM: 268 hp (200 kW) |
| Net Max Torque – SAE J1349 | @ 1500 RPM: 728 lbf·ft (988 N·m) |
| Cooling Operating Range | 122° to -4°F (50° to -20°C) |
| Oil Requirement | Requires low-ash oil CJ-4 |
CX350D Dimensions
| Dimension | 10 ft 8 in (3.25 m) Arm | 8 ft 8 in (2.63 m) Arm | 13 ft 3 in (4.04 m) Arm |
|---|---|---|---|
| A. Overall Height – With Attachment | 11 ft 5 in (3,470 mm) | 11 ft 11 in (3,630 mm) | 11 ft 11 in (3,620 mm) |
| B. Cab Height | 10 ft 5 in (3,180 mm) | 10 ft 5 in (3,180 mm) | 10 ft 5 in (3,180 mm) |
| C. Overall Length – With Attachment | 36 ft 8 in (11,170 mm) | 36 ft 10 in (11,220 mm) | 36 ft 9 in (11,190 mm) |
| D. Overall Length – Without Attachment | 19 ft 9 in (6,010 mm) | 19 ft 9 in (6,010 mm) | 19 ft 9 in (6,010 mm) |
| E. Width of Upper Structure | 9 ft 11 in (3,030 mm) | 9 ft 11 in (3,030 mm) | 9 ft 11 in (3,030 mm) |
| F. Track Overall Length | 16 ft 4 in (4,980 mm) | 16 ft 4 in (4,980 mm) | 16 ft 4 in (4,980 mm) |
| G. Track Overall Width with 31.5 in (800 mm) Shoes | 11 ft 2 in (3,400 mm) | 11 ft 2 in (3,400 mm) | 11 ft 2 in (3,400 mm) |
| H. Track Shoe Width | 2 ft 7 in (800 mm) | 2 ft 7 in (800 mm) | 2 ft 7 in (800 mm) |
| J. Center to Center – Idler to Sprocket | 13 ft 3 in (4,040 mm) | 13 ft 3 in (4,040 mm) | 13 ft 3 in (4,040 mm) |
| K. Upper Structure Ground Clearance | 4 ft 0 in (1,210 mm) | 4 ft 0 in (1,210 mm) | 4 ft 0 in (1,210 mm) |
| L. Minimum Ground Clearance | 1 ft 7 in (470 mm) | 1 ft 7 in (470 mm) | 1 ft 7 in (470 mm) |
| M. Rear Tail Swing Radius | 11 ft 8 in (3,550 mm) | 11 ft 8 in (3,550 mm) | 11 ft 8 in (3,550 mm) |
| Operating Weight* | 82,483 lb (37,414 kg) | 82,373 lb (37,364 kg) | 83,144 lb (37,714 kg) |
| Ground Pressure | 7.5 psi (0.52 bar) | 7.5 psi (0.52 bar) | 7.7 psi (0.53 bar) |
Warranty
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders.
See your CASE dealer for model availability and timing.
Additional information
| Condition | New |
|---|---|
| Location | Cape Girardeau, MO |
