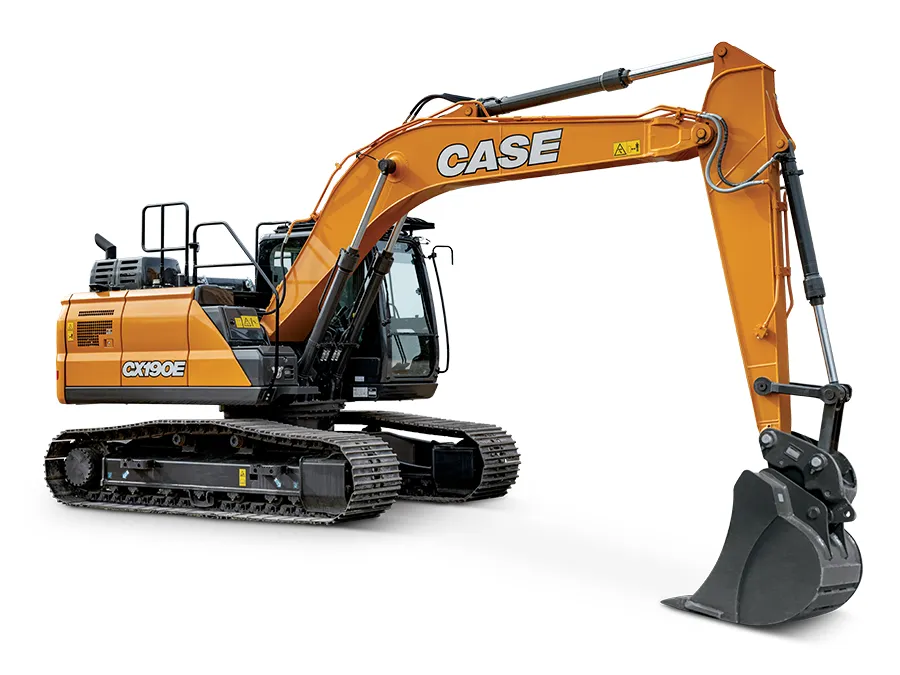

CASE CX190E Full-Size Excavator
Request more information:
The CX190E excavator — a powerhouse that redefines the standards of its size class with unmatched power, productivity, and performance, all within a compact and easily transportable design.
BROCHURE: CCE-Excavator-Brochure-CCE202209EXCAVATORS
SELL SHEET: CCE202305CX190E-CX190E
CASE CX190E Full-Size Excavator
The CX190E excavator — a powerhouse that redefines the standards of its size class with unmatched power, productivity, and performance, all within a compact and easily transportable design.
CX190E Features
Innovations for Enhanced Performance
- Command Center: Equipped with a 10-inch LCD display, the CX190E offers unprecedented access and visibility to crucial machine data, cameras, and controls. The display is designed for intuitive interaction, allowing operators to customize views for optimal jobsite awareness.
- Optimized Operation: Featuring four new operating modes with up to 10 throttle settings, the CX190E will enable operators to tailor the machine’s performance to specific tasks, significantly improving efficiency and productivity. The Eco mode, in particular, reduces fuel consumption by up to 18%, marking a new standard in efficiency.
Advanced Hydraulic Control
- Hydraulic Flow Control Balance: This innovative feature enhances the CX190E’s responsiveness by allowing operators to prioritize hydraulic flow for specific movements, maximizing efficiency and control during intricate tasks.
A Versatile Attachment Platform
- Intelligent Attachment Management: The CX190E supports a wide range of attachments, which can be easily managed and configured via the LCD monitor. This functionality extends to one-way and two-way hydraulic attachments, optimizing performance and ensuring attachments operate within their safe and recommended specifications.
Unparalleled Engine Performance
- FPT Industrial Power: The latest FPT Industrial engines equip the CX190E with increased torque, horsepower, and transient response, all while simplifying emissions and extending service intervals. These advancements make the CX190E powerful, remarkably efficient, and easy to maintain.
Precision Solutions from CASE
- OEM-Fit Machine Control: The CX190E comes ready with CASE’s semi-automatic 2D and 3D machine control solutions, ensuring a perfect synergy between machine and technology. CASE-certified specialists install and calibrate these systems, providing accuracy and reliability right from the start.
Enhanced Uptime and Fleet Management
- Next-Generation Connectivity: The CX190E offers advanced remote analysis capabilities with the introduction of the SiteConnect Module and the SiteManager App. This technology allows for real-time monitoring and diagnostics by CASE technicians, ensuring that any issues can be promptly addressed, thereby minimizing downtime and maximizing productivity.
CASE ProCare: Comprehensive Support
- Peace of Mind: The CX190E is backed by CASE ProCare, providing a full-machine factory warranty for three years or 3,000 hours, a planned maintenance contract for three years or 2,000 hours, and a three-year subscription to CASE SiteWatch™ telematics. This comprehensive support package ensures controlled owning and operating costs, giving operators and owners complete peace of mind.
CX190E Standard Equipment
Engine Excellence:
- Engine Model: FPT NEF4, Tier 4 Final/Stage V Certified, allowing compliance with top-notch emission standards.
- Innovative Features: Includes Selective Catalytic Reduction on Filter (SCRoF), a high-pressure common rail system with electronic control, and a fixed-geometry turbocharger with an air-cooled intercooler.
- Fuel Efficiency Systems: Equipped with Auto-idle, One-touch idle, Timed engine shutdown, and economy controls like Boom Economy Control (BEC) to optimize fuel consumption.
Undercarriage and Structure:
- Robust Undercarriage: Features include a variable displacement axial piston motor, mechanical disc brake, and planetary gear reduction for reliable and efficient movement.
- Durable Upper Structure: Comes with three ISO mirrors, cab ISO mounts, an upper-mounted 70-watt work light, and a swivel guard belly pan for enhanced durability and safety.
Hydraulic System:
- Advanced Hydraulics: Boasts a pilot pressure control system with customizable flow balance adjustments and multi-function capabilities with electronic pressure and flow control for precise operation.
- Work and Travel Modes: Offers four work modes (SP, Power, Eco, Lift) and two-speed travel with auto downshift for versatility in various job conditions.
Operator Comfort and Control:
- State-of-the-Art Operator Environment: Features a smooth, round-shaped design cab with shock-less suspension, a 10-inch full-color LCD monitor, and an ergonomic switch panel.
- Comfortable Seating: The operator’s seat is equipped with low-frequency air suspension, manual weight adjustment, adjustable armrests, and lumbar support for maximum comfort during long hours of operation.
Attachment Readiness:
- Versatile Attachment Options: Includes a 16 ft 11 in boom, 8 ft 7 in arm, heavy-duty bucket linkage, and centralized grease fittings for easy maintenance and versatility.
- Enhanced Attachment Performance: Features like the attachment cushion valve and arm and boom regeneration optimize the performance of various attachments.
Telematics for Efficient Fleet Management:
- CASE SiteWatch™ Telematics: Comes with a 3-year advanced data subscription, providing 2-way communication for effective fleet management and operational efficiency.
CX190E Optional Equipment
Engine Upgrades:
- Refueling Pump: Simplifies the refueling process for increased efficiency.
- Air Pre-cleaner – Cyclone: Enhances engine air intake cleanliness, which is especially beneficial in dusty environments.
- High Ambient Temperature Cooling Package: Ensures optimal performance in high-temperature conditions.
Hydraulic Enhancements:
- Auxiliary Hydraulics: Equip your excavator with proportionally controlled secondary low-flow auxiliary hydraulics for greater versatility.
- Hose Burst Check Valve (HBCV): Adds an extra layer of safety by preventing the rapid descent of an attachment in the event of a hose burst.
Precision Machine Control:
- Leica iCON iXE2 & iXE3 Systems: Advanced 2D and 3D machine control systems from Leica allow for precise excavation and grading.
Attachment Flexibility:
- Optional Arm: A 10 ft 0 in (3.05 m) arm option for extended reach and depth.
- Quick Coupler/Case Multi-pin Grabber: Facilitates quick and easy attachment changes, boosting versatility.
- Tools: Choose from heavy-duty, extreme-duty, or ditching buckets, hammers, thumbs, and compaction plates to tackle a wide range of tasks.
Upper Structure Protection:
- Rubber Bumper Guard: Additional protection for the upper structure is available through Service Parts.
Undercarriage Options:
- Rubber Link Chain & Bolt-on Rubber Pads: Ideal for sensitive surfaces where steel tracks may cause damage.
- Steel Shoes: Choose from 23.6 in (600 mm) or 31.5 in (800 mm) steel shoes with triple semi-grouser for enhanced traction and stability.
- Track Guides: Triple track guides improve track alignment and durability.
Operator Environment Enhancements:
- FOPS Level 2 Cab Top Guard: Provides additional protection against falling objects.
- Front Grill and Rock Guards: Available in two-piece or one-piece configurations for increased protection.
- Vandal Guard: Secures the front window, which can be accessed with a standard key.
- Visibility & Comfort: Features include a rain deflector, sun visor, Max View Monitor with 270-degree visibility, and an LED Package to ensure the worksite is well-lit for safe operation.
CX190E Specs
| Category | Specifications |
|---|---|
| ENGINE | |
| Model | FPT NEF4 |
| Emissions Certification | Tier 4 Final/Stage V |
| Fuel | Requires ultra-low sulfur fuel, B5 biodiesel tolerant |
| Type | Water-cooled, 4-cycle diesel, 4-cylinder in line, high-pressure common rail system – electric control, Fixed geometry turbocharger w/ air-cooled intercooler, ATS, EGR-free |
| Cylinders | 4-cylinder in-line |
| Displacement | 274 in³ (4.49 L) |
| Bore/Stroke | 4.09 x 5.20 in (104 x 132 mm) |
| Fuel Injection | High-pressure common rail system – electronic |
| Fuel Filter | Replaceable, full flow spin-on cartridge |
| Air Filter | Dry type dual element w/ warning restriction indicator |
| Oil Filter | Replaceable, full flow spin-on cartridge |
| Engine Gradeability | Side-to-side 35°, Fore and aft 35° |
| Net Horsepower – SAE J1349 @ 2200 RPM | 121 hp (90.4 kW) |
| Net Max. Torque – SAE J1349 @ 1600 RPM | 336 lbf·ft (456 N·m) |
| Cooling Operating Range | 113° to -4°F (45° to -20°C) |
| Oil | Requires low-ash oil CJ-4 |
| DRIVETRAIN | |
| Travel Control | Dual-stage relief/counterbalance design |
| Brakes | Mechanical disc |
| Two-Speed Travel | Max. high speed 2.7 mph (4.3 km/h), Max. low speed 1.6 mph (2.6 km/h) |
| Automatic Downshift | Yes |
| Drawbar Pull | 42,700 lbf (190 kN) |
| Gradeability | 70% – 35° Slope |
| ELECTRICAL | |
| Voltage | 24 Volts |
| Alternator Rating | 90 amp |
| Batteries | 2 x 12 Volt |
| Battery Reserve Capacity | 72 Ah/5 hour |
| Work Lights | 4 (24 Volt/70 watt) – 1 boom, 1 upper, 2 cab |
CX190E Dimensions
| Dimension | 8 ft 7 in (2.62 m) Arm | 10 ft 0 in (3.05 m) Arm |
|---|---|---|
| A. Overall Height – With Attachment | 9 ft 9 in (2,960 mm) | 10 ft 3 in (3,130 mm) |
| B. Cab Height | 10 ft 1 in (3,070 mm) | 10 ft 1 in (3,070 mm) |
| C. Overall Height to Top of Guardrail | 10 ft 4 in (3,150 mm) | 10 ft 4 in (3,150 mm) |
| D. Overall Length – With Attachment | 27 ft 11 in (8,510 mm) | 28 ft 1 in (8,570 mm) |
| E. Overall Length – Without Attachment | 15 ft 0 in (4,580 mm) | 15 ft 0 in (4,580 mm) |
| F. Width of Upper Structure | 8 ft 3 in (2,520 mm) | 8 ft 3 in (2,520 mm) |
| G. Track Overall Length | 13 ft 9 in (4,180 mm) | 13 ft 9 in (4,180 mm) |
| H. Track Overall Width with 23.6 in Shoes | 9 ft 2 in (2,800 mm) | 9 ft 2 in (2,800 mm) |
| I. Track Shoe Width | 2 ft 0 in (600 mm) | 2 ft 0 in (600 mm) |
| J. Center to Center – Idler to Sprocket | 11 ft 1 in (3,370 mm) | 11 ft 1 in (3,370 mm) |
| K. Upper Structure Ground Clearance | 3 ft 5 in (1,040 mm) | 3 ft 5 in (1,040 mm) |
| L. Minimum Ground Clearance | 1 ft 4 in (440 mm) | 1 ft 4 in (440 mm) |
| M. Rear Tail Swing Radius | 8 ft 3 in (2,520 mm) | 8 ft 3 in (2,520 mm) |
| Operating Weight* | 41,000 lb (18,600 kg) | 48,848 lb (22,181 kg) |
| Ground Pressure | 6.09 psi (0.42 bar) | 4.93 psi (0.34 bar) |
Warranty
PROTECTED BY CASE PROCARE
Each CASE E Series excavator provides peace of mind and controlled owning and operating expenses with ProCare:
- Three-year, 3,000-hour full-machine factory warranty
- Three-year, 2,000-hour planned maintenance contract
- Three-year CASE SiteWatch™ telematics subscription
