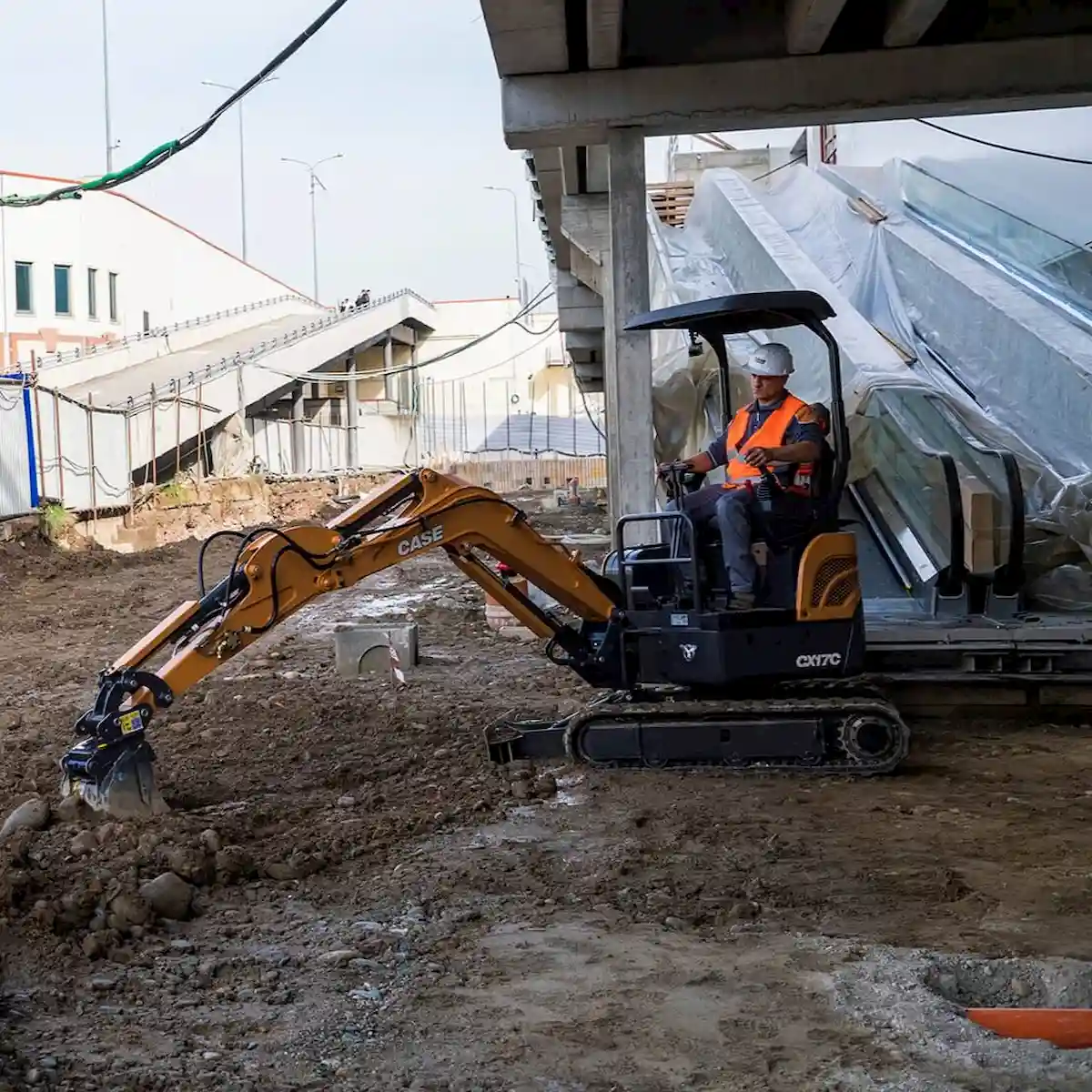

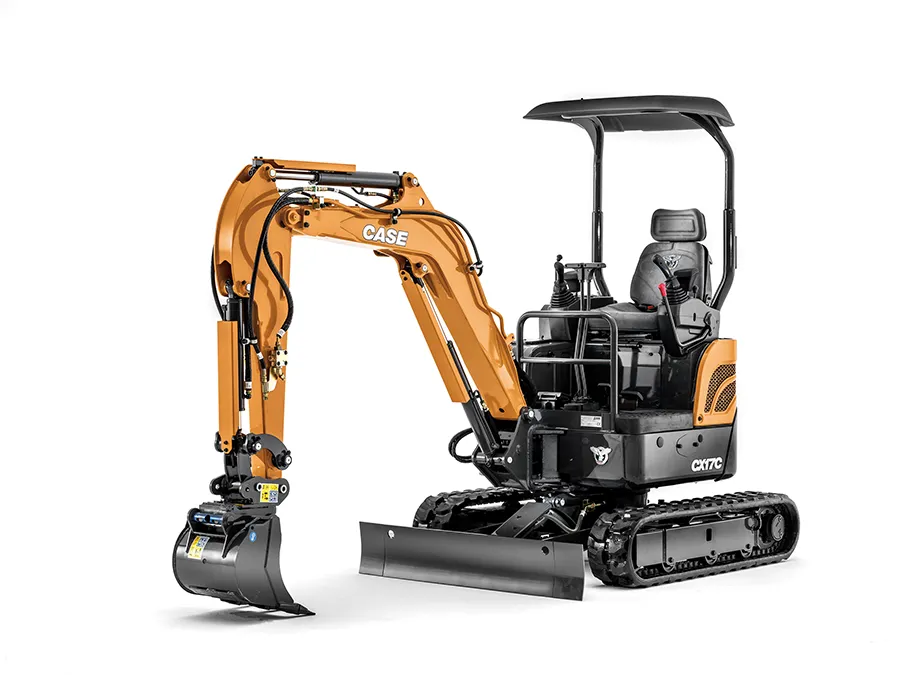

CASE CX17C Mini Excavator

Purpose-Built Productivity:

• Retractable Undercarriage and Variable-Width Blade: These features allow the CX17C to easily navigate through narrow spaces such as gates and entryways, making it ideal for residential and urban projects.
• Compact Size: With a low-profile canopy height of just 7 feet 7 inches and a trailer-friendly operating weight of 3,910 lb., it simplifies transportation without requiring special permits or towing equipment.
• Zero Tailswing and Adjustable Boom: Its design allows operation close to obstacles, providing flexibility in tight spaces. The boom can be offset to the left or right, further enhancing its ability to work in constrained areas.
  Auxiliary Hydraulics and Proportional Controls: These standard features make the CX17C a versatile platform compatible with various attachments, such as hammers and augers, enhancing its utility across different jobs.
• Hydraulic Backfill Blade and Automatic 2-Speed Travel: These features aid in efficient site clean-up and improved maneuverability across diverse terrains.

*Note: It’s always important to check vehicle capacities and comply with state or local laws regarding roading regulations and requirements.

Common-Sense Fuel Efficiency:

• The CX17C is powered by a 16.8-hp engine that meets Tier 4 Final emissions standards. It’s engineered for optimal power with minimal fuel consumption, ensuring productive operations without frequent refills.

CASE Comfort and Visibility:
The operator’s environment is designed for comfort, with an adjustable seat and ergonomic pilot controls. A standard pattern selector allows operators to easily switch between control styles based on preference.

• The two-post TOPS/FOPS canopy enhances safety without compromising visibility, ensuring operators have a clear view of the work area and machine surroundings.

Simple Serviceability:

• Maintenance is straightforward with ground-level serviceability. All critical service points, including fills, filters, gauges, and grease points, are easily accessible, promoting regular maintenance and extending the machine’s lifespan and performance.

Engine Features:

• Model: Utilizes the reliable Kubota D902 diesel engine known for its efficiency and durability.
• Cooling System: The Engine is water-cooled to maintain optimal performance even under heavy use.
• Accessibility: Engine components are easily accessible under the rear hood for maintenance.
• Starting Aid: Glow plug starting aid facilitates easier starts in cold conditions.
• Air Cleaner: Dry-type air cleaner equipped with a restriction indicator to alert when maintenance is needed.

Electrical System:

• Starting System: Equipped with a 12-volt electrical starting system for reliable ignition.
• Battery: Features a heavy-duty battery to support extended usage.
• Master Switch: A battery Master Switch is included to enhance safety and prevent unauthorized use.
• Security: Key Start and Anti-Theft Engine start passwords for increased security.
• Lighting: The front working light provided better visibility during operation.
• Additional: Includes a horn for safety and is pre-wired for Telematics to enable advanced connectivity features.

Hydraulic System:

• Auxiliary Hydraulics: The arm comes standard with single/bidirectional auxiliary hydraulics and plumbing, allowing for a wide range of attachments.
• Cooling: A large hydraulic oil cooler is included to prevent overheating and maintain hydraulic efficiency.
• Control: Features a control pattern selector valve to accommodate operator preferences.
• Protection: Cylinder rod protection covers are included for the Dozer, Boom, Arm, and Bucket to protect against damage and wear.

Operator Environment:

• Canopy: TOPS/FOPS two-post canopy ensures operator safety from overhead and falling objects.
• Sound Level: This product complies with ISO 6396:2008 and maintains a sound pressure level of LpA=76 dB(A) for a comfortable operating environment.
• Controls: Pilot-operated hand controls and foot pedals offer precise machine operation.
• Seating: The seat is adjustable and has a seatbelt and armrests for operator comfort during long hours of operation.
• Convenience: Equipped with a 12V socket for charging and powering devices.
• Display Panel: Includes indicators for engine oil pressure, water temperature, low fuel, battery charge, engine preheat, travel speed, air cleaner status, hydraulic quick coupler lock, and high travel speed. It also features water temperature, fuel gauges, and an hour meter to track usage.

Track Drive:

• Tracks: Rubber belt tracks minimize damage to surfaces and provide excellent traction.
• Travel Speed: Automatic 2-speed travel with a fully hydrostatic drive system allows smooth and efficient movement across the work site.
• Maintenance: Sealed and lubricated track rollers for durability and track tension adjustment via a grease-type mechanism for easy maintenance.
• Versatility: The extendable track feature adapts the excavator’s width for stability or narrow access areas.

Upper Structure:

• Design: Zero tail swing configuration minimizes the risk of hitting obstacles when rotating, which is ideal for tight spaces.
• Arm: The standard arm length is 3 ft 2 in (0.96 m), providing a balanced reach and digging capability.

Additional Features:

• Swing Boom: Offers a swing range of 70° to the left and 54° to the right for enhanced maneuverability and positioning.
• Backfill Blade: A hydraulic backfill blade with adjustable width facilitates efficient backfilling and grading tasks.
• Protection: Cylinder rod protection covers on the arm and bucket rods prevent damage and extend the life of hydraulic components.

Operator Environment:

• Travel Alarm: Enhances safety on the worksite by alerting nearby personnel when the excavator is in motion.

Other Optional Features:

• Additional Counterweight: An extra 180 lb (82 kg) counterweight increases the excavator’s stability and lifting capacity.
• Optional Long Arm: A 3 ft 8 in (1.12 m) longer arm option extends the excavator’s reach and digging depth.
• Hydraulic Quick Coupler Provision: Allows quick and easy attachment changes, increasing versatility and productivity.
• Klac Coupler: This mechanical quick coupler system provides a simple and secure way to attach and detach tools.
• Mechanical Coupler: Offers a reliable and straightforward mechanism for changing attachments without hydraulic intervention.
• Hydraulic Hammer: This hammer is Ideal for demolition, construction, and quarry work, providing high-impact energy for breaking materials.
  Hydraulic Compactor: This device compacts soil in trenches, foundations, or slope applications, ensuring ground stability.
• Hydraulic Auger: Facilitates efficient drilling operations for fencing, landscaping, or foundation work.
• Beacon: A flashing light beacon enhances visibility and safety, particularly in busy or low-light conditions.

Base & Extended Warranty Coverage

• 2yr/3,000 hours Full machine limited warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
