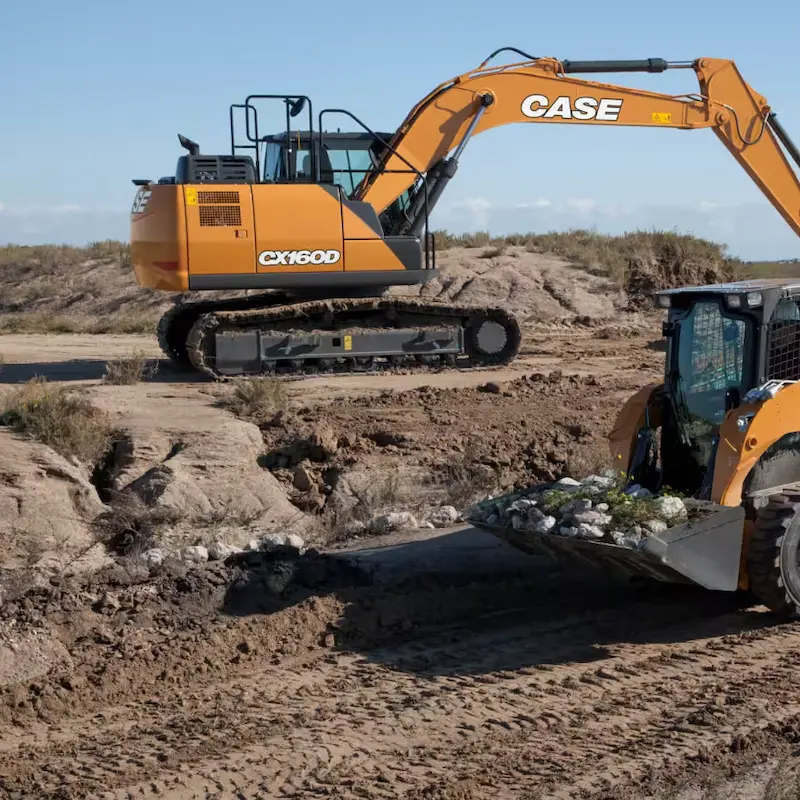

CASE CX160D Full Size Excavator
Request more information:
The CASE CX160D is ideally suited for various applications, from digging basements and trenches to sculpting retention ponds. This conventional-swing excavator embodies the strength and precision of the CASE D Series, designed for ease of transport and ownership, making it an ideal fit for various jobsite sizes.
BROCHURE: CCE-Excavator-Brochure-CCE202209EXCAVATORS
SPECS: CCE202106CX160DLC-OEM
CASE CX160D Full Size Excavator
The CASE CX160D is ideally suited for various applications, from digging basements and trenches to sculpting retention ponds. This conventional-swing excavator embodies the strength and precision of the CASE D Series, designed for ease of transport and ownership, making it an ideal fit for various jobsite sizes.
CX160D Features
Key Features:
- Versatile Applications: Ideal for digging, trenching, and pond finishing.
- Ease of Transport & Ownership: Designed for convenience on and off the jobsite.
- CASE ProCare Protection: Ensures peace of mind with comprehensive support.
Enhanced Productivity:
- Faster Cycle Times: Achieves up to 5% improvement with an advanced hydraulic system.
- Control & Customization: Includes standard Free-Swing feature for load control, LED light package for night operations, control pattern selector, and power mode selector.
- Hydraulic System Components:
- Electronically controlled hydraulic pump
- Larger control valve
- Solenoid valve
Fuel Efficiency & Compliance:
- SCR Solution: Allows the engine to run at peak performance while meeting Tier 4 Final emissions standards.
- Maintenance Simplified: No need for a Diesel Particulate Filter, reducing downtime.
Operator Comfort & Visibility:
- Spacious Cab: More entry room and foot space for operator comfort.
- Air-Ride Seat: Equipped with fore/aft sliding, tilt, reclining, adjustable lumbar support, and a heater.
- Adjustable Controls: Armrests and pedals adjust to fit operator preferences.
- In-Cab Amenities:
- Bluetooth radio
- Sunlight-responsive climate control system
- 7″ widescreen color monitor with constant rear camera view
Easy Serviceability:
- Routine Maintenance Made Easy: Features include a standard oil sample port, grouped service points, tilt-out coolers, and auto-locking side panels.
- Safety Enhancements: Additional handrails for improved accessibility.
Precision Technology with OEM-Fit Machine Control:
- Advanced Solutions: Optional OEM-Fit 2D and 3D machine control systems enhance excavation accuracy.
- Expert Installation: Installed and tested by certified CASE precision specialists.
- Investment Value: Increases machine residual and resale value, confirming system compatibility.
CX160D Standard Equipment
Engine & Fuel Economy:
- Engine Model: Isuzu AR-4JJ1X, Tier 4 Final Certified
- Emission Solutions: Includes Selective Catalytic Reduction (SCR), Diesel Oxidation Catalyst (DOC), and Cooled Exhaust Gas Recirculation (CEGR)
- Performance Features: Four-cylinder turbocharged diesel engine with VGT turbocharger, electronic fuel injection, and a high-pressure standard rail system
- Safety and Maintenance: Features neutral safety start, auto-engine warm-up, glow-plug pre-heat, Engine Protection Feature (EPF), and a 500-hour engine oil change interval
- Fuel Efficiency Enhancements: Fuel Economy Assist System (FEA) and no Diesel Particulate Filter (DPF) requirement
Hydraulics:
- Advanced Controls: Auto power boost, auto swing priority, and selectable work modes for optimized performance
- Assistance Systems: Arm speed and boom speed assistance through dual pump flow, bucket curl assist, and Free Swing feature for improved load control
- Maintenance and Safety: Hydraulic oil sample port, SAHR brake, and 5,000-hour hydraulic oil change interval
Upper Structure:
- Visibility and Safety: Equipped with ISO mirrors, viscous cab mounts, upper mounted work light, and swivel guard belly pan
- Accessibility and Security: Features include a handrail for RH access, a lockable fuel cap, and service doors
Operator Environment:
- Comfort and Control: ROPS-protected pressurized cab with a heated high-back cloth seat, air suspension, adjustable armrests, and low-effort joystick controls
- Convenience Features: Includes an LED color monitor, on-board diagnostic system, AM/FM radio with Bluetooth, rear-view camera, and climate control
- Safety Measures: Equipped with an emergency exit, safety glass windows, and an anti-theft system
Attachments:
- Versatile Options: Comes standard with a 16 ft 11 in boom, 8 ft 7 in arm, heavy-duty bucket linkage, and auxiliary pipe brackets
- Enhanced Durability: Features centralized grease fittings, attachment cushion valve, and arm and boom regeneration
Undercarriage:
- Robust Design: 23.6 in triple semi-grouser steel shoes, full overlap turntable bearing tub, and hydraulic track adjustment for stability and durability
Telematics:
- CASE SiteWatch™: Includes hardware and a 3-year Advanced data subscription for comprehensive machine management
CX160D Optional Equipment
Engine Enhancements:
- Refueling Pump: Simplify the process with an added refueling pump, ensuring efficiency and reducing downtime
Advanced Hydraulics:
- Auxiliary Hydraulics Options:
- Single acting/joystick activated for straightforward hydraulic tools.
- Double acting/joystick activated with thumb for versatile attachment operation.
- Multi-function with electronic pressure control for precise control of complex attachments
- Secondary low-flow for attachments requiring less hydraulic flow
- Proportional hydraulic controls for fine-tuned operation
- Safety Features: Hose Burst Check Valve (HBCV) to prevent potential injury or damage from hose failure
Attachments for Every Job:
- Long Arm: Extend your reach with a 10 ft 0 in long arm option
- Quick Coupler: Facilitate easy attachment changes with the CASE multi-pin grabber
- Tool Selection: Choose from heavy-duty/extreme-duty/ditching buckets, hammers, thumbs, and compaction plates for diverse job requirements
- Load Holding Control: Enhance safety and control when lifting heavy loads
Upper Structure Protection:
- Rubber Bumper Guard: Protect your machine’s upper structure with a rubber bumper guard available through Service Parts
Undercarriage Customization:
- Steel Shoes: Upgrade to 27.6 in triple semi-grouser steel shoes for enhanced stability and traction
- Track Guides: Add triple track guides for increased track alignment and stability
Operator Environment Enhancements:
- Safety Guards: Equip your cab with FOPS level 2 cab top guard and front grill/rock guards for additional protection
- Vandal Guard: Secure your machine with a vandal guard for the front window
- Visibility Aids: Opt for a rain deflector, sun visor, and side-view camera to enhance operator visibility and comfort
- LED Package: Improve visibility in low-light conditions with a comprehensive LED package including a side view camera and six LED lights
Machine Control Solutions:
- Leica iCON iXE2 – 2D System: Achieve precise grading and excavation with a state-of-the-art 2D system
- Leica iCON iXE3 – 3D System: For complex projects requiring exact dimensions and slopes, the 3D system offers advanced excavation control
CX160D Specs
| Category | Specifications |
|---|---|
| ENGINE | |
| Model | Isuzu AR-4JJ1X |
| Emissions | CEGR, SCR, DOC |
| Emissions Certification | Tier 4 Final |
| Fuel | Requires ultra-low sulfur fuel, B5 biodiesel tolerant |
| Type | Water-cooled, 4-cycle, high pressure common rail system, Turbocharger w/ air-cooled intercooler, SCR system |
| Cylinders | 4-cylinder in-line |
| Displacement | 183 in³ (3 L) |
| Bore/Stroke | 3.76 x 4.13 in (95.4 x 104.9 mm) |
| Fuel Injection | Direct injection – electronic |
| Fuel Filter | Replaceable, full flow spin-on cartridge |
| Air Filter | Dry type element w/ warning restriction indicator |
| Oil Filter | Replaceable, full flow spin-on cartridge |
| Engine Gradeability | Side-to-side 35°, Fore and aft 35° |
| Net Horsepower – SAE J1349 @ 2200 RPM | 112 hp (83.2 kW) |
| Gross Horsepower – ISO 14396 @ 2200 RPM | 115 hp (86.0 kW) |
| Net Max. Torque – SAE J1349 @ 1800 RPM | 257 lbf·ft (349 N·m) |
| Cooling Operating Range | 109° to -13°F (43° to -25°C) |
| Oil | Requires low-ash oil CJ-4 |
| DRIVETRAIN | |
| Travel Control | Dual-stage relief/counterbalance design |
| Brakes | Mechanical disc |
| Service Brakes | SAHR disc – each motor |
| Two-Speed Travel | Max. high speed 3.4 mph (5.4 km/h), Max. low speed 1.7 mph (2.8 km/h) |
| Automatic Downshift | Yes |
| Drawbar Pull | 36,100 lbf (160 kN) |
| Gradeability | 70% – 35° Slope |
| ELECTRICAL | |
| Voltage | 24 Volts |
| Alternator Rating | 50 amp |
| Batteries | 2 x 12 Volt |
| Battery Reserve Capacity | 72 Ah/5 hour |
| Work Lights | 4 (24 Volt/70 watt) – 1 boom, 1 upper, 2 cab |
| OPERATOR ENVIRONMENT | |
| Air-Conditioner Output | 18,100 BTU/hr |
| Heater Output | 20,150 BTU/hr |
| Sound Level Inside Cab – ISO6395 | 70 dBA |
| Electrical Outlet | 12 Volt |
| Cab Interior Light | 10 watt |
| Rear View Camera | Standard |
| Seat | Heated, air-suspension |
| ATTACHMENT | |
| Boom | 16 ft 11 in (5,150 mm) |
| Arm Options | 8 ft 7 in (2.62 m), 10 ft 0 in (3.05 m) |
| Bucket Digging Force | 25,200 lbf (112 kN) w/ auto power up 26,500 lbf (118 kN) |
| OPERATING WEIGHT | |
| Operating Weight | 38,400 lb (17,400 kg) w/ shoes 2 ft 0 in (600 mm), w/ boom 16 ft 11 in (5,150 mm), w/ arm 8 ft 7 in (2.62 m), w/ bucket 1,067 lb (484 kg), w/ counterweight 6,980 lb (3,170 kg) |
CX160D Dimensions
| Dimension | 8 ft 7 in (2.62 m) Arm | 10 ft 0 in (3.04 m) Arm |
|---|---|---|
| A. Overall Height | 9 ft 9 in (2,960 mm) | 10 ft 3 in (3,130 mm) |
| B. Cab Height | 9 ft 9 in (2,970 mm) | 9 ft 9 in (2,970 mm) |
| C. Overall Length – With Attachment | 27 ft 9 in (8,460 mm) | 27 ft 11 in (8,520 mm) |
| D. Overall Length – Without Attachment | 14 ft 6 in (4,430 mm) | 14 ft 6 in (4,430 mm) |
| E. Width of Upper Structure | 8 ft 4 in (2,530 mm) | 8 ft 4 in (2,530 mm) |
| F. Track Overall Length | 13 ft 1 in (3,990 mm) | 13 ft 1 in (3,990 mm) |
| G. Track Overall Width with 23.6 in Shoes | 8 ft 6 in (2,590 mm) | 8 ft 6 in (2,590 mm) |
| H. Track Shoe Width | 2 ft 0 in (600 mm) | 2 ft 0 in (600 mm) |
| I. Center to Center – Idler to Sprocket | 10 ft 6 in (3,190 mm) | 10 ft 6 in (3,190 mm) |
| J. Upper Structure Ground Clearance | 3 ft 4 in (1,020 mm) | 3 ft 4 in (1,020 mm) |
| K. Minimum Ground Clearance | 1 ft 5 in (420 mm) | 1 ft 5 in (420 mm) |
| L. Rear Tail Swing Radius | 8 ft 1 in (2,470 mm) | 8 ft 1 in (2,470 mm) |
Warranty
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders.
See your CASE dealer for model availability and timing.
