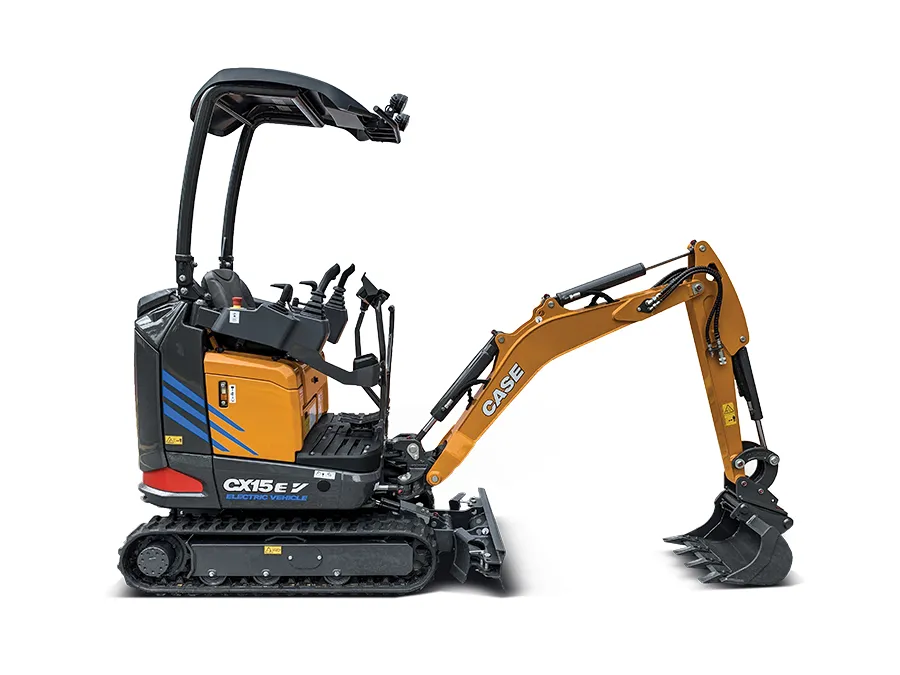

CASE CX15EV Electrified Mini Excavator

Go Anywhere, Hear Everything:

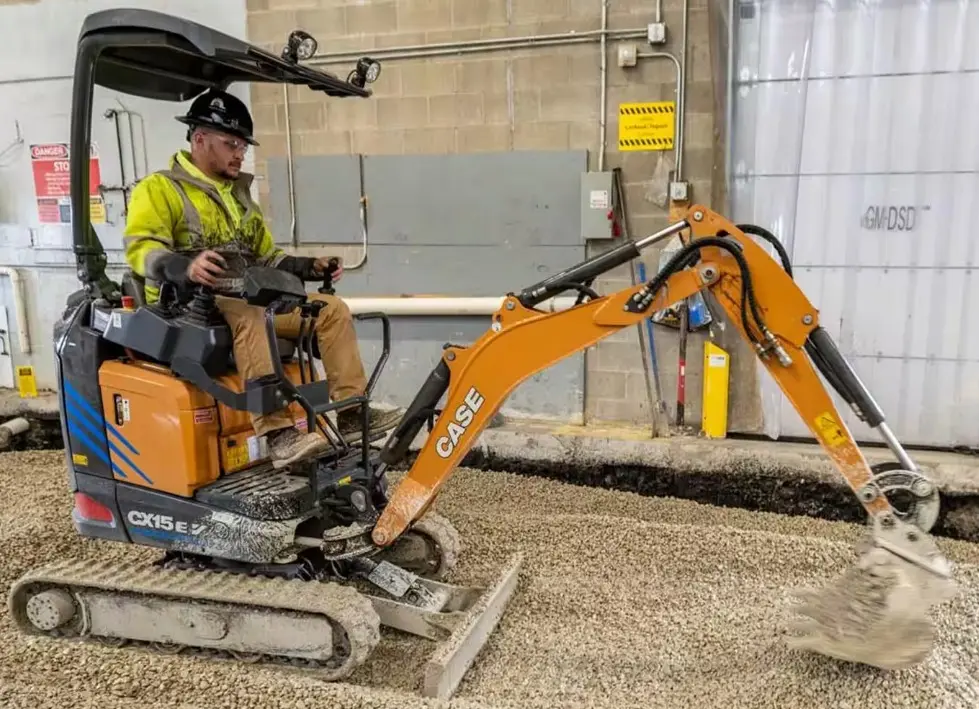

Transportable and versatile, the CX15EV is perfect for indoor projects or urban areas where emissions and noise can be problematic. Its electric nature means no emissions and quieter operation, enhancing on-site communication and allowing work in environmentally sensitive areas.

Fully Featured Controls:
Don’t compromise on power for eco-friendliness; the CX15EV offers the same performance as its diesel counterparts. Operators can select from multiple modes to balance power and efficiency, adjust control sensitivity for precision tasks, and efficiently manage attachments, ensuring every job is done accurately.

Attached to Success:
Expand the CX15EV’s capabilities with a range of attachments. Standard auxiliary hydraulics and an optional second auxiliary circuit enhance the excavator’s versatility. The ability to customize and save flow settings for different attachments optimizes performance and productivity.

Reduce Downtime, Increase Productivity:
Ease of ownership is a hallmark of the CX15EV. With no diesel engine, there’s no need for engine oil, coolant, or emissions system maintenance, significantly reducing downtime. This simplification makes the excavator extremely easy to own and operate, ensuring it’s ready when you are and keeping productivity high.

Electrical System:

• 12-volt electrical setup with heavy-duty battery.
• Universal ignition key also operates all machine locks.
• Built-in horn for safety.
• Advanced electronic display and control system.
• Three pre-set control modes for versatile operation.
• Electronic flow adjustment for optimal control in every mode and auxiliary circuit.
• Convenient on-board battery charger compatible with 120 VAC.
• Selectable control pattern mode for operator preference.

Hydraulic System:

• Joysticks with electro-hydraulic proportional controls for precise operation.
• Electro-hydraulic proportional swing control for smooth maneuvers.
• First auxiliary circuit (AUX1) with electro-hydraulic proportional control for attachments.
• Protective features for boom lift and dozer blade cylinders.
• Efficient helical gear pump.
• Environmentally friendly bio-hydraulic oil and lubricants.

Track Drive:

• Durable rubber belt tracks.
• Two-speed travel with automatic shift down/up for optimal traction and efficiency.
• Fully Hydrostatic drive system ensures reliable performance.
• Sealed and lubricated track rollers for longevity.
• Easy track tensioner hydraulic adjustment with grease.

Lighting:

• Standard LED working lights on the boom for enhanced visibility.

Upper Structure:

• Standard arm length of 3 ft 4 in (1.02 m).
• Equipped with a standard dozer blade for leveling and backfilling.

Operator Environment:

• Tiltable Roll-over Protection Structure (ROPS/TOPS) for safety.
• Optional canopy (FOPS Level 1) for additional protection.
• Comfortable vinyl seat with height-adjustable armrests.
• Safety lever to cut out controls when necessary.
• Standard 2 in (51 mm) seat belt for operator security.
• Includes a bottle/cup holder and a glove box for documents.
• Slewing locking lever and an auxiliary electrical socket are for convenience.
• Comprehensive control panel with various function indicators and warning signals.

Additional Features:

• Swing boom with 60° left and 70° right rotation for flexibility.
• Standard counterweight for stability.
• Extendable undercarriage to adapt to varying terrains.
• Includes an operator manual, document box, and a tool kit for maintenance.

Telematics:

• CASE SiteWatch™ Telematics system with hardware and a 5-year Advanced data subscription for efficient two-way communication.

Operator Environment Enhancements:

• Canopy (FOPS Level 1): Offers added protection for the operator, meeting FOPS Level 1 standards.

Electrical Upgrades:

• Offboard Fast-Charger: Allows quicker charging times, enhancing productivity by minimizing downtime.

Visibility Improvements:

• Extra LED Working Lights (Roof): Provides additional illumination for better visibility in low-light conditions.
• Rotating Beacon: Enhances machine visibility and safety on the jobsite, alerting others to the excavator’s presence.

Hydraulic System Customization:

• 2nd Auxiliary (AUX2) Circuit with Electro-Hydraulic Proportional Control: Adds versatility for using multiple attachments with precise control.

Additional Options:

• Optional Long Arm: Extends the excavator’s reach to 3 ft 9 in (1.15 m), increasing its range for digging and lifting.

Attachment Flexibility:

• Mechanical Quick Coupler: Simplifies the process of changing attachments, making the excavator more versatile.
• Digging Buckets: A selection of digging buckets to suit various digging, trenching, and excavation needs.

Base & Extended Warranty Coverage

• 2yr/3,000 hours Full machine limited warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
