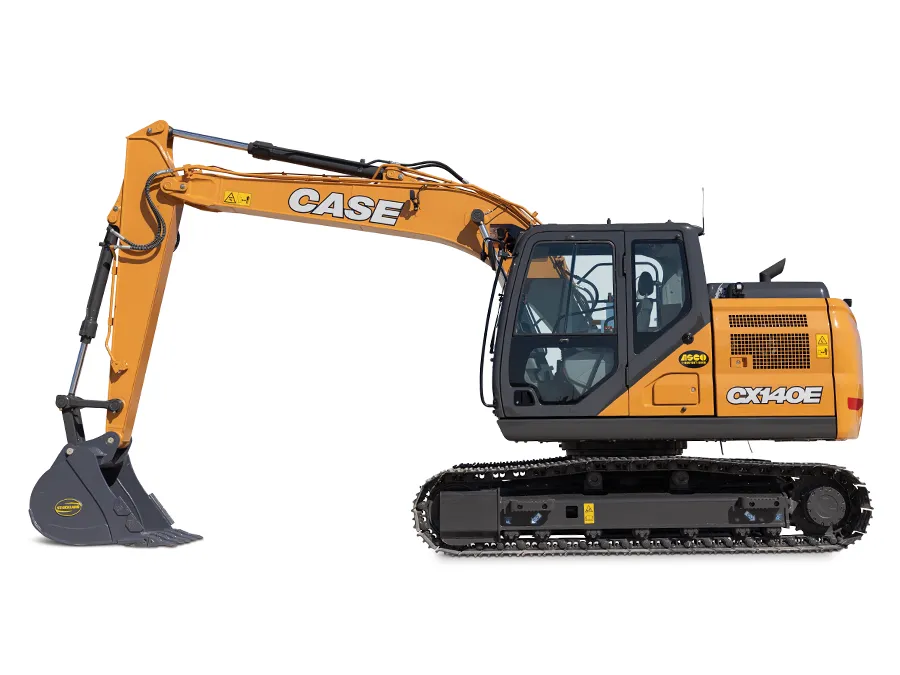

CASE CX140E Full-Size Excavator
Request more information:
The CASE CX140E Full-Size Excavator is the most compact model in the all-new CASE E Series lineup. It offers remarkable versatility and operator-centric enhancements for diverse job sites.
BROCHURE: CCE-Excavator-Brochure-CCE202209EXCAVATORS
SPECS: CCE202209-CX140ELC
DOZER BLADE SPECS: CCE202209-CX140EDZ
CASE CX140E Full-Size Excavator
The CASE CX140E Full-Size Excavator is the most compact model in the all-new CASE E Series lineup. It offers remarkable versatility and operator-centric enhancements for diverse job sites.
CX140E Features
A Whole New Command Center:
- Innovative Display: The CX140E features a massive 10-inch LCD display, serving as the hub for machine data, controls, and camera views, including rear, side view, and Max View™ perspectives.
- Customization: Operators can personalize their view and access to controls, enhancing job site awareness and operational efficiency.
- New Operating Modes: Four new modes with up to 10 throttle settings enable precise performance adjustments, with Eco mode potentially reducing fuel consumption by up to 18%.
Even More Hydraulic Control:
- Hydraulic Flow Control Balance: This feature allows operators to prioritize hydraulic flow for specific movements, tailoring the excavator’s responsiveness to the operator’s preferences and task requirements.
A Powerful Attachment Platform:
- Attachment Management: The CX140E allows for extensive customization and storage of numerous attachments within the LCD monitor, optimizing attachment performance and preventing potential damage by ensuring appropriate flow and power levels.
Even More Engine Power:
- Enhanced FPT Industrial Engines: The new engines in the E Series excavators deliver increased torque, horsepower, and fuel efficiency. Coupled with simplified emissions and extended service intervals, they make the CX140E both powerful and economical.
Precision Solutions Directly from CASE:
- OEM-Fit 2D and 3D Machine Control: CASE-certified precision specialists ensure the optimal integration of semi-automatic machine control solutions, enhancing the excavator’s functionality and resale value.
Improve Uptime with Collaborative Fleet Management:
- Advanced Connectivity: With the SiteConnect Module and SiteManager App, real-time machine diagnostics and telematics data enhance fleet management, maintenance, and collaboration between equipment owners, dealers, and CASE.
Protected by CASE ProCare:
- The CX140E comes with the assurance of CASE ProCare, offering a comprehensive support package that includes a full-machine factory warranty, a planned maintenance contract, and a CASE SiteWatch™ telematics subscription, ensuring controlled owning and operating expenses.
CX140E Standard Equipment
Engine and Fuel Economy Systems:
- FPT NEF4 Engine: Equipped with a four-cylinder turbocharged diesel engine featuring advanced systems such as Selective Catalytic Reduction on Filter (SCRoF) and a high-pressure common rail system for optimal performance.
- Tier 4 Final/Stage V Certification: Ensures compliance with stringent emissions regulations while maintaining high efficiency and performance.
- Fuel Economy Systems: Includes an Engine Idle/Fuel Economy System with auto-idle, one-touch idle, and timed engine shut down, along with Boom Economy Control (BEC), Auto Economy Control (AEC), Swing Relief Control (SWC), and Spool Stroke Control (SSC) to optimize fuel usage.
Upper Structure and Hydraulics:
- Robust Construction: The upper structure is equipped with ISO mirrors, cab ISO mounts, an upper-mounted work light, and a swivel guard belly pan, providing durability and operational ease.
- Advanced Hydraulics: Features a pilot pressure control system with customizable work and travel modes, attachment cushion control, and customizable flow balance adjustment for precise operational control.
Attachments and Operator Environment:
- Versatile Attachments: It comes with a 15 ft 2 in boom, an 8 ft 2 in arm, and heavy-duty bucket linkage, supported by centralized grease fittings and an attachment cushion valve for efficient handling of various tasks.
- Ergonomic Operator Environment: The operator’s cab is designed for comfort and efficiency. It features a 10-inch full-color LCD monitor, auto climate control, an air-suspension operator’s seat with numerous adjustments, and integrated rear and right-side view cameras for enhanced safety and situational awareness.
Telematics:
- CASE SiteWatch™ Telematics: This system provides a 3-year advanced data subscription, enabling 2-way communication for improved machine management, maintenance scheduling, and operational efficiency.
CX140E Optional Equipment
Engine:
- Refueling Pump: Ensures convenient and efficient refueling operations.
- Air Pre-cleaner – Cyclone: Enhances engine longevity by pre-cleaning the intake air.
- High Ambient Temperature Cooling Package: Optimizes performance in high-temperature environments.
Hydraulics:
- Auxiliary Hydraulics: Features proportionally controlled secondary low-flow auxiliary hydraulics for versatile attachment operation.
- Hose Burst Check Valve (HBCV): Adds an extra layer of safety, preventing potential attachment drops in case of a hydraulic hose burst.
Machine Control:
- Leica iCON iXE2 – 2D System: Offers precise 2D machine control for enhanced operational accuracy and efficiency.
- Leica iCON iXE3 – 3D System: Provides advanced 3D machine control, further improving precision in complex projects.
Attachments:
- Arms: Options include a heavy-duty arm (6 ft 11 in) and a long arm (9 ft 11 in) for increased reach and digging capabilities.
- Quick Coupler/Case Multi-pin Grabber: Facilitates quick and easy attachment changes, boosting job site productivity.
- Tools: A wide range of tools, including heavy-duty/extreme-duty/ditching buckets, hammers, thumbs, and compaction plates, expand the excavator’s utility.
Upper Structure:
- Rubber Bumper Guard: Available through Service Parts for additional protection against impacts.
Undercarriage:
- Rubber Link Chain and Steel Shoes: Includes a 19.7-inch rubber link chain with bolt-on rubber pads and 27.6-inch steel shoes for adaptability to various terrains.
- Double Track Chain Guides: Enhance track stability and longevity.
Operator Environment:
- FOPS Cab Top Guard – Level 2: Offers protection against falling objects.
- Front Guards: Includes front grill guard and front rock guard options for enhanced protection.
- Vandal Guard: Secures the front window against unauthorized access.
- Max View Monitor: Provides a 270-degree view with three cameras for unparalleled job site visibility.
- LED Package: Equips the excavator with 8 LED lights strategically placed for optimal illumination.
CX140E Specs
| Specification Category | Details |
|---|---|
| ENGINE | |
| Model | FPT NEF4 |
| Emissions Certification | Tier 4 Final/Stage V |
| Fuel Requirements | Ultra-low sulfur fuel, B5 biodiesel tolerant |
| Type | Water-cooled, 4-cycle diesel, 4-cylinder in-line, high pressure common rail system with electric control, fixed geometry turbocharger with air-cooled intercooler, ATS, EGR-free |
| Cylinders | 4-cylinder in-line |
| Displacement | 274 in³ (4.49 L) |
| Bore/Stroke | 4.09 x 5.2 in (104 x 132 mm) |
| Fuel Injection | High pressure common rail system – electronic |
| Fuel Filter | Replaceable, full flow spin-on cartridge |
| Air Filter | Dry type dual element with warning restriction indicator |
| Oil Filter | Replaceable, full flow spin-on cartridge |
| Engine Gradeability | Side-to-side 35°, Fore and aft 35° |
| Net Horsepower @ 2000 RPM | 102 hp (76.4 kW) – SAE J1349 |
| Net Max. Torque @ 1800 RPM | 273 lbf·ft (370 N·m) – SAE J1349 |
| Cooling Operating Range | 109° to -13°F (43° to -25°C) |
| Oil | Requires low-ash oil CJ-4 |
| DRIVETRAIN | |
| Travel Control | Dual stage relief/counter balance design |
| Brakes | Mechanical disc |
| Two Speed Travel | Max. high speed 3.5 mph (5.7 km/h), Max. low speed 2.1 mph (3.4 km/h) |
| Automatic Downshift | Yes |
| Drawbar Pull | 26,300 lbf (117 kN) |
| Gradeability | 70% – 35° Slope |
| ELECTRICAL | |
| Voltage | 24 Volts |
| Alternator Rating | 90 amp |
| Batteries | 2 x 12 Volt |
| Battery Reserve Capacity | 72 Ah/5 hour |
| Work Lights | 4 x 24 Volt/70 watt (1 boom, 1 upper, 2 cab) |
CX140E Dimensions
| Dimension | 8 ft 2 in (2.50 m) Arm | 9 ft 10 in (3.01 m) Arm | 6 ft 11 in (2.11 m) Arm |
|---|---|---|---|
| A. Overall Height | 9 ft 1 in (2,760 mm) | 9 ft 0 in (2,740 mm) | 8 ft 9 in (2,670 mm) |
| B. Cab Height | 9 ft 3 in (2,830 mm) | 9 ft 3 in (2,830 mm) | 9 ft 3 in (2,830 mm) |
| C. Overall Length with Attachment | 25 ft 3 in (7,660 mm) | 25 ft 3 in (7,660 mm) | 25 ft 3 in (7,660 mm) |
| D. Overall Length without Attachment | 13 ft 3 in (4,050 mm) | 13 ft 3 in (4,050 mm) | 13 ft 3 in (4,050 mm) |
| E. Width of Upper Structure | 9 ft 2 in (2,800 mm) | 9 ft 2 in (2,800 mm) | 9 ft 2 in (2,800 mm) |
| F. Track Overall Length | 12 ft 4 in (3,760 mm) | 12 ft 4 in (3,760 mm) | 12 ft 4 in (3,760 mm) |
| G. Track Overall Width with 23.6 in Shoes | 8 ft 6 in (2,590 mm) | 8 ft 6 in (2,590 mm) | 8 ft 6 in (2,590 mm) |
| H. Track Shoe Width | 2 ft 0 in (600 mm) | 2 ft 0 in (600 mm) | 2 ft 0 in (600 mm) |
| I. Center to Center – Idler to Sprocket | 10 ft 0 in (3,040 mm) | 10 ft 0 in (3,040 mm) | 10 ft 0 in (3,040 mm) |
| J. Upper Structure Ground Clearance | 2 ft 11 in (900 mm) | 2 ft 11 in (900 mm) | 2 ft 11 in (900 mm) |
| K. Minimum Ground Clearance | 1 ft 5 in (420 mm) | 1 ft 5 in (420 mm) | 1 ft 5 in (420 mm) |
| L. Rear Tail Swing Radius | 7 ft 2 in (2,190 mm) | 7 ft 2 in (2,190 mm) | 7 ft 2 in (2,190 mm) |
Warranty
PROTECTED BY CASE PROCARE
Each CASE E Series excavator provides peace of mind and controlled owning and operating expenses with ProCare:
- Three-year, 3,000-hour full-machine factory warranty
- Three-year, 2,000-hour planned maintenance contract
- Three-year CASE SiteWatch™ telematics subscription
