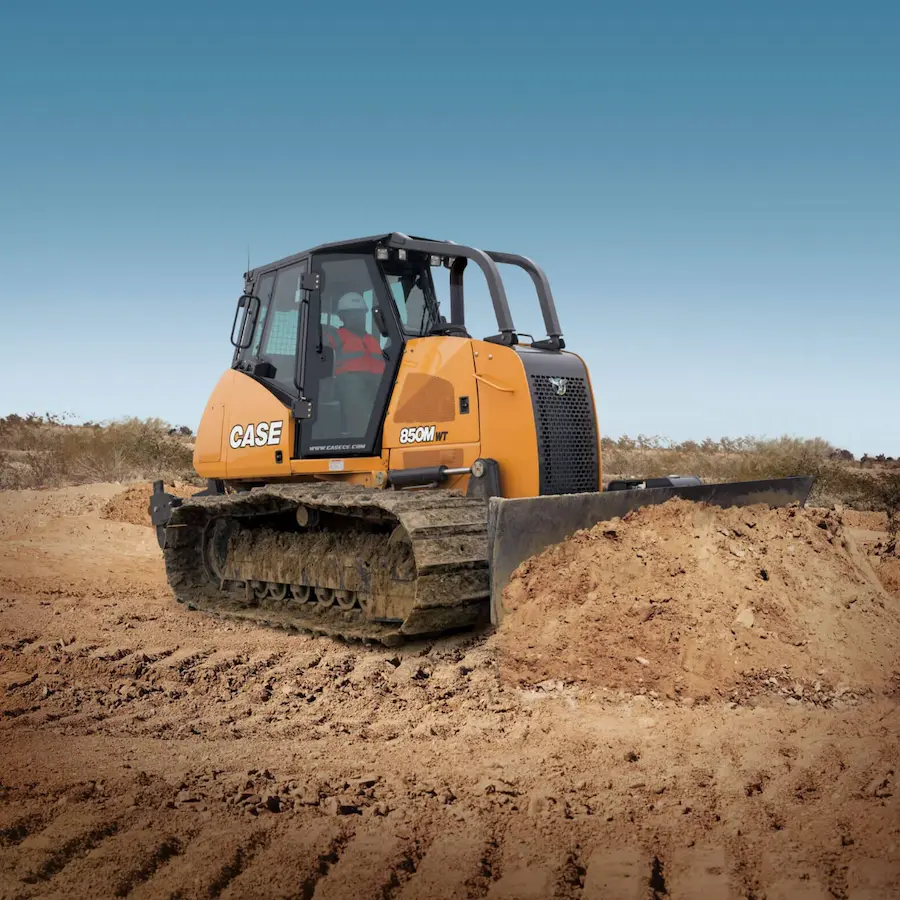

CASE 850M Dozer
Request more information:
The CASE 850M is a true powerhouse, capable of leveling any playing field with its best-in-class drawbar pull. This dozer puts a tremendous amount of power and productivity into your hands, ensuring you’re well-equipped for heavy-duty tasks. The new electro-hydraulic blade controls make managing this strength straightforward, allowing for precise and easy handling.
Enhanced by a load management system that adjusts the track speed based on the volume of dirt being moved, the 850M operates efficiently under varying loads. Industry-leading visibility ensures operators have a clear view down to the cutting edge, crucial for precision in grading and earthmoving tasks.
Horsepower: 120 hp | Operating Weight: 22,381 lb
BROCHURE: CASE M Series Dozers
SELL SHEET: CASE 850M Dozer

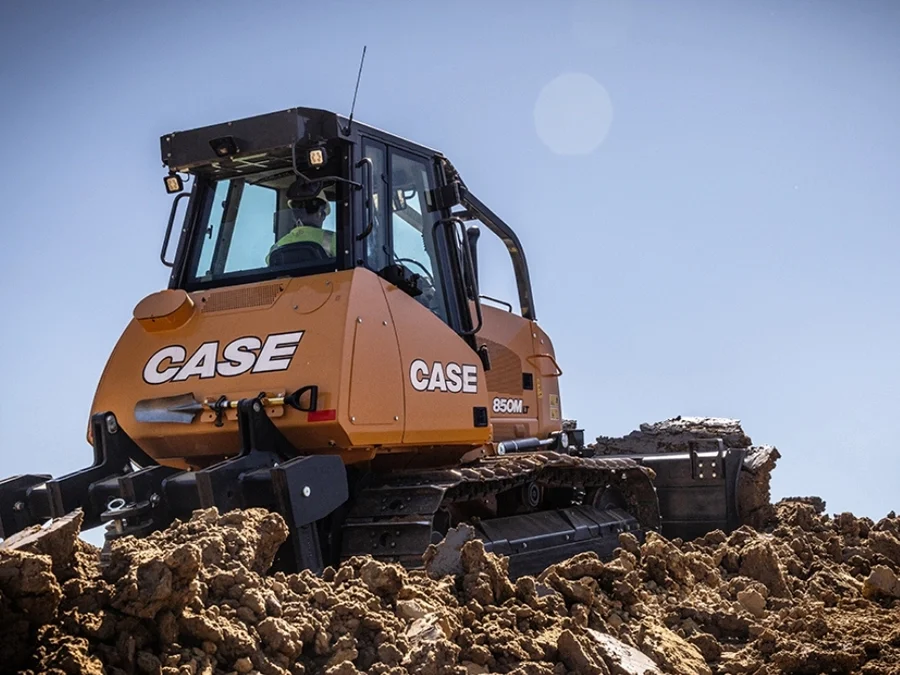

CASE 850M Dozer For Sale
For sale at Luby Equipment: CASE 850M Dozer
Horsepower: 120 hp | Operating Weight: 22,381 lb
The CASE 850M is a true powerhouse, capable of leveling any playing field with its best-in-class drawbar pull. This dozer puts a tremendous amount of power and productivity into your hands, ensuring you’re well-equipped for heavy-duty tasks. The new electro-hydraulic blade controls make managing this strength straightforward, allowing for precise and easy handling.
Enhanced by a load management system that adjusts the track speed based on the volume of dirt being moved, the 850M operates efficiently under varying loads. Industry-leading visibility ensures operators have a clear view down to the cutting edge, crucial for precision in grading and earthmoving tasks.
With numerous track and blade configurations available, the CASE 850M can be customized to tackle nearly any terrain or project requirement. Now available at Luby Equipment, this dozer is ready to take on your most challenging ground-moving tasks with unmatched power and versatility.
850M Features
New Blade Control Update & Product Enhancements:
- Enhanced Ergonomics: The updated electro-hydraulic blade controls feature an ergonomic joystick, minimizing operator fatigue and incorporating blade shake and fine-grade buttons for precise control.
- System Streamlining: The new blade control configuration reduces setup costs for machine control systems by eliminating the need for an additional EH valve, and redesigns of the electrical routings and hydraulic system boost the machine’s long-term reliability and serviceability.
- Standard Features: It comes equipped with premium LED lighting, a new rear-view camera, an undercarriage spade holder, and a Bluetooth radio for enhanced functionality and convenience.
Power and Productivity:
- Superior Performance: Boasts best-in-class horsepower and drawbar pull, ensuring ample power and tractive effort for any job.
- Emissions Compliance: Meets emissions regulations with a selective catalytic reduction (SCR)-only system, focusing all productive power on the work at hand.
- Control Customization: Offers adjustable shuttle and steering sensitivity and features an advanced load monitoring system that automatically adjusts performance based on blade load, optimizing power and efficiency.
Operator Comfort and Jobsite Visibility:
- Exceptional Visibility: Industry-leading sight lines to the blade, tracks, and work area, complemented by extensive glass coverage from floor to ceiling for enhanced worksite awareness.
- Comfortable Work Environment: The positive-pressure cab with advanced sealing keeps out dirt, dust, and noise, providing one of the lowest sound ratings in the industry. An isolated design reduces cab vibration.
Ease of Maintenance and Service:
- Serviceability: Features easy access to grouped service points, and enhanced CASE SiteWatch™ telematics offer insights into machine performance and maintenance needs, helping to maximize uptime.
Protected by CASE ProCare:
- Comprehensive Coverage: Includes a three-year, 3,000-hour full-machine factory warranty, a three-year, 2,000-hour planned maintenance contract, and a three-year advanced CASE SiteWatch™ telematics subscription for peace of mind and controlled expenses.
850M Standard Equipment
Operator Environment:
- ROPS Canopy: Isolation-mounted for reduced vibration, it has an optional fully enclosed ROPS cab for enhanced comfort and safety.
- Control: Single lever control integrates speed, steering, and direction, simplifying operations.
- Seating: A vinyl mechanical suspension seat that tilts for easy access, with an option for a cloth air suspension seat featuring back adjustment.
- Visibility and Convenience: Equipped with rearview mirrors, a dome light, two-door windshield wipers, a rear wiper, and a 12-volt accessory outlet.
- Communications: Bluetooth radio for seamless connectivity, alongside comprehensive warning lights and gauges for machine monitoring.
Engine:
- Powerplant: The F4HFE413P*A008 engine, Tier 4 Final certified, employs DOC and SCR technology for reduced emissions without compromising power.
- Efficiency Features: Includes an automatic fan belt tensioner, integral engine oil cooling, and coolant-heated DEF lines for reliable performance in cold temperatures.
Drivetrain:
- Advanced Control: Features dual path, infinitely variable hydrostatic drive with electronic straight tracking, power turns, and counter-rotation for precision maneuvering.
- Final Drive: Triple reduction with a helical gear/planetary decelerator ensures robust power delivery and durability.
Blade:
- Versatility: Offers 52° – 60° variable pitch with single lever electro-hydraulic control for precise blade manipulation.
Undercarriage:
- Durability: Equipped with hydraulic track adjusters, sealed and lubricated track chains (SALT), and heavy-duty components for extended service life in harsh conditions.
Safety and Utility:
- Enhanced Safety: Features a backup alarm, horn, premium LED work lights for improved visibility, and a master disconnect switch for electrical safety.
- Additional Features: Includes a front pull hook, drawbar, sweeps, and a 4-spool hydraulic valve for ripper installation, enhancing the dozer’s versatility and functionality.
Telematics and ProCare:
- CASE SiteWatch™ Telematics: Offers a 5-year advanced data subscription for insightful machine performance monitoring.
- ProCare Protection: Includes a comprehensive factory warranty, planned maintenance contract, and telematics support, ensuring peace of mind and controlled operating costs.
850M Optional Equipment
Rear Mounted Equipment:
- Ripper: Comes with five positions and three shanks, ideal for breaking up hard material or rocky soil.
- Hydraulic Pump with PTO: Adds versatility for running various hydraulic attachments.
- Drawbar: Provides added utility for towing and moving equipment around the jobsite.
Blade Options:
- Blade Sizes: To suit your project’s specific needs, choose from 104 in (2.64 m) LT, 112 in (2.86 m) LT/WT/LGP, or 124 in (3.16 m) WT/LGP.
- Precision Control: Enhance grading accuracy with options like Factory Fit CoPilot, 2D Laser, and 3D GNSS systems, as well as Universal Blade Guidance Ready for advanced blade control.
Protective Screens:
- Radiator Brush Screen: Keeps debris from clogging the radiator, maintaining optimal cooling efficiency.
- ROPS Side Screen: Offers additional protection for the operator in environments with potential falling debris.
- ROPS/Cab Rear Screen: Further enhances operator safety and comfort.
Additional Enhancements:
- Case Max-Life Track: Designed for extended undercarriage life in the harshest conditions.
- Front Counterweight: Improves machine balance and stability when handling heavy loads or when equipped with rear-mounted equipment.
- Severe Cold Weather Package: Ensures reliable operation in freezing temperatures, featuring enhancements like coolant heated DEF lines and optional heated components.
- Rear-view Camera (Cab only): Enhances visibility behind the machine, improving safety and operational efficiency.
850M Engine Specs
| Engine Specification | Detail |
|---|---|
| Model | FPT F4HFE413P*A008 |
| Emissions Certification | Tier 4 Final Certified |
| Cylinders | 4 |
| Displacement | 275 in³ (4.5 L) |
| Fuel Injection | Common rail |
| Fuel Type | #2 Diesel |
| Fuel Filter | Spin-on with in-line strainer |
| Air Intake | Cross-flow |
| Cooling | Liquid |
| Engine Speeds (RPM) | High idle – no load: 2000, Rated – full load: 2000 +/- 50, Low idle: 1100 +/- 25 |
| Horsepower @ 2000 RPM – SAE J1349 | Net: 112 hp (84 kW), Gross: 120 hp (90 kW) |
| Engine Lubrication | Deep sump plate cooler with pressurized under-piston nozzles |
| Pump Operating Angle Ratings | Side-to-side: 35°, Fore and aft: 45° |
| Oil Filtration | Replaceable, spin-on full-flow cartridge |
| Radiator Fins Per Inch | 8.5 |
| Fan Diameter | 21.6 in (550 mm) |
| Fan Ratio | 1.1:1 |
850M Dimensions
| Dimension | Long Track (LT) | Wide Track (WT) 1 | Wide Track (WT) 2 | Low Ground Pressure (LGP) 1 | Low Ground Pressure (LGP) 2 |
|---|---|---|---|---|---|
| Blade Width | 104 in (2,640 mm) | 112 in (2,845 mm) | 112 in (2,845 mm) | 124 in (3,150 mm) | 124 in (3,150 mm) |
| SAE Blade Capacity | 2.16 yd³ (1.65 m³) | 2.35 yd³ (1.80 m³) | 2.35 yd³ (1.80 m³) | 2.62 yd³ (2.00 m³) | 2.62 yd³ (2.00 m³) |
| A. Blade Height | 36.0 in (910 mm) | 36.0 in (910 mm) | 36.0 in (910 mm) | 36.0 in (910 mm) | 36.0 in (910 mm) |
| B. Blade Lift Above Ground | 34.0 in (864 mm) | 34.0 in (864 mm) | 34.0 in (864 mm) | 34.0 in (864 mm) | 34.0 in (864 mm) |
| C. Blade Depth Below Ground | 19.2 in (488 mm) | 19.2 in (488 mm) | 19.2 in (488 mm) | 19.2 in (488 mm) | 19.2 in (488 mm) |
| Blade Angle Both Directions | 25° | 25° | 25° | 25° | 25° |
| D. Cast Reach | -0.7 in (-17.3 mm) | 3.4 in (86.3 mm) | -2.6 in (-66.5 mm) | 15.8 in (401.1 mm) | 0.6 in (14.9 mm) |
| E. Cut Reach | 12.5 in (318.1 mm) | 16.5 in (418.2 mm) | 10.5 in (265.7 mm) | 4.6 in (67.4 mm) | 13.9 in (352.0 mm) |
| Blade Tilt, Each End (+/- 9.4°) | 8.32 in (211 mm) | 9.04 in (230 mm) | 9.04 in (230 mm) | 9.98 in (253 mm) | 9.98 in (253 mm) |
| Track Gauge | 62.0 in (1.57 m) | 62.0 in (1.57 m) | 70.0 in (1.78 m) | 70.0 in (1.78 m) | 70.0 in (1.78 m) |
| Maximum Shoe Width | 20.0 in (508 mm) | 20.0 in (508 mm) | 24.0 in (610 mm) | 24.0 in (610 mm) | 28.0 in (711 mm) |
| F. Length of Track on Ground | 93.1 in (2,365 mm) | 93.1 in (2,365 mm) | 93.1 in (2,365 mm) | 93.1 in (2,365 mm) | 93.1 in (2,365 mm) |
| Area of Track on Ground | 3,724 in² (2.4 m²) | 3,724 in² (2.4 m²) | 4,472 in² (2.89 m²) | 4,472 in² (2.89 m²) | 5,213 in² (3.36 m²) |
| Ground Pressure | 5.3 psi (0.37 bar) | 5.3 psi (0.37 bar) | 4.5 psi (0.31 bar) | 4.5 psi (0.31 bar) | 4.0 psi (0.28 bar) |
| G. Height to Top of Cab | 9 ft 1 in (2,766 mm) | 9 ft 1 in (2,766 mm) | 9 ft 1 in (2,766 mm) | 9 ft 1 in (2,766 mm) | 9 ft 1 in (2,766 mm) |
| H. Ground Clearance | 14.4 in (366 mm) | 14.4 in (366 mm) | 14.4 in (366 mm) | 14.4 in (366 mm) | 14.4 in (366 mm) |
| Length (Blade Straight with Drawbar) | 14 ft 9 in (4,567 mm) | 14 ft 9 in (4,567 mm) | 14 ft 9 in (4,567 mm) | 14 ft 9 in (4,567 mm) | 14 ft 9 in (4,567 mm) |
| I. Blade Straight with Ripper | 17 ft 4 in (5,277 mm) | 17 ft 4 in (5,277 mm) | 17 ft 4 in (5,277 mm) | 17 ft 4 in (5,277 mm) | 17 ft 4 in (5,277 mm) |
| Width (J. Blade Straight) | 8 ft 8 in (2,642 mm) | 9 ft 4 in (2,845 mm) | 9 ft 4 in (2,845 mm) | 10 ft 4 in (3,150 mm) | 10 ft 4 in (3,150 mm) |
| Blade Angled (Transport Width) | 8 ft 0 in (2,440 mm) | 8 ft 8 in (2,643 mm) | 8 ft 8 in (2,653 mm) | 9 ft 7 in (2,911 mm) | 9 ft 7 in (2,911 mm) |
| K. Over Track | 6 ft 9 in (2,065 mm) | 6 ft 10 in (2,083 mm) | 7 ft 7 in (2,320 mm) | 7 ft 10 in (2,388 mm) | 8 ft 2 in (2,489 mm) |
Warranty
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders
See your CASE dealer for model availability and timing
Additional information
| Condition | New |
|---|
