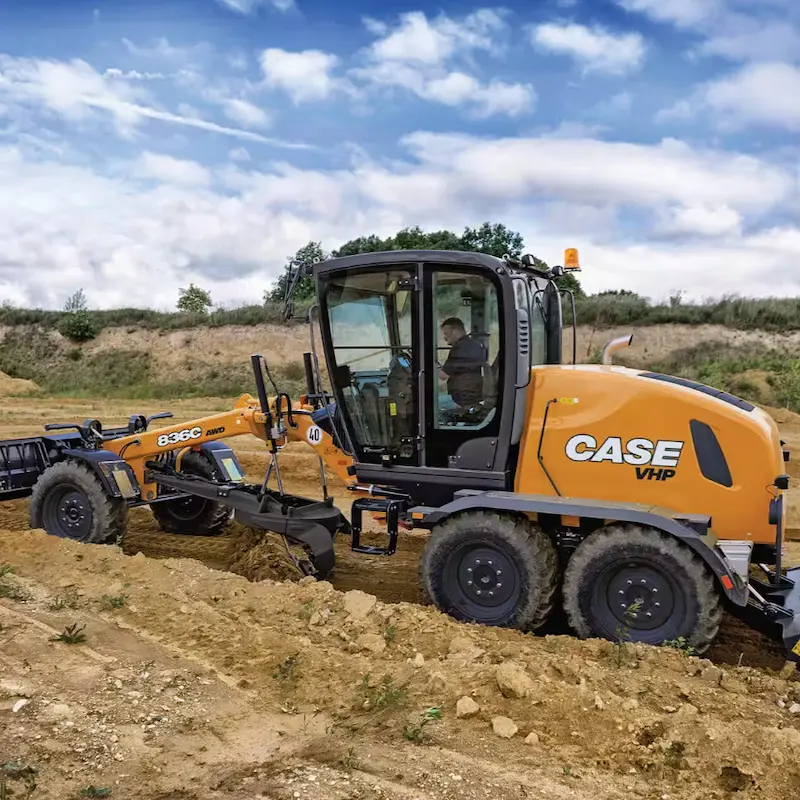

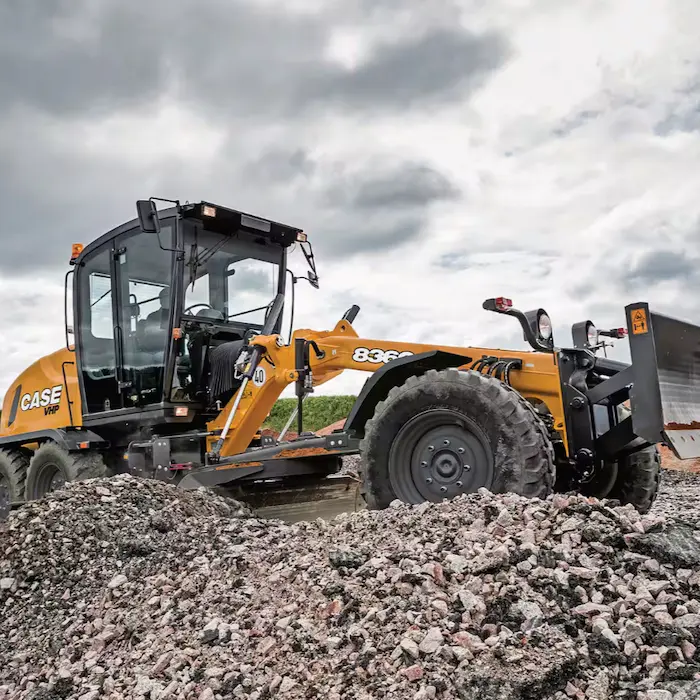

CASE 836C Motor Grader
The CASE 836C Motor Grader is a versatile and powerful machine designed for grading applications. From residential site preparation and snow removal to municipality work, the CASE 836C combines efficiency, precision, and advanced technology to deliver outstanding performance.
836C Features
Purpose-Built Performance:
Operational simplicity and safety are at the heart of CASE 836C’s design, ensuring operators can concentrate on precise work without compromise. The machine features:
- Ergopower Transmission and Torque Converter: Ensures smooth, automatic shifting for optimal control and performance.
- Hydraulic Differential Lock with Auto Power Splitting: This innovative system automatically redirects torque from slipping tires to those with grip, enhancing traction and stability.
- Exclusive A-Frame Drawbar Design: Offers exceptional machine stability and durability.
- Adaptable Moldboard: The high-carbon steel moldboard, which can pitch, tilt, and move laterally, is mounted on a sliding mechanism, allowing for versatile positioning to meet various job demands.
Innovative and Efficient Emissions:
The CASE 836C meets stringent Tier 4 Final emissions standards with a combination of FPT catalyst and filter solutions. The Automatic Catalyst Management (ACM) system operates seamlessly, ensuring emissions management does not impact machine performance.
CASE Comfort & Visibility:
The operator’s environment in the CASE 836C is designed with comfort and visibility as priorities:
- Spacious ROPS/FOPS Cab: This cab is equipped with a heated air-ride seat, AM/FM radio, and ergonomic controls for operator comfort.
- Superior Sightlines: The rear-mounted cab design and expansive windows provide an excellent view of the moldboard and surrounding area.
- Additional Visibility Features: Options like tinted safety glass, sun shields, a rearview camera with a 7-inch LCD monitor, and an advanced lighting package enhance visibility and safety on the job site.
Simple Serviceability:
Maintenance of the CASE 836C is straightforward and accessible:
- Easy Access to Engine Components: The engine hood hydraulically lifts with a simple lever pull, providing clear access to filters and key engine components.
- Convenient Maintenance Checkpoints: All checkpoints are strategically located at ground or fender level for easy daily maintenance routines.
- Optional Automatic Lubrication System: This system simplifies the maintenance process, ensuring the machine is properly cared for with minimal effort.
Protected by CASE ProCare:
Owners of the CASE 836C Motor Grader benefit from the peace of mind provided by CASE ProCare, which includes:
- Three years of predictable maintenance costs.
- Comprehensive SiteWatch™ Telematics to monitor and manage machine performance and health.
836C Standard Equipment
Operator Environment
- ROPS/FOPS Cab: Compliant with SAE J231 and ISO 3449, featuring full-swing doors, tinted safety glass, and sun shields.
- Adjustable Operator’s Console: Hydraulic control levers, steering wheel, and indicator lights for comfortable operation.
- Comfort Features: Air suspension seat with movable armrests, dome light, interior and exterior mirrors, cup holder, storage tray, and more.
- Climate Control: Heater, defroster, and pressurizer to maintain a comfortable cab environment.
- Entertainment and Utility: Delphi AM/FM radio with CD, 12-volt outlet for electronics, and steps for easy cab access.
Engine
- FPT NEF 6-Cylinder Engine: Turbocharged diesel engine, Tier 4 Final Certified with SCR exhaust treatment.
- Advanced Cooling: Temperature-controlled cooling fan and hydraulic-driven cooling fan with variable speed.
Drivetrain
- Transmission: Powershift with six forward and three reverse speeds, hydraulic differential lock, and immobilization disc brake.
- Braking and Steering: Hydraulic dual-circuit brake system and hydrostatic power steering for precision control.
Hydraulics
- System: Closed center, load sensing with a 10-section control valve for smooth operation of all functions.
- Moldboard: Hydraulic side shift, pitch, and 5-position saddle for versatile grading tasks.
- Oscillating Axles: Front axle with hydraulic lean and tandem axle with automatic no-spin differential for enhanced maneuverability.
Tires
- Standard Tires: 405/70 R20 SPT9 Dunlop, ensuring reliable traction and durability.
Instruments and Monitoring
- Analog Displays: Fuel level, engine coolant, transmission oil, and hydraulic oil temperatures.
- Monitor Functions: Comprehensive diagnostics, including engine speed, travel speed, gear selection, fuel consumption, and more.
Electrical System
- Batteries and Lighting: Equipped with heavy-duty batteries, an electronic systems monitor, and a full suite of lighting, including headlights, turn signals, and flood lights.
Additional Features
- Counterweights and Fenders: Front and rear counterweights and fenders for stability and protection.
- Maintenance-Free Components: Drive shaft, rear ripper, and dozer components are designed for longevity and reduced downtime.
Telematics
- CASE SiteWatch™: Includes hardware and a 3-year Advanced data subscription for comprehensive machine monitoring and management.
836C Optional Equipment
Moldboards Options:
- Sizes: Available in 8 ft x 20.7 in (2,440 x 526 mm) and 10 ft x 20.7 in (3,050 x 526 mm) with a single radius curve for precise grading.
- Extensions: 2 ft (610 mm) extensions for increased blade width and coverage.
- Control Features: Front Float Control, Moldboard Float Control with Hydraforce technology, and accumulators for lift cylinder/side shift to enhance grading accuracy and reduce rework.
- Additional Options: Moldboard with overload clutch and side plates for increased durability and versatility in various grading tasks.
Operator Environment Enhancements:
- Comfort and Visibility: Options include openable front windows with rear defroster, lower front wipers/washers, rear windshield washer, and air conditioning for operator comfort.
- Seating: An air suspension seat, heated with movable armrests, ensures operator comfort during long working hours.
- Low Profile Cab: Designed for applications with height restrictions.
Hydraulic System Customization:
- Rear Ripper Predisposition: For easy installation of rear ripper attachments.
- Eco-Friendly Option: Environment-friendly hydraulic oil panolin for sustainable operation.
Tires:
- Variety of Sizes and Brands: Options include 420/75 R20 XMCL TL Michelin, 455/70 R20, and 405/70 R24 SPT9 Dunlop tires to suit different terrains and applications.
Electrical Enhancements:
- Lighting: Additional working lights at various points, including the front, moldboard, articulation, and rear, for improved visibility. Snow wing lighting package, backup alarm, and beacon are also available for enhanced safety and functionality.
Other Options:
- Practical Features: Bidirectional engine cooling fan, cold weather package, fire extinguisher, strobe light, and toolboxes (standard or deluxe) for increased utility and preparedness.
- Convenience: Tire inflator kit, spare wheel with support, slow-moving vehicle sign, rear pull hook, and on-road equipment for operational efficiency and compliance.
Attachments and Speed Limitations:
- Versatile Attachments: Front pull hook, front and rear counterweights, front dozer blade, moldboard scarifier and ripper, front push plate, and rear ripper with 3 or 5 teeth options for various tasks.
- Regulatory Compliance: Options for speed limitation at 20 km/h or 25 km/h for on-road use, ensuring adherence to local regulations.
836C Specs
| Specification Category | Details |
|---|---|
| Engine – VHP | |
| Model | F4HFE6133*B003 NEF 6 cyl. CR TAA 4V, Tier 4 Final, compliant with 97/68/EC standards |
| Type | 4-stroke, turbocharged and air-to-air cooled |
| Cylinders | 6-cylinder in-line |
| Bore/Stroke | 4.09 x 5.17 in (104 x 132 mm) |
| Displacement | 409 in³ (6.7 L) |
| Fuel | Diesel |
| Fuel Injection | Common Rail |
| Cooling | Liquid |
| Horsepower @ 2100 RPM – ISO 14396/ECE R120 | Gross: 193/205/220 hp (144/153/164 kW), Net: 137/154 hp (102/115 kW) |
| Maximum Torque @ 1400 RPM | 535 ft·lb (725 N·m) |
| Drivetrain | |
| Rear Axle | Graziano, planetary |
| Differential | Hydraulic lock, operator controlled |
| Inboard Brakes | Wet disc, 5 discs/brake, 2,225 in² (14,336 cm²) brake surface area |
| Tandems | Welded plate, 15° oscillation each way |
| Front Axle | High strength, welded steel, 15° oscillation each direction, 21.45° wheel lean left/right |
| Tires – Standard | 405/70 R20 SPT9 Dunlop |
| Rims | 1-piece, 13 in x 20 in (330.2 mm x 508 mm) |
| Transmission Type | Direct drive countershaft Powershift with electronic shift control and inching pedal |
| Pump Flow @ 2000 RPM | 22.4 gpm (85 L/min) |
| Sump | Integral |
| Speeds | 6 forward/3 reverse, Single lever bump style automatic electronic control, On-board diagnostics |
| Speeds – Forward/Reverse | 1st: 3.3/3.5 mph (5.4/5.7 km/h), 2nd: 5.2/8.3 mph (8.3/13.3 km/h), 3rd: 7.8/18.1 mph (12.6/29.2 km/h), 4th: 11.9 mph (19.2 km/h), 5th: 17.3 mph (27.9 km/h), 6th: 24.8 mph (39.9 km/h) |
| Electrical | |
| Voltage | 24 Volts, negative ground |
| Alternator | 90 amp |
| Batteries | 2 – Low-maintenance 1010 CCA – 100 Ah (20 hr rate) |
| Work Lights | Headlights – 2; Turn signals, front/rear; Stop/tail – 2; Rear mounted floods – 2; Front mounted floods – 2 |
| Backup Alarm | Optional |
836C Dimensions
| Dimension | 836C | 836C AWD |
|---|---|---|
| A. Blade Width | 11 ft 0 in (3,355 mm) | 11 ft 0 in (3,355 mm) |
| B. Distance Between Outside Edges of Tires | 7 ft 8 in (2,326 mm) | 7 ft 7 in (2,303 mm) |
| C. Wheel Tread – Rim 13 x 20 – One Piece Rim | 6 ft 4 in (1,923 mm) | 6 ft 3 in (1,900 mm) |
| D. Height to Top of Cab – Low Profile | 10 ft 1 in (3,060 mm) | 10 ft 1 in (3,060 mm) |
| E. Tire Radius – When Static | 1 ft 7 in (487 mm) | 1 ft 7 in (487 mm) |
| F. Blade Base | 6 ft 6 in (1,981 mm) | 6 ft 6 in (1,981 mm) |
| G. Distance Between Tandem Axles | 4 ft 1 in (1,241 mm) | 4 ft 1 in (1,241 mm) |
| H. Distance Between Tandem Center and Wheel | 2 ft 0 in (621 mm) | 2 ft 0 in (621 mm) |
| I. Wheelbase | 17 ft 7 in (5,351 mm) | 17 ft 7 in (5,351 mm) |
| J. Distance Between Tandem Center and Rear End | 5 ft 2 in (1,585 mm) | 5 ft 2 in (1,585 mm) |
| K. Distance Between Front Axle and Rear End | 22 ft 9 in (6,936 mm) | 22 ft 9 in (6,936 mm) |
| L. Overall Length – Without Ripper/Front Attach | 27 ft 4 in (8,372 mm) | 27 ft 4 in (8,372 mm) |
| M. Distance Between Rear Tires and Rear Ripper | 5 ft 4 in (1,625 mm) | 5 ft 4 in (1,625 mm) |
| N. Distance Between Front Tires and Front Dozer | 4 ft 8 in (1,424 mm) | 4 ft 8 in (1,424 mm) |
| Outside Tire Turning Radius | 21 ft 8 in (6,600 mm) | 22 ft 4 in (6,800 mm) |
| Ground Clearance – Rear Axle | 12.2 in (310 mm) | 12.2 in (310 mm) |
| Ground Clearance – Front Axle | 19.1 in (485 mm) | 19.1 in (485 mm) |
Warranty
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders.
See your CASE dealer for model availability and timing.
