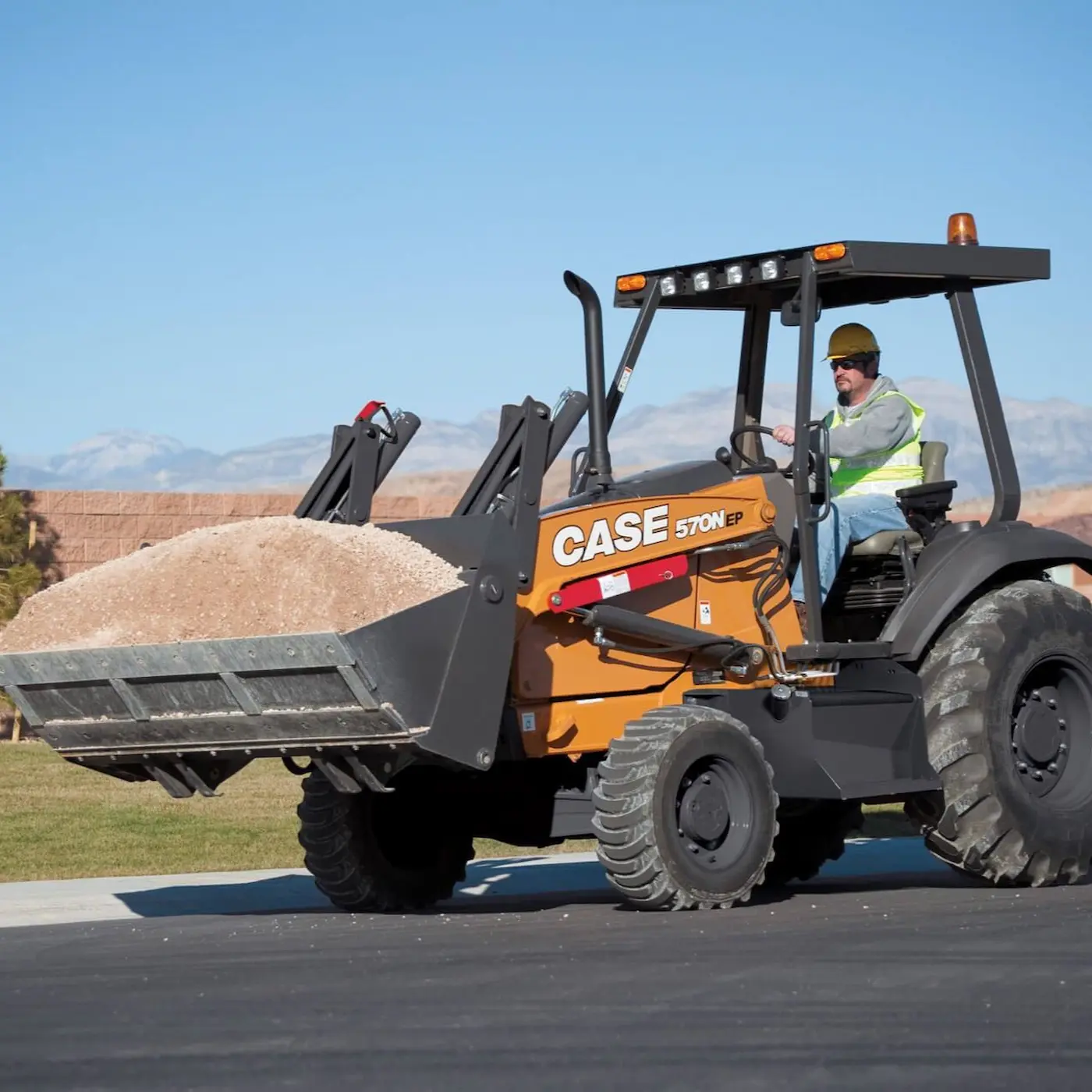

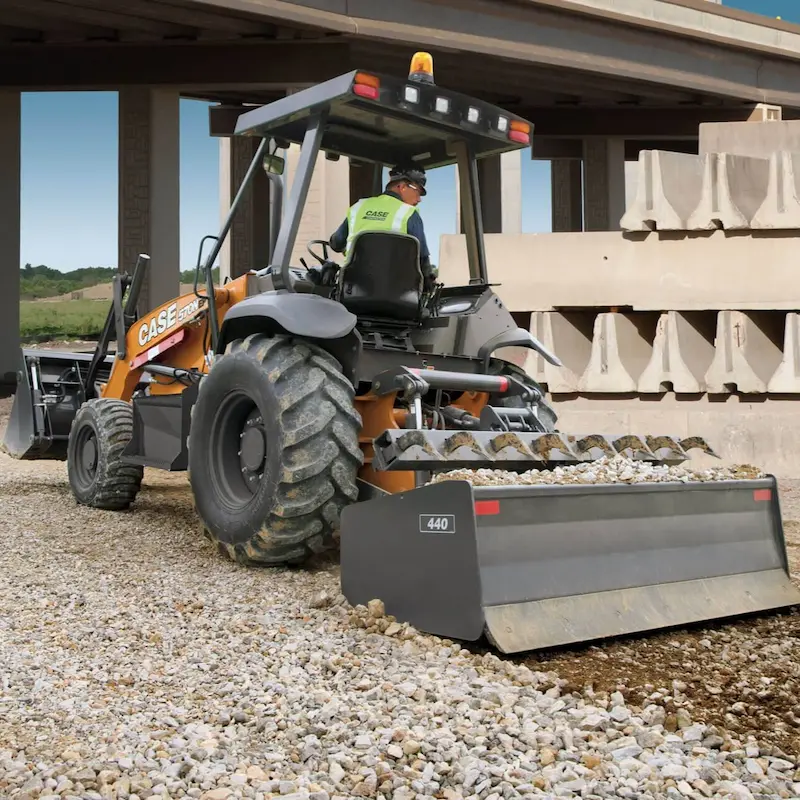

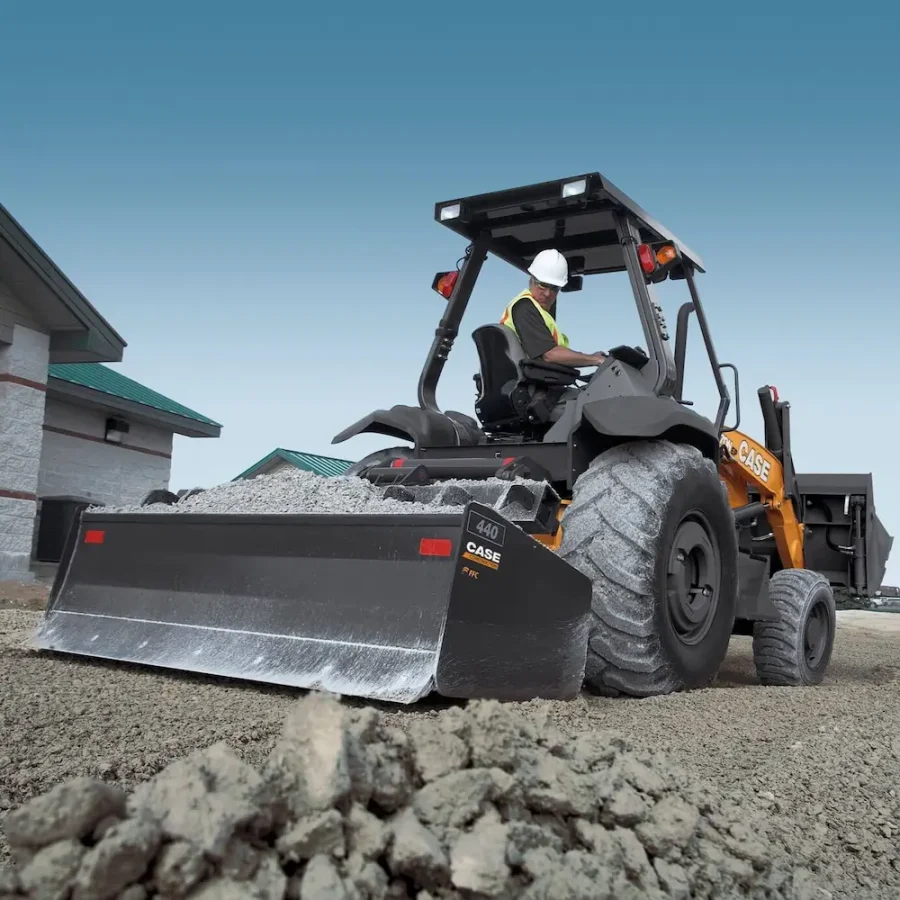

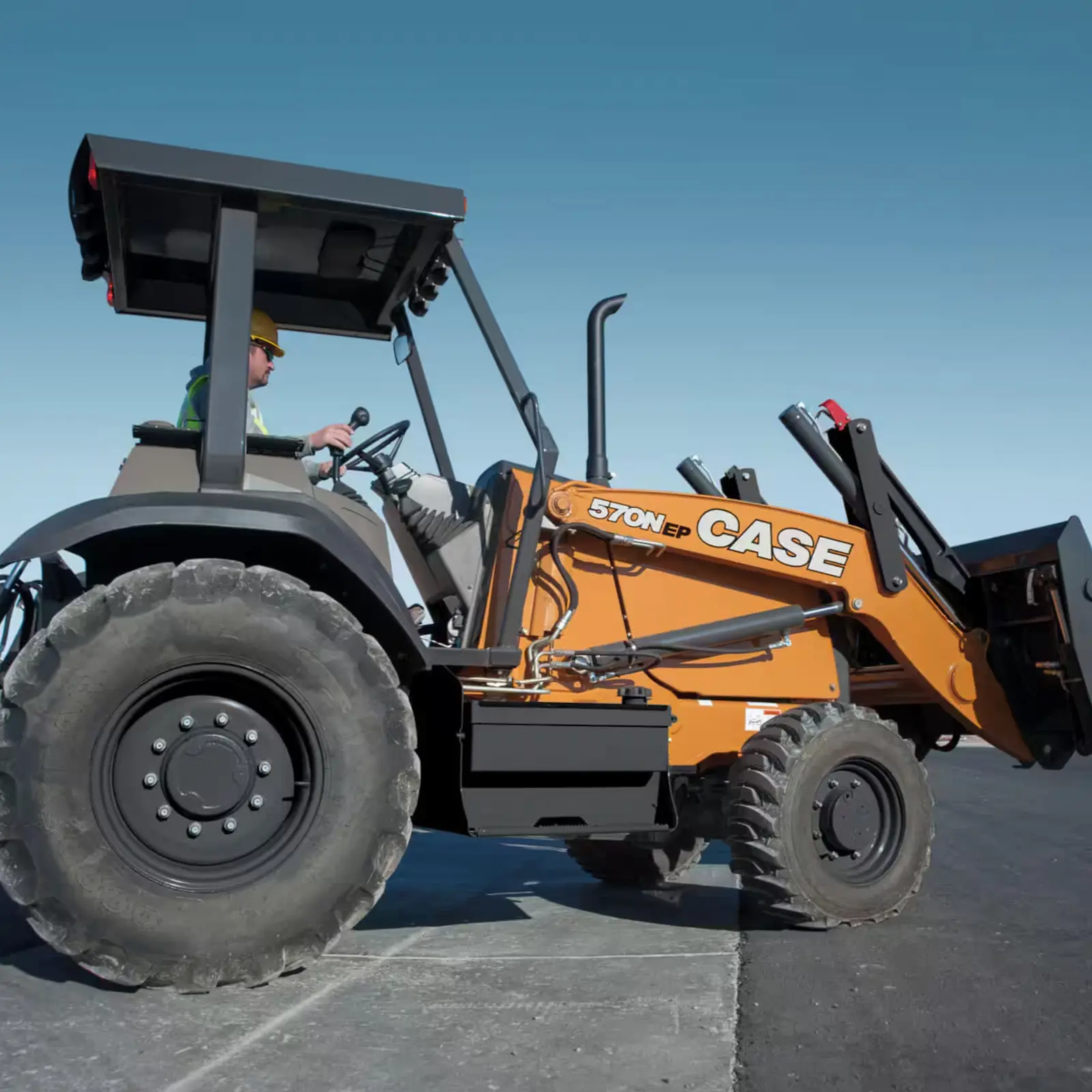

CASE 570N EP Tractor Loader
The Tier 4 Final CASE 570N EP tractor loader is a powerhouse of efficiency and versatility. It is designed to meet the needs of contractors with its impressive lifting strength, high ground speeds, and user-friendly features. This cost-effective skip loader is not only easy to own but also incredibly easy to operate.
570N EP Features
Powerful Lifting Capability:
- Robust Lifting Strength: With a full-height lifting capacity of 6,503 lb., the 570N EP offers over three tons of lifting power, enabling efficient movement, loading, and stocking of various materials.
- Durable Loader Arms: Features heavy-duty in-line parallel linkage, solid thru-pin design, and dual bucket cylinders for faster cycles and minimal spillage, enhancing productivity and efficiency.
Tier 4 Final Emissions Compliance:
- Simple Emissions Solution: This solution utilizes a Diesel Oxidation Catalyst (DOC) to meet stringent emissions standards, requiring no additional fluids, particulate filter replacements, or fuel-burning regeneration processes.
Enhanced Operator Comfort:
- Comfort Steer Option: Reduces lock-to-lock steering wheel rotations in half in low gears, significantly increasing work speed and reducing operator fatigue.
- Ride Control: A push-button loader arm stabilization feature that reduces bucket bounce at speeds up to 24 mph, ensuring a smoother ride and preventing material spillage.
Optimal Visibility and Control:
- Three-Position Swivel Seat: Allows easy viewing of rear-facing attachments with pivots of 15° and 30° to the right, keeping all controls within comfortable reach.
- Exceptional Visibility: Fender cutaways and a low-profile hood design, along with an optional low-profile canopy, offer outstanding bucket visibility throughout the entire dump cycle.
Versatile Attachment Options:
- Multiple Attachments: It is available with a rear 540-RPM PTO or 3-point hitch and a hydraulic front quick coupler for enhanced versatility and adaptability to various tasks.
Ease of Maintenance:
- Simplified Serviceability: This model features accessible maintenance points under a flip-up hood, swing-out coolers, spin-on filters, and easily serviced axles, embodying CASE’s commitment to hassle-free maintenance.
570N EP Standard Equipment
Engine and Performance:
- Engine: Powered by an FPT 3.4 L diesel engine, featuring Cooled EGR and a Diesel Oxidation Catalyst for cleaner emissions.
- Efficiency: Comes with a full-flow engine oil filter, a replaceable dry-type air cleaner with a radial seal, and a radiator with a de-aeration bottle.
- Durability: Equipped with self-adjusting belts and a fuel filter with a water trap to ensure longevity and reliability.
Drivetrain:
- Versatility: Options include a 2WD heavy-duty front axle or a 4WD heavy-duty mechanically driven rear axle, complemented by heavy-duty outboard planetary drive on the rear axle.
- Control: Features a 4F-4R Power Shuttle Synchromesh transmission, torque converter, on-the-go electric 4WD control, and electric F/R shuttle control for smooth operation.
- Safety: For enhanced safety, the vehicle has an electric differential lock control with push-button activation and a parking brake with spring-applied hydraulic release.
Operator Environment:
- Protection: ROPS/FOPS certified protective canopy ensures operator safety.
- Visibility: Equipped with halogen headlights, rear floodlights, tail and stop lights, and front and rear flashers/turn lights for optimal visibility.
- Comfort: Features include a non-suspension seat with swivel, retractable seat belt, cup holder/storage tray, and pre-wiring for radio (cab only).
- Convenience: Rear fenders with storage tray and molded beverage holder, interior rearview mirror, and a coat hook with garment strap for added comfort.
Hydraulics and Loader:
- Power: A gear pump delivers 28.5 gal/min at 3,000 psi, supported by a heavy-duty hydraulic oil cooler and a 7-micron spin-on oil filter.
- Loader Functionality: Has a single lever control for easy operation, Self-Leveling, and Return-to-Dig functions. The standard bucket features lifting lugs, and the clutch disconnects are hand-operated.
Instrumentation and Alarms:
- Monitoring: Gauges for engine water temperature, converter oil temperature, fuel level, and more, alongside warning lights and audible alarms for critical alerts.
570N EP Optional Equipment
Operator Comfort Enhancements:
- Manual Ride Control and Comfort Steer for reduced operator fatigue and increased productivity.
- ROPS and FOPS Certified Protective Canopy are available in short and standard heights for enhanced safety.
- ROPS Certified Cab is equipped with a heater, defroster, and wipers, and it is complemented by a Cab Convenience Package for ultimate comfort.
- Air-conditioning is available for cab models to maintain a comfortable working environment in all weather conditions.
- Mechanical Suspension Seat with multiple adjustments, including armrests, swivel, and lumbar support, available in cloth or vinyl.
Engine and Cold Weather Options:
- Cold Weather Starting Aid with dual 12V batteries and glow plugs, plus a block heater for reliable cold-weather operation.
- Master Disconnect Switch and remote jump-start terminals for enhanced safety and convenience.
Tractor Customization:
- Auxiliary work lights, a chaff screen, and a canopy sun mirror are used for improved visibility and protection.
- Front and Rear Counterweights and a Drawbar for increased stability and towing capability.
- Hand Throttle is used for precise engine control, and various counterweights and hitch options are used for increased versatility.
PTO and Loader Options:
- 540 RPM Hydraulically Powered Rear PTO Ready for powering rear attachments.
- Auxiliary hydraulics, hydraulic and mechanical front quick couplers, and loader buckets are used to suit different material handling tasks.
Additional Convenience:
- Tool Box for easy access to tools and Special Paint options to customize the appearance.
- Spare Tires to ensure minimal downtime in case of a flat.
570N EP Specs
| Category | Specification | Detail |
|---|---|---|
| ENGINE | Model | FPT F5HFL463D |
| Emissions Certification | Tier 4 Final | |
| Type | Diesel 4-stroke, Turbocharged | |
| Cylinders | 4 | |
| Bore/Stroke | 3.90 x 4.33 in (99 x 110 mm) | |
| Displacement | 207 in³ (3.4 L) | |
| Fuel Injection | Direct, high-pressure common rail – HPCR | |
| Fuel | Diesel | |
| Cooling | Charged air | |
| Engine Speeds RPM | Rated speed – full load: 2200, Low idle: 900 – 1000, High idle – no load: 2330 – 2430 | |
| Horsepower @ 2200 RPM | Gross: 74 hp (55 kW), Net*: 72 hp (54 kW) | |
| Maximum Torque @ 1400 RPM | Gross: 235 lb·ft (316 N·m), Net*: 228 lb·ft (310 N·m) | |
| Torque Rise at Rated Speed | 35% +/- 5% | |
| Radiator | Core size area: 486 in² (3,145 cm²), Rows of tubes: 5 | |
| 33 Degree Fan | Style: 7 blade suction, Ratio: 1.1:1 | |
| Engine Oil | CJ-4 – semi-synthetic 10W40 | |
| Pump Operating Angle Ratings | Side to side: Rated 35°, Fore and aft: Rated 35° | |
| Oil Filtration | Replaceable, spin on | |
| DRIVETRAIN | Transmission – Standard | 4F-4R Power Shuttle Synchromesh Transmission manual gear shift, fully synchronized |
| Gear Ratios Forward/Reverse | 1st: 5.603/5.603, 2nd: 3.481/3.481, 3rd: 1.584/1.584, 4th: 0.793/0.793 | |
| Travel Speeds* mph (kph) | 1st: 3.8 (6.1), 2nd: 6.1 (9.8), 3rd: 12.8 (20.6), 4th: 24.0 (38.6) | |
| Torque Converter Ratio* | 3.01 | |
| Differential-Lock | On-the-go push-button activation | |
| Front 4WD/Rear Axle* | Differential ratio: 2.0/2.5, Planetary hub ratio: 6.0/6.4, Total reduction ratio: 12.0/16.0 | |
| Axles Rating | Maximum static – lb (kg): 70,821 (32,124)/90,145 (40,889)/58,448 (26,511), Dynamic operating – lb (kg): 44,261 (20,076)/56,200 (25,492)/35,575 (16,136), Static operating – lb (kg): 17,704 (8,030)/22,480 (10,197)/14,230 (6,455) | |
| Service Brakes | Individually applied, hydraulically actuated, maintenance-free, outboard mounted, wet disc, 2 per side | |
| Parking Brakes | Trans Mounted spring-applied hydraulic release – SAHR |
570N EP Dimensions
| Dimension | 19.5 L x 24.0 Tires | 17.5 L x 24.0 Tires |
|---|---|---|
| A. Height to Top of Canopy | 9 ft 0 in (2.74 m) | 8 ft 9 in (2.67 m) |
| Height to Top of Canopy – Low Profile ROPS | 8 ft 9 in (2.65 m) | 8 ft 6 in (2.59 m) |
| Height to Top of Cab | 9 ft 0 in (2.74 m) | 8 ft 10 in (2.68 m) |
| B. Bucket Hinge Pin Fully Raised | 11 ft 3 in (3.41 m) | 11 ft 3 in (3.41 m) |
| C. Bucket Hinge Pin at SAE Carry | 1 ft 1 in (0.33 m) | 1 ft 3 in (0.37 m) |
| D. Overall Operating Height – Fully Raised | 13 ft 8 in (4.17 m) | 14 ft 3 in (4.35 m) |
| E. Overall Length with 3-Point Hitch | 16 ft 11 in (5.15 m) | 16 ft 9 in (5.09 m) |
| Width Over Tires | 6 ft 10 in (2.07 m) | 6 ft 10 in (2.07 m) |
| F. Dump Angle at Full Height | 46° | 45° |
| G. Dump Clearance at Full Height, 45° Dump | 8 ft 8 in (2.63 m) | 8 ft 11 in (2.71 m) |
| H. Dump Reach at Full Height, 45° Dump | 2 ft 2 in (0.66 m) | 2 ft 2 in (0.64 m) |
| J. Bucket Rollback at Groundline | 40° | 40° |
| K. Bucket Rollback at SAE Carry | 45° | 45° |
| L. Bucket Rollback at Full Height | Adjustable | Adjustable |
| M. Digging Depth Below Grade (Bucket Flat) | 7.5 in (0.19 m) | 6.8 in (0.17 m) |
| Ground Clearance at Front Axle | 10.9 in (0.28 m) | 10.9 in (0.28 m) |
| N. Wheelbase | 7 ft 0 in (2.13 m) | 7 ft 0 in (2.13 m) |
| O. Reach from Front Axle Centerline – Bucket on Ground | 6 ft 3 in (1.89 m) | 6 ft 1 in (1.85 m) |
| Maximum Clam Opening | — | 3 ft 3 in (0.97 m) |
| Moldboard Height | — | 3 ft 1 in (0.93 m) |
| Lift Capacity to Full Height | 6,503 lb (2,950 kg) | 6,537 lb (2,965 kg) |
| Breakout Force (Lift Cylinders) | 9,271 lb (41,239 N) | 8,766 lb (38,993 N) |
| Breakout Force (Dump Cylinders) | 9,607 lb (42,734 N) | 10,325 lb (45,928 N) |
Warranty
Base & Extended Warranty Coverage*
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Engine Warranty
Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Tool Carrier models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
