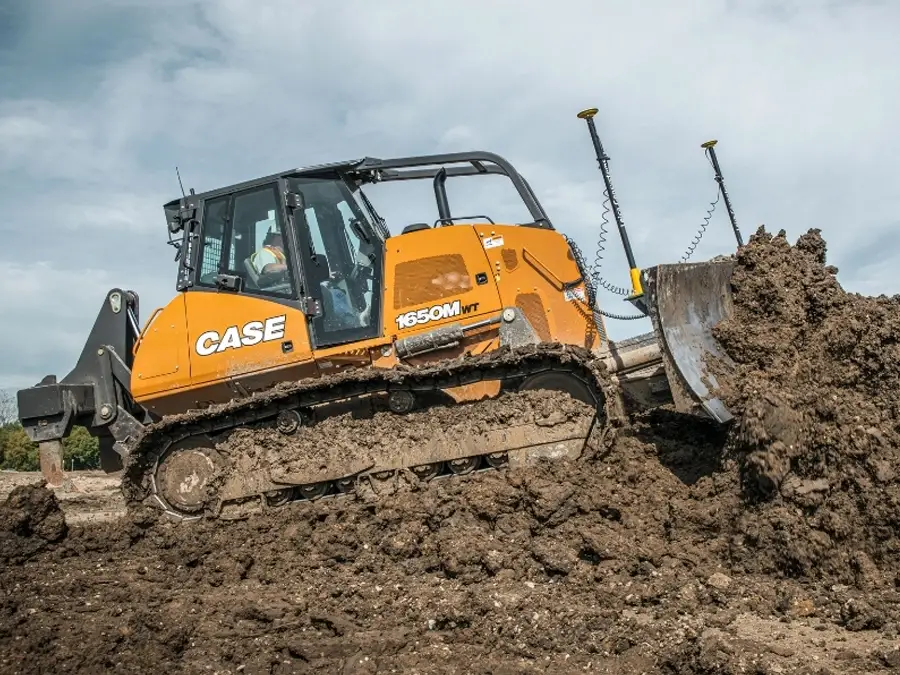

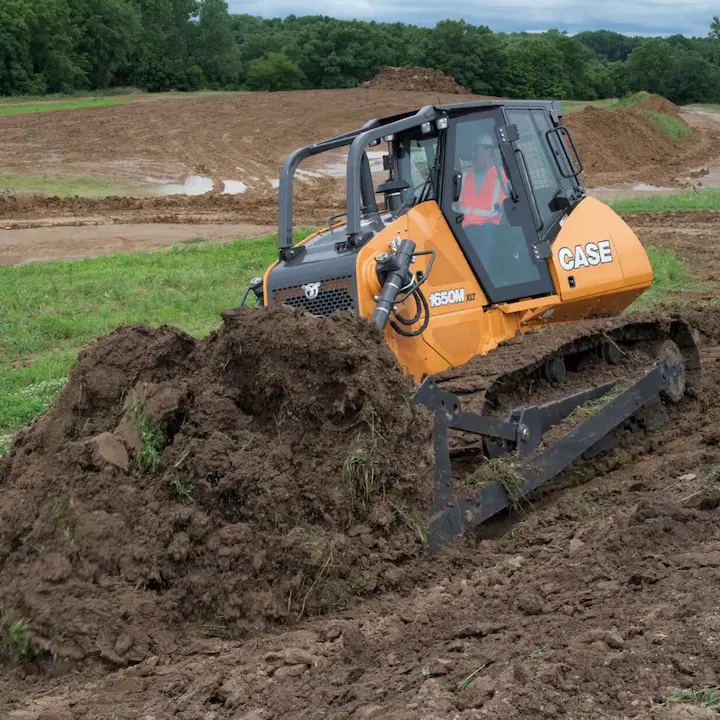

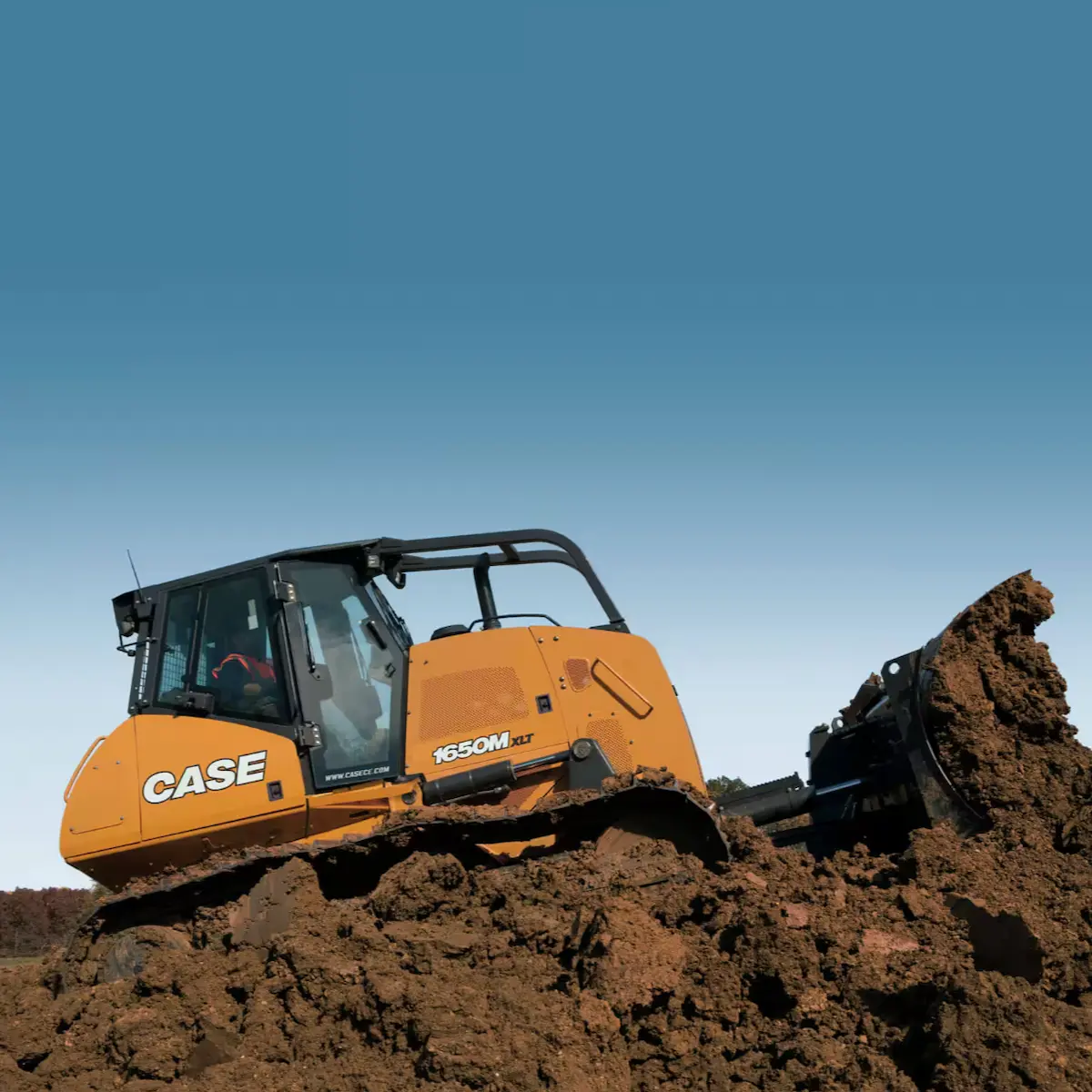

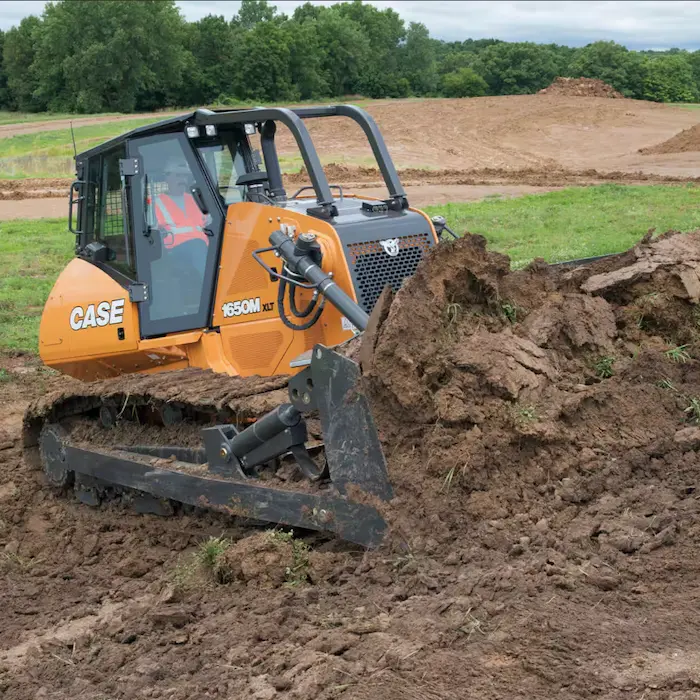

CASE 1650M Dozer
Request more information:
When your project demands heavy dozing and ripping, turn to the CASE 1650M. This robust machine offers over 61,000 lbs. of drawbar pull, ensuring relentless performance and the ability to push through any challenge. It comes with a variety of track and blade configurations to tailor its capabilities to your specific job needs.
BROCHURE: CASE M Series Dozers
SPEC SHEET: CASE Dozer 1650M
CASE 1650M Dozer For Sale
For sale at Luby Equipment: CASE 1650M Dozer
When your project demands heavy dozing and ripping, turn to the CASE 1650M. This robust machine offers over 61,000 lbs. of drawbar pull, ensuring relentless performance and the ability to push through any challenge. It comes with a variety of track and blade configurations to tailor its capabilities to your specific job needs.
Equipped with optional machine- or grade-control systems, the CASE 1650M enhances efficiency on any jobsite, allowing for quick and precise work that saves time, fuel, and labor. This dozer not only meets Tier 4 Final emissions standards but also provides industry-leading visibility, which is essential for safe and accurate operation.
The spacious cab of the CASE 1650M is designed with operator comfort in mind, featuring ergonomic controls and intuitive technology that make it easy to handle even during long hours of operation.
Now available at Luby Equipment, the CASE 1650M is the ideal solution for those who need a powerful dozer capable of tackling the toughest tasks with ease and efficiency. Dive into the heavy-duty work with confidence and control.
1650M Features
Key Features and Benefits:
- Versatile Performance: Equipped with various track and blade options, the 1650M can be customized to meet the specific needs of any job site, ensuring continuous progress in challenging environments.
- Powerful Engine: The heart of the 1650M is its 150-horsepower engine, backed by more than 61,000 pounds of drawbar pull. This provides a solid foundation for high productivity and superior performance.
- Emissions Compliance: Featuring a selective catalytic reduction (SCR)-only system, the 1650M meets stringent emissions regulations while ensuring all power is directed towards productive work.
Enhanced Operator Control and Comfort:
- Customizable Control: Operators can tailor the dozer’s response with an adjustable shuttle, steering, and blade sensitivity settings, ensuring optimal performance in varying site conditions.
- Advanced Load Monitoring: This system adjusts track speed based on the load on the blade, optimizing power and efficiency for consistent, effective operation.
- Operator-Centric Features: Additional controls like Blade Shake and Fine Grading enhance the machine’s functionality, allowing for precise operation and improved performance.
Unparalleled Visibility and Comfort:
- Industry-Leading Visibility: The CASE M Series dozers boast exceptional sight lines to the blade, tracks, and work site, ensuring operators have a clear view of their surroundings.
- Positive-Pressure Cab: Designed to keep out dust, dirt, and noise, the cab offers one of the lowest sound ratings in the industry, coupled with reduced vibration, for a smoother, more comfortable experience.
Maintenance and Service Efficiency:
- Easy Maintenance Access: Grouped service points and easy access ensure straightforward and efficient maintenance, minimizing downtime.
- CASE SiteWatch™ Telematics: This advanced system provides valuable insights into machine performance and maintenance needs, helping to optimize uptime.
Protected by CASE ProCare:
Each CASE M Series dozer, including the 1650M, comes with the comprehensive ProCare protection plan, offering:
- Three-year, 3,000-hour full-machine factory warranty.
- Three-year, 2,000-hour planned maintenance contract.
- Three-year Advanced CASE SiteWatch™ telematics subscription.
1650M Standard Equipment
Operator Environment:
- Cabin Comfort: The operator’s environment is designed with a fully enclosed ROPS cab, complete with a single lever control for speed, steering, and direction, ensuring ease of use and safety.
- Seating: A comfortable cloth air suspension seat with back adjustment and retractable 3-inch seat belt enhances operator comfort, along with adjustable armrests and footrests for ergonomic support.
- Visibility and Convenience: Features such as a rearview mirror, two-door windshield wipers, a dome light, and a 12-volt accessory outlet contribute to convenience and visibility.
- Climate Control: The cabin includes heat and AC systems to maintain comfort in various weather conditions and additional amenities like a radio and floor mat.
Engine:
- Power and Compliance: The F4HFE6132 engine is Tier 4 Final Certified, ensuring compliance with environmental regulations while delivering robust performance.
- Cooling and Maintenance: Features an integral engine oil cooling system, a V-shaped cooling package with a hydraulic-driven reversing fan, and convenient access to hinged engine side panels for maintenance.
Drivetrain:
- Efficient Control: The dozer has a dual-path, infinitely variable hydrostatic drive controlled by a single lever for precise maneuvering.
- Durable Construction: Features a final drive with triple reduction and a helical gear/planetary decelerator, paired with an automatic spring-applied parking brake for reliable operation.
Blade:
- Versatility: The blade offers a 55° – 60° variable pitch, controlled by a single lever electro-hydraulic system, allowing for efficient blade lift, angle, and tilt adjustments.
Undercarriage:
- Durability and Ease of Maintenance: The undercarriage includes hydraulic track adjusters, sealed and lubricated track chains, and an enhanced track recoil system for durability and easy maintenance.
Additional Features:
- Safety and Convenience: Equipped with a backup alarm, horn, work lights, master disconnect switch, and anti-vandalism package for safety and convenience.
- Environmental Considerations: Features like environmental drains, a grid heater for cold starts, and transport protection emphasize the machine’s environmental and operational safety.
Telematics and ProCare:
- Monitoring and Maintenance: The CASE SiteWatch™ Telematics system offers comprehensive monitoring capabilities, including a 3-year advanced data subscription. Additionally, CASE ProCare provides a full-machine protection factory warranty for three years/3000 hours, a planned maintenance contract for three years/2000 hours, and SiteWatch telematics, ensuring peace of mind and controlled operating expenses.
1650M Optional Equipment
Operator Environment Enhancements:
- Cab Air Quality System: Ensures a clean and healthy environment inside the cab, optimizing operator comfort and safety.
Hydraulic System Options:
- 4-Spool Hydraulic Valve: For field-installed ripper, providing added versatility for attachment use.
- 3-Spool Hydraulic Valve without Plugs: Designed for the field-installed ripper, offering flexibility in equipment configuration.
- 3-Spool Hydraulic Valve with Plugs: Enhances hydraulic system capabilities, allowing for various attachments.
Rear Mounted Equipment for Increased Versatility:
- Ripper: 3 positions with three shanks for breaking up hard soil or rock.
- HD Ripper – 6″ Tooth: Heavy-duty ripper option for the most challenging conditions.
- Drawbar: Provides towing capability for additional equipment.
- Drawbar with Step: Enhances accessibility while offering towing capabilities.
Blade Options for Various Applications:
- PAT (Power Angle Tilt) Blades: Available in 130 in (3,302 mm) and 156 in (3,974 mm) sizes, with a foldable option for the 156 in size, providing flexibility for different job requirements.
- Semi-U Blade: Measuring 131 (3,322 mm), designed for heavy pushing tasks.
Protective Guards for Enhanced Safety:
- CAB Canopy Brush Guard: Protects the cab in environments with overhead hazards.
- Center Rock Guard: Shields the undercarriage from rocks and debris.
- Sweeps: Protect the sides of the dozer in brush and forested areas.
- Waste Handler Guarding Package: Offers additional protection in waste management applications.
Screens for Additional Protection:
- Cab Rear Screen: Guards the rear window against debris while maintaining visibility.
Additional Equipment Options:
- CASE Ultra Life Track: Offers extended durability for the dozer’s undercarriage.
- Additional Work Lights: Enhance visibility for safe operation during low-light conditions.
- Severe Cold Weather Package: Ensures reliable operation in icy environments.
Precision Control Systems:
- Factory Fit CoPilot: Basic guidance system to improve operational efficiency.
- Factory Fit 2D Laser and 3D GNSS: Advanced machine control systems for precise grading and dozing.
- Universal Blade Guidance: Compatible with leading brands such as Leica, Trimble, and Topcon, this product allows for flexible integration with existing systems.
1650M Engine Specs
| Engine Specification | Details |
|---|---|
| Model | FPT F4HFE6132 |
| Emissions Certification | Tier 4 Final Certified |
| Cylinders | 6 |
| Displacement | 409 in³ (6.7 L) |
| Fuel Injection | Common rail |
| Fuel Type | #2 Diesel |
| Fuel Filter | Spin-on with in-line strainer |
| Air Intake | Cross-flow |
| Cooling | Liquid |
| Engine Speeds (RPM) | High idle – no load: 2200 ± 50 <br> Rated – full load: 2200 <br> Low idle: 800 ± 25 |
| Horsepower @ 2000 RPM – SAE J1349 | Net: 150 hp (112 kW) <br> Gross: 164 hp (122 kW) |
| Engine Lubrication | Pump: Deep sump plate cooler with pressurized under-piston nozzles |
| Pump Operating Angle Ratings | Side-to-side: 35° <br> Fore and aft: 45° |
| Oil Filtration | Replaceable, spin-on full-flow cartridge |
| Radiator Fins per Inch | 10 |
| Fan | Type: Variable speed/Auto reversing/Hydraulic driven <br> Diameter: 27.6 in (700 mm) |
1650M Dimensions
| Dimension/Configuration | XLT with Semi U | XLT with PAT | WT with PAT | LGP with PAT |
|---|---|---|---|---|
| Blade Width | 131 in (3,322 mm) | 130 in (3,302 mm) | 156 in (3,962 mm) | 156 in (3,962 mm) |
| SAE Blade Capacity | 6.33 yd³ (4.84 m³) | 4.28 yd³ (3.18 m³) | 5.28 yd³ (4.04 m³) | 5.28 yd³ (4.04 m³) |
| Blade Height (A) | 51.9 in (1,319 mm) | 46.3 in (1,176 mm) | 46.3 in (1,176 mm) | 46.3 in (1,176 mm) |
| Blade Lift Above Ground | 44.3 in (1,124 mm) | 42.5 in (1,077 mm) | 42.5 in (1,077 mm) | 42.5 in (1,077 mm) |
| Blade Depth Below Ground (B) | 22.5 in (572 mm) | 19.8 in (503 mm) | 19.8 in (503 mm) | 19.8 in (503 mm) |
| Blade Angle (C) | 0°±25° | 25° | 25° | 25° |
| Cast Reach (D) | 16.3 in (414 mm) | 17.2 in (457 mm) | 20.0 in (507 mm) | 19.2 in (487 mm) |
| Cut Reach (E) | 16.3 in (414 mm) | 0.9 in (24 mm) | 3.9 in (99 mm) | 3.0 in (76 mm) |
| Blade Tilt | — | 16.1 in (410 mm) | 17.7 in (450 mm) | 21.7 in (550 mm) |
| Track Gauge | 76 in (1.93 m) | 76 in (1.93 m) | 86 in (2.18 m) | 86 in (2.18 m) |
| Maximum Shoe Width | 24 in (606 mm) | 24 in (610 mm) | 32 in (813 mm) | 34 in (864 mm) |
| Length of Track on Ground (F) | 121.7 in (3.09 m) | 121.7 in (3.09 m) | 121.7 in (3.09 m) | 121.7 in (3.09 m) |
| Area of Track on Ground | 5,837 in² (3.77 m²) | 5,837 in² (3.77 m²) | 7,770 in² (5.01 m²) | 8,268 in² (5.01 m²) |
| Ground Pressure | 6.62 psi (0.46 bar) | 6.62 psi (0.46 bar) | 5.27 psi (0.36 bar) | 4.78 psi (0.33 bar) |
| Height to Top of ROPS Cab (G) | 9 ft 8 in (2,945 mm) | 9 ft 8 in (2,945 mm) | 9 ft 8 in (2,945 mm) | 9 ft 8 in (2,945 mm) |
| Ground Clearance (H) | 13.5 in (342 mm) | 13.5 in (342 mm) | 13.5 in (342 mm) | 13.5 in (342 mm) |
| Length w/ Blade Straight & Drawbar | 19 ft 8 in (5,985 mm) | 18 ft 8 in (5,678 mm) | 18 ft 8 in (5,678 mm) | 18 ft 8 in (5,678 mm) |
| Length w/ Blade Straight & Ripper (I) | 24 ft 1 in (7,345 mm) | 23 ft 1 in (7,038 mm) | 23 ft 1 in (7,038 mm) | 23 ft 1 in (7,038 mm) |
| Width w/ Blade Straight (J) | 10 ft 11 in (3,322 mm) | 10 ft 10 in (3,302 mm) | 13 ft 0 in (3,962 mm) | 13 ft 0 in (3,962 mm) |
| Width w/ Blade Angled | — | 9 ft 10 in (3,000 mm) | 11 ft 10 in (3,602 mm) | 11 ft 10 in (3,602 mm) |
| Width Over Tracks (K) | 8 ft 2 in (2,490 mm) | 8 ft 4 in (2,530 mm) | 9 ft 10 in (2,994 mm) | 8 ft 2 in (2,490 mm) |
Warranty
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders
See your CASE dealer for model availability and timing
Additional information
| Condition | New |
|---|
