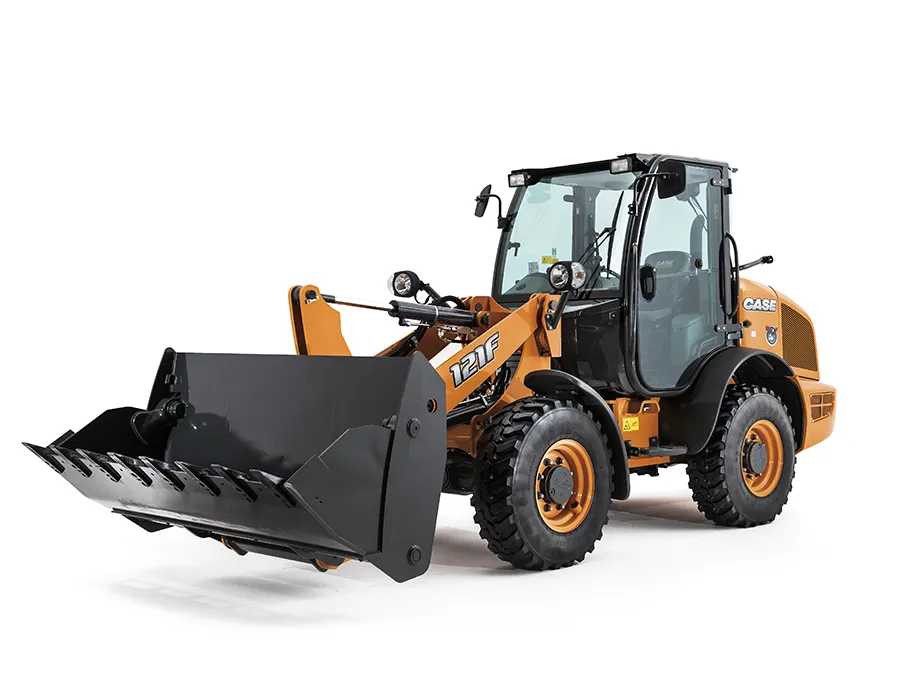

CASE 121F Compact Wheel Loader

Productivity

• Enhanced Performance: Boasts a lower center of gravity and Z-bar linkage for improved lifting power and breakout force.
• Advanced Suspension: This model features a 20-degree oscillating rear axle independent of the cab, optimizing operator comfort and load control.
• Traction Control: Offers an optional limited-slip differential for superior traction on loose or uneven terrain.
• Precision Control: Equipped with proportional loader control for precise command over attachments.
• Easy Attachment Switch: This switch includes Connect Under Pressure (CUP) manifolds and a hydraulic coupler for quick and effortless attachment changes.

Fuel Efficiency

• Tier 4 Emission Solution: A maintenance-free system eliminates the need for regeneration downtime, replacement of Diesel Particulate Filters (DPFs), and dealing with extreme exhaust temperatures or after-treatment fluids. “get in and go,” making it ideal for versatile, on-the-move operations.

Comfort and Visibility

• Spacious and Intuitive Cab: The F Series cab enhances space and visibility, featuring an intuitive control interface for simplified operation.
• Enhanced Operator Comfort: To maximize productivity and comfort, it offers Creep Speed, Return-to-Dig, and Ride Control™ options, along with an air suspension seat and Bluetooth radio.
• Optimal Lighting: LED work lights ensure high productivity and safety, even in low-light conditions.

Serviceability

• Ease of Maintenance: The vehicle has been redesigned for accessibility, with a tilt-up hood that allows quick access to daily checkpoints, radiators, filters, hydraulics, and the engine. Routine maintenance is streamlined, ensuring minimal downtime.

Operator Environment

• Cabs: The Base and Deluxe cabs have heaters, ensuring a comfortable operator environment in various weather conditions.
• Control and Comfort: Key start, articulated power steering with a tilt column, and a fully adjustable cloth suspension seat for maximum comfort and easy operation.
• Operational Efficiency: Foot throttle and a single joystick with electronic speed shift control (F/N/R switch) and proportional loader control for precise machine handling.
• Convenience Features: Includes a cup holder, retractable seat belt, storage tray in the Deluxe Cab, front sunscreen, opening side window, dome light, and wipers for both front and rear.
• Power and Connectivity: It has 12-volt auxiliary power, a lighter cigar, an ashtray, a pocket for a cell phone, and a coat hook for personal convenience.
• Safety and Visibility: External rearview mirrors, loader control lockout, and an electronic information center to inform the operator.
• Comprehensive Monitoring: Vehicle speed, hour meter, floating functionality, clock, vehicle directions, gear number engaged, and PM Catalyst icons.
• Indicator Lights: For main hydraulic enabled, turn light (left and right), rear work lamps, work lamps, main high beam, side lights, stop, warning signal, rabbit, hand brake, brake fluid level, quick coupler on, Ride Control on, creep speed, PM Catalyst, low fuel level, clogging air filter, engine oil pressure, glow plug, and alternator changing.
• Audible Alarms: Caution alarm, critical alarm, backup alarm, and horn to alert the operator of various conditions and ensure safety.

Note
Features may vary based on the options equipped, providing flexibility to cater to different operational needs.

Engine

• Model: FPT F5H FL463 C*F001, providing reliable and powerful performance.
• Fuel Efficiency: This kit includes a fuel filter with a water trap for a cleaner fuel supply and a dual-elemeHere’s cleaner to ensure the engine runs efficiently.

Loader

• XT Configuration: This model features parallel loader linkage for balanced lifting, a single control for lift and tilt, a positive hold float for precise positioning, and a hydraulic attachment coupler compatible with skid steer and horizontal pin attachments.
• Z-Bar Configuration: This configuration offers Z-Bar loader linkage for maximum breakout force, single control for lift and tilt, positive hold float, and a hydraulic attachment coupler that’s skid steer and horizontal pin compatible.

Drivetrain

• Mobility: Equipped with 4-wheel drive for superior traction.
• Axles: Open front and rear axles for easy maintenance.
• Transmission: Hydrostatic transmission paired with a single joystick featuring electronic speed shift control (F/N/R switch) and proportional loader control for smooth operation.
• Brakes: Outboard planetary axles and dry disc brakes ensure reliable stopping power alongside a mechanical parking brake for safety.

Hydraulics

• Control: Hydraulic remote control for enhanced functionality.
• Efficiency: A 3-spool loader control valve and 3 diagnostic quick couplers for easy maintenance and troubleshooting.

Other Standard Equipment

• Protection and Safety: Front and rear fenders to protect against debris, and a comprehensive lighting system including 2 front driving headlights (high/low beam), 2 rear floodlights, 2 stop tail lights, and backup light, plus front and rear turn signals/flash for visibility in various conditions.
• Convenience: Includes a drawbar pin, articulation locking pin, and tie-down and lift-up points at the front and rear for easy transport and secure operation.
  Alert Systems:** A backup alarm and radio wiring ensure safety and connectivity on the job site.
• Positioning Aid: A bucket position indicator helps operators align attachments accurately.

Operator Environment

• Creep Speed: This allows operation at a slow, controlled pace from 0 to 3.1 mph (5 kph), ideal for precision tasks.
• TeleScop Adjustable Steering Column: Available on the Deluxe Cab for ergonomic comfort.
• Rotating Beacon: Enhances visibility and safety on the job site.
• Limited Slip: For front and rear axles to improve traction in challenging conditions.
• Couplers: Mechanical and horizontal pin couplers offer versatile attachment options.
• Air Conditioning: For operator comfort in warmer climates.
• Radio Ready: Includes antenna and speakers for on-the-job entertainment and communication.

Loader

• Additional Auxiliary Flow: Provides a maximum of 17.7 gpm at 2500 RPM @ 3,626 psi (Max. 67 L/min at 2500 RPM @ 25,000 kPa) for greater hydraulic power.
• Buckets: Options include general-purpose standard, general-purpose light-material, and 4-IN-1® buckets, along with STD forks for diverse material handling needs.
• Steering Wheel: Tiltable and telescopic for adjustable comfort.
• Auto Ride Control: Minimizes loader arm bounce during travel, enhancing load retention.
• Return to Dig: Automates boom positioning for faster cycle times.

Tires

• A variety of tire options to suit different terrains, including:
• 12.5-18 1PRMPT-04TBL MITAS
• 335/80 R18 EM MITAS
• 335/80 R18 SPT9 L2 DUNL – Standard
• 365/70 R18 EM MITAS
• 365/70 R18 SPT9 L2 DUNL

Other

• Tool Box: This is for storing tools and equipment directly on the machine.
• Counterweight: A 330 lb (150 kg) option mounts on the rear chassis to enhance stability and lifting capacity.

Tier 4 Final

HPCR, EXTERNAL CEGR

Why this solution: This Tier 4 Final solution requires no new actions or upkeep, so operators can focus entirely on the work at hand.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and then returned to the cylinder. The Diesel Oxidation Catalyst (DOC) manages the additional particulate matter. The DOC converts emissions into neutral gasses and automatically burns it off using heat from the exhaust.

What this means to you: This solution is a maintenance-free emissions solution, requiring no costly DPF (Diesel Particulate Filter) to replace and no new fluids to add. Powered by an FPT engine.

Base & Extended Warranty Coverage

1 Year / Unlimited Hour Full Coverage Base Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased Protection: The Purchased Protection Plan is an extension of the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help determine and customize the plan that fits your needs. Plans are available at any month/hour amount on CASE Compact Wheel Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
