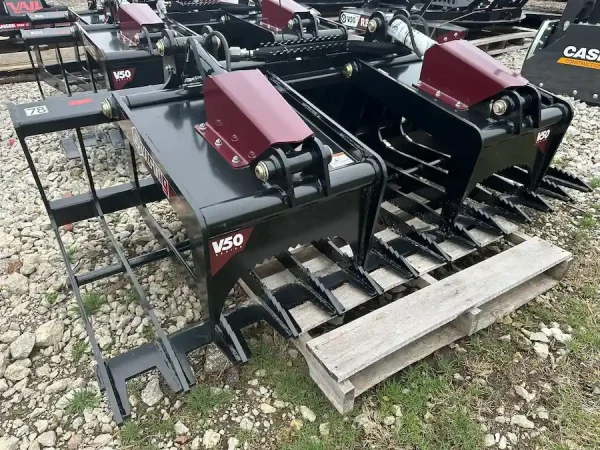

78″ Virnig Skeleton Grapple Bucket – 245364

Request more information:

78″ Virnig Skeleton Grapple Bucket available in-stock at Luby Equipment, this reliable attachment is ready to tackle your toughest tasks with ease and efficiency.

Location: Springfield, IL
S/N: 245364

Luby Equipment is the authorized CASE CE, Takeuchi & Virnig Attachment dealer of Springfield, IL and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!

DOWNLOAD BROCHURE: Virnig Skeleton Grapple

SKU: 245364 Categories: Attachment, Bucket, Virnig Attachments Tag: New

Description
Additional information

78″ Virnig Skeleton Grapple Bucket

78″ Virnig Skeleton Grapple Bucket s/n 245364 available in-stock at Luby Equipment, this reliable attachment is ready to tackle your toughest tasks with ease and efficiency.

The V50 Skeleton Grapple Bucket from Virnig is a highly sought-after and versatile attachment that excels in handling various materials such as brush, logs, and debris. Its robust construction and innovative design make it ideal for a wide range of applications, from forestry and landscaping to construction and land clearing projects. With its open-bottom design and sturdy tines, the V50 Skeleton Grapple allows for efficient and thorough picking, sorting, and moving of materials, ensuring optimal productivity on the job site.

Features:

Key Features:

Each tine is crafted from a single piece of steel to ensure maximum rigidity and durability.
Nitrosteel® cylinder rods and Teflon® coated bushings are utilized on all pivots for smooth operation and longevity.
Includes cylinder guards as a standard feature to protect against damage and prolong the lifespan of the attachment.

Specs and Dimensions:

Overall Width (Inches): 79.5″
Height: Overall / Bucket (Inches): 27.8 / 21.3
Overall Depth (Inches): 39.9″
Number of Tines (With Sides): 14
Space Between Tines (Inches): 5.5″
Tine Thickness (Inches): 0.5″*
Cylinder Bore / Stroke (Inches): 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches): 1.25 / 1.563
Grapple Jaw Opening (Inches): 36.1″
Approximate Weight (Pounds): 920
Recommended Loader Capacity: Greater than 1500 pounds

*Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength)
