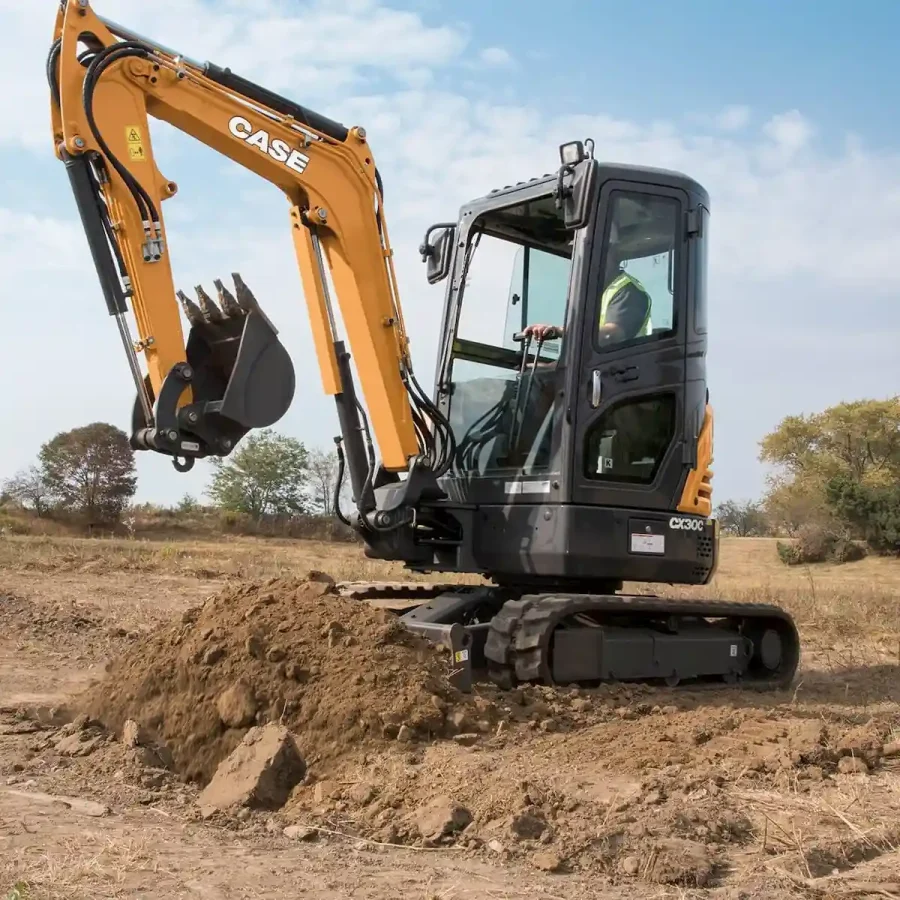

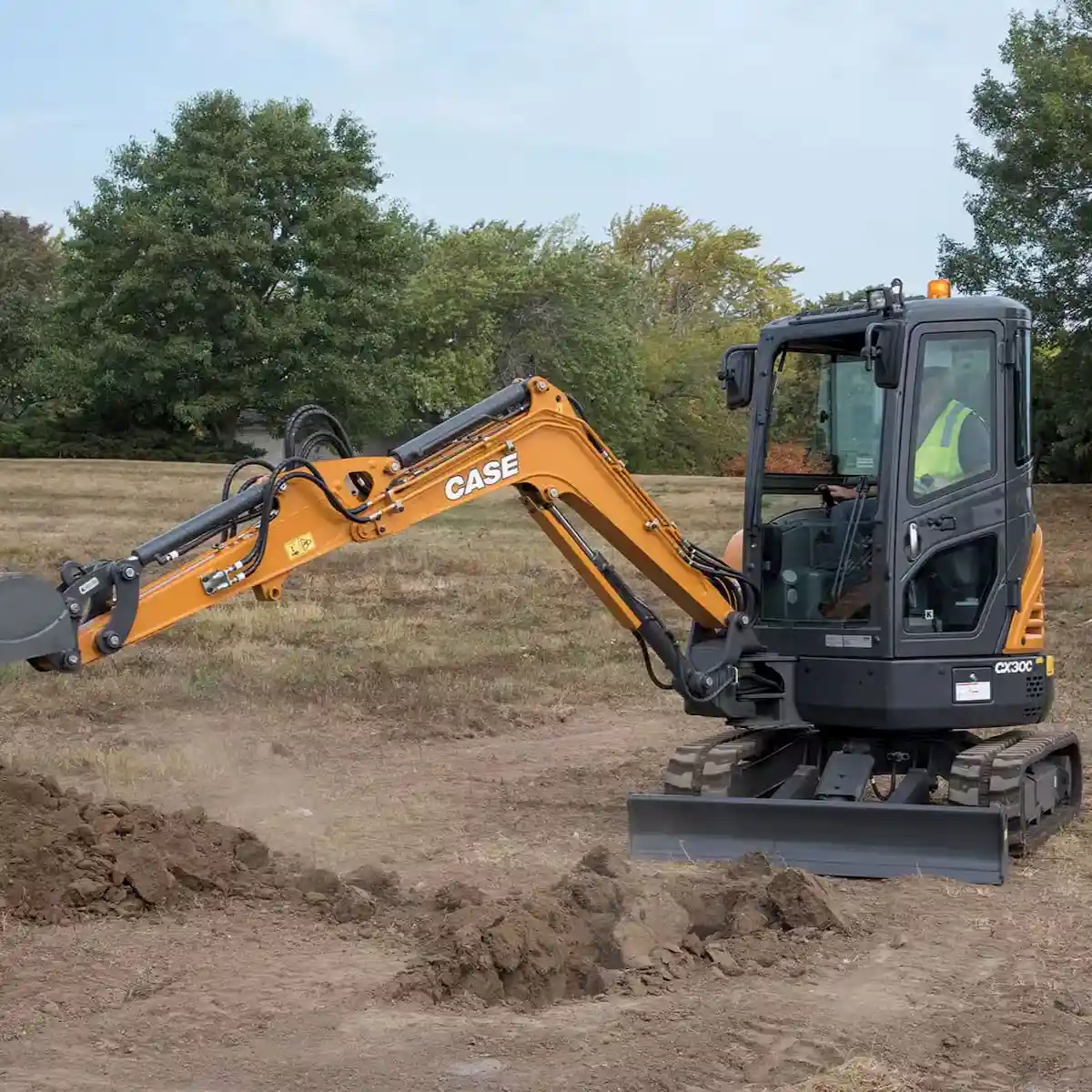

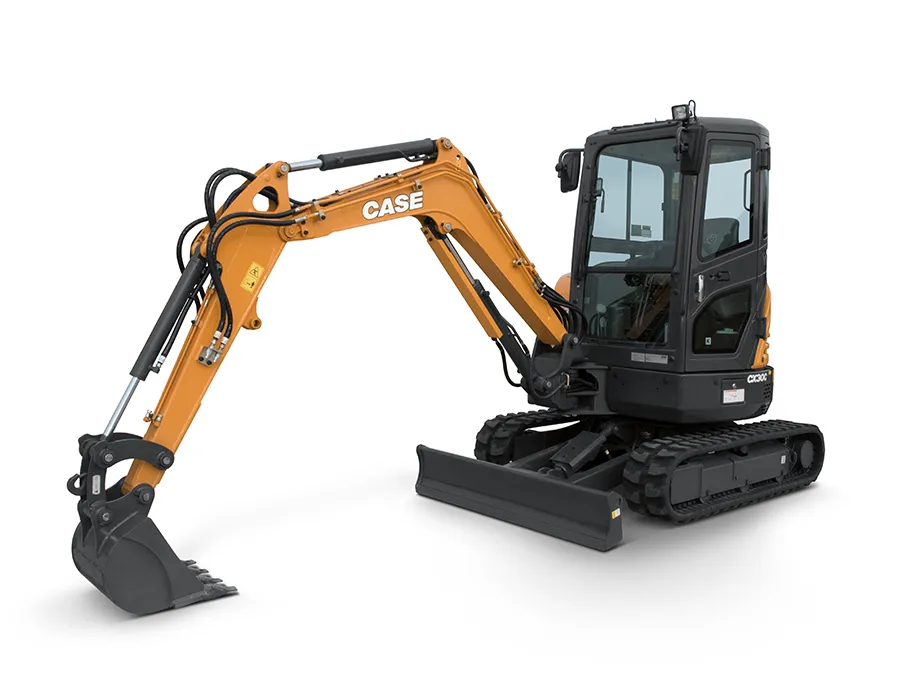

CASE CX30C Mini Excavator

Purpose-Built Productivity

• Auxiliary Hydraulics: Comes standard for versatility in attachment use, enhancing the excavator’s capability across various tasks.
• Push Blade: Provides added stability during digging operations and facilitates efficient backfilling.
• Automatic 2-Speed Travel: Adapts torque based on ground conditions, ensuring optimal mobility and traction.
• Control Pattern Selector: Operators can switch between SAE and ISO control setups according to preference and task requirements.
• Zero Tailswing Design: This design maximizes safety and maneuverability by preventing the counterweight from extending beyond the tracks, making it ideal for working in confined spaces.
• Adjustable Boom: The boom can be offset left or right, offering flexibility in navigating around obstacles and structures.
• Optional Hydraulic Thumb and Additional Counterweight: Enhance the machine’s functionality and stability for more demanding applications.

Common-Sense Fuel Efficiency:

• The CX30C is powered by a fuel-efficient diesel engine that meets Tier 4 Final emissions standards without needing regeneration, exhaust filter maintenance, or Diesel Exhaust Fluid (DEF), simplifying operation and reducing downtime.

CASE Comfort and Visibility:

• Operator Environment: Choose between a four-post ROPS/FOPS canopy or an optional heated cab equipped with a radio and USB input for optimal visibility and operator comfort.
• Proportional Controls: Standard feature providing responsive operation of attachments and smoother control of machine functions.
• Adjustable Seat: Enhances operator comfort, reducing fatigue during long working hours.

Simple Serviceability:

• Grouped Maintenance Points: Key service points are consolidated and easily accessible from ground level, streamlining daily checks and routine maintenance.
• Spacious Compartments: Wide-opening compartments offer excellent access to the engine, control valves, and radiator, facilitating easier maintenance and potential repairs.

Engine:

• Model: The Kubota D1305 diesel engine ensures reliable performance.
• Accessibility: Engine components are accessible under the rear hood for easy maintenance.
• Starting Aid: Glow plug facilitates starting in cold conditions.
• Air Cleaner: Dry type with a restriction indicator for optimal air intake.

Electrical System:

• Starting System: a 12-volt electrical system for consistent, reliable starts.
• Battery: Heavy-duty battery designed for long life and reliability.
• Master Switch: Battery Master Switch enhances safety and prevents unauthorized use.
• Security: Key Start and Anti-Theft Engine starting passwords for added security.
• Lighting: Front working light and a 12 V power outlet for convenience.
• Additional: Equipped with a horn and pre-wired for Telematics integration.

Hydraulic System:

• Auxiliary Hydraulics: Single/bi-directional with arm plumbing for various attachments.
• Cooling: Large hydraulic oil cooler maintains system efficiency.
• Control: Pattern selector valve allows for customizable control schemes.
• Protection: The cylinder rod covers the backfill blade, and the boom extends the component’s life.

Track Drive:

• Tracks: Rubber belt tracks minimize surface damage and provide excellent traction.
• Speed: Automatic 2-speed travel with a fully hydrostatic drive system for smooth operation.
• Maintenance: Sealed and lubricated track rollers and grease-type track tension adjustment for durability.

Upper Structure:

• Design: Zero tail swing for maneuverability in tight spaces.
• Arm: The standard arm length is 3 ft 8 in (1.12 m), and it has a bucket linkage and a lifting hook for versatility.

Operator Environment:

• Canopy: ROPS/FOPS four-post canopy ensures operator safety.
• Sound Level: Compliant with ISO 6396:2008, maintaining a low sound pressure level.
• Controls: Pilot-operated hand controls and foot pedals are used for precise operation.
• Comfort: Adjustable seat with a seatbelt and armrests for operator comfort.
• Display Panel: Features various engine and system warning lamps, travel speed, water temperature, fuel gauge, and hour meter.

Additional Features:

• Swing Boom: Offers a range of 75° left to 50° right for flexibility.
• Backfill Blade: Hydraulic backfill blade for efficient site cleanup.
• Counterweight: An additional 286 lb (130 kg) counterweight improves stability.
• Thumb Bracket: Prepared for thumb attachment to enhance grasping capabilities.

Operator Environment Enhancements:

• Cab with Heat and Radio: This upgraded cab is equipped with heating for comfort in colder conditions, a radio with USB connectivity, and two speakers for entertainment and communication on the job site.
• Travel Alarm: Increases safety by alerting nearby personnel and pedestrians when the excavator moves.

Other Optional Features:

• Hydraulic Quick Coupler Provision: Allows quick and easy attachment changes, enhancing the excavator’s versatility.
• Hydraulic Coupler: Facilitates convenient and swift attachment switches without manual intervention.
• Klac Coupler: This mechanical quick coupler system offers a simple and secure way to attach and detach tools.
• Mechanical Coupler: Provides a reliable manual mechanism for changing attachments, offering flexibility for various tasks.
• Hydraulic Hammer: This hammer is Ideal for demolition, construction, and quarry work, providing high-impact energy for breaking materials.
• Beacon: A safety feature that increases the machine’s visibility on the job site, especially in busy or low-light conditions.
• 2nd Auxiliary Circuit: This adds another hydraulic circuit to the excavator, simultaneously allowing additional hydraulic attachments.
• Hydraulic Thumb: Enhances the excavator’s ability to grab, hold, and precisely place materials, ideal for sorting and loading applications.

Base & Extended Warranty Coverage

• 2yr/3,000 hours Full machine limited warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
