2024 CASE TR270B Compact Track Loader – M446638
$69,500.00
Request more information:

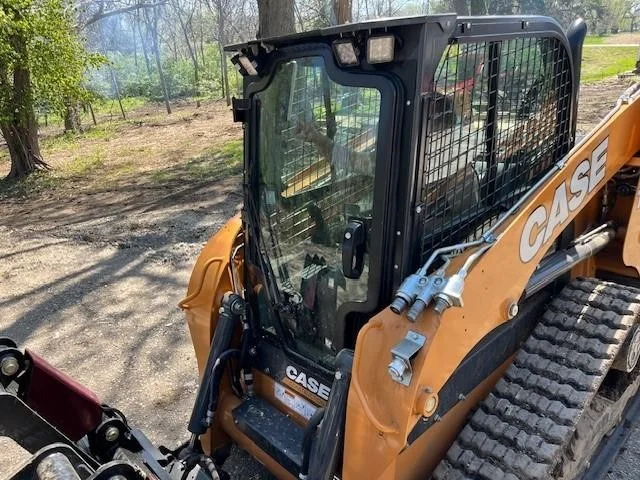

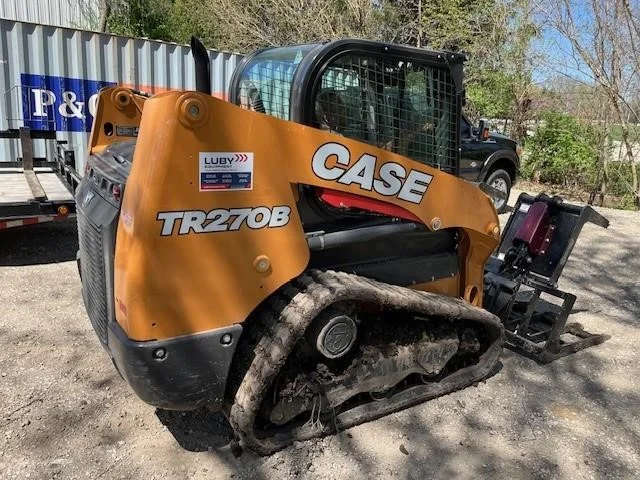

2024 CASE TR270B (radial lift) Compact Track Loader at Luby Equipment – Springfield, MO location. Consignment Unit! Cab, HVAC, EH Controls, Standard Flow, Hydraulic Coupler, Includes 72″ V40 Virnig Skeleton Grapple, and a 72″ Smooth Bucket.
Operating Weight: 8,270 lbs Engine Horsepower: 74 hp
Location: Springfield, MO

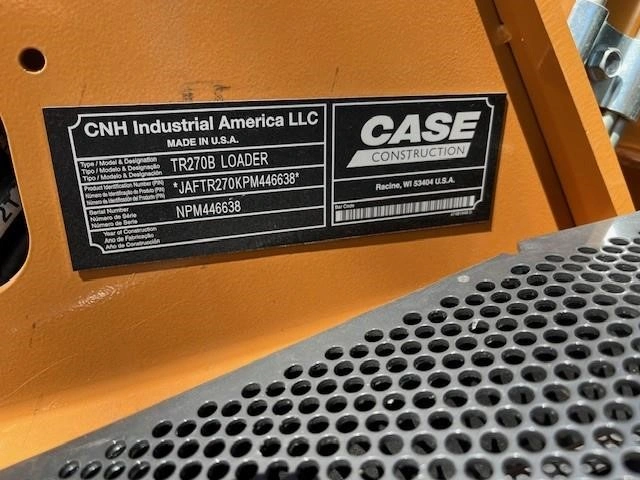

EQ#: M446638
Luby Equipment is the authorized CASE CE & Takeuchi dealer of Springfield, MO and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing used equipment. Always Transparent, Globally Trusted. Call us today!
DOWNLOAD BROCHURE: CASE B Series Compact Track Loaders
2024 CASE TR270B Compact Track Loader For Sale
Consignment Unit! Cab, HVAC, EH Controls, Standard Flow, Hydraulic Coupler, Includes 72″ V40 Virnig Skeleton Grapple, and a 72″ Smooth Bucket.
Discover the simplicity of the CASE TR270B Compact Track Loader available at Luby Equipment Services. At just 8,200 pounds, it’s easy to transport. With low ground pressure, it’s gentle on existing turf. Enjoy easy operation with intuitive controls and an 8-inch LCD multi-function display. Plus, the spacious cab offers all-day comfort. With 74 horsepower and a maintenance-free Tier 4 Final emissions solution, ownership and operation are a breeze.
TR270B Features
Visibility and Comfort: Enjoy unparalleled visibility with a backup camera, cab-wide rearview mirror, and large windows. The spacious cab offers ample legroom and comfort with redesigned controls, cupholders, and air vents.
Optimal Control: Choose from electro-hydraulic, mechanical, or mechanical hand and foot configurations. Electro-hydraulic models feature an 8-inch LCD multi-function display for precise control, customizable settings, and easy switching between operating patterns.
Productivity and Performance: With a 2,700-pound operating capacity, 74 horsepower, and optional high-flow auxiliary hydraulics, the TR270B delivers outstanding performance for various applications.
Ease of Ownership: Critical checks and service points are conveniently grouped at the rear of the machine. The maintenance-free Tier 4 Final emissions solution eliminates the need for fluids and lifetime filter service or replacement, ensuring hassle-free ownership.
TR270B Specs
OPERATING PERFORMANCE
Operating Weight – 8,270
Tipping Load – 5,400 lb
Rated operating capacity – ROC*:
35% of tipping load – 1,890 lb
50% of tipping load – 2,700 lb
w/ additional counterweight – 2,800 lb
Breakout forces @ 3,150 psi
Bucket cylinders – 7,270 lb
Lift cylinders – hydraulic limit – 6,260 lb
Travel speed:
Low range – 5.1 mph
High range – 8.0 mph
HYDRAULIC SYSTEM
Standard flow @ rated engine RPM: @ 100% efficiency 24.2 gpm
Optional high-flow @ rated engine RPM: @ 100% efficiency 32.4 gpm
ENGINE
Model – FPT F5H FL463 A*G001
Engine Displacement – 207 in3
Horsepower @ 2,500 rpm – 74 hp
Maximum Torque @ 1,400 rpm – 232 lb·ft
TR270B Dimensions
Overall operating height:
with foundry/excavating bucket – 155.6 in
with low profile bucket – 159.8 in
with low profile extended bucket – 164.6 in
Height to:
Bucket hinge pin – 125.1 in
Top of ROPS – 78.7 in
Bottom of level bucket, fully raised – 117.7 in
Overall length:
without attachment with coupler – 104.8 in
with foundry/excavating bucket on ground – 129.1 in
with low profile bucket – 133.4 in
with low profile extended bucket – 138.3 in
Dump height:
with foundry/excavating bucket – 100.6 in @ 38.1°
with low profile bucket – 98.0 in @ 38.1°
Additional information
| Weight | 2000 lbs |
|---|---|
| Condition | Used |
| Location | Springfield, MO |
