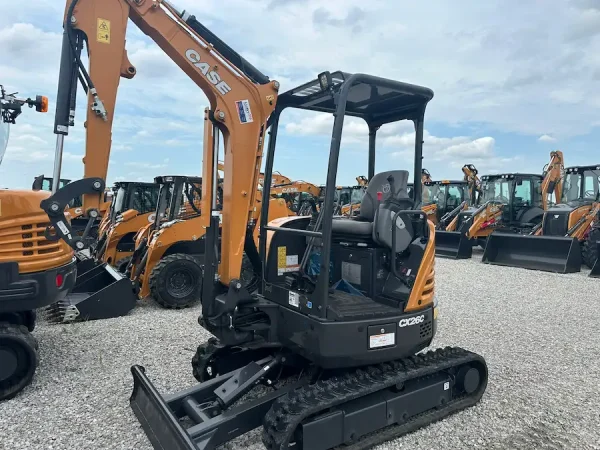

2024 CASE CX26C Mini Excavator – EQ0032085

Purpose-Built Productivity

• The CX26C’s compact size allows easy transport, even behind a conventional pickup truck, streamlining logistics for any fleet.
• The zero-tail swing design reduces the risk of damage to the machine or surroundings, making it ideal for working in confined spaces.
• Adjustable boom capable of offset positioning enhances flexibility, allowing work next to walls and obstacles with ease.

Common-Sense Fuel Efficiency

• Powered by a 25-hp engine that balances power with fuel efficiency, adhering to Tier 4 Final regulations without compromising performance or operator convenience.

CASE Comfort and Visibility

• It has a standard four-post ROPS/FOPS canopy, ensuring a spacious and safe operator environment with 360-degree visibility.
• Features include ergonomic joysticks, fingertip controls, and an adjustable seat. An enclosed cab option offers additional comfort amenities like heating and a radio.

Simple Serviceability

• Designed with ground-level serviceability in mind, allowing for quick and easy maintenance checks and servicing without needing specialized tools.

• Arm Length: 3 ft 8 in (1.12 m)
• Overall Height: 8 ft 2 in (2 500 mm)
• Overall Transport Length: 13 ft 3 in (4 030 mm)
• Width of Upper Structure: 4 ft 7 in (1 400 mm)
• Track Overall Length: 6 ft 3 in (1 910 mm)
• Track Overall Width: 4 ft 11 in (1 500 mm)
• Track Shoe Width: 9.8 in (250 mm)
• Track Gauge: 4 ft 1 in (1 250 mm)
• Center to Center – Idler to Sprocket: 4 ft 11 in (1 490 mm)
• Upper Structure Ground Clearance: 1 ft 8 in (510 mm)
• Minimum Ground Clearance: 11 in (290 mm)
• Tail Swing Radius (Standard Counterweight): 2 ft 6 in (750 mm)
• Tail Swing Radius (Additional Counterweight): 2 ft 10 in (875 mm)
• Boom Swing: 75° left/50° right
• Tail Swing Overhang (Standard Counterweight): 0 in (0 mm)
• Tail Swing Overhang (Additional Counterweight): 5 in (125 mm)

Engine and Electrical Systems:
Kubota D1305 Diesel Engine: This engine is Renowned for reliability and power and provides the backbone of the excavator’s performance.

• Efficient Starting: Glow plug starting aid ensures reliable ignition in various conditions, complemented by a dry-type air cleaner with a restriction indicator for optimal engine health.
  Robust Electrical:** It features a 12-volt electrical starting system, a heavy-duty battery, and a master switch, ensuring reliability and ease of use.

Hydraulics:

• Versatile Auxiliary Hydraulics: Equipped for single and bi-directional use, enhancing attachment versatility.
• Optimized Cooling: A large hydraulic oil cooler maintains system efficiency, even under demanding conditions.
• User-Friendly Controls: Includes a control pattern selector valve and cylinder rod protection covers for added durability.

Operator Environment:

• Designed with operator comfort in mind, it features a ROPS/FOPS four-post canopy, ergonomic hand controls, foot pedals, and an adjustable seat with armrests for enhanced control and comfort during extended operating hours.

Track Drive and Upper Structure:

• Robust Track System: Rubber belt tracks with a fully hydrostatic drive system ensure smooth operation and ease of maneuverability across various terrains.
• Zero Tail Swing: Allows for operation in tight spaces without the risk of damaging the machine or surrounding area.

Additional Features for Enhanced Usability:

• Swing Boom and Backfill Blade: Offers increased digging and backfilling operations flexibility.
• Ease of Maintenance: Designed with serviceability in mind, featuring tool-free access to key maintenance points.

Operator Environment:

• Comfortable Cab: It is equipped with heat, a radio with USB, and two speakers, providing a comfortable and enjoyable operator experience.
• Travel Alarm: This device enhances safety on the job site by alerting others when the excavator is on the move.

Performance Enhancements:

• Additional Counterweight: An extra 286 lb (130 kg) ensures stability during heavy-duty operations.
• Optional Long Arm: This arm extends the reach to 4 ft 5 in (1.35 m), increasing the excavator’s versatility.
• Thumb Bracket: Allows for attaching a thumb for improved material handling capabilities.

Hydraulic Enhancements:

• Hydraulic Quick Coupler Provision: Simplifies changing attachments, enhancing job efficiency.
  Hydraulic and Mechanical Couplers:** Options, including Klac and standard mechanical couplers, provide flexibility in attachment compatibility.
• Hydraulic Hammer and Thumb: Expands the machine’s capability to break through hard materials and handle various items.

Additional Features:

• Beacon and 2nd Auxiliary Circuit: Improves visibility and functionality, allowing multiple hydraulic attachments.
  Swing Boom and Backfill Blade: These features offer greater flexibility in tight spaces and enhance the machine’s finishing capabilities.

Base & Extended Warranty Coverage

• 2yr/3,000 hours Full machine limited warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
