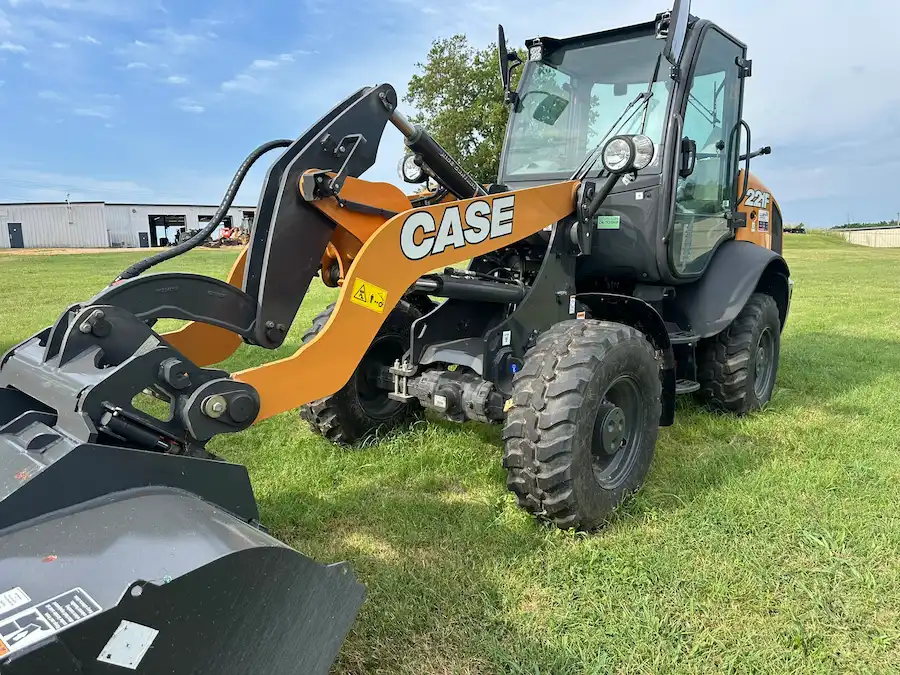

2024 CASE 221F Compact Wheel Loader – EQ0034575

Productivity

• Enhanced Performance: Features a lower center of gravity and Z-bar linkage for increased lifting power and breakout force, optimizing load handling and digging efficiency.
  Advanced Suspension: This model boasts a 20-degree oscillating rear axle independent of the cab, enhancing operator comfort and load control on uneven terrain.
• High-Speed Travel: Offers high-speed axle options with travel speeds up to 21.8 MPH (35 KM/H) and HS limited slip axles for superior traction.
• Hydraulic Power: It is equipped with a gear pump available in two flow outputs: a standard 85l/min or a high-flow option producing 130 l/min, catering to demanding tasks like snow blowing or cold planning.
• Control and Versatility: It features proportional loader control for precise operation, Connect Under Pressure (CUP) manifolds and a hydraulic coupler for easy attachment changes.

Fuel Efficiency

• Tier 4 Emission Solution: The 221F utilizes a maintenance-free Tier 4 emission solution, eliminating the need for regeneration downtime, DPF replacement, extreme exhaust temperatures, and additional after-treatment fluids, ensuring uninterrupted performance.

Comfort and Visibility

• Spacious and Intuitive Cab: The F Series cab provides ample space, exceptional all-around visibility, and an intuitive control interface, simplifying machine operation.
• Enhanced Operator Experience: Equipped with Creep Speed, Return-to-Dig, and Ride Control™, air suspension seat, and Bluetooth radio options for increased productivity and comfort.
• Optimal Lighting: LED work lights ensure high visibility and safety during operations in low-light conditions.

Serviceability

• Easy Maintenance: The vehicle has been redesigned for easy access, with a tilt-up hood that allows quick and simple access to daily checkpoints, radiators, filters, hydraulics, and the engine, facilitating routine maintenance within minutes.

Operator Environment

• ROPS: Certified to ISO 3471 standards, ensuring operator safety with a rating of 2,008 lb (6,800 kg).
• Cabs: Options for Base and Deluxe Cab, each equipped with a heater for comfortable operation in varying climates.
• Start & Steering: Key start for ease of operation, articulated power steering, and a tilt column for enhanced maneuverability.
• Seating: The fully adjustable cloth suspension seat accommodates operators of all sizes and ensures comfort throughout the workday.
• Control: Foot throttle and a single joystick with electronic speed shift control (F/N/R switch) and proportional loader control for precise handling.
• Convenience: The Deluxe Cab includes a cup holder, retractable seat belt, and a storage tray, ensuring essentials are within reach.
• Visibility & Comfort: Sunscreen at the front, opening side window, dome light, and wipers at the front and rear enhance visibility and comfort.
• Connectivity & Utility: It has 12-volt auxiliary power, a lighter cigar, an ashtray, a pocket for a cell phone, and a coat hook for personal convenience.
• Safety Features: External rearview mirrors for improved visibility, loader control lockout to prevent accidental operation, and an electronic information center to inform the operator.
• Comprehensive Displays/Gauges: Including vehicle speed, hour meter, floating functionality, clock, vehicle directions, gear number engaged, and PM Catalyst icons.
• Indicator Lights: For differential lock, main hydraulic enabled, turn signals (left and right), rear work lamps, work lamps, main high beam, side lights, stop, warning signal, rabbit, hand brake, brake fluid level, quick coupler on, Ride Control on, creep speed, PM Catalyst, low fuel level, clogging air filter, engine oil pressure, glow plug, and alternator changing.
• Audible Alarms: Caution alarm, critical alarm, backup alarm, and horn for enhanced safety and situational awareness.

Note
The availability of features and options may vary based on the specific configuration and optional equipment installed.

Engine

• Model: FPT F5H FL463 A, known for its reliability and power efficiency.
• Fuel Efficiency: This kit includes a fuel filter with a water trap and a dual-element air cleaner to maintain clean and efficient engine operation.

Loader

• Z-Bar Linkage: Offers enhanced digging and lifting capabilities with a single control for lift and tilt operations.
• Attachment Compatibility: This product features a hydraulic attachment coupler compatible with a skid steer and horizontal pin attachments, providing versatility across various tasks.

Drivetrain

• Traction and Control: Equipped with 4-wheel drive and open front and rear axles for optimal maneuverability.
• Transmission: This model features a hydrostatic transmission coupled with a single joystick incorporating electronic speed shift control (F/N/R switch) and proportional loader control for precise handling.
• Safety and Durability: Outboard planetary axles, hydraulic wet disc brakes, and a mechanical parking brake ensure safe and reliable operation.

Hydraulics

• Efficiency: A 3-spool loader control valve and 3 diagnostic quick couplers facilitate easy maintenance and troubleshooting.
• Customizable Control: Adjustable electro-hydraulic (EH) loader controls with smooth, moderate, and aggressive settings for lift and tilt responsiveness, including features like Return to Dig and a compatible hydraulic skid steer coupler.
• Convenience: Features include connecting under-pressure connectors, a remote hydraulic oil drain, and aux. Hydraulic drain line coupling and an auxiliary flow of 22.5 gpm @ 3,336 psi (85 l/min @ 230 bar) for enhanced hydraulic tool performance.

Other

• Protection and Safety: Front and rear fenders, a comprehensive lighting system including front driving headlights, rear floodlights, stop tail lights, backup lights, and front and rear turn signals/flash for visibility.
• Convenience Features: To enhance functionality and ease of use, it includes a drawbar pin, articulation locking pin, tie-down and lift-up points at the front and rear, a backup alarm, toolbox, rotating beacon, radio wiring, bucket position indicator, and a front electrical socket for powered attachments.

Operator Environment

• Creep Speed: This allows precise control at slow speeds, adjustable from 0 to 3.1 mph (5 kph), ideal for detailed work.
• TeleScop Adjustable Steering Column: Available on Deluxe Cab for ergonomic comfort and ease of operation.
• Canopy Cab: An alternative to the enclosed cab for working in different climates.
• Axle Options: Limited slip differential for front and rear axles for improved traction and a 100% lock option for maximum grip in challenging conditions.
• Coupler: Horizontal pin coupler for easy attachment changes.
• Air Conditioning: For enhanced operator comfort in warmer climates.
• Entertainment: Radio with antenna and speakers for on-the-job entertainment and communication.

Loader

• High Flow Hydraulics: Optional high flow of max. 34.3 gpm at 2500 RPM and 2,901 psi (max. 130 L/min at 2500 RPM and 20,000 kPa) for attachments requiring high hydraulic flow.
• Buckets: Various bucket options, including general-purpose standard, general-purpose light material, and standard forks, are available for different material handling needs.
• Auto Ride Control: Minimizes loader arm bounce during travel, improving load retention.
• Cold Weather Package: Includes a block heater, two 680 CCA batteries, and low-temperature Hytran oil for reliable cold-weather operation.

Tires

• A selection of tires to suit various conditions and applications, including:
• 14.5-20MPT-04 MITAS
• 365/80 R20 SPT9 L2(DL.)
• 365/70 R18 SPT9 L2 DUNL – Standard
• 12.5-20 10PRMPT04TBL MITAS
• 365/80 R20 EM MITAS
• 365/70 R18 EM MITAS
• 550/45 R22.5 Flotation Tire for low ground pressure applications
• 360/80 Nokian Tri 2 Snow for winter conditions

Other

• CASE SiteWatch Telematics: Offers advanced monitoring, management, and data analytics capabilities.
• LED Work Lights: This enhanced lighting system includes 2 front and 2 rear LED work lights, which improve visibility and safety during early morning, late evening, or low-light conditions.

Tier 4 Final

HPCR, EXTERNAL CEGR

Why this solution: This Tier 4 Final solution requires no new actions or upkeep so that operators can focus entirely on the work at hand.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. The Diesel Oxidation Catalyst (DOC) manages the additional particulate matter. The DOC converts emissions into neutral gasses and automatically burns it off using heat from the exhaust.

What this means to you: This solution is a maintenance-free emissions solution, requiring no costly DPF (Diesel Particulate Filter) to replace and no new fluids to add. Powered by an FPT engine.

Base & Extended Warranty Coverage

1 Year / Unlimited Hour Full Coverage Base Warranty

Engine Warranty – Warrants all internal, lubricated parts captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover, flywheel housing, turbocharger, engine oil cooler, and water pump.

Purchased Protection: The Purchased Protection Plan is an extension of the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help determine and customize the plan that fits your needs. Plans are available at any month/hour amount on CASE Compact Wheel Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
