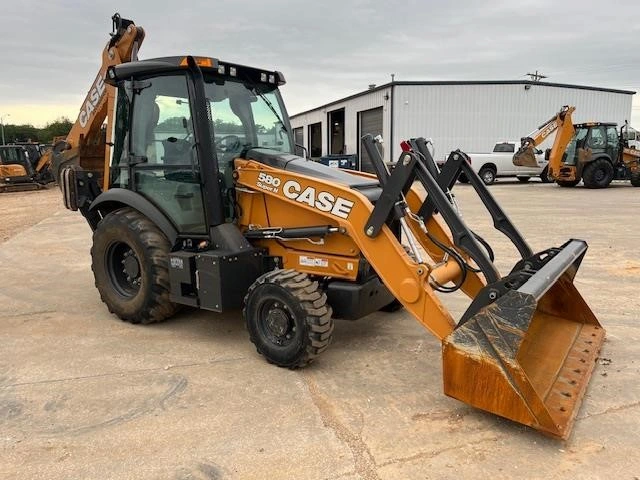

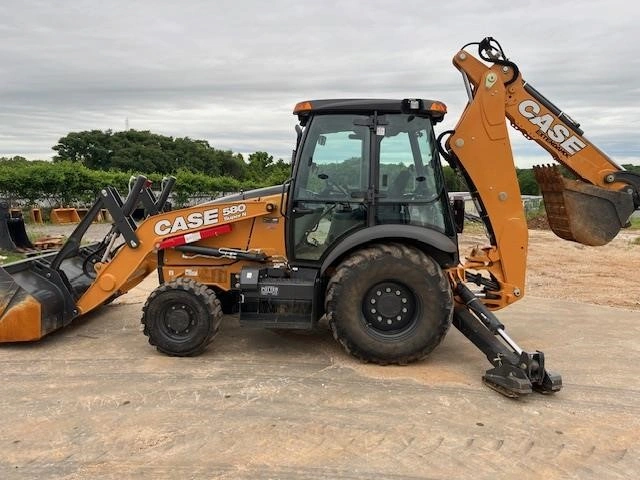

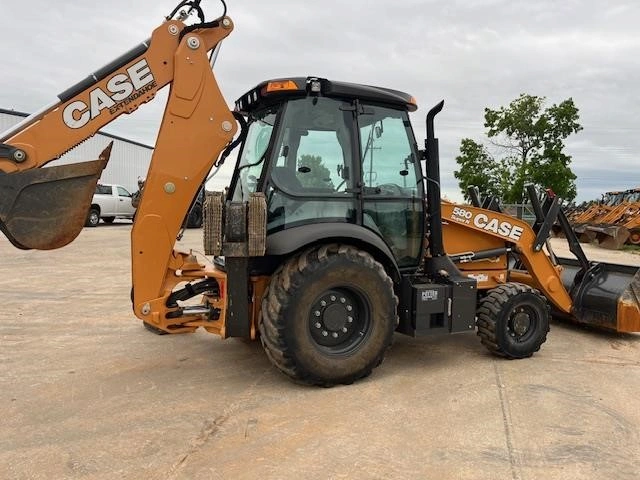

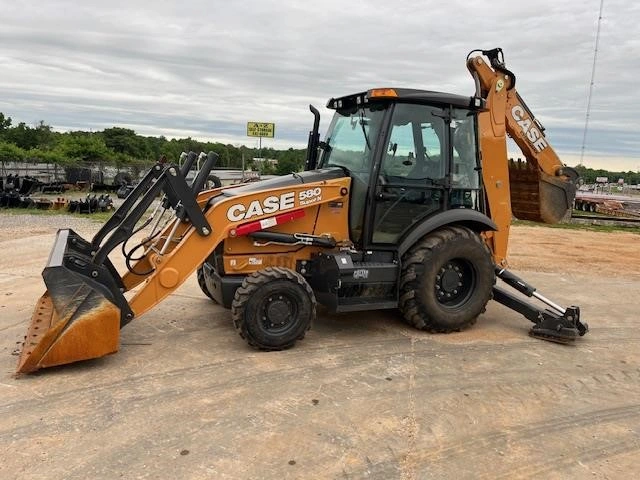

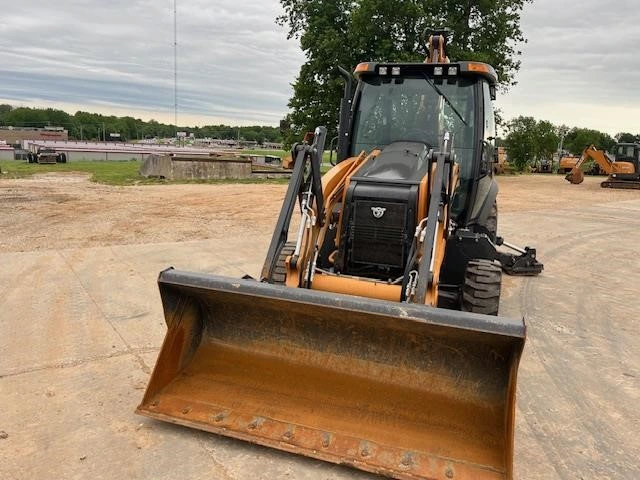

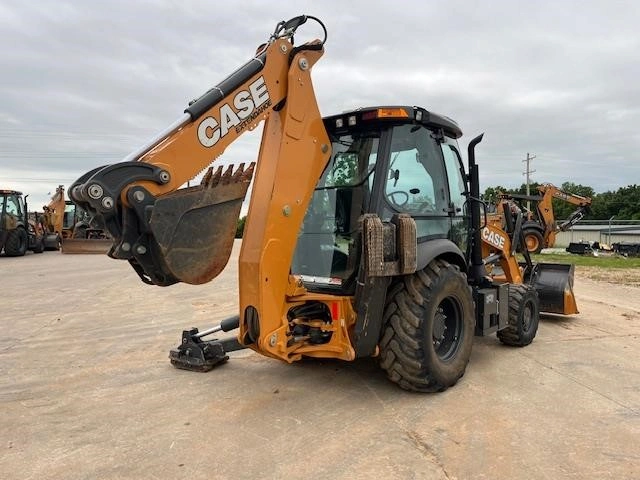

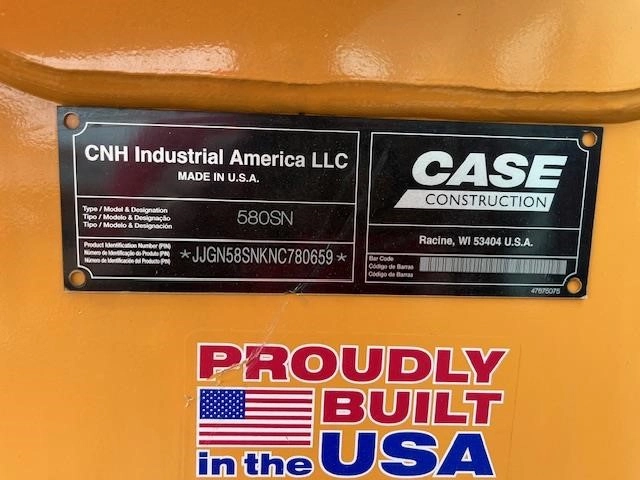

2023 CASE 580SN Super N Construction King Backhoe Loader – EQ0036918

Purpose-Built Performance

The CASE 580 Super N is designed to excel in versatility, speed, and precision, ensuring you can tackle any task with confidence:

• PowerBoost: Instant hydraulic power increases at the push of a button for challenging conditions.
• PowerLift: Industry-leading 4,000 lb. lifting capacity for heavy-duty operations.
• ProControl System: Precise control for raising, setting, digging, and dumping operations.
• Attachment Versatility: Universal coupler option and factory-installed thumb for various tasks.
• PowerDrive Transmission: Optional 6-speed transmission with automatic engagement for improved acceleration and fuel efficiency.
• Comfort Steer: Optional feature for quicker stockpiling and truck loading operations.

Common-Sense Fuel Efficiency

Maximize your machine’s efficiency without sacrificing performance:

• SCR Tier 4 Final Solution: Optimal fuel usage while maintaining peak performance without regeneration downtime.
• ECO Mode: Standard feature for fuel efficiency in both backhoe and loader operations.
• Auto-Idle and Auto-Off: Reduce unnecessary fuel consumption and wear with adjustable timing for customized operation.

CASE Comfort & Visibility

Designed with the operator in mind, the 580 Super N provides an environment that promotes productivity and comfort:

• Enhanced Lighting: Optional LED lights for better visibility with less power consumption.
• Superior Visibility: Cab designs with extensive glass panels and opening rear-quarter windows.
• Premium Seating: More adjustments, built-in heater, and hand-stitched design for ultimate comfort.
• Intuitive Controls: Fingertip controls for loader and backhoe, including joystick FNR rocker, self-leveling, and more.

Simple Serviceability

Maintaining your 580 Super N is straightforward, ensuring you maximize uptime and ROI:

• Convenient Checkpoints: Routine maintenance points are easily accessible from the ground.
• Service Access: Swing-out coolers and a flip-up hood for easy access to vital systems.
• Extendahoe® Wear Pads: Externally adjustable for quick maintenance and reduced slop.
• SiteWatch Telematics: 3-year advanced data subscription for monitoring machine hours and performance.

The CASE 580 Super N Construction King redefines what it means to be “super” in the construction industry, providing a machine that’s not only built to perform but also designed to excel in efficiency, comfort, and serviceability.

OPERATOR ENVIRONMENT:

• ROPS/FOPS certified protective canopy for maximum safety.
• Anti-vandalism cover for the dashboard applies to the canopy only.
• Extensions on the rear fenders for added protection.
• Convenient coat hook with garment strap.
• Interior rearview convex mirror for enhanced visibility.
• Comfortable mechanical suspension seat with 180° swivel in vinyl.
• Safety-first with a 3 in (76 mm) retractable seat belt.
• Cup holder and storage tray mounted on the left-hand fender for personal items.
• Additional storage compartment with a lid on the right-hand side.
• Tilt-steering wheel provided on cab models for ergonomic control.

Instrumentation and Controls:

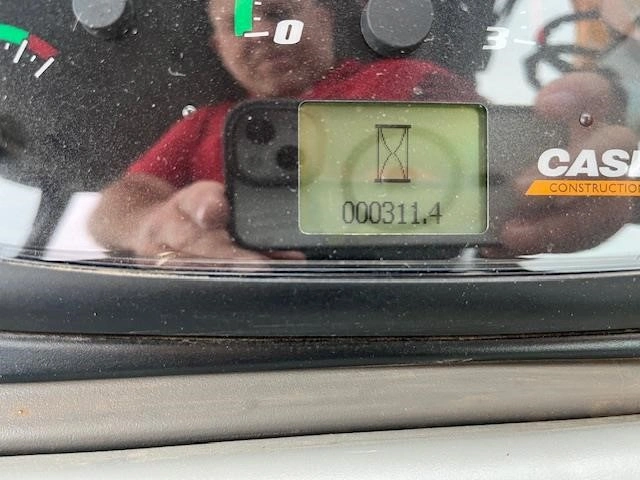

• Comprehensive gauges for engine water temperature, converter oil temperature, fuel level, tachometer/hour meter, and DEF level.
• Warning lights for air cleaner restriction, alternator status, A/C high pressure, cold start indication, low engine oil pressure, hydraulic oil filter bypass, parking brake engagement, low fuel, water in fuel, and low DEF.
• Audible alarms are equipped with diagnostics for coolant temperature, engine oil pressure, parking brake engagement, converter oil temperature, shuttle engagement/seat position, backup alarm, and low DEF.
• Dual switched horn for the front and rear for effective signaling.

ENGINE:

• FPT F5BFL413B diesel engine with Selective Catalytic Reduction (SCR) for Tier 4 Final compliance.
• Comprehensive filtration and cooling systems include a full-flow engine oil filter, aspirated air cleaner, fuel filter with water trap, and radiator with de-aeration bottle.
• Cold Weather Starting Aid features dual 12-volt batteries, glow plugs, an engine block heater, and a heated CCV hose for reliable operation in low temperatures.
• High-Pressure Common Rail (HPCR) fuel injection and electronic throttle controls (foot and rotary hand) for precise engine management.

DRIVETRAIN:

• Power Shuttle 4F-4R synchromesh transmission for smooth gear shifts.
• Front axle options include 2WD with 11.0 L x 16.0 tires or 4WD mechanically driven front axle with 12.0 L x 16.5 tires, including a drive shaft guard.
• Heavy-duty outboard planetary drive on the rear axle, compatible with 19.5 L x 24.0 tires.
• On-the-go electric 4WD control, electric F/R shuttle control, and push-button electric differential lock for enhanced traction and maneuverability.

HYDRAULICS:

• Remote hydraulic test ports are accessible at ground level for easy testing and troubleshooting.
• A robust hydraulic system featuring a 41 gpm pump at 3,000 psi and a heavy-duty hydraulic oil cooler to maintain optimal operating temperatures.

LOADER:

• Bucket position indicator to aid in precise operations.
• Lifting lugs and tie-downs on the standard bucket for secure transportation.
• Single lever control with self-leveling and return-to-dig functionalities for efficient loading operations.

BACKHOE:

• Over-center design with a fabricated “S” boom for stability and reach.
• ProControl System for precise control and reduced rebound.
• CASE mechanical coupler for quick attachment changes.
• Cleated dirt stabilizer pads for secure positioning during operation.

ADDITIONAL FEATURES:

• Forward-tilting engine hood and replaceable molded front bumpers for easy access and maintenance.
• Comprehensive lighting includes signal lights for the cab and canopy and adjustable halogen work lights for optimal visibility.
• Safety features include a master disconnect switch, remote jump-start terminals, hydrostatic steering, and a backup alarm.
• Lockable DEF, fuel cover for security, and a bolt-on, step-mounted toolbox for convenience.

TELEMATICS AND WARRANTY:

• CASE SiteWatch™ Telematics with hardware and a 3-year advanced data subscription for monitoring and managing machine performance.
• A comprehensive warranty package including a 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty and a 2-Year/2,000-Hour Extended Engine Warranty.

Loader Dimensions

Dimension	Long Lip Bucket	4 IN 1® Bucket
Overall Operating Height – Fully Raised	13 ft 9 in (4.18 m)	13 ft 8 in (4.16 m)
Bucket Hinge Pin Fully Raised	11 ft 3 in (3.42 m)	11 ft 3 in (3.42 m)
Bucket Hinge Pin at SAE Carry	13.6 in (345 mm)	13.6 in (345 mm)
Dump Angle at Full Height	47°	47°
Dump Clearance at Full Height, 45° Dump – Bucket	8 ft 10 in (2.69 m)	8 ft 11 in (2.71 m)
Dump Clearance at Full Height, 45° Dump – Clam Open	—	9 ft 8 in (2.96 m)
Dump Reach at Full Height, 45° Dump – Bucket	31.5 in (801 mm)	29.1 in (738 mm)
Dump Reach at Full Height, 45° Dump – Clam Open	—	15.3 in (388 mm)
Bucket Rollback at Groundline	42°	42°
Bucket Rollback at SAE Carry	42°	42°
Bucket Rollback at Full Height	Adjustable	Adjustable
Digging Depth Below Grade – Bucket Flat	6.1 in (155 mm)	4.8 in (122 mm)
Digging Depth Below Grade – Clam Open	—	4.1 in (103 mm)
Reach from Front Axle Centerline – Bucket on Ground	6 ft 10 in (2.07 m)	6 ft 8 in (2.03 m)
Lift Capacity to Full Height	7,044 lb (3,195 kg)	6,703 lb (3,040 kg)
Breakout Force – Lift Cylinders	9,833 lb (4,460 daN)	9,610 lb (4,359 daN)
Breakout Force – Dump Cylinders	10,947 lb (4,965 daN)	11,658 lb (5,288 daN)
Bucket Cutting Edge Width	82.5 in (2.09 m)	82.0 in (2.08 m)
Maximum Grading Angle	114°	114°
Maximum Clam Opening	—	38.3 in (972 mm)
Moldboard Height	—	36.8 in (934 mm)
Raising Time to Full Height	2.6/3.2 sec	2.6/3.2 sec
Bucket Dumping Time	0.8/1.2 sec	0.8/1.2 sec
Lowering Time – Power Down	1.9/2.1 sec	1.9/2.1 sec
Lowering Time – Return-to-Dig	2.5/2.2 sec	2.5/2.2 sec
Clam – Open Time	—	1.1 sec
Clam – Close Time	—	1.1 sec

Dimensions for 2WD and 4WD Configurations

Dimension	2WD with 17.5 L x 24.0 Rear Tires	4WD with 19.5 L x 24.0 Tires
Overall Transport Length
Long Lip Bucket with Quick Coupler	23 ft 5 in (7.14 m)	23 ft 4 in (7.10 m)
4 IN 1® Bucket with Quick Coupler	23 ft 3 in (7.07 m)	23 ft 1 in (7.04 m)
Long Lip Bucket with Straight Links	23 ft 6 in (7.15 m)	23 ft 4 in (7.12 m)
4 IN 1® Bucket with Straight Links	23 ft 3 in (7.09 m)	23 ft 2 in (7.06 m)
Overall Transport Width	7 ft 2 in (2.17 m)	7 ft 2 in (2.17 m)
Height to Top of Canopy	8 ft 8 in (2.64 m)	8 ft 9 in (2.66 m)
Height to Top of Cab	8 ft 9 in (2.68 m)	8 ft 11 in (2.72 m)
Height to Top of Exhaust Stack	8 ft 5 in (2.58 m)	8 ft 7 in (2.62 m)
Transport Height	10 ft 10 in (3.29 m)	11 ft 1 in (3.37 m)
Ground Clearance at Backhoe Frame	12 in (304 mm)	15.0 in (381 mm)
Angle of Departure	15.3°	19.0°
Front Wheel Tread	67.5 in (1.72 m)	67.5 in (1.72 m)
Rear Wheel Tread (19.5 L x 24.0)	—	61.2 in (1.55 m)
Width Over Tires (11.0 L x 16.0)	79.3 in (2.02 m)	79.3 in (2.02 m)
Wheelbase (19.5 L x 24.0)	84.0 in (2.13 m)	84.5 in (2.15 m)
