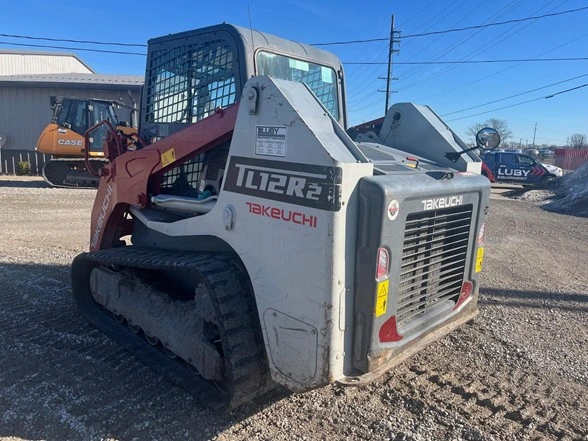

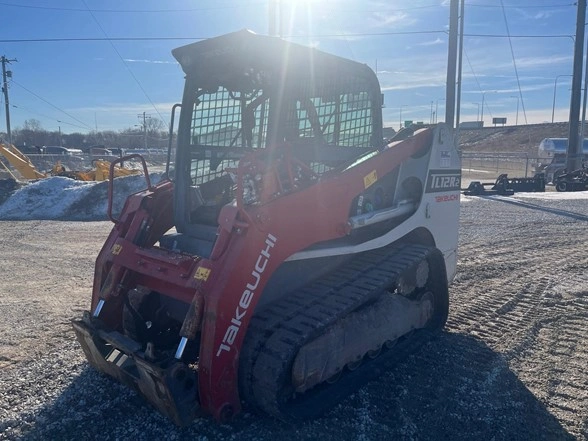

2022 Takeuchi TL12R2-CR Compact Track Loader – EQ0026092
$64,595.00
Request more information:
2022 Takeuchi TL12R2-CR radial lift loader Track Loader for Sale in Fairmont City, IL at lubyequipment.com. Cab, HVAC, Pilot Controls, Standard Flow Hydraulics, Hydraulic Coupler.
| BRAND |
Takeuchi |
|---|---|
| MODEL |
TL12R2-CR |
| CONDITION |
Used |
| YEAR |
2022 |
| HOURS |
1,822 |
| HORSEPOWER |
111.3 hp |
| ROPS |
Enclosed |
| OPERATING WEIGHT |
13,190 lb |
| PRODUCT |
Track Loader |
| LOCATION |
Fairmont City, IL |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of Fairmont City, IL and the surrounding areas that has been in business for over 50 years. We have the knowledge and experience to give you peace of mind when purchasing used equipment. Always Transparent, Globally Trusted. Call us today!
DOWNLOAD BROCHURE: Takeuchi TL12R2 Compact Track Loader
2022 Takeuchi TL12R2-CR Track Loader for Sale
Cab, HVAC, Pilot Controls, Standard Flow Hydraulics, Hydraulic Coupler.
The 2022 TL12R2, available for sale at Luby Equipment, features a radial lift loader arrangement and sets a new benchmark for compact track loaders by delivering one of the most capable and innovative machines on the market. Its cab has been completely redesigned and enlarged, now boasting a smooth, low-effort overhead door design for easier entry and exit. Additionally, the quiet ride track design with flotation pads reduces vibration, lowers noise levels, and enhances overall ride quality.
TL12R2 Features
| ENGINE |
|---|
| EPA Final Tier 4 Emission Compliant |
| Turbocharged and Intercooled |
| DOC+DPF+SCR Exhaust After Treatment |
| Automatic Fuel Bleed System |
| Active Power Control Power Management System |
| Working Modes – Power and ECO |
| Dual Element Air Filter |
| High Capacity Radiator, Hydraulic Oil Cooler and Intercooler Mounted Side-by-Side on Swing Out Frame |
| ELECTRICAL |

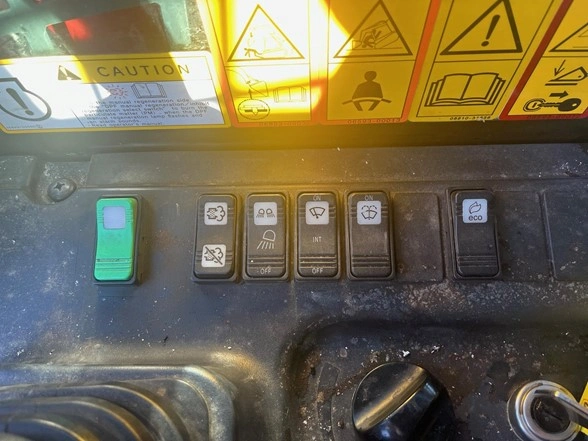

| Sealed Rocker Switches |
| 12 volt System with 80 amp Alternator |
| LED: Two Front and Two Rear |
| Engine Preheat |
| Hour Meter |
| Back-up Alarm |
| Horn |

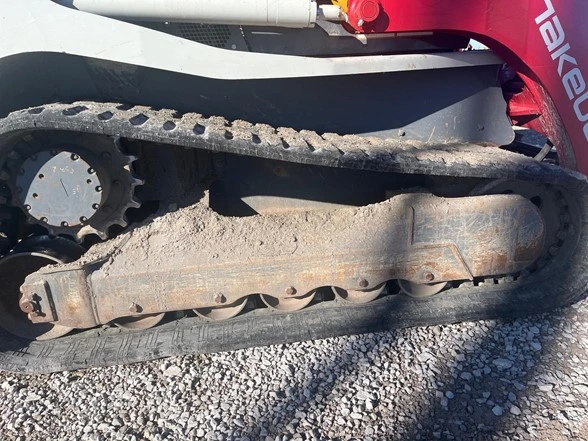

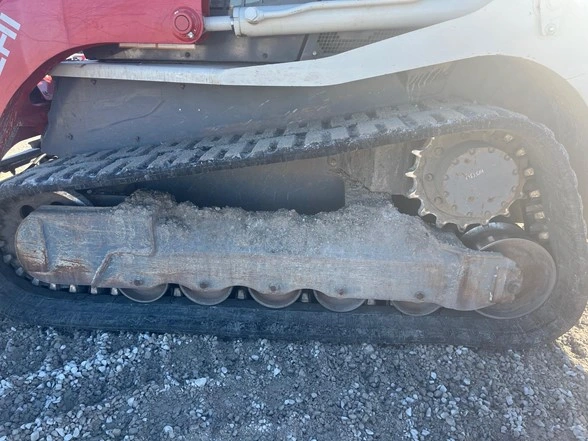

| UNDERCARRIAGE AND FRAME |

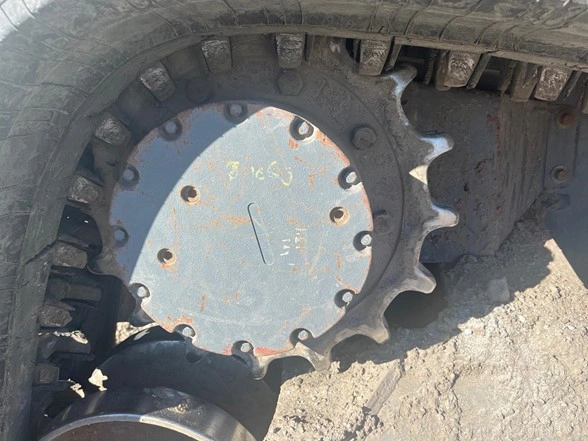

| Double Reduction Planetary Drives |
| Permanently Sealed Track Rollers with Metal Face Seals |
| Fully Welded Frame with Integrated Cross Members |
| 2 Speed Travel |

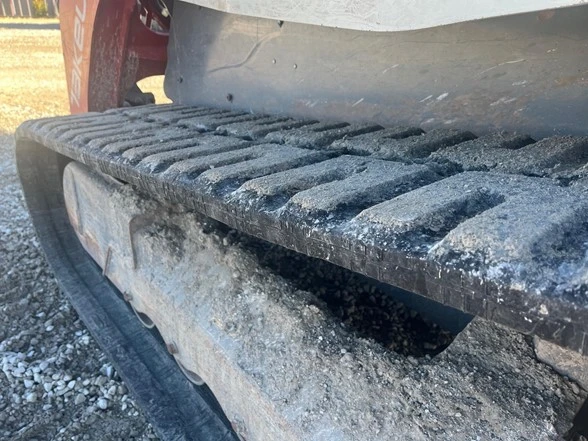

| 17.7″ Rubber Track |
| Grease Type Track Adjuster |
| Front and Rear Tie-Down Points and Lift Points |
| Rear Bumper Integrated into Frame |
| OPERATOR’S STATION |

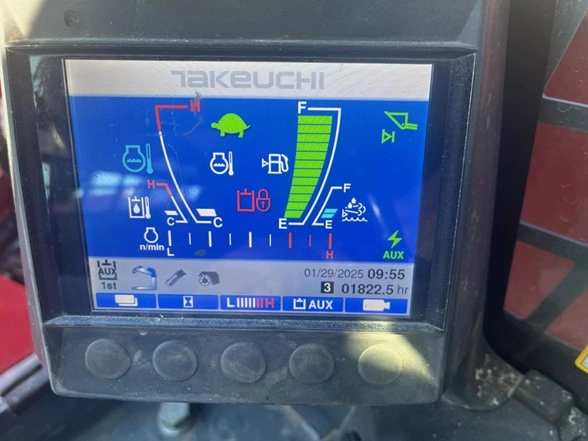

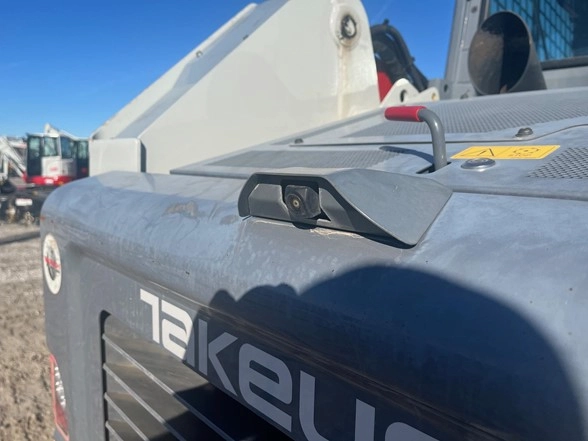

| 5.7″ Color Multi-Informational Display with Rear Camera |
| Tilt-up Operator’s Station |
| Deluxe High Back Suspension Seat |
| Rear Pivoting Lap Bar with Arm Rest |
| ROPS / FOPS Structure |
| Dial Throttle Control |
| Retractable 2″ Seat Belt |
| Foot Throttle |
| Pressurized Cab with Roll-up Door, A/C, Heat, Defrost and Front Wiper, and AM / FM / MP3 Radio with NOAA Weatherband (optional) |
| Retractable 3″ Seat Belt (optional) |
| 3 Point Retractable Seat Belt (optional) |
| Polycarbonate Door and Top Guard (High Flow Only) |
| HYDRAULIC & WORKING EQUIPMENT |
| Hydraulic Pilot Controls |
| Boom Float with Detent |
| Cushioned Boom Cylinders |
| Proportional Auxiliary Controls with Detent |
| Hydraulic Self Leveling |

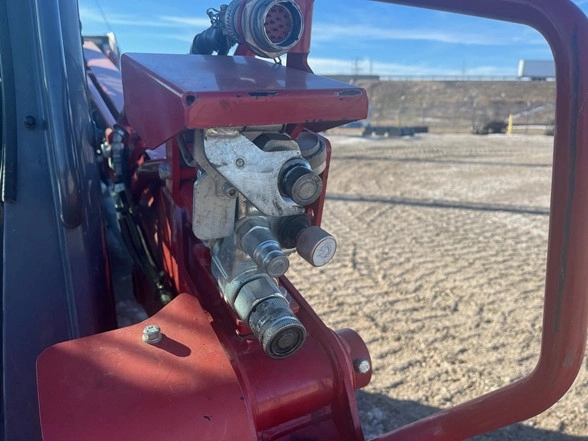

| Pressure Relieving Flat Faced Coupler Body |
| High Capacity Steel Hydraulic Tank |
| 14-Pin Connector with Push Button Control |

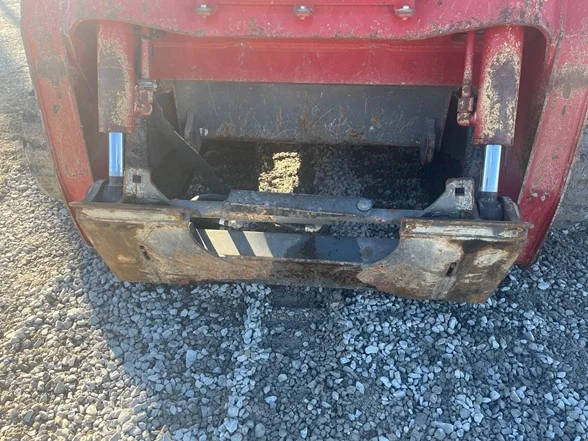

| Mechanical Quick Coupler |
| Hydraulic Quick Coupler Cab – Standard Equipment |
| Hydraulic Quick Coupler Canopy – Optional |
| Primary Flow Auxiliary Hydraulics 23.2 gpm |
| High Flow Auxiliary Hydraulics 40.4 gpm (optional) |
| Secondary Auxiliary Circuit 23.2 gpm (optional with High Flow only) |
| Ride Control (optional) |
| Pattern Change Valve (ISO or H) (optional) |
TL12R2 Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight – Canopy | 12,300 lb | (5,580 kg) |
| Operating Weight – Cab | 12,590 lb | (5,710 kg) |
| Tipping Load | 8,629 lb | (3,915 kg) |
| Rated Operating Capacity (ISO 14397-1) @35%* | 2,975 lb | (1,349 kg) |
| Operating Capacity w/ Opt Counterweight | 3,291 lb | (1,493 kg) |
| Operating Load @ 50% of Tip Load | 4,315 lb | (1,957 kg) |
| Bucket Breakout Force | 8,210 lb | (3,722 kg) |
| Lift Arm Breakout Force | 8,075 lb | (3,663 kg) |
| Traction Force | 14,010 lb | (6,353 kg) |
| Ground Pressure – Canopy | 4.58 psi | (31.6 kPa) |
| Ground Pressure – Cab | 4.68 psi | (32.3 kPa) |
| Travel Speed – Low | 5.0 mph | (8.1 km/hr) |
| Travel Speed – High | 7.3 mph | (11.8 km/hr) |
| *Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load. | ||
| ENGINE | ||
| Make / Model | Kubota / V3800TIF4B-Turbo Intercooled | |
| Engine Displacement | 230 cu in | (3.8 L) |
| Horsepower @ 2,400 rpm | 111.3 hp | (83.0 kW) |
| Maximum Torque @ 1,500 rpm | 276 ft-lb | (374 Nm) |
| HYDRAULIC SYSTEM | ||
| Auxiliary Flow – Primary Circuit | 23.2 gpm | (88.0 Lpm) |
| Auxiliary Flow – High Flow (optional) | 40.4 gpm | (153.0 Lpm) |
| Auxiliary Flow – Secondary Circuit (optional) | 23.2 gpm | (88.0 Lpm) |
| Hydraulic System Pressure | 3,481 psi | (24.0 MPa) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 13.9 qt | (13.2 L) |
| Cooling System | 19.0 qt | (18.0 L) |
| Fuel Tank Capacity | 31.6 gal | (119.5 L) |
| DEF Fluid Tank Capacity | 4.8 gal | (18.0 L) |
| Fuel Consumption (65% of Full Load) | 3.8 gal/hr | (14.4 L /hr) |
| Hydraulic Reservoir Capacity | 13.2 gal | (50.0 L) |
| Hydraulic System Capacity | 20.9 gal | (79.0 L) |
TL12R2 Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Max. Lift Height to Bucket Pin | 10 ft 6.0 in | (3,200 mm) |
| Dump Height Fully Raised | 7 ft 10.5 in | (2,400 mm) |
| Dump Reach Fully Raised | 3 ft 1.8 in | (960 mm) |
| Dump Angle | 42° | |
| Rollback Angle | 30° | |
| Track Ground Contact Length | 5 ft 7.5 in | (1,716 mm) |
| Machine Length | 10 ft 6.2 in | (3,205 mm) |
| Transport Length | 13 ft 3.3 in | (4,045 mm) |
| Transport Height | 7 ft 7.0 in | (2,311 mm) |
| Departure Angle | 30° | |
| Clearance Circle with Bucket | 8 ft 4.6 in | (2,555 mm) |
| Clearance Circle without Bucket | 5 ft 4.4 in | (1,635 mm) |
| Clearance Circle Rear | 6 ft 0 in | (1,829 mm) |
| Track Width | 17.7 in | (450 mm) |
| Ground Clearance | 12.5 in | (320 mm) |
| Overall Width without Bucket | 6 ft 5.2 in | (1,960 mm) |
Additional information
| Weight | 2000 lbs |
|---|---|
| Condition | Used |
| Price | $64,595 |
| Hours | 1,822 |
| Location | Fairmont City, IL |
