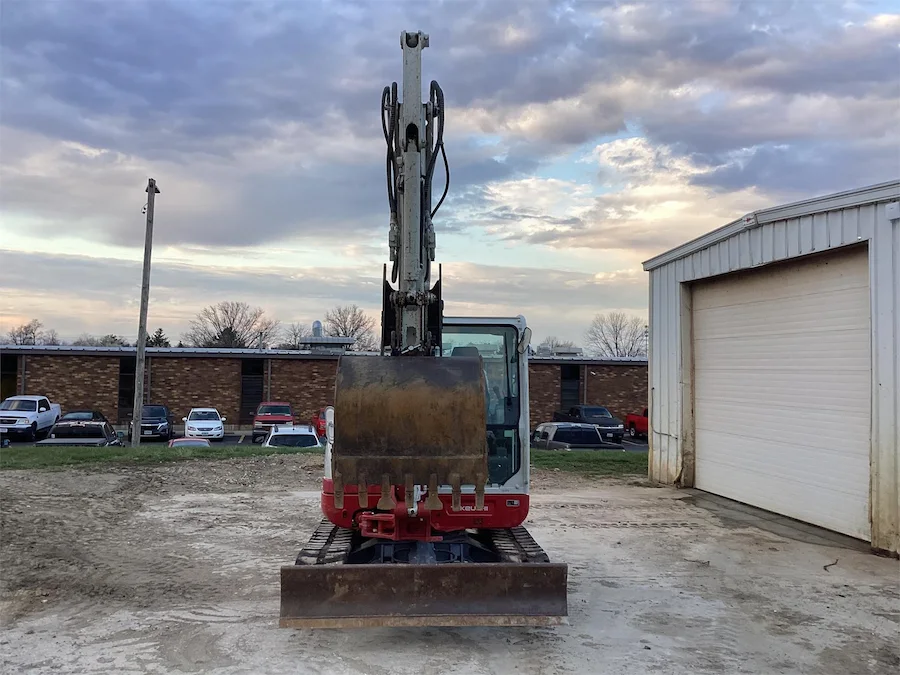

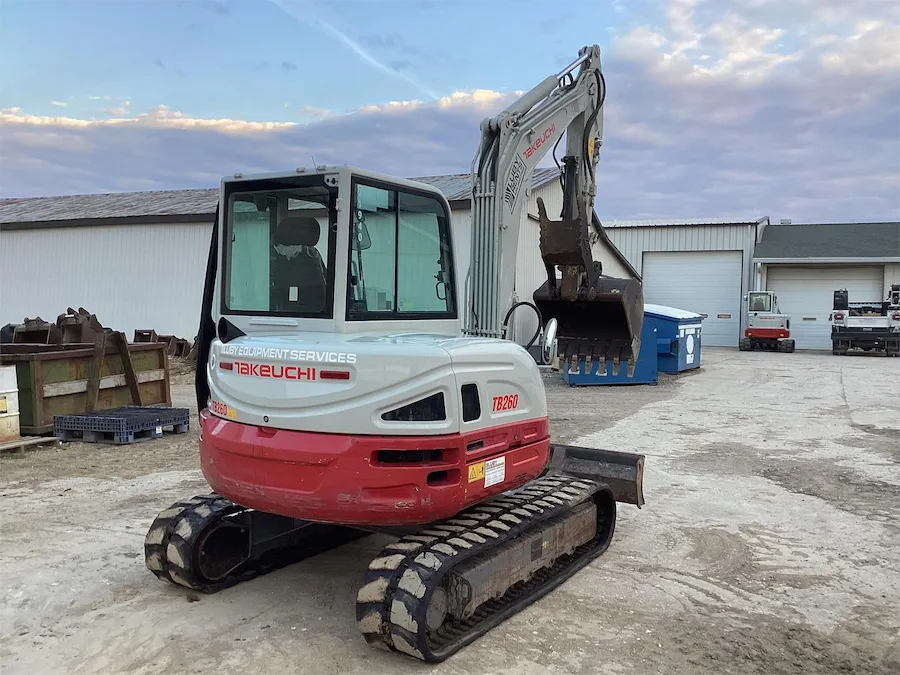

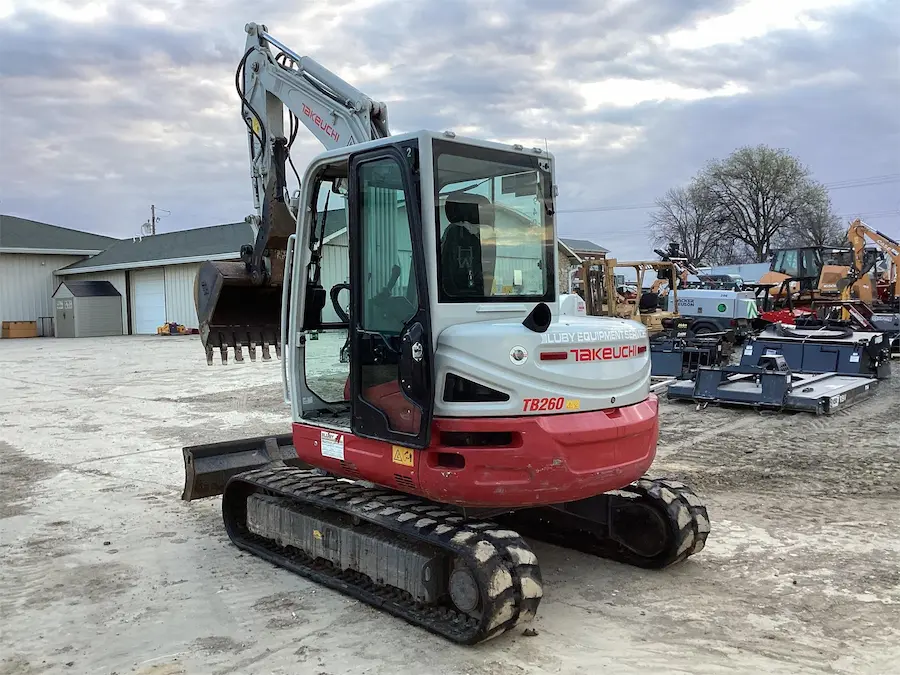

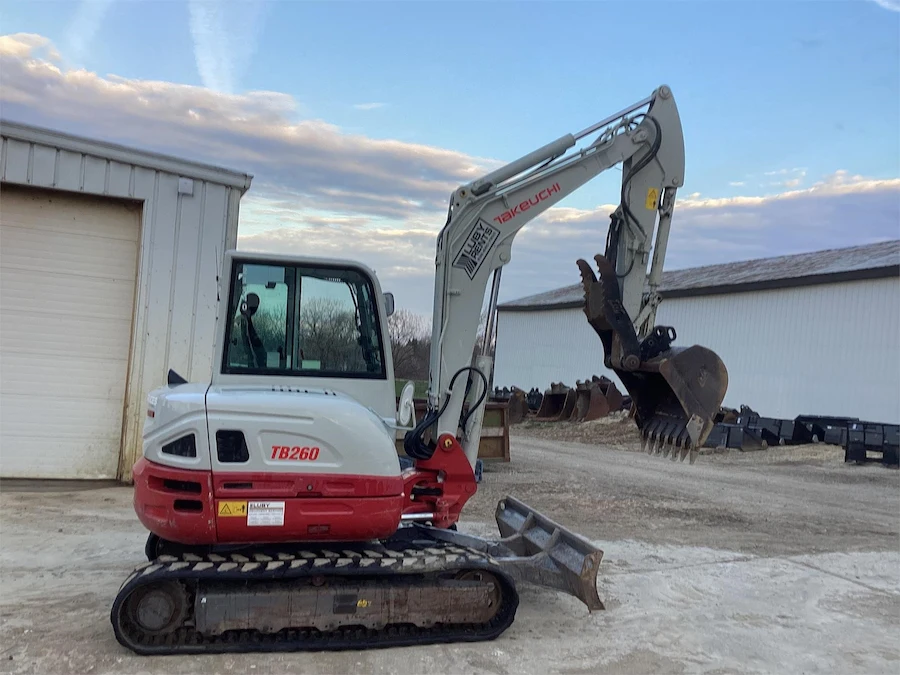

2021 Takeuchi TB260 Compact Excavator – 126105159

Engine and Efficiency:

• U.S. EPA Final Tier 4 Compliant Engine: This turbocharged engine meets stringent emission standards with its DOC+DPF exhaust after-treatment system, ensuring environmentally friendly operation.
• Optimized Performance: Features like the automatic fuel bleed system, dual element air filter, and various working modes (Power, Eco, High Altitude) enhance efficiency and adaptability to different working conditions.

Electrical System and Operator Convenience:

• Advanced Displays: Operators have all essential information at their fingertips, whether in the canopy with the multi-informational display or the cab with a 5.7″ color display.
• Enhanced Visibility and Safety: Equipped with halogen work lights for superior illumination, a travel alarm, and a horn to ensure safety on the job site.

Hydraulic System and Versatility:

• Advanced Hydraulics: The TB260 features variable displacement and open-center hydraulics for smooth and efficient operation, complemented by cushioned boom, arm, and swing cylinders.
• Enhanced Attachment Compatibility: With proportional auxiliary controls, adjustable auxiliary flow, and multiple attachment presets, the TB260 is a platform for a wide range of hydraulic attachments.

Undercarriage and Durability:

• Robust Design: The undercarriage has triple-flanged track rollers and a high-torque planetary final drive to ensure reliability and longevity.
• Versatile Mobility: Features 2-speed travel with automatic shift and a heavy-duty dozer blade with float, enhancing its adaptability across various terrains.

Operator Comfort and Safety:

• Ergonomic Operator’s Station: A ROPS / OPG Level 1 certified canopy, deluxe high back suspension seat, and adjustable armrests ensure operator safety and comfort.
• Optional Cab Amenities: For enhanced comfort, the cab version includes air conditioning, heat, defrost, a windshield wiper and washer, a skylight with sunshade, an AM/FM/MP3 radio, and a 12v power outlet.

Takeuchi Fleet Management (TFM):

• Comprehensive Equipment Management: With a 2-year standard service, TFM offers features like remote diagnostics, utilization tracking, proactive maintenance, and cost control, enhancing operational efficiency and reducing downtime.

Designed to excel in many applications, the TB260 combines Takeuchi’s renowned durability and innovative features, making it a perfect addition to Luby Equipment’s lineup for customers seeking a compact excavator that delivers exceptional performance and versatility.

OPERATING PERFORMANCE
Operating Weight – Canopy	12,125 lb	(5,500 kg)
Operating Weight – Cab	12,645 lb	(5,735 kg)
Maximum Bucket Breakout Force	12,756 lb	(5,786 kg)
Maximum Arm Digging Force	5,755 lb	(2,610 kg)
Arm Length	5 ft 10.1 in	(1,780 mm)
Slew Speed	9.4 rpm
Traction Force	15,040 lb	(6,822 kg)
Ground Pressure – Cab (Rubber)	4.4 psi	(30.2 kPa)
Ground Pressure – Cab (Steel)	4.6 psi	(31.5 kPa)
Travel Speed – Low Range	1.7 mph	(2.8 km / hr)
Travel Speed – High Range	3.0 mph	(4.9 km/hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow	45.3 gpm	(171.5 L / min)
Auxiliary Flow – Primary Circuit	27.0 gpm	(102.2 L / min)
Auxiliary Flow – Secondary Circuit	11.6 gpm	(43.9 L / min)
Hydraulic System Pressure	3,480 psi	(24.0 MPa)
ENGINE
Make / Model	Yanmar / 4TNV86CT
Displacement	127.6 cu in	(2.1 L)
Horsepower @ 2,400 rpm	47.6 hp	(35.5 kW)
Maximum Torque @ 1,560 rpm	130.5 ft-lb	(177.0 Nm)
FLUID CAPACITIES
Engine Lubrication	7.8 qt	(7.4 L)
Cooling System	11.6 qt	(11.0 L)
Fuel Tank Capacity	21.3 gal	(81.0 L)
Fuel Consumption (65% of Full Load)	1.6 gal / hr	(6.3 L / hr)
Hydraulic Reservoir Capacity	12.9 gal	(49.0 L)
Hydraulic System Capacity	23.8 gal	(90.0 L)

MACHINE DIMENSIONS
Maximum Reach	20 ft 6.9 in	(6,270 mm)
Maximum Reach at Ground Level	20 ft 1.4 in	(6,130 mm)
Maximum Digging Depth	12 ft 9.4 in	(3,895 mm)
Maximum Vertical Digging Depth	9 ft 9.3 in	(2,980 mm)
Maximum Dig Height	19 ft 5.9 in	(5,940 mm)
Maximum Dumping Height	13 ft 10.1 in	(4,220 mm)
Front Swing Radius	7 ft 11.3 in	(2,420 mm)
Front Swing Radius with Boom Offset	6 ft 5.8 in	(1,975 mm)
Tail Swing (Slew) Radius	4 ft 3.1 in	(1,300 mm)
Transport Length	18 ft 2.5 in	(5,550 mm)
Transport Height	8 ft 5.4 in	(2,575 mm)
Ground Clearance	13.1 in	(330 mm)
Undercarriage Length	8 ft 5.3	(2,575 mm)
Track Width (Rubber)	15.7 in	(400 mm)
Undercarriage Width	6 ft 6.7 in	(2,000 mm)
