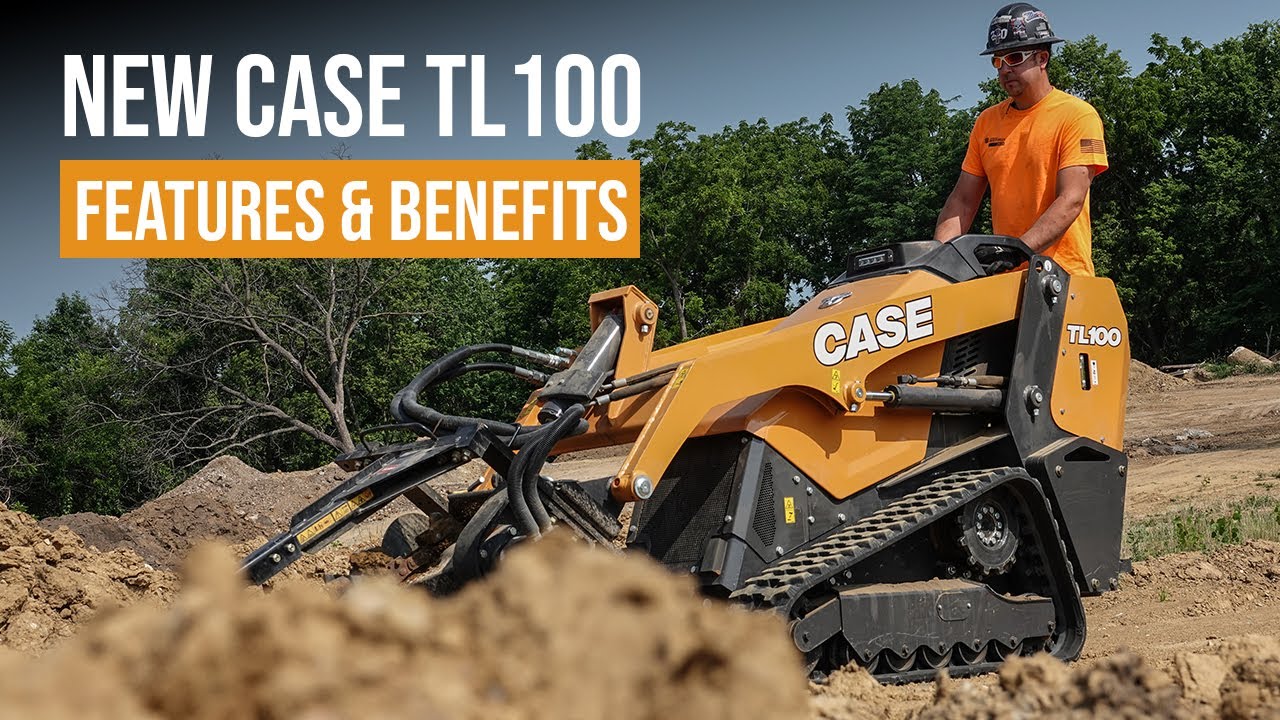

CASE TL100 Mini Track Loader
Big Power in a Small Package
The CASE TL100 Mini Track Loader proves that size doesn’t limit strength. This compact, ride-behind workhorse is designed to tackle more jobs with ease — giving you the versatility and muscle to grow your business.
Choose between a 42-inch wide track for maximum stability or a 36-inch narrow track — perfect for navigating tight spaces like backyard gates and doorways. With a 1,000 lb. rated operating capacity, the TL100 is ready to lift, load, and level with confidence.
CASE TL100 MINI TRACK LOADERS for Sale
-
2024 CASE TL100 Mini Track Loader – EQ0034050Call for Price -
2024 CASE TL100 Mini Track Loader – EQ0034078Call for Price -
2024 CASE TL100 Mini Track Loader – EQ0034080Call for Price -
2024 CASE TL100 Mini Track Loader – EQ0034100Call for Price -
2024 CASE TL100 Mini Track Loader – EQ0034102Call for Price -
2024 CASE TL100 Mini Track Loader – EQ0035244Call for Price -
2024 CASE TL100 Mini Track Loader – EQ0036952Call for Price
TL100 Specs
| Specification | Details |
|---|---|
| Engine | D1305-E4B |
| Displacement/Cylinders | 77.0 in³ (1.261 L) |
| Emissions Certification | Stage V |
| Gross Horsepower | 24.8 hp (18.5 kW) |
| Net Horsepower | 24 hp (18.0 kW) |
| Peak Torque | 59.1 lb·ft (80.1 N·m) |
| Narrow Track Performance | |
| Rated Operating Capacity (ROC) 35% | 992 lb (450 kg) |
| Rated Operating Capacity (ROC) 50% | 1,416 lb (643 kg) |
| Tipping Load | 2,833 lb (1,285 kg) |
| Wide Track Performance | |
| Rated Operating Capacity (ROC) 35% | 1,102 lb (500 kg) |
| Rated Operating Capacity (ROC) 50% | 1,574 lb (714 kg) |
| Tipping Load | 3,148 lb (1,428 kg) |
| Additional Specifications | |
| Lift Configuration | Radial |
| Max Travel Speed | 4.7 mph (7.5 kph) |
| Fuel Tank (Diesel) | 7.9 gal (30 L) |
| Standard Auxiliary Hydraulics | 13.2 gpm (50 L/min) |
| Narrow Track Operating Weight | 3,536 lb (1,604 kg) |
| Wide Track Operating Weight | 3,783 lb (1,716 kg) |
| Note | *Measured using standard equip bucket |
TL100 Standard Equipment
Operator Environment:
- Precision Control: Hydraulic pilot joystick ensures precise control over loader and ground drive functions.
- Safety Features: Includes an operator presence sensor and control lockout for loader and ground drive, enhancing operational safety.
- Comfort and Convenience: The cushioned operator platform, grab handles, key start, hand throttle, cup holder, and pocket for a cell phone are designed to ensure operator comfort and convenience during long working hours.
Engine:
- Reliable Performance: Engine tip-over shut-off and a glow plug starting aid ensure the TL100 is ready to work in any condition.
- Fuel Efficiency: Comes with a locking fuel cap, fuel filter with water separator, and an electric fuel pump for efficient and secure fuel management.
- Security: A lockable hood compartment protects vital engine components and provides peace of mind.
Drivetrain:
- Smooth Operation: Dual hydrostatic drive motors and a SAHR parking brake offer smooth and reliable operation.
- Stable Mobility: The five roller undercarriage and narrow rubber track belt ensure stability and reduced ground pressure, allowing access to sensitive surfaces without damage.
Hydraulics:
- Versatile Performance: The 3-spool loader control valve and dual-acting auxiliary hydraulics facilitate various attachments.
- Enhanced Control: Joystick features proportional auxiliary hydraulic control with a detent and a selector valve for 1-way or 2-way auxiliary hydraulic operations, providing versatility for various attachments.
Telematics:
- Intelligent Monitoring: CASE SiteWatch™ Telematics comes standard, offering hardware and a 5-year data subscription for enhanced machine management and preventive maintenance.
Loader:
- Efficient Lifting: Radial lift geometry and a CII mechanical attachment coupler ensure effective material handling and easy attachment changes.
- Additional Support: Loader lift arm support strut and additional counterweights enhance lifting capabilities and stability.
Electrical:
- Convenience and Visibility: Equipped with a 12V power plug socket, front and rear LED work lights for enhanced visibility, a master battery disconnect, and a horn for safety and operational convenience.
The CASE TL100 Mini Track Loader is not just equipped; it’s ready to tackle any challenge with its comprehensive suite of standard features designed for performance, comfort, and efficiency.
TL100 Optional Equipment
Drivetrain Enhancements:
- Adaptability: The wide rubber track belt increases stability and lowers ground pressure, making the TL100 even more versatile across various terrains and sensitive surfaces.
Hydraulic Options:
- Advanced Connectivity: A case drain attachment connection is available for running high-flow hydraulic attachments, expanding the TL100’s versatility.
- Eco-Friendly Solutions: Choose bio-hydraulic oil and lubricants for environmentally conscious operation without compromising performance.
Loader Upgrades:
- Customized Bucket Options: Enhance your material handling capabilities with a 36-inch or 42-inch dirt bucket tailored to your job requirements.
- Durability Add-Ons: Bolt-on bucket teeth and cutting edges are available to extend the lifespan of your buckets and improve performance in harsh digging conditions.
- Stability Boost: Six additional counterweights can be added to enhance the loader’s lifting capacity and overall stability, making it suitable for heavier loads.
Electrical Additions:
- Attachment Compatibility: A 14-pin electrical auxiliary connection allows for the use of advanced electrical attachments, providing greater functionality and control.
Other Options:
- Customized Support: The operator manual is available in English, Spanish, or French, ensuring comprehensive support and guidance tailored to diverse operator needs.
TL100 Dimensions
| Dimension | Measurement |
|---|---|
| Overall Height | 56.5 in (1,435 mm) |
| Overall Length (Without Bucket) | 85.6 in (2,175 mm) |
| Narrow Track Specifications | |
| Machine Width | 35.0 in (890 mm) |
| Bucket Width | 36.0 in (914 mm) |
| Wide Track Specifications | |
| Machine Width | 40.4 in (1,026 mm) |
| Bucket Width | 42.0 in (1,067 mm) |
Warranty
- Base warranty coverage: 2-Year/2,000-Hour
- Full Machine Limited Warranty
CASE SMALL ARTICULATED LOADER FEATURES
FUEL-EFFICIENT POWER
The Tier 4 Final engine delivers quiet, smooth, and efficient power — reducing ownership costs and maximizing uptime with no DEF and no regeneration required.
COMPACT TRACK DESIGN
Get optimal traction across concrete, blacktop, grass, mud, and snow.
Choose the 7-in. narrow track for easy access through tight spaces — fitting seamlessly through 36-in. doors or gates. Or opt for the 10-in. wide track for a 42-in. machine width, reducing ground pressure and boosting stability on any terrain.
PREMIUM PRODUCTIVITY FEATURES
The ISO pilot joystick controls, thumbwheel auxiliary hydraulics, and advanced instrumentation deliver an ergonomic, user-friendly experience — boosting efficiency with every move.
Plus, clear sightlines to the tracks and bucket cutting edge keep your work precise and productive.
LIFTING PERFORMANCE
The radial linkage loader arm boosts digging performance while reducing maintenance demands.
With a 7 ft. 2 in. hinge pin height, you get the reach and clearance needed to easily load dumpsters and dump trailers.
40+ ATACHMENTS
With 40+ attachment options and an industry-standard Common Industry Interface (CII), the CASE TL100 mini track loader is built for versatility.
Easily run soil conditioners, tillers, grapples, grapple buckets, trenchers, mowers, augers, and more. Designed to handle both simple and complex attachments, it features standard industry hydraulics and optional 14-pin electrical and case drain connectors—ready to tackle any job.
